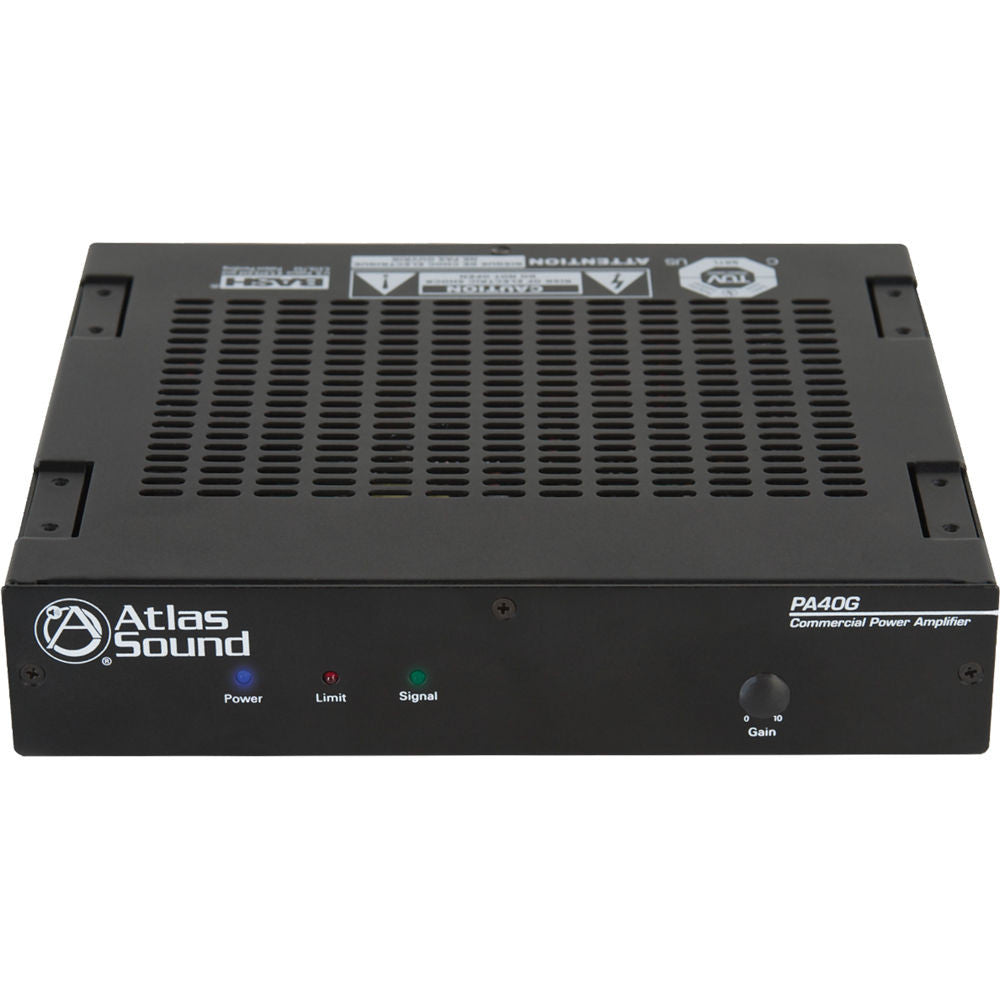

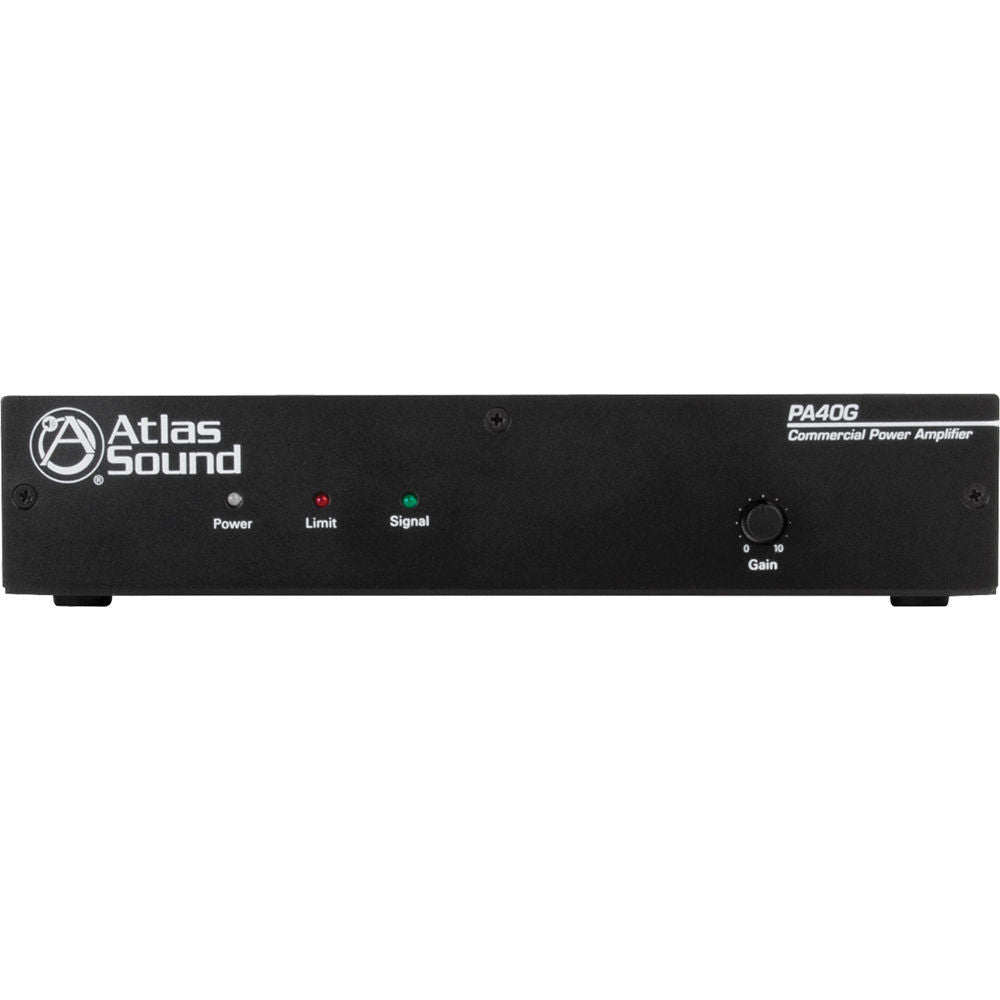

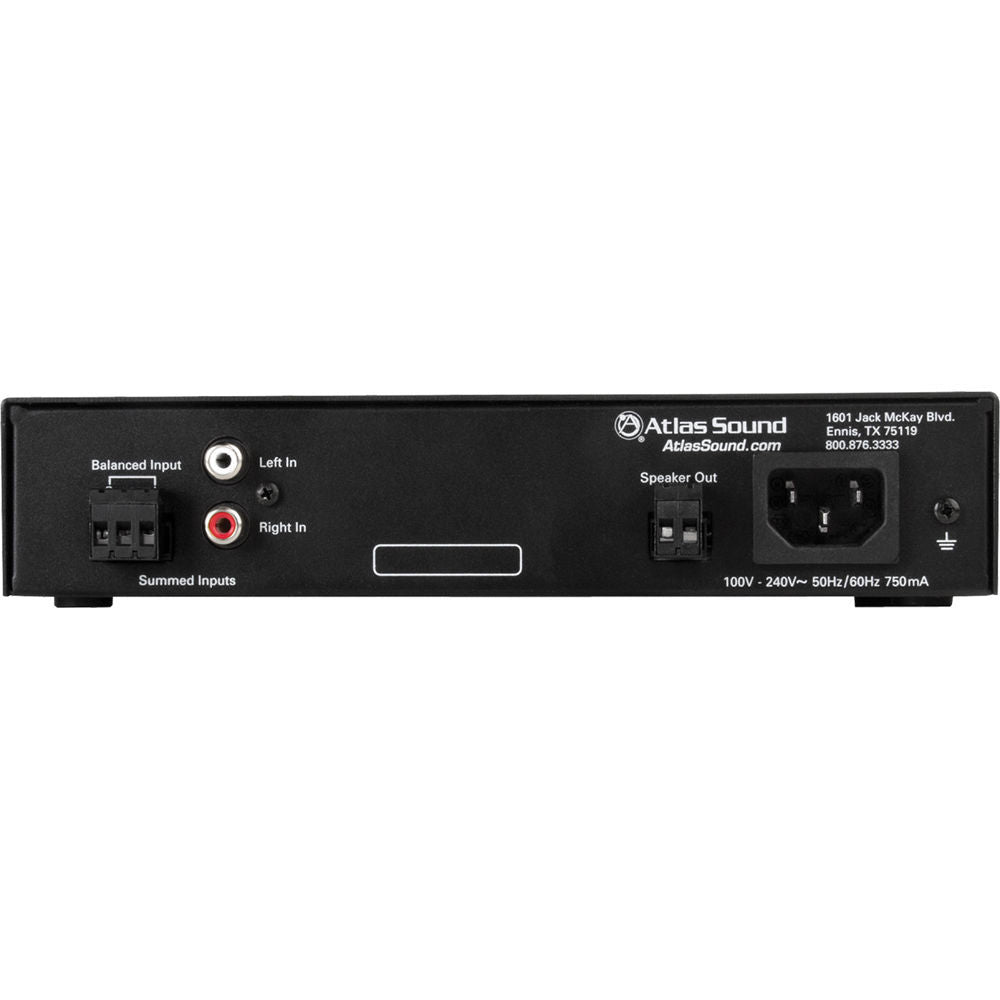

The small and compact PA40G 40W Single-Channel Power Amplifier with Global Power Supply from Atlas Sound is engineered for efficiency and reliability. The PA40G Amplifier is a suitable choice for paging or BGM (background music) systems, small to medium speech privacy systems, and any applications where distributed audio is required. It provides 40W into a 70.7/100V line and has a balanced line level input via a phoenix connector and a summing unbalanced RCA input. Output is to 70.7/100V speaker lines via a phoenix connector and additional features include status LEDs, removable level controls with security cover, and a global (100 to 240VAC) power supply.
- One balanced line level input
- One unbalanced, summing line level input
- Variable VOX mute sensitivity control for input 1
- Contact closure mute terminals
- Global power supply, 100 to 240VAC, 50/60 Hz
- Compact 1RU, 1/2 rack
UPC: 612079187072
Frequency Response | 50 Hz to 20 kHz |
Connector Type | Phoenix and RCA |
Output Power | 40 W |
Maximum Load | 70.7V: 125 Ohms 100V: 250 Ohms |
Dimensions (H x W x D) | 1.75 x 8.50 x 7.81" (44.45 x 215.90 x 198.37) |
Weight | 2.9 lb (1.3 kg) |
Packaging Info |
Package Weight | 4.35 lb |
Box Dimensions (LxWxH) | 11.732 x 10.472 x 3.701" |
In the Box
Atlas Sound PA60G 40W Single-Channel Power Amplifier with Global Power Supply
