Description
Atlas Sound AZM8 Overview
- 1Description
- 2Connectivity
- 3Web-Based Control
- 4DSP Processing
- 5Control Modules and Optional Accessories

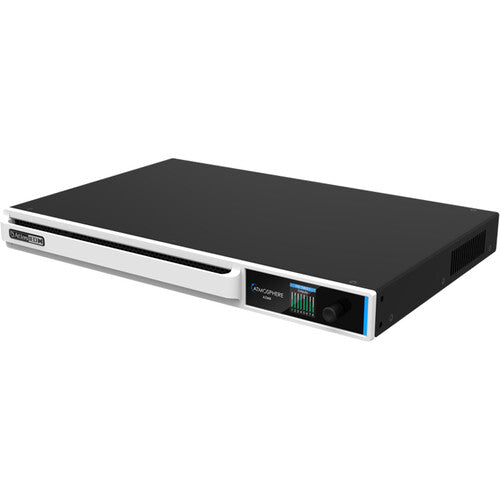

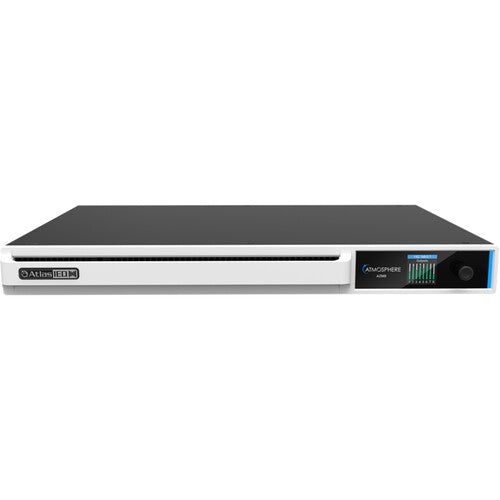

Built as the beating heart of an Atmosphere distributed audio control system, the Atmosphere AZM8 from Atlas Sound is a 10-in, 8-out, 8-zone audio processor with powerful DSP I/O processing and comprehensive Euroblock and RCA connectivity for a wide range of configurations and spaces. With features like a built-in message player, virtual wall controllers, auto-adaptive noise compensation, room combine, GPIO and high-priority alarm system connections, a bell scheduler, and many more, the AZM8 is a processing powerhouse, capable of handling any system, big or small.
The AZM8 is easy to control through its app-less, web-based programming, which can be accessed via QR code or distributed URL, and four RJ45 ports for connection of up to 32 independent control modules and four audio wall plates at distances up to 1000 ft. A dedicated network port and built-in Wi-Fi deliver plenty of flexibility, making the AZM8 ideal for numerous commercial or private spaces including restaurants and bars, hospitality suites, houses of worship, educational institutions, offices, industrial facilities, and corporate headquarters.

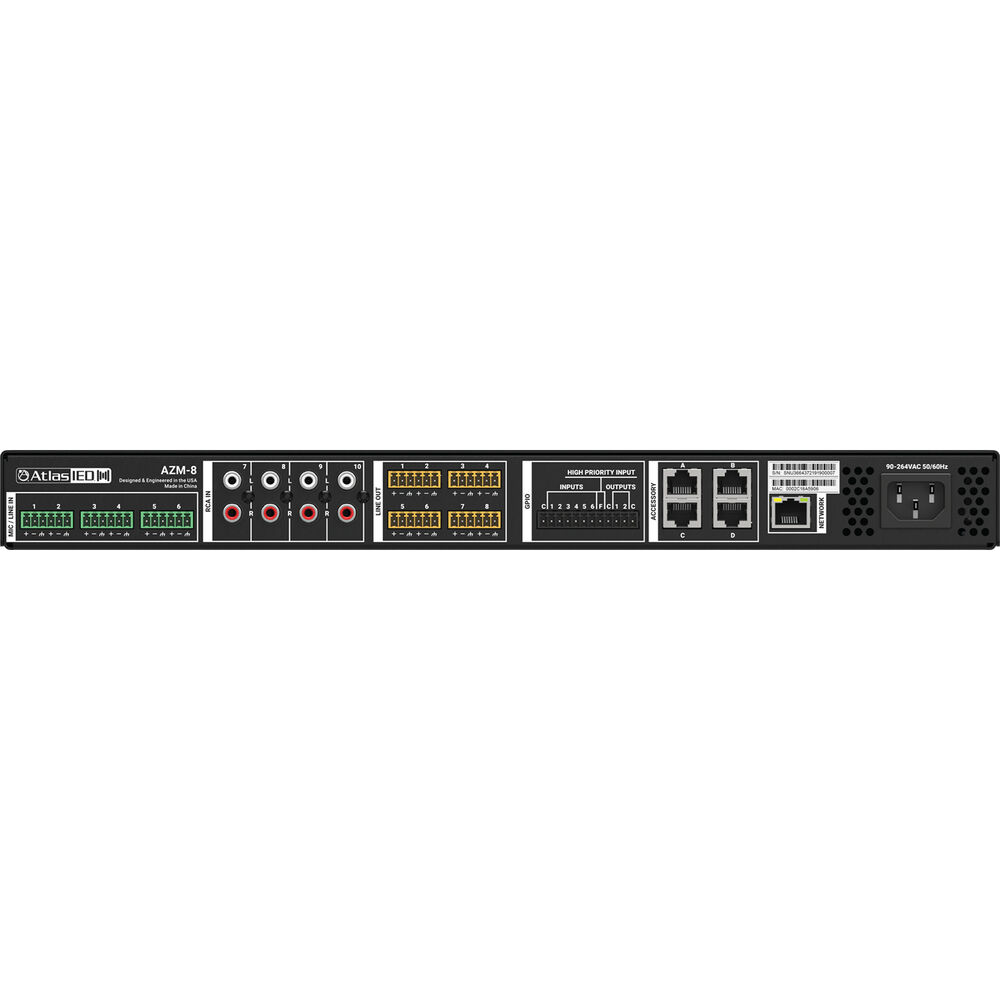

- Six Euroblock mic/line inputs and four RCA mono-summed pair inputs
- Eight balanced Euroblock output zones
- Six GPIO Euroblock inputs, one high-priority Euroblock input for alarm systems, two Euroblock GPIO outputs
- Four non-IP, RJ45 accessory ports for up to 32 control modules total or one audio wall plate accessory each
- One RJ45 network port
- Built-in Wi-Fi for tablets and other controlling devices
Access to the virtual wall controller is easy through either a generated QR code or distributed URL address.
- High-pass, parametric, low/high shelf, notch, and programmable low-pass filters on inputs
- Gate, de-esser, compressor, and auto-gain on inputs
- Parametric EQ, tilter filter, low/high shelf, notch, low-pass, high-pass, and AtlasIED speaker tuning EQ presets on outputs
- Ambient noise compression and limiter on outputs
- Delay and gain correction on outputs
- Balanced mic/line XLR adapter (A-XLR)
- 3.5mm adapter (A-RCA)
- Bluetooth module (A-BT)
- Single-zone volume controller (C-V)
- Advanced multi-zone volume control, source, select, scene recall, and message recall (C-ZSV)
- Ambient noise sensor (X-ANS)
In the Box
- Atlas Sound Atmosphere AZM8 8-Zone Audio Processor (19", 1 RU)
- 6 x Input Euroblock Connector
- 6 x Output Euroblock Connector
- 12-Way GPIO Connector
- 2 x Rack Ears
- 4 x Rack Screws
- IEC Power Cord
- Description
- Connectivity
- Web-Based Control
- DSP Processing
- Control Modules and Optional Accessories
Atlas Sound AZM8 Specs
| Compatibility | Atlas Sound Atmosphere Ecosystem RTI Control Module Crestron Control Module Extron Control Module AMX Control Module |
| THD+N | <0.01 % with 0 dB Gain at 1 kHz |
| Frequency Response | 20 Hz to 20 kHz (±5 dB) |
| Dynamic Range | >108 dB (Unweighted, 20 Hz to 20 kHz) >118 dB (A-Weighted) |
| Crosstalk | >-78 dB at 1 kHz |
| Latency | Euroblock In/RCA In/Euroblock Out: 4.9 ms Accessory In A or C to Euroblock Out: 5.9 ms Accessory In B or D to Euroblock Out: 6.7 ms |
| Max Gain | 60 dB |
| Input Processing | EQ: 24 dB/Oct HP, PEQ, Low / High Shelf, Notch, LP / HP (BW 6, 12, or 24 dB/Oct) Dynamics: Gate, De-Esser, Compressor, Auto-Gain Other: Gain, Mixer, Priority Router |
| Output Processing | EQ: PEQ, Tilt Filter, Low / High Shelf, Notch, LP / HP (BW 6, 12, 24, or 48 dB/Oct), Speaker Tuning EQ Presets Dynamics: Ambient Noise Compression, Limiter Other: Delay (500 ms), Gain |
| Panel Type | TFT LCD |
| Size | 1.45" |
| Resolution | 128 x 128 |
| Touchscreen | No |
| Audio I/O | 6 x Block Line/Mic Input (Balanced) 4 x 2RCA Coaxial Line Input (Mono-Summed) 8 x Block Line Output (Balanced) 6 x Block Aux Input (GPIO) 1 x Block Aux Input (High-Priority) 2 x Block Aux Output (GPIO) 4 x RJ45 Input (Accessory Ports) 1 x RJ45 Input/Output (Network Port) |
| Wi-Fi | 802.11b/g; Single-Band (2.4 GHz) |
| App Compatible | No *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
| Web Access Control | QR Code or Distributed URL Web-Based Control |
| Power Source | AC Input (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 75 W (Maximum) |
| Trigger Voltage | GPIO/High-Priority: 1.3 VDC |
| Phantom Power | +48 VDC at 10 mA |
| Certifications | ANSI, CAN, FCC Part 15 (Class B) *as per Manufacturer |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Mounting | Front: 4 x Standard Rackmount Hole (With Rack Ears) |
| Color | White |
| Material of Construction | Metal, Plastic |
| Dimensions | 19 x 11.7 x 1.75" / 48.3 x 29.7 x 4.45 cm (With Rack Ears, 1 RU) |
| Weight | 8.33 lb / 3.78 kg |
| Package Weight | 13.835 lb |
| Box Dimensions (LxWxH) | 21.9 x 14.5 x 4.3" |
