Description
Atlas Sound AP-15TU Overview

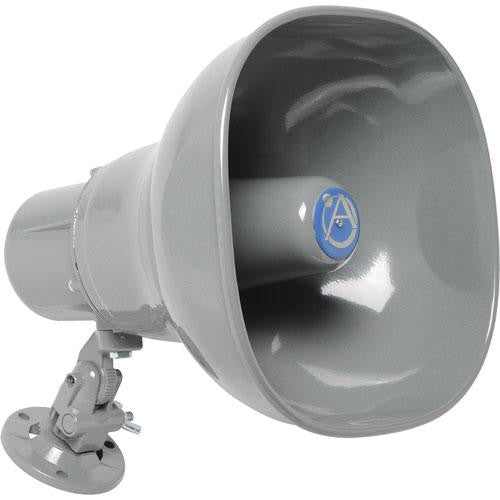

The Atlas AP-15TU Horn Loudspeaker is weather resistant, rated at 15 watts, and intended for emergency and communication PA systems. The speaker features a 400 Hz to 4 kHz frequency response that reproduces speech with maximum intelligibility, and is UL Listed. The omni-purpose mounting bracket achieves precise positioning and flexible mounting options.
15 Watts compression driver
400 Hz - 4 kHz frequency response (UL rating)
Built-in Vari-Tap transformer for easy impedance selection
Weather resistant construction
Omni-purpose mounting bracket
UPC: 612079110391
In the Box
- Atlas Sound AP-15TU Omni-Mount Emergency Horn Loudspeaker (Gray)
- Limited 5-Year Manufacturer Warranty
Atlas Sound AP-15TU Specs
| Power Rating | 15 W Continuous |
| Frequency Response | 400 Hz to 14 kHz (nominal) 500 Hz to 6 kHz (±5 dB) |
| Sensitivity | 102 dB @ 15 W (10 ft, 3 dB increment UL Rating) 120 dB @ 15 W (Peak) |
| Dispersion | 70° (-6 dB, 2000 Hz octave band) |
| Impedance | Power-Tap Selector Switch: Switch Position 1: 5.0 kOhms; 2: 2.5 kOhms; 3: 1.3 kOhms; 4: 666 Ohms; 5: 333 Ohms; 6: 89 Ohms; 7: 45 Ohms |
| 25V Tap | Power-Tap Selector Switch: (SPL @ 10 ft) Switch Position 1: (none); 2: (none); 3: .48 W (90 dB); 4:.94 W (93 dB); 5: 1.8 W (96 dB); 6: 7.5 W (101 dB); 7: 15.0 W (103 dB) |
| 70V Tap | Power-Tap Selector Switch: (SPL @ 10 ft) Switch Position 1: .9 W (93 dB); 2: 1.8 W (96 dB); 3: 3.8 W (98 dB); 4: 7.5 W (101 dB); 5: 15.0 W (103 dB); 6 & 7: (Do not use on 70 V) |
| Operating Temperature | -40 to 158°F (-40 to 70°C) |
| Dimensions | 8.75 x 7.88 x 9.31" (22.23 x 20.02 x 23.65 cm) |
| Weight | 4.0 lb (1.8 kg) |
Packaging Info
| Package Weight | 4.65 lb |
| Box Dimensions (LxWxH) | 10.7 x 9.2 x 8.3" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 26170.9 |
| 3-5 | ₹ 25903.85 |
| 5-10 | ₹ 25369.75 |
| 10+ | ₹ 24835.65 |
Bulk discount will be automatically applied during checkout based on quantity.
