Description

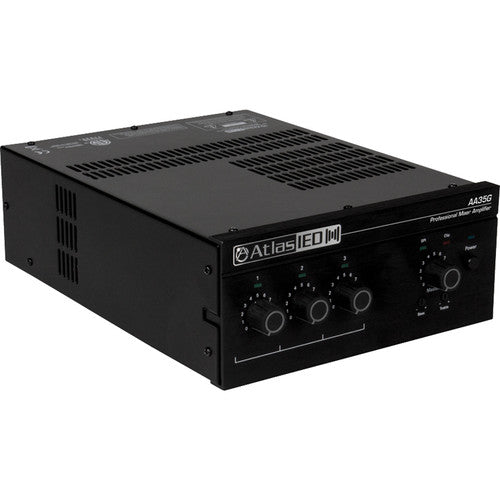

The AA35G 3-Input 35W Mixer Amplifier from Atlas Sound is a mixer amplifier designed for distributed business paging and BGM (Background Music) systems, small to medium speech privacy systems and in applications where MOH (Music on Hold) plus paging is required.
With one microphone input and two stereo line inputs, the AA35G will accommodate a variety of input sources including paging microphones, CD players, and digital music receivers. A dip switch selectable matrix allows the creation of a Zone 2 mix from any or all of the input sources for music or messaging on hold applications.
- Three inputs (each with a front-panel volume control) and a single output channel
- Suitable for paging, background music, and music-on-hold applications
- Balanced mic/line input, zone 2, and dual RCA stereo music inputs
- Priority muting by VOX or external switch
- Bass and Treble controls on master output
- Secondary Zone 2 Output 1W or 600 Ohms/MOH
- Universal AC power supply for use in any 120 to 240V country
- 70V, 100V, or 8 Ohms amplifier outputs
- Signal presence LED indicators
In the Box
Atlas Sound AA35G 3-Input 35W Mixer Amplifier with Global Power Supply
- Limited 1-Year Warranty
Atlas Sound AA35G specs
| Frequency Response | 50 Hz to 20 kHz ±1 dB |
| Signal to Noise Ratio | Mic: > 58 dB Line: > 60 dB Telephone: > 60 dB Inputs 2 or 3: > 78 dB |
| THD + N | < 0.5% at rated power at 1 kHz < 0.1% at 5 W at 1 kHz |
| Input Sensitivity | Input 1: Mic 3 mV, Line 800 mV Input 2: 400 mV Input 3: 400 mV |
| Input Impedance | Nominal Mic: 2.2 kOhms Line: 10 kOhms RCA: 10 kOhms |
| Crosstalk | -82 dB at 1 kHz (Channel 1 line input 0.8 V, Channel 1 volume at minimum, other channel volumes at maximum) |
| Line Output Level | 1 V into 10 kOhms pre master level |
| Phantom Power | 15 VDC |
| Zone 2 Audio Output | 1 W: 1 W @ 8 Ohms 600 Ohms: 500 mV into 600 Ohms |
| Power Output | 35 Watts 8 Ohms or 70 V/100 V output (1 kHz with 0.5% THD) |
| Power Requirements | 100-240 VAC, 50-60 Hz, 150 W Line Voltage Tolerance: +15 to -20% |
| Operating Temperature & Humidity | 68 to 104°F (20 to 40°C) at 95% relative humidity (non-condensing) |
| Storage Temperature | -4 to 185°F (-20 to 85°C) |
| Cooling | Convection cooled |
| Dimensions | Width: 9.5" (241 mm) Height (Front Panel): 3.5" (89 mm) Height (Including Feet): 4.1" (104 mm) Depth (Front Panel to Back Panel): 12.2" (310 mm) Depth (Front of Knobs to Back Panel): 13.9" (353 mm) |
| Weight | 8 lb 2 oz (3.7 kg) |
