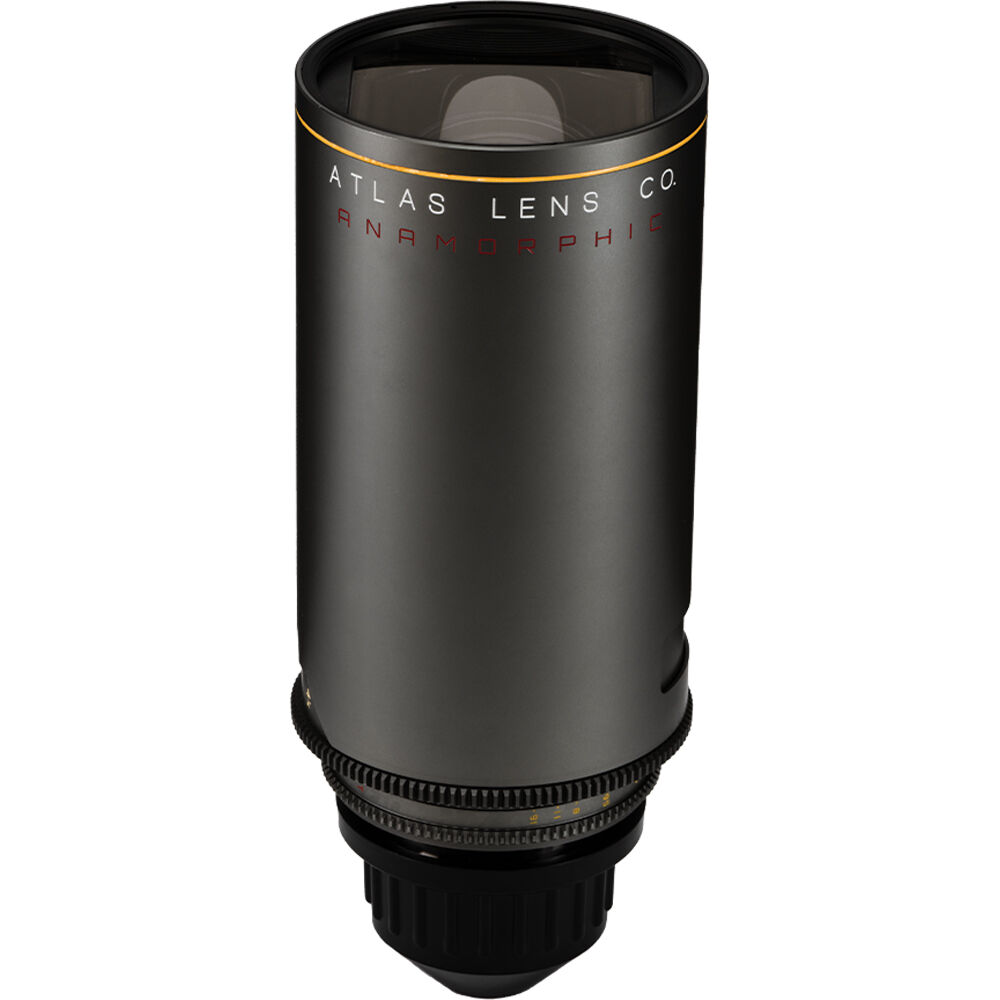

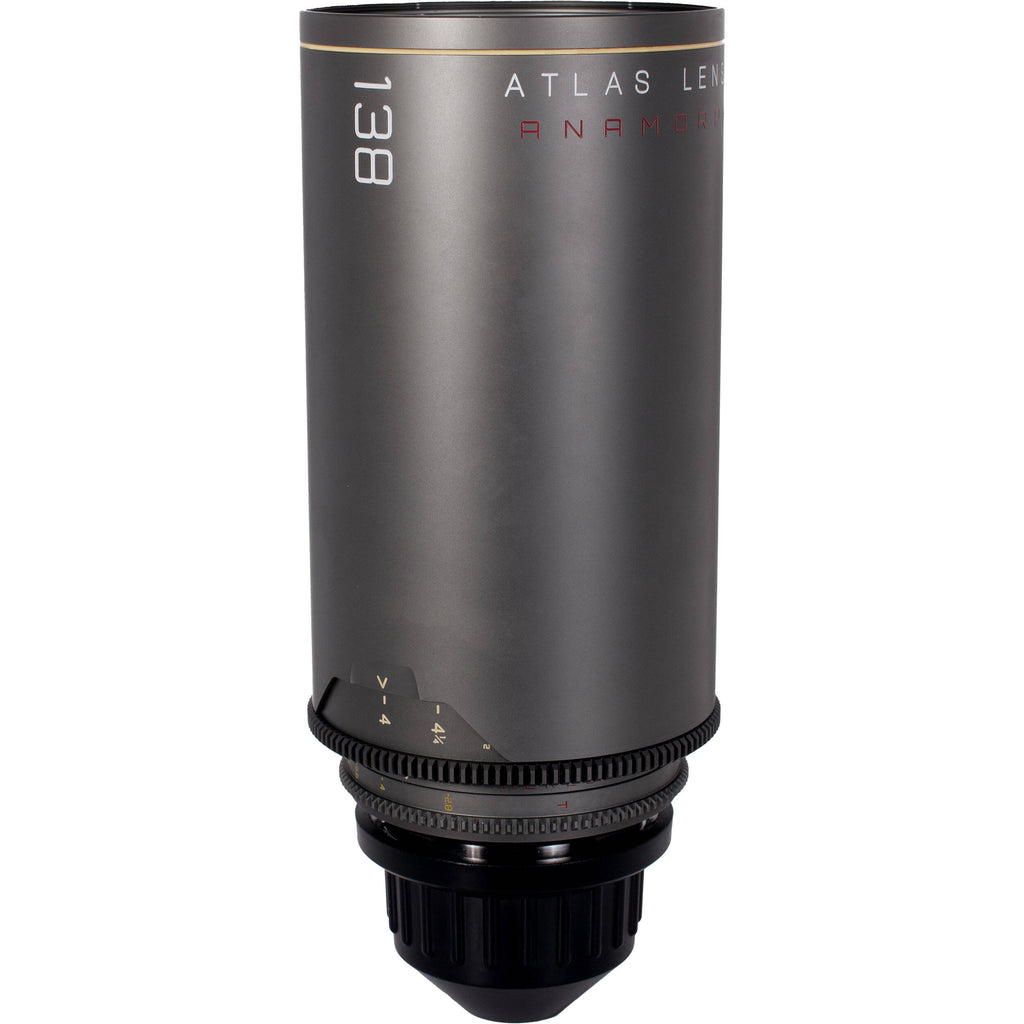

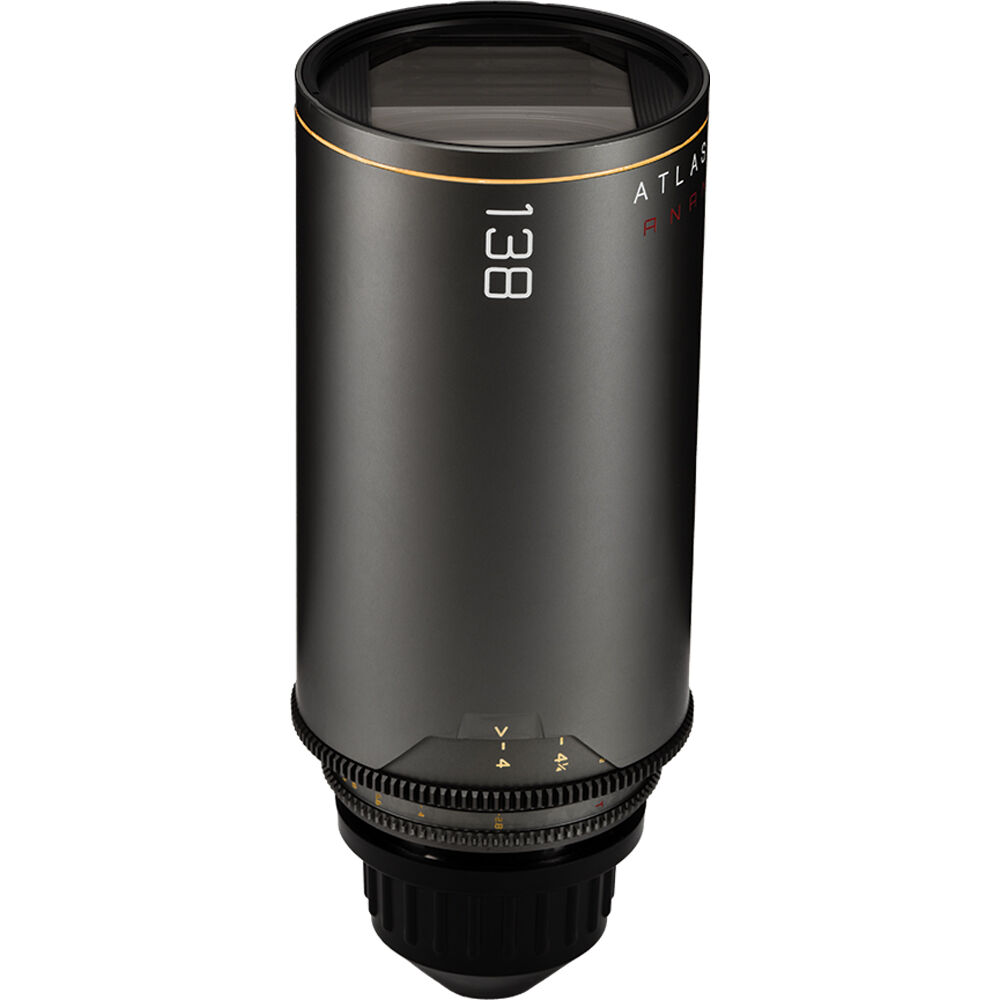

Atlas Lens Co. Mercury 138mm T2.6 1.5x Anamorphic Prime Lens (PL Mount, Feet)

Designed by cinematographers for professional videographers, the Mercury 138mm T2.6 1.5x Anamorphic Prime Lens is part of the compact and lightweight Mercury Series from Atlas Lens Co. This series offers native full-frame coverage, enhanced bokeh, near-zero chromatic aberration, and a buttery vintage look that is warmer than that of the Orion series. The ARRI PL-mount Mercury series includes 36, 42, 54, 72, 95, and 138mm primes.

• This lens creates 1.5x the horizontal field with the same vertical field of view as a similar spherical lens.
• It offers a vintage anamorphic look with golden flares, pleasant barrel distortion, and almost no chromatic aberration.

Each Mercury lens provides the oval bokeh, pleasant barrel distortion, and shallow depth of field of the Atlas Orion 2x anamorphic primes but in a housing that is about half the size and weight of most pro anamorphic primes. The more compact size reduces fatigue and enables you to get closer to the action.

The lens is compatible with pro-cine ARRI PL-mount cameras.

Each Mercury series lens provides coverage for up to full-frame camera sensors.

A fast T2.6 aperture enables the Mercury anamorphics to excel at low-light capture.

•  The Mercury lenses feature cine-standard 0.8 MOD gearing, a 95mm front diameter, and focus marks in feet.
• The standardized 95mm front diameter is compatible with many filters and matte boxes.

Atlas Lens Co. Mercury Anamorphic 138mm T2.2 ... Specs

Focal Length	138mm
Maximum Aperture	T2.6
Lens Mount	ARRI PL
Lens Format Coverage	Full-Frame (36.7 x 25.54 mm)
Filter Thread	86 mm
Image Stabilization	No
Electronic Communication	No

Maximum Aperture	T2.6
Minimum Aperture	T16
Lens Mount	ARRI PL
Interchangeable Mount	No
Horizontal Squeeze (Anamorphic)	1.5x
Flare Color	Amber
Lens Format Coverage	Full-Frame (36.7 x 25.54 mm)
Angle of View	Full Frame Horizontal: 23°
Focus Scales	Imperial
Filter Thread	86 mm
Minimum Focus Distance	3.9' / 1.2 m
Aperture/Iris Blades	14
Image Stabilization	No
Gear Standard	0.8 MOD
Electronic Communication	No
Diameter	Front: 3.7" / 95 mm
Length	8.1" / 20.5 cm
Weight	4.6 lb / 2.1 kg

Package Weight	5.9 lb
Box Dimensions (LxWxH)	11.7 x 5.9 x 5.3"
