Atdec AWMS-4 Overview
-
1Description
-
2Atdec 18.1" Modular Monitor Arm (Silver)
-
3Atdec 29.5" Mounting Post for AWM Series Components (Silver)
-
4Atdec Heavy Duty F-Clamp Desk Mount for AWM Series Components (Silver)

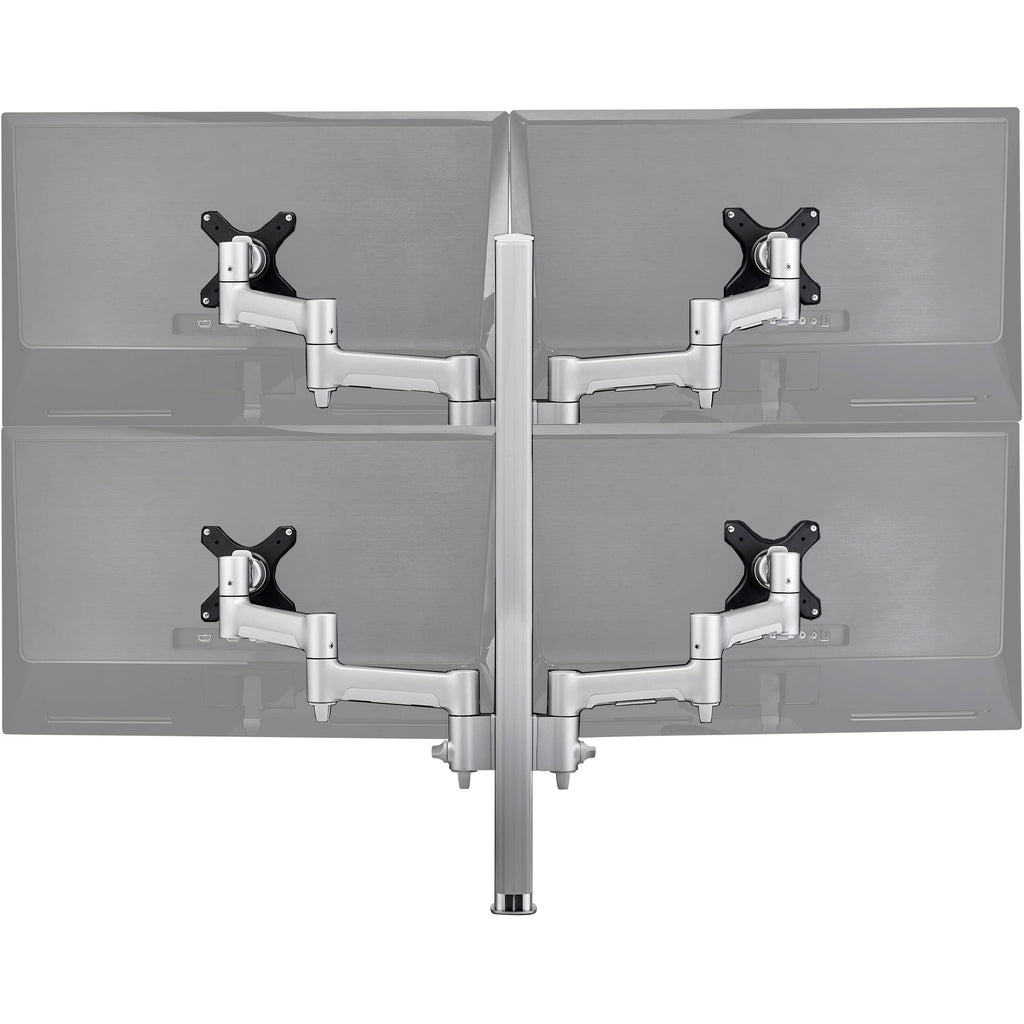

The silver Atdec AWMS-4-4675-H-S Quad-Monitor Desk Mount Bundle is a quad 18" arm combination attached to a 29.5" post with an F-clamp. Display height, optimal viewing angle, and orientation can be set to individual requirements. Built from lightweight and durable aluminum, the mount can be easily recycled at the end of its life.
Atdec 18.1" Modular Monitor Arm (Silver)
Mount your monitor to your existing AWM series component with the silver Atdec 18.1" Modular Monitor Arm. It supports flat displays up to 26.5 lb or curved displays up to 17.6 lb with 75 x 75 or 100 x 100mm VESA patterns and provides tilt and pan adjustment as well as extension up to 18" to help you place your monitor exactly where you want it.
- Supports flat-screen monitors up to 26.5 lb or curved-screen monitors up to 17.6 lb
- Adjustable tilt and pan
- Quick release/attachment display mechanism
- Optional arm rotation limiter included
- Advanced cable management
- Made of recyclable aluminum
- VESA head can be replaced with an optional notebook tray
![]()
UPC: 881493012356
Atdec 29.5" Mounting Post for AWM Series Components (Silver)
Start or expand your AWM series mount configuration with the Atdec 29.5" Mounting Post. It works with Atdec's AWM series mounts and clamping hardware, providing a foundation on which you can build a single- or multiple-display mount to meet your needs. Mounting hardware can be positioned along its height.
- Four-channel design for versatile mounting options
- Advanced cable management
- Made from recyclable aluminum
- Requires additional AWM series components to mount to your desk or wall and to attach your display(s)

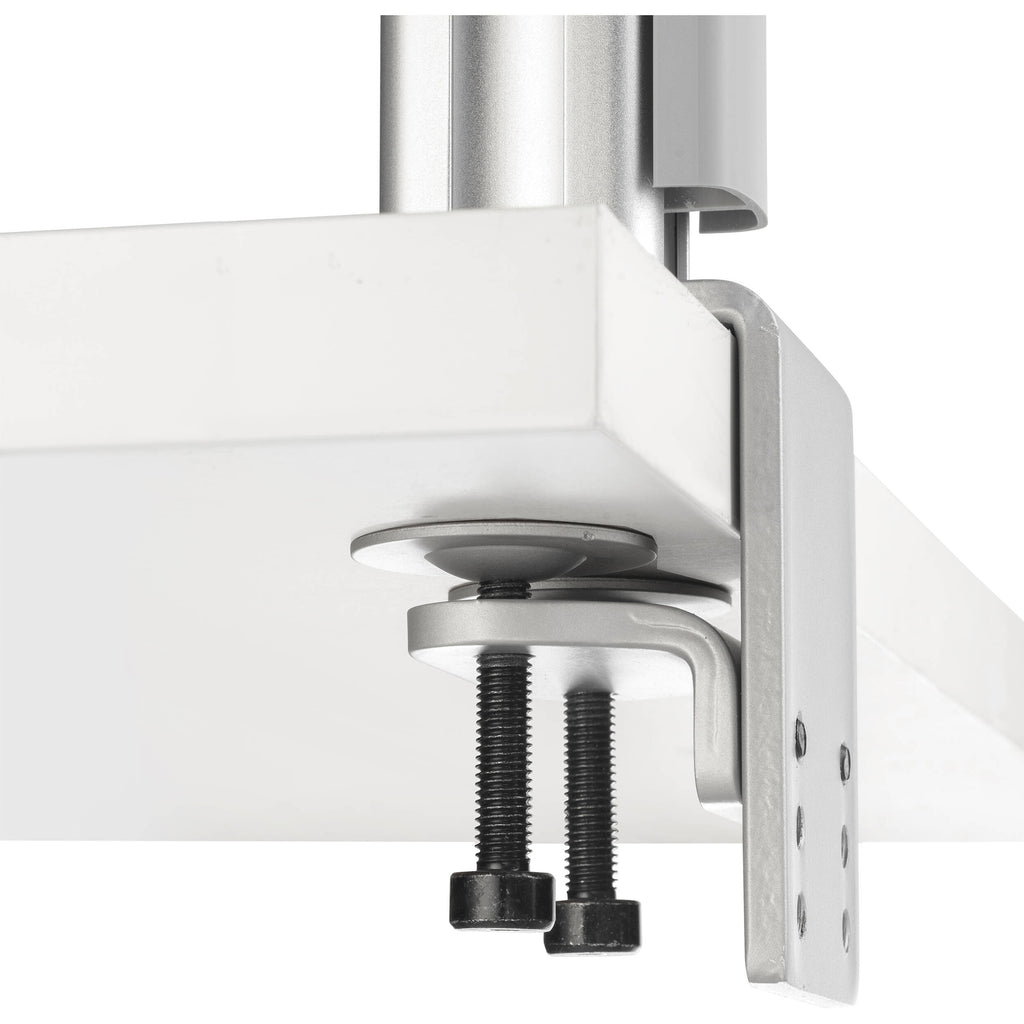

Atdec Heavy Duty F-Clamp Desk Mount for AWM Series Components (Silver)
Clamp your AWM series hardware to your desk with the Atdec Heavy-Duty F-Clamp. It clamps to desks up to 2.68" thick and features an aluminum and steel construction.
- Made from recyclable aluminum and steel
- Dual-plate design helps provide stability
- Recommended for 29.5" post solutions and other configurations with heavy screens
- Suitable for desks up to 2.68" thick
![]()
UPC: 881493012165
In the Box
- 4 x Atdec 18.1" Modular Monitor Arm (Silver)
- Assembly Hardware
- Display Mounting Hardware
- Limited 10-Year Warranty
- Atdec 29.5" Mounting Post for AWM Series Components (Silver)
- Atdec Heavy Duty F-Clamp Desk Mount for AWM Series Components (Silver)
- Assembly Hardware
- Limited 10-Year Warranty
Table of Contents
- Description
- Atdec 18.1" Modular Monitor Arm (Silver)
- Atdec 29.5" Mounting Post for AWM Series Components (Silver)
- Atdec Heavy Duty F-Clamp Desk Mount for AWM Series Components (Silver)
Atdec 18.1" Modular Monitor Arm (Silver) Specs
General
| Number of Displays Supported |
1 |
| Load Capacity |
26.5 lb / 12 kg |
| Mounting-Hole Pattern |
75 x 75 to 100 x 100 mm |
Adjustments
| Max Arm Extension Length |
18" / 458 mm |
Physical
| Material of Construction |
Aluminum |
Atdec 29.5" Mounting Post for AWM Series Components (Silver) Specs
General
| Compatible Models |
AWM Series Components |
Physical
| Material of Construction |
Aluminum |
| Pole Height |
29.8" / 756.00 mm |
Atdec Heavy Duty F-Clamp Desk Mount for AWM Series Components (Silver) Specs
General
| Compatible Models |
AWM Series Mounting Hardware |
| Desk Clamp Compatibility |
0 to 2.7" / 0 to 68 mm |
Physical
| Material of Construction |
Aluminum, Steel |
| Dimensions |
4.4 x 3.5" / 112.0 x 90.0 mm |
