Description

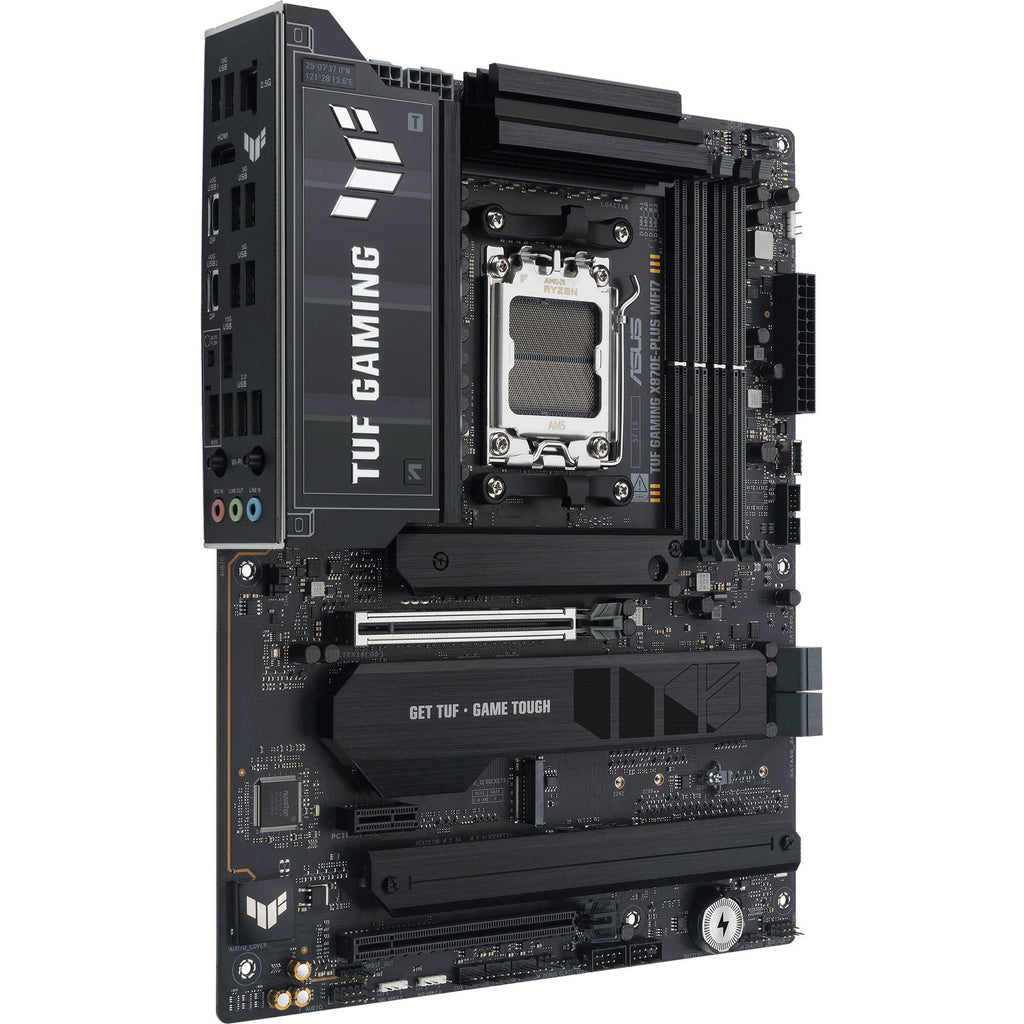

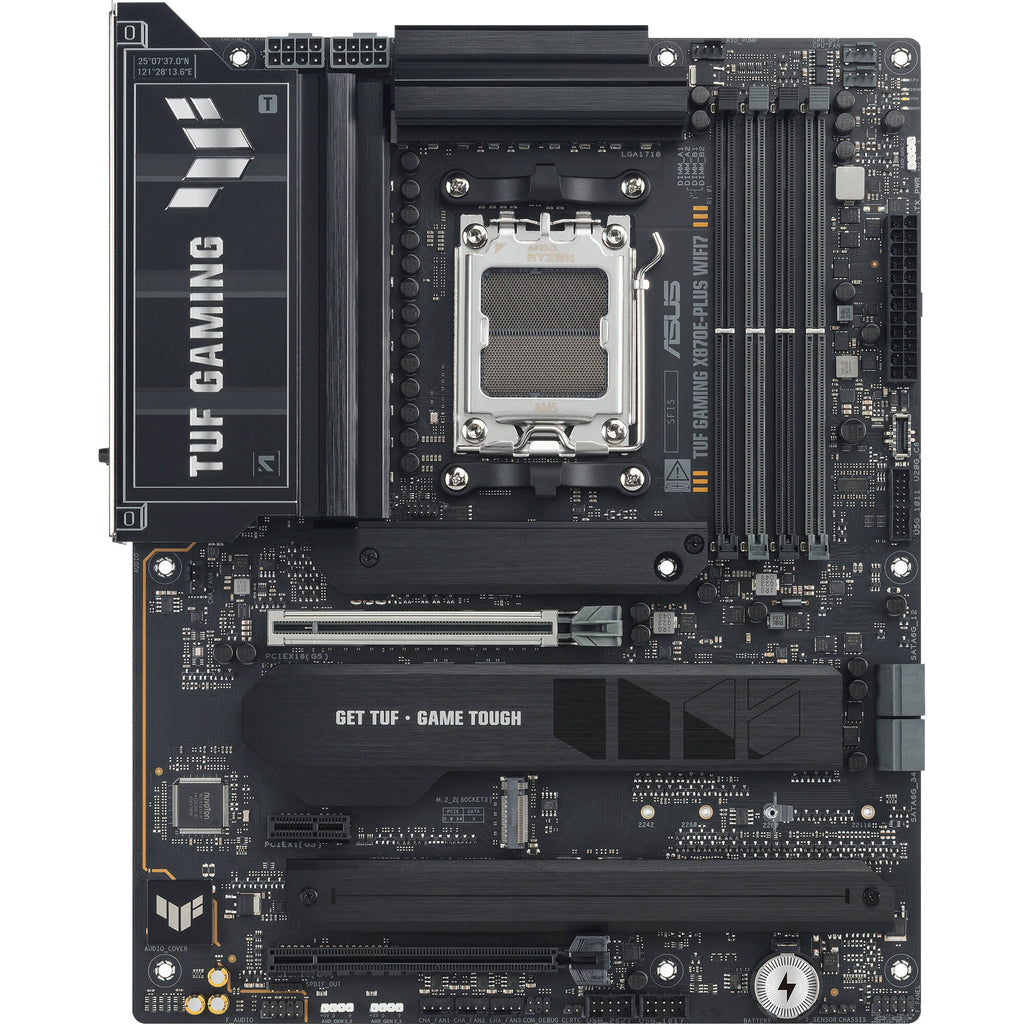

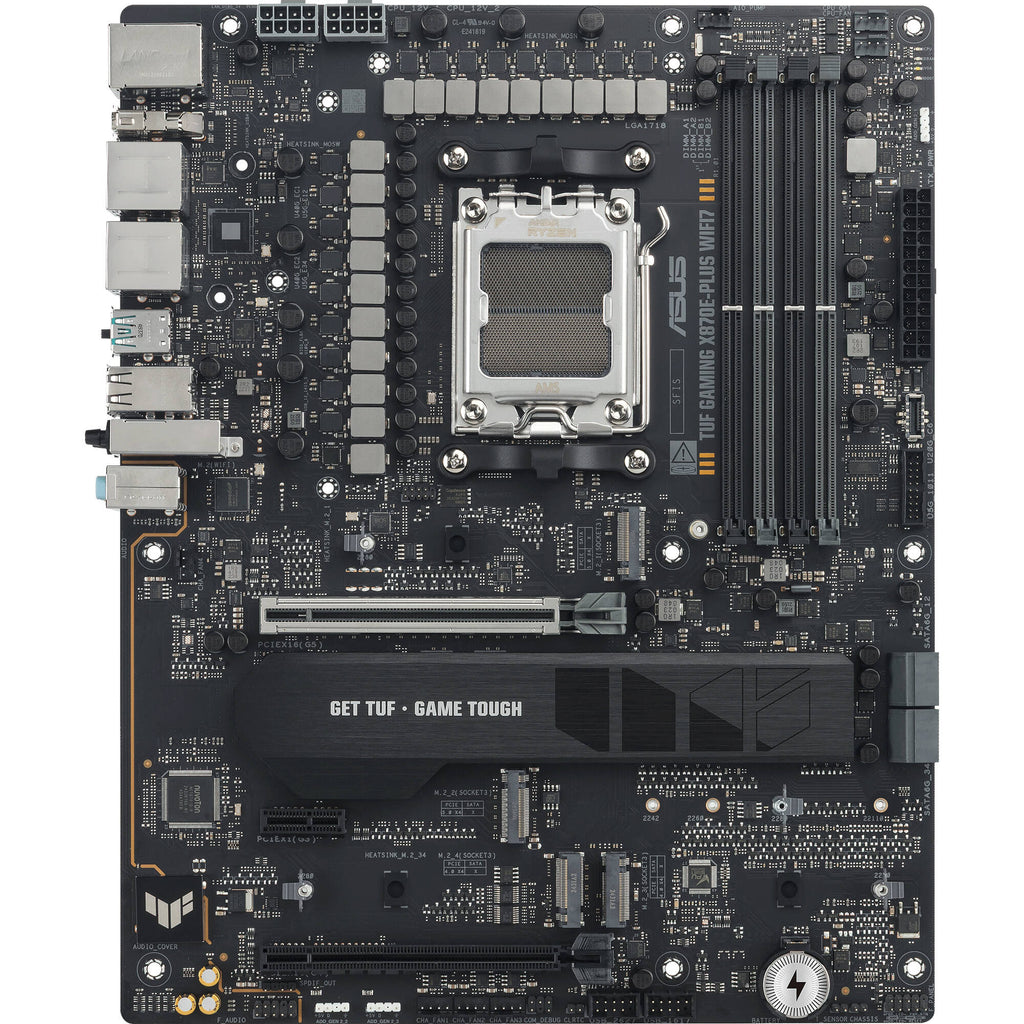

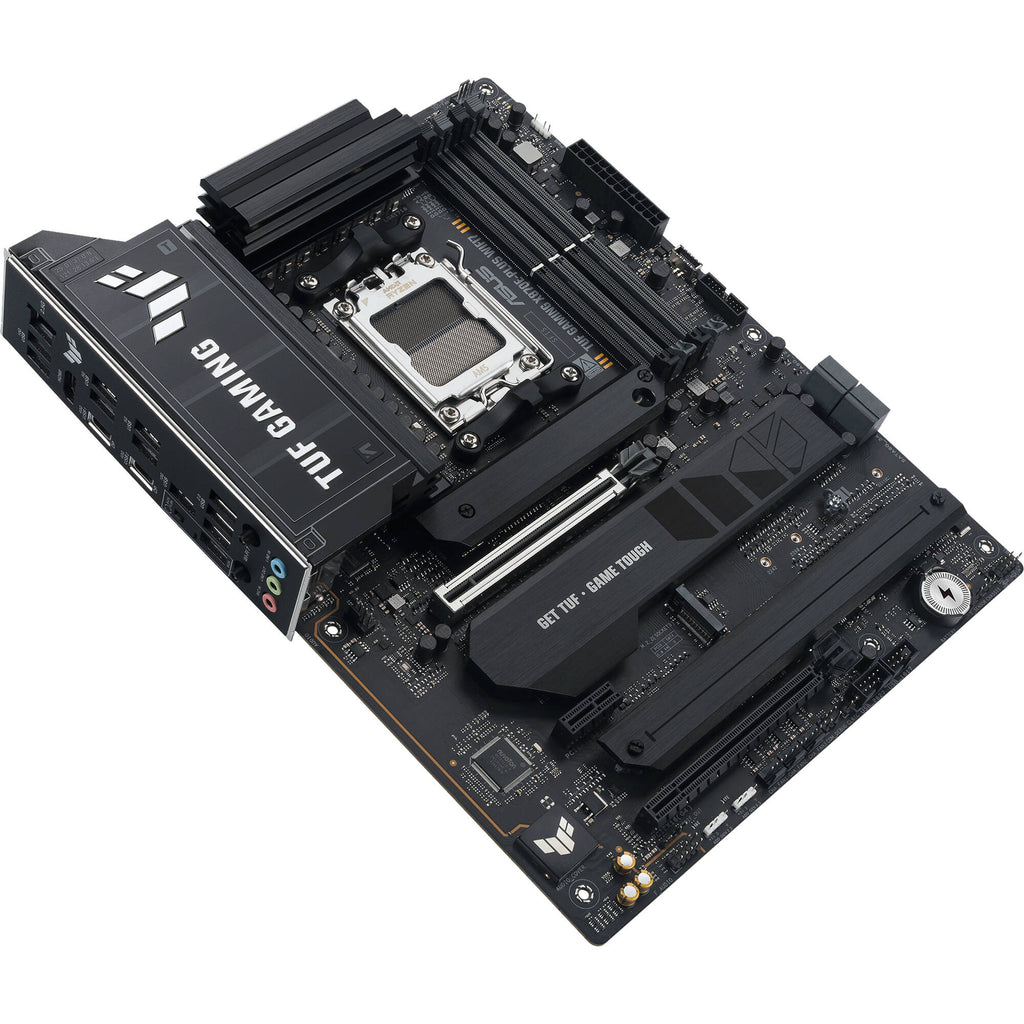

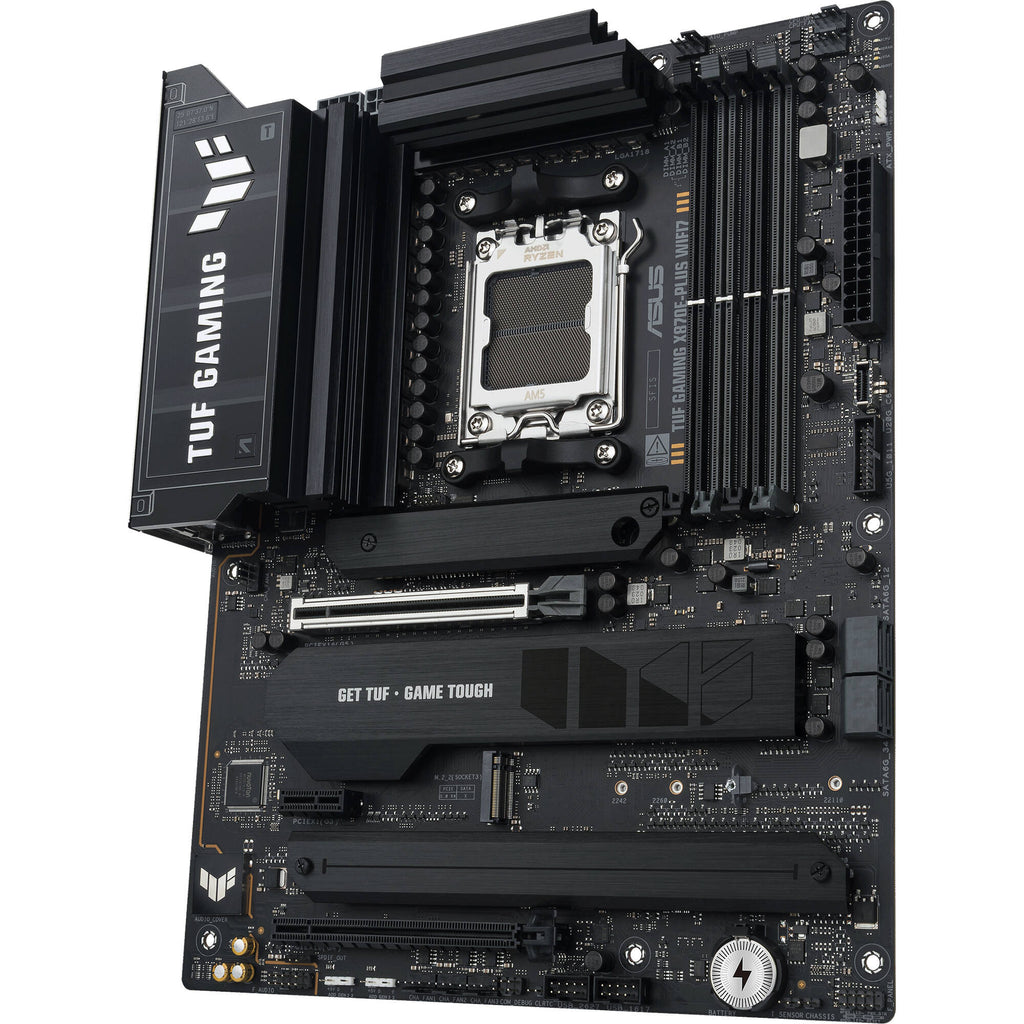

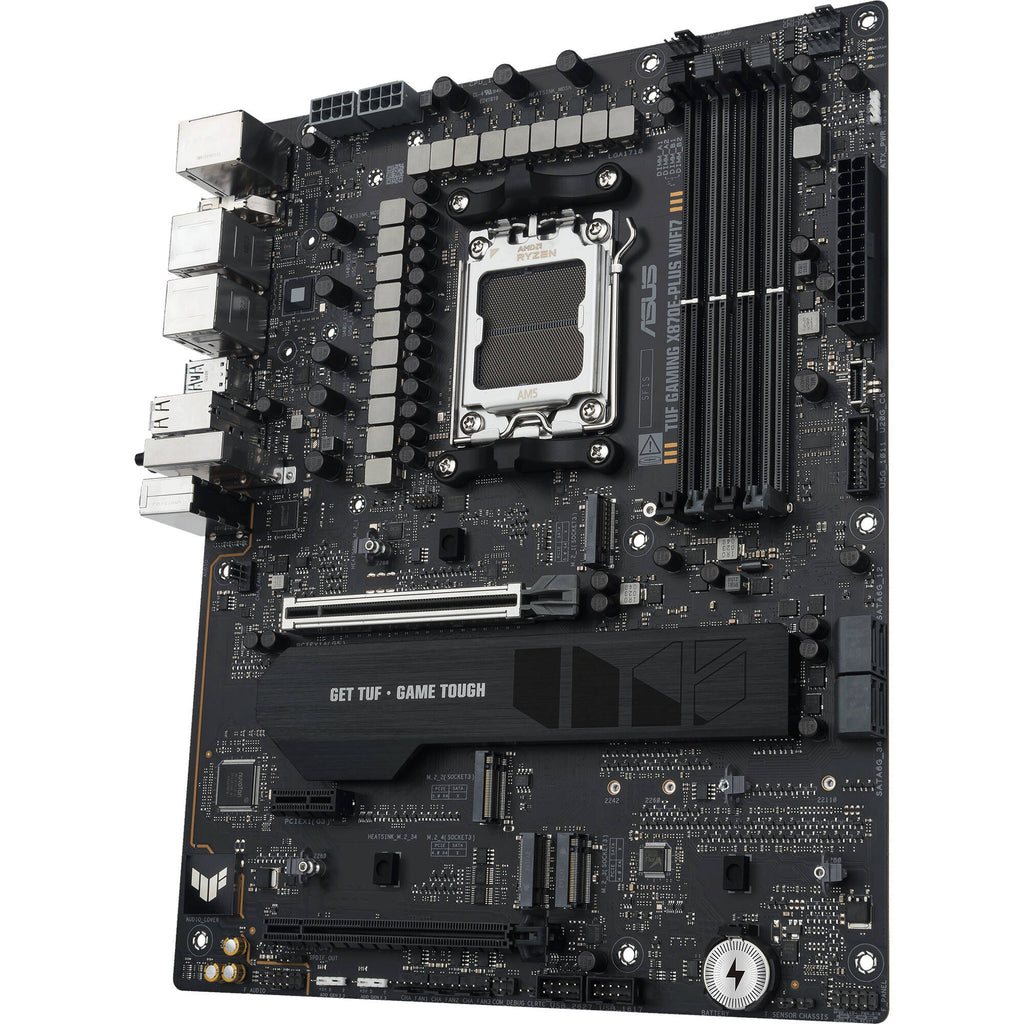

ASUS X870E-PLUS WiFi Overview
Designed for gamers looking for powerful performance and extensive connectivity, the ASUS TUF GAMING X870E-PLUS WIFI7 AM5 ATX Motherboard enables seasoned builders to leverage the power of AMD's Ryzen 9000, 8000, and 7000 processors and superfast PCIe 5.0 graphics cards.

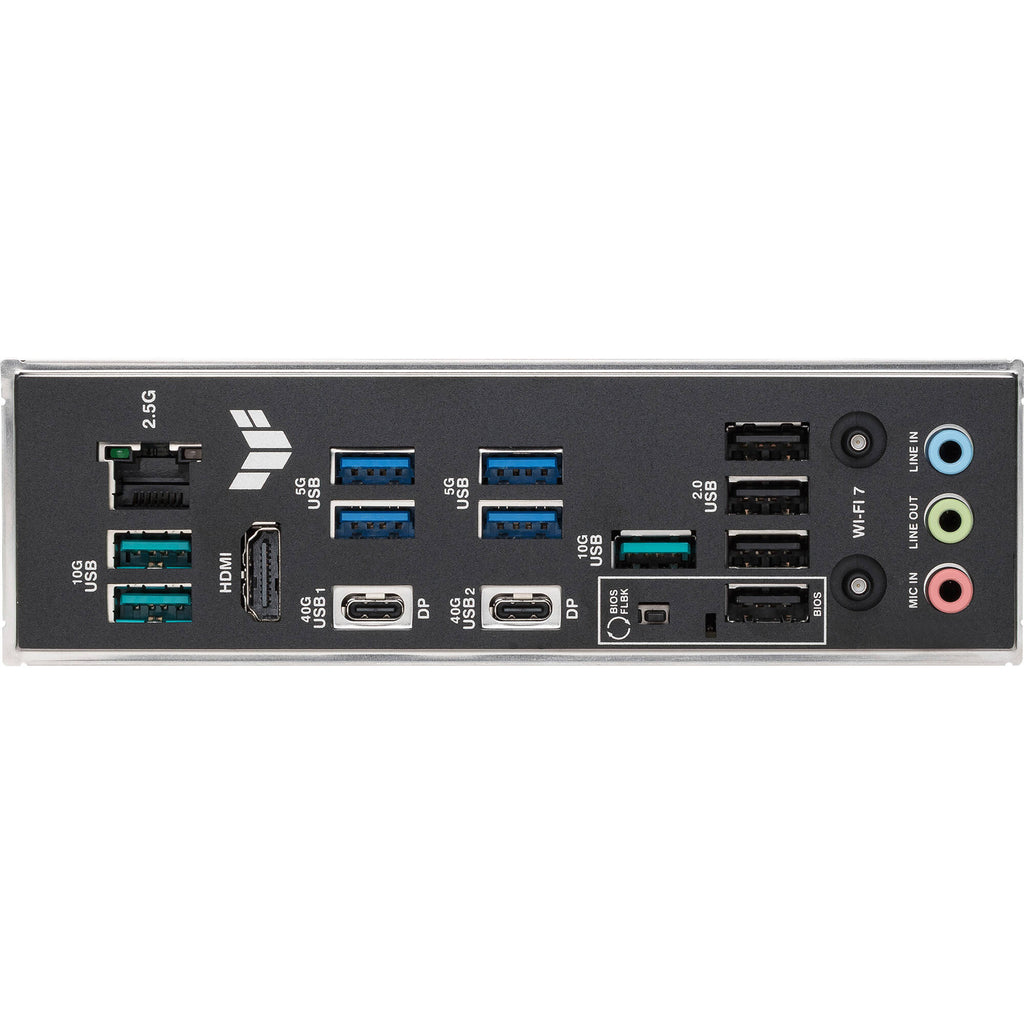

An AMD AM5 socket allows you to install a wide range of AMD Ryzen processors from the 9000, 8000, and 7000 Series family with ease. Four DDR5 DIMM slots are available, supporting up to 256GB of 8000 MT/s overclocked memory for smooth multitasking, large projects, and demanding applications. Four SATA III and four M.2 interfaces allow you to install an array of storage drives, creating a massive library for your titles, video assets, and more. Install a powerful graphics card in the PCIe 5.0 x16 slot and utilize the PCIe 4.0 x16 and PCIe 3.0 x1 slots for additional utility cards. Four USB-A 2.0 ports and four USB-A 3.2 Gen 1 ports are available to plug in peripherals, as well as three USB-A 3.2 Gen 2 ports and two 40 Gb/s USB-C ports. Bluetooth 5.4 functionality is available for wireless devices like headsets and controllers. Connect to your network with the integrated 2.5 Gigabit Ethernet port for wired connections or use Wi-Fi 7 (802.11be) for a quick and reliable cable-free experience.
- ASUS TUF GAMING X870E-PLUS WIFI7 AM5 ATX Motherboard
- 2 x SATA III Cable
- 1 ASUS WiFi Q-Antenna
- 2 x M.2 Rubber Packages
- Screw Package for M.2 SSD
- TUF Gaming Sticker
- Limited 3-Year Manufacturer Warranty
ASUS X870E-PLUS WiFi Specs
| Chipset |
AMD X870E
|
| CPU Socket |
AM5
|
| Memory Slots |
4x 288-Pin
|
| Memory Type Support |
DDR5, 8000 MT/s Maximum Supported Speed
|
| M.2 Slots |
22110 / 2280
|
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode) 1x PCIe 3.0 x1 |
| Wi-Fi |
Wi-Fi 7 (802.11be)
|
| Form Factor |
ATX
|
| Chipset |
AMD X870E
|
| CPU Socket |
AM5
|
| USB |
2x USB-C (USB4)
3x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x HDMI
|
| Audio |
3x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x Realtek 2.5Gigabit
|
| Memory Slots |
4x 288-Pin
|
| Memory Type Support |
DDR5, 8000 MT/s Maximum Supported Speed
|
| Maximum Capacity |
256 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC, ECC (Non-ECC Mode) Unbuffered
|
| SATA |
4x SATA III
|
| M.2 Slots |
1x M.2 (M Key) 22110/2280/2260/2242 (PCIe 5.0 x4)
1x M.2 (M Key) 2280 (PCIe 5.0 x4) 2x M.2 (M Key) 2280 (PCIe 4.0 x4) |
| RAID Support |
RAID 0, 1, 5, 10 (SATA)
|
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode) 1x PCIe 3.0 x1 |
| USB |
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
1x 4-Pin CPU
5x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
2x 8-Pin ATX |
| Security |
Chassis Intrusion
|
| Diagnostics |
Clear CMOS
|
| ROM |
256 Mb
|
| Audio Codec |
Realtek JUDGE DREDD (7.1-Channel)
|
| DAC |
No
|
| Wi-Fi |
Wi-Fi 7 (802.11be): Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
|
| Bluetooth |
Bluetooth 5.4
|
| OS Compatibility |
Windows 11
|
| Form Factor |
ATX
|
| Dimensions |
12 x 9.6" / 30.5 x 24.4 cm
|
| Package Weight |
4.895 lb
|
| Box Dimensions (LxWxH) |
14.2 x 11.4 x 2.8"
|
