Description
ASUS X870-PRO WIFI7 W NEO Overview

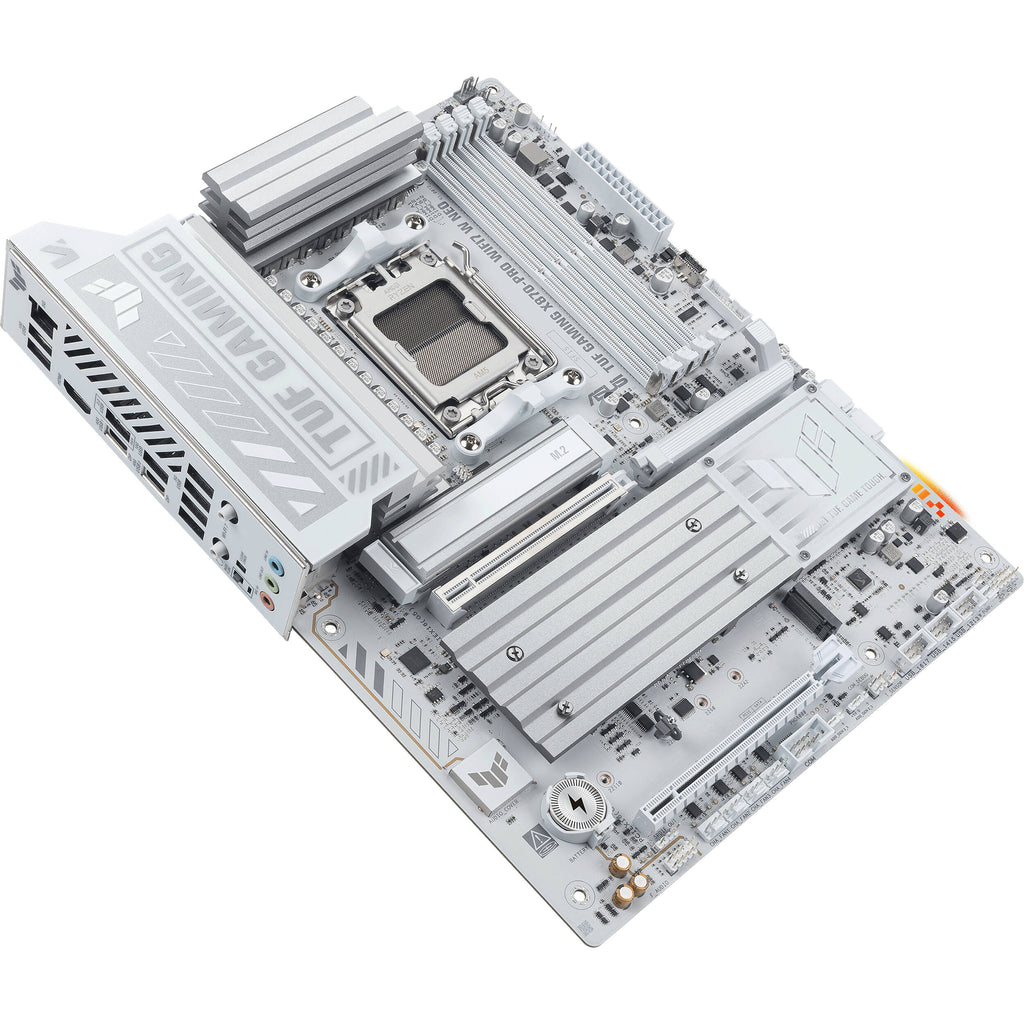

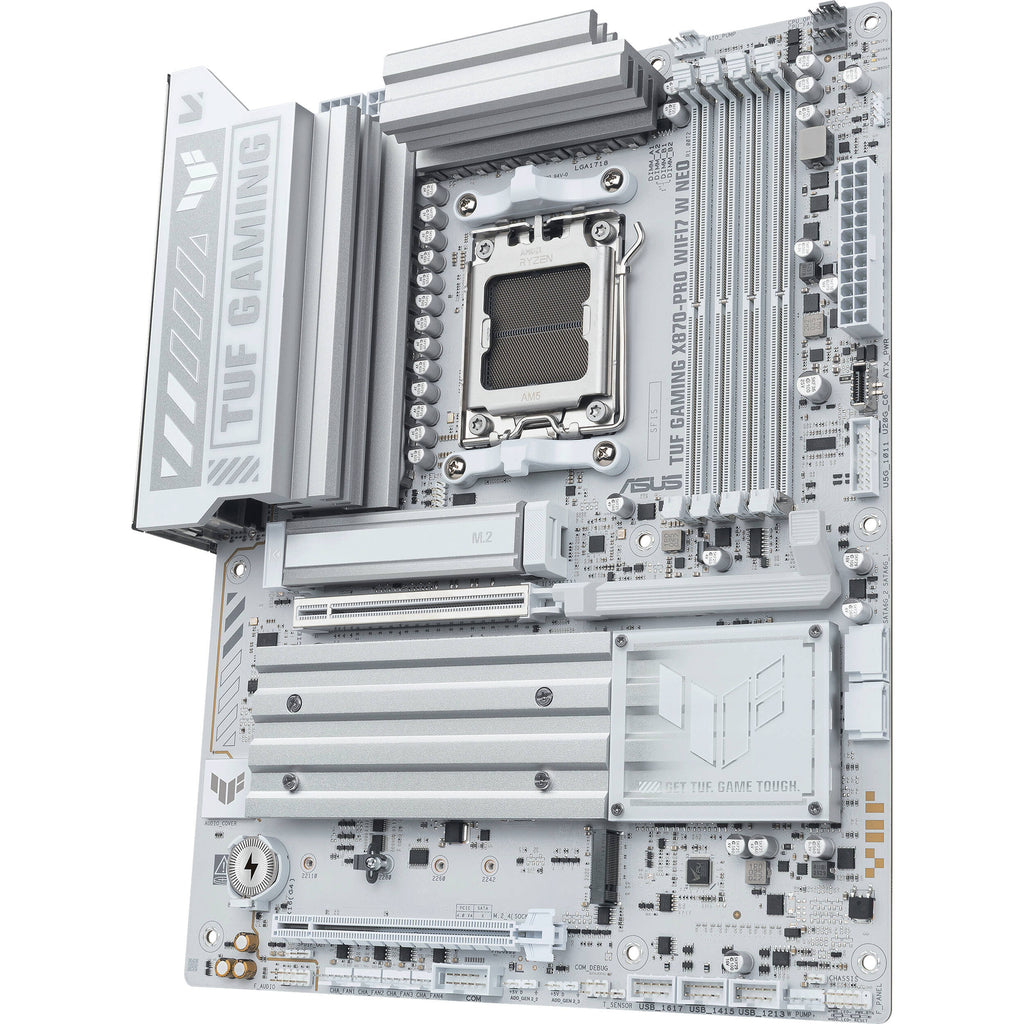

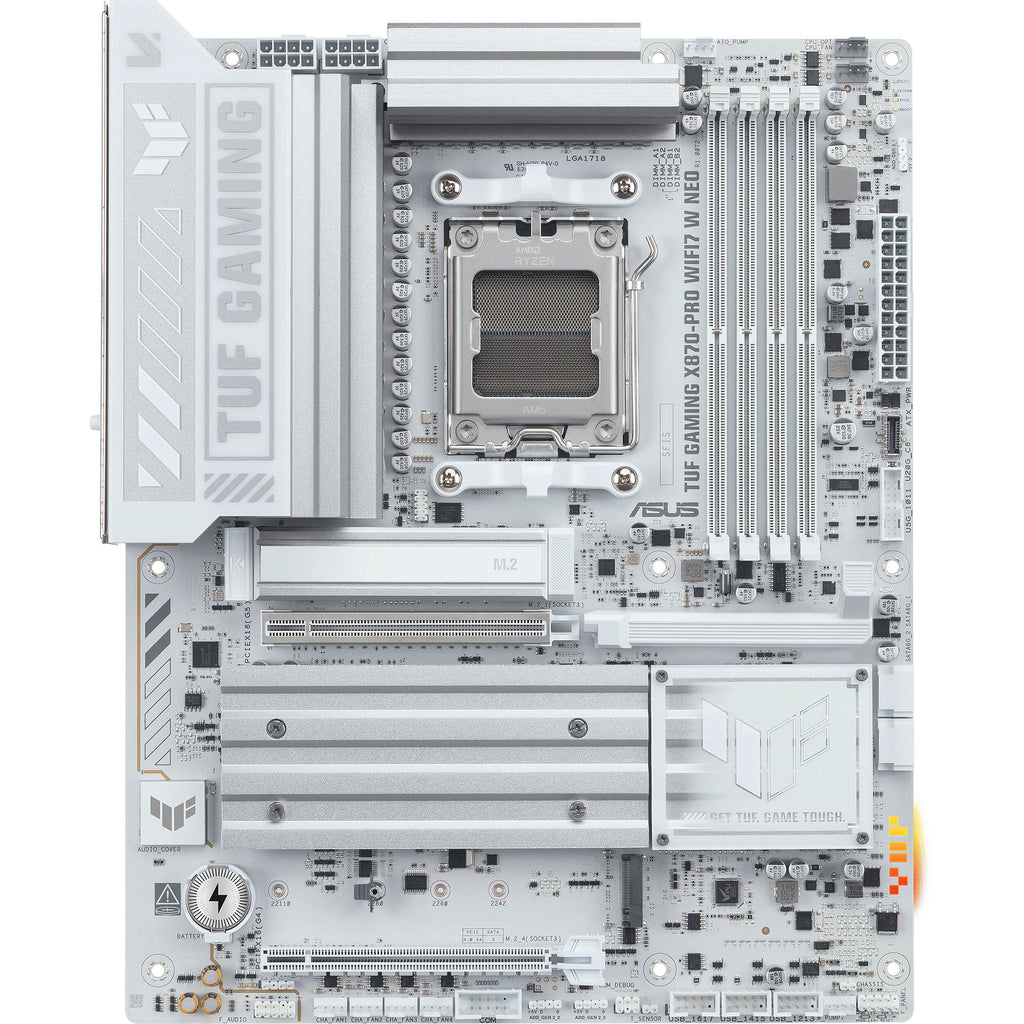

Enjoy rich and immersive gaming experiences with the ASUS TUF GAMING X870-PRO WIFI7 W NEO AM5 ATX Motherboard as the foundation of your custom build. Supporting AMD 7000, 8000, and 9000 series processors and fast connectivity, this durable socket AM5 motherboard is ready for overclocked components and demanding AI workloads.
Four DDR5 DIMM slots are available, supporting up to 256GB of memory for smooth multitasking, large projects, and demanding applications. For storage, you can install up to two M.2 PCIe 5.0 SSDs alongside two M.2 2280 PCIe 4.0 drives. There are also two SATA III connectors. A PCIe 5.0 x16 slot is available for powerful graphics cards while the PCIe 4.0 x16 (x8) slot supports compatible expansions. With two USB4 ports on the rear panel, you can connect 40 Gb/s compatible devices or USB-C compatible 4K displays. They are complemented by three 10 Gb/s compatible USB-A ports, four 5 Gb/s USB-A Gen 1 ports, and one USB-A 2.0 port. A front panel 20 Gb/s USB-C port may be connected using the internal header. Built-in Wi-Fi 7 (802.11be) support and a 5 Gb/s Ethernet port provide you with fast connections to compatible network devices. Windows 11 is required to take advantage of all the motherboard's features.
ASUS AI Intelligence
AI Cache Boost
Boost your large language model (LLM) workflows with AI Cache Boost. Enabling this feature in the BIOS settings optimizes the CPU cache and memory pathways to deliver fast local LLM performance.
AI Advisor
AI-powered technology allows you to ask natural language questions to explore the functionality and advanced features of your motherboard.
AI Overclocking
Maximize CPU performance with predictions for ideal CPU and cooling settings, pushing your system to its limits.
AI Cooling II
Maintain optimal thermals and reduced noise with dynamic fan speeds adjustments based on CPU temperatures.
AI Networking II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity while unleashing Wi-Fi 7 speeds.
Performance Overclocking
Dynamic OC Switcher
The Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The Overclocking Load Guard has an enhanced current protection mechanism to help prevent users from experiencing system crashes during overclocking.
Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control power and thermals in creative new ways. In its simplest form, you can set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current and temperature limits independently so that you can bend CPU performance to your will.
Asynchronous Clock
The TUF GAMING X870-PRO features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed to drive peak CPU performance while maintaining the stability of related clock domains.
Performance
Power Design
Sporting 16+2+2 80A power stages with two 8-pin ProCool II power connectors, the TUF GAMING X870-PRO delivers reliable and stable performance with high-core count CPUs, graphics cards, and other power-intensive components. The integrated Digi+ VRM is optimized for smooth, clean power delivery to the CPU.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.
NitroPath DRAM Technology
NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimized signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability. These reinformed DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slot designs, perfect for enthusiasts who keep their system upgraded with the fastest kits available.
DIMM Fit / DIMM Fit Pro
The DIMM Fit BIOS feature analyzes individual memory modules to optimize their performance and pinpoint potential issues. DIMM Fit Pro is an advanced option with more extensive customization for memory optimization.
Advanced Cooling
Designed for overclocking, the TUF GAMING motherboard maintains optimal performance and stability with fan and AIO pump headers, a dedicated fan circuit, and enlarged heat sinks for the M.2 slots and VRM.
Connectivity
Wi-Fi 7
Wi-Fi 7 supports 320 MHz bandwidth on the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.
5G Ethernet
Onboard 5G Ethernet port provides fast and stable connectivity to compatible wired devices.
Dual USB4 Connectivity
Transfer massive project files with 40 Gb/s compatible storage drives. The USB4 ports also allow you to connect either one 8K monitor or two 4K displays for enhanced multitasking.
Front 20G USB-C
This motherboard features a USB-C front panel connector for speedy data transfers with up to 20 Gb/s devices. Quick Charge 4+ technology provides up to 30W charging with compatible tablets and mobile gaming devices.
DIY Friendly
PCIe Slot Q-Release Slim
With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. Users no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
Easy M.2 Installation
ASUS M.2 Q-Release and Q-Latch technologies allow you to quickly install or remove M.2 SSDs without the need for tools or screws.
Q-Antenna
With Q-Antenna, attaching a Wi-Fi antenna to your PC is a snap. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place.
Q-LED
The on-board LED troubleshooting lights give PC builders a quick indicator to confirm that key components are functioning normally during startup. It can also alert them when memory modules have not been properly installed.
Clear CMOS and BIOS FlashBack
Clear the CMOS at the touch of a button to help remove data corruption from the chip. BIOS FlashBack makes BIOS updates easy. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack port, and press a button. No CPU or memory needed.
Protection
SafeSlot and SafeDIMM
With SafeSlot technology, the PCIe 5.0 slot is reinforced with a metal sheath that ensures secure card installation and dependable performance. The SafeDIMM sheath protects memory modules so that you can insert them with accuracy and speed.
ESD Guards
Special TVS diodes boost electrostatic discharge prevention by up to 10 kV.
TUF LANGuard
TUF LANGuard integrates advanced signal-coupling technology and surface mounted capacitors to improve throughput while helping to protect the motherboard from lighting strikes and electrostatic electricity.
Stainless Steel I/O Panel
The corrosion-resistant stainless steel rear I/O panel has passed 72-hour long fog and salt tests to ensure a long lifespan.
Software Utilities
ASUS MB Manager
Use the ASUS MB Manager for fast, intuitive control over key system settings.
ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
ASUS GlideX
Using this app enables smooth screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, across multiple platforms.
Armoury Crate
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate's Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
Gaming Audio
Realtek Audio
This motherboard utilizes a Realtek ALC1220P codec, which delivers pristine audio quality with a 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.
DTS Audio Processing
DTS Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies, and music sound better. It also allows you to customize audio settings.
Low Latency Bluetooth
With the Bluetooth LC3 codec and LE Audio, latency is reduced by up to 70% versus previous standards. Gamers can enjoy near real-time sound effects, footsteps, and voice cues, plus clearer, more stable in-game communication. It also supports 3D spatial audio for immersive gaming sound.
Play in Style
Aura Sync
Enhance your immersion with RGB lighting effects, including modes that adapt to the on-screen action. Then synchronize them with Aura Sync compatible peripherals such as keyboards, mice, and monitors.
Addressable Gen 2 RGB headers
The three addressable Gen 2 headers automatically optimize lighting effects for the number of LEDs present on compatible ARGB gear.
UPC: 199291425248

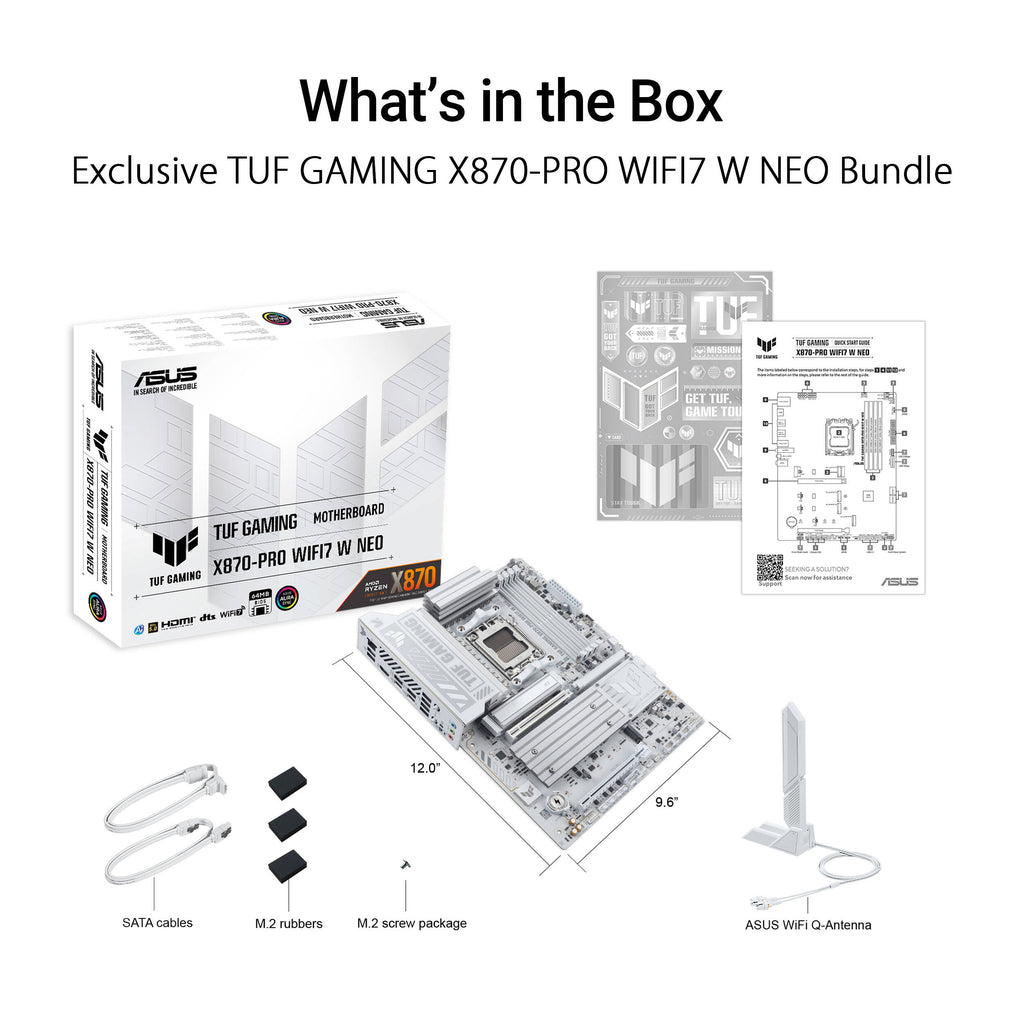

- ASUS TUF GAMING X870-PRO WIFI7 W NEO AM5 ATX Motherboard
- 2 x SATA Cable
- ASUS WiFi Q-Antenna
- 2 x M.2 Rubber Package
- Screw Package for M.2 SSD
- TUF GAMING Sticker
- Limited 3-Year Manufacturer Warranty
ASUS X870-PRO WIFI7 W NEO Specs
Key Specs
| Chipset |
AMD X870
|
| CPU Socket |
AM5
|
| Memory Slots |
4x 288-Pin
|
| Memory Type Support |
DDR5, 9600 MT/s Maximum Supported Speed
|
| M.2 Slots |
22110 / 2280
|
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode) |
| Wi-Fi |
Wi-Fi 7 (802.11be)
|
| Form Factor |
ATX
|
CPU
| Chipset |
AMD X870
|
| CPU Socket |
AM5
|

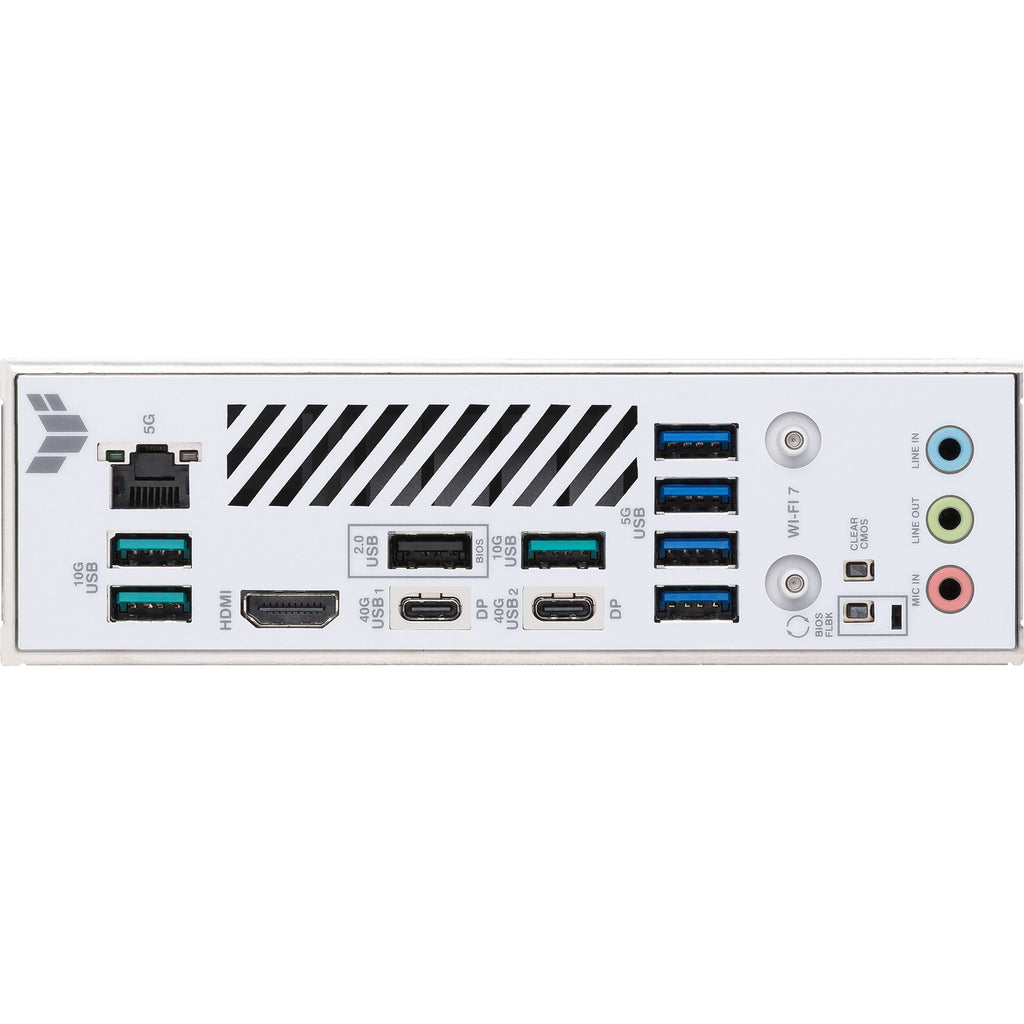

Back Panel I/O
| USB |
2x USB-C (USB4)
3x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 1x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x HDMI
|
| Audio |
3x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x Realtek 5GbE
|
| Wi-Fi Antenna |
2x Connector
|
| Buttons |
BIOS Flashback, Clear CMOS
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Type Support |
DDR5, 9600 MT/s Maximum Supported Speed
|
| Maximum Capacity |
256 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC, ECC (Non-ECC Mode) Unbuffered
|
