Description
ASUS TUF GAMING B760-PLUS WIFI Overview
- 1Description
- 2TUF Performance
- 3Comprehensive Cooling
- 4Networking
- 5USB Connectivity
- 6DIY Friendly
- 7Aesthetics
- 8Sound
- 9UEFI BIOS
- 10ASUS Exclusive Software

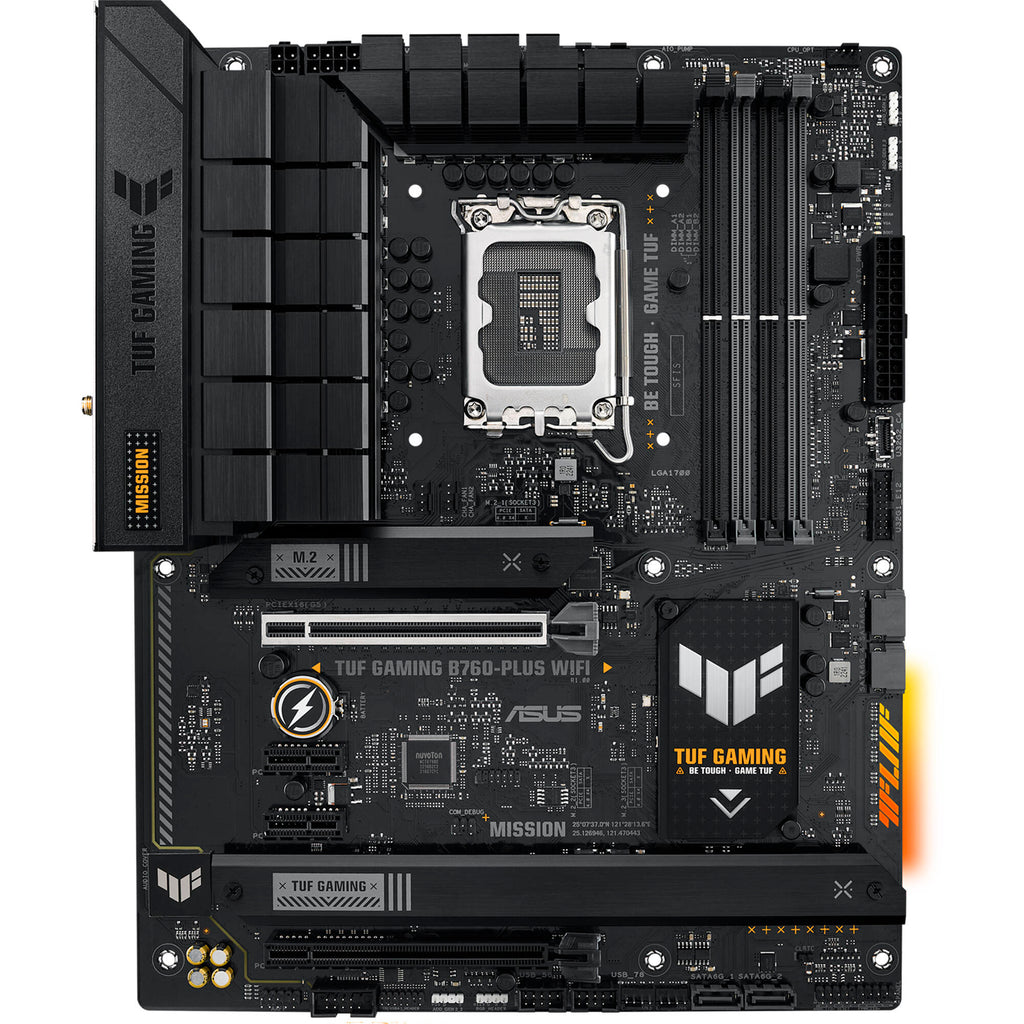

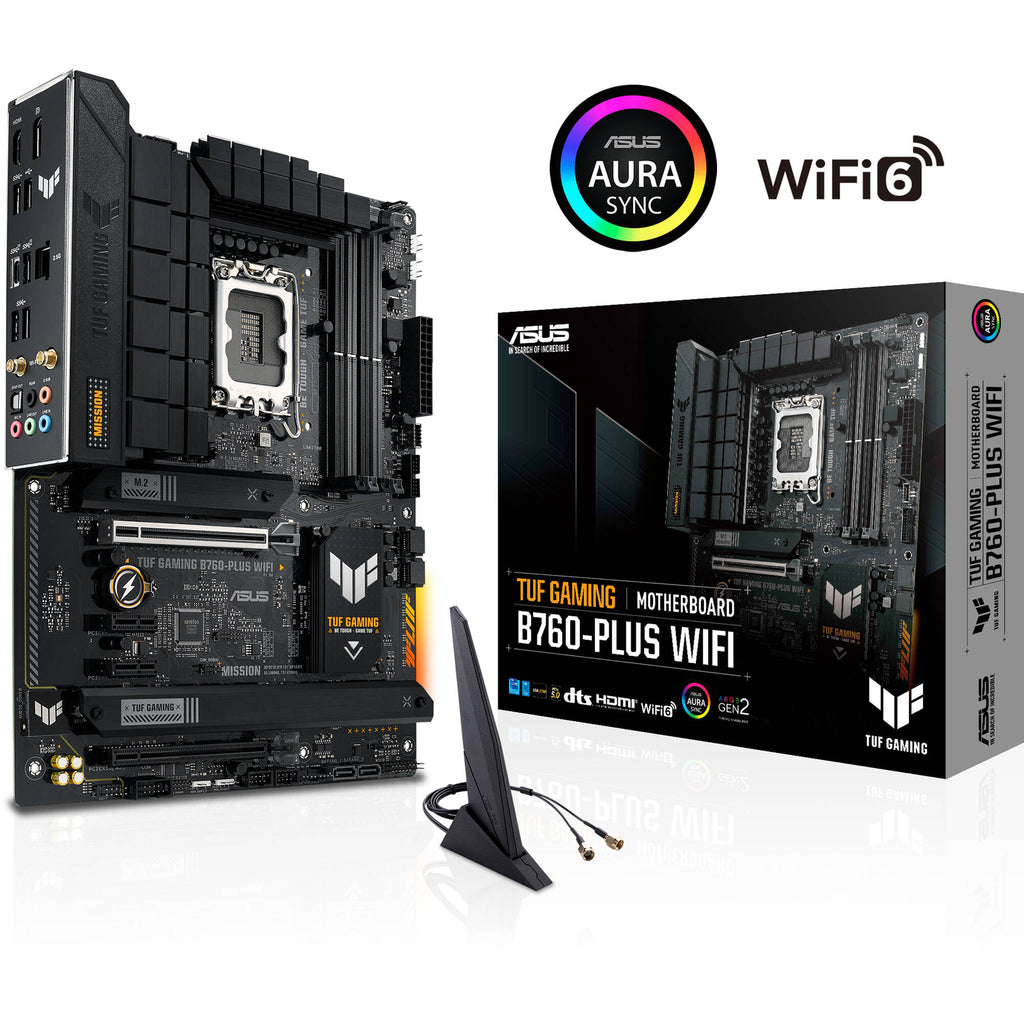

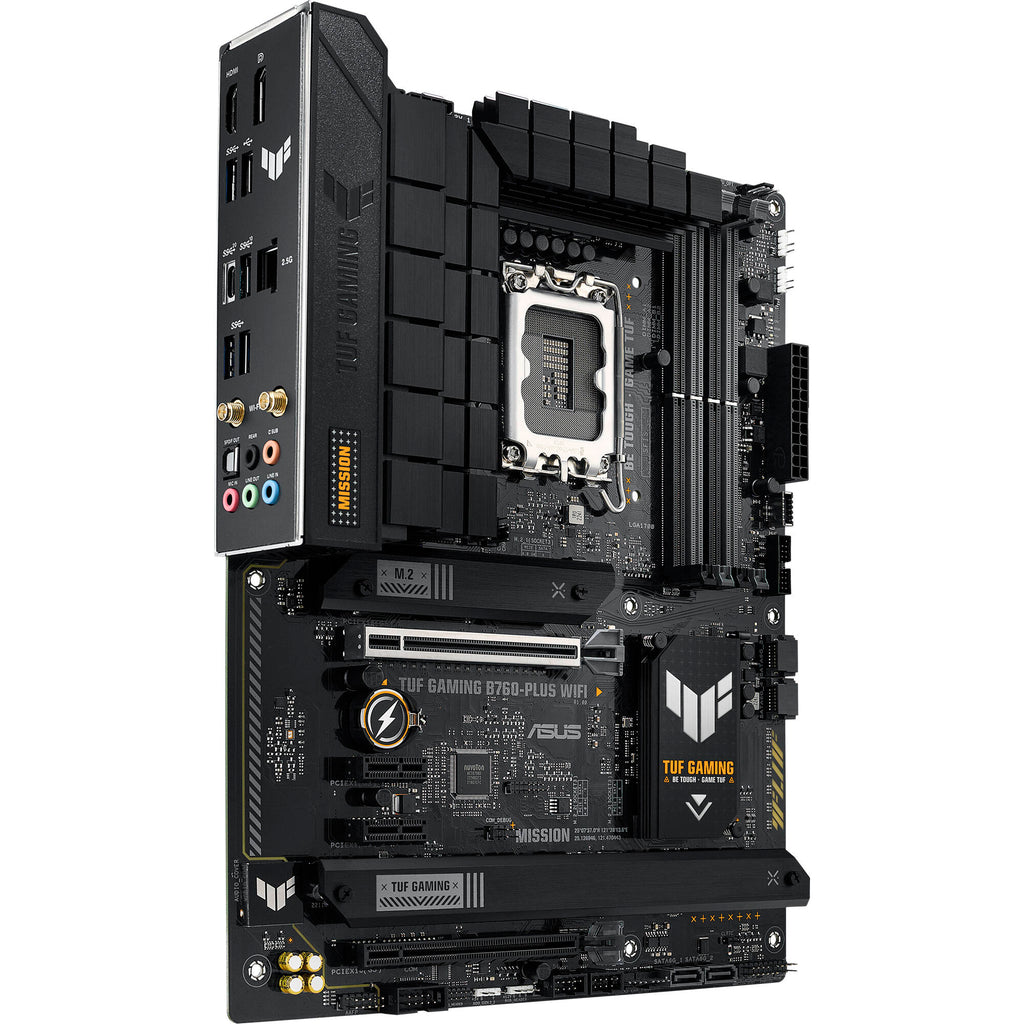

Set the foundation of your gaming-focused PC with the TUF GAMING B760-PLUS WIFI LGA1700 ATX Motherboard from ASUS. Designed for use with Intel's 12th and 13th Gen processors, this motherboard provides enhanced system-wide functionality by allowing you to install a wide range of components, making this ideal for gaming enthusiasts.
Based off the Intel B760 chipset, you get an LGA1700 socket, four dual-channel DDR5 RAM slots, four SATA III ports, and three M.2 interfaces, all working in tandem to provide enhanced system performance. Connect a variety of graphics and utility cards with one PCIe 5.0 x16, one PCIe 3.0 x16 (in x4 mode), and two PCIe 3.0 x1 slots. USB 3.2 Gen 1, Gen 2, and Gen 2x2 ports allow you to use a wide range of peripherals such as keyboards, mice, external drives, and more. Bluetooth 5.2 technology provides wireless connectivity for devices such as controllers and headphones. Wi-Fi 6 (802.11ax) connectivity allows you to use wireless networking or use the 2.5 Gigabit Ethernet port, both suitable for competitive online gaming. Additionally, the TUF GAMING B760-PLUS WIFI supports both Windows 10 and 11 (64-bit) right out of the box.
TUF Performance
Constructed with military-grade TUF components, the TUF GAMING B760-PLUS WIFI uses 12+2 DrMOS power stages, six-layer PCB, ProCool sockets, and Digi+ VRM to provide maximum durability and performance.
Comprehensive Cooling
Gaming for prolonged periods of time can cause heat to build up within your case, so ASUS designed the TUF GAMING B760-PLUS WIFI to leverage multiple thermal solutions that efficiently dissipate heat. A VRM heat sink, M.2 heat sink, hybrid fan headers, and Fan Xpert 4 utility software all work together to ensure your components stay cool.
Networking

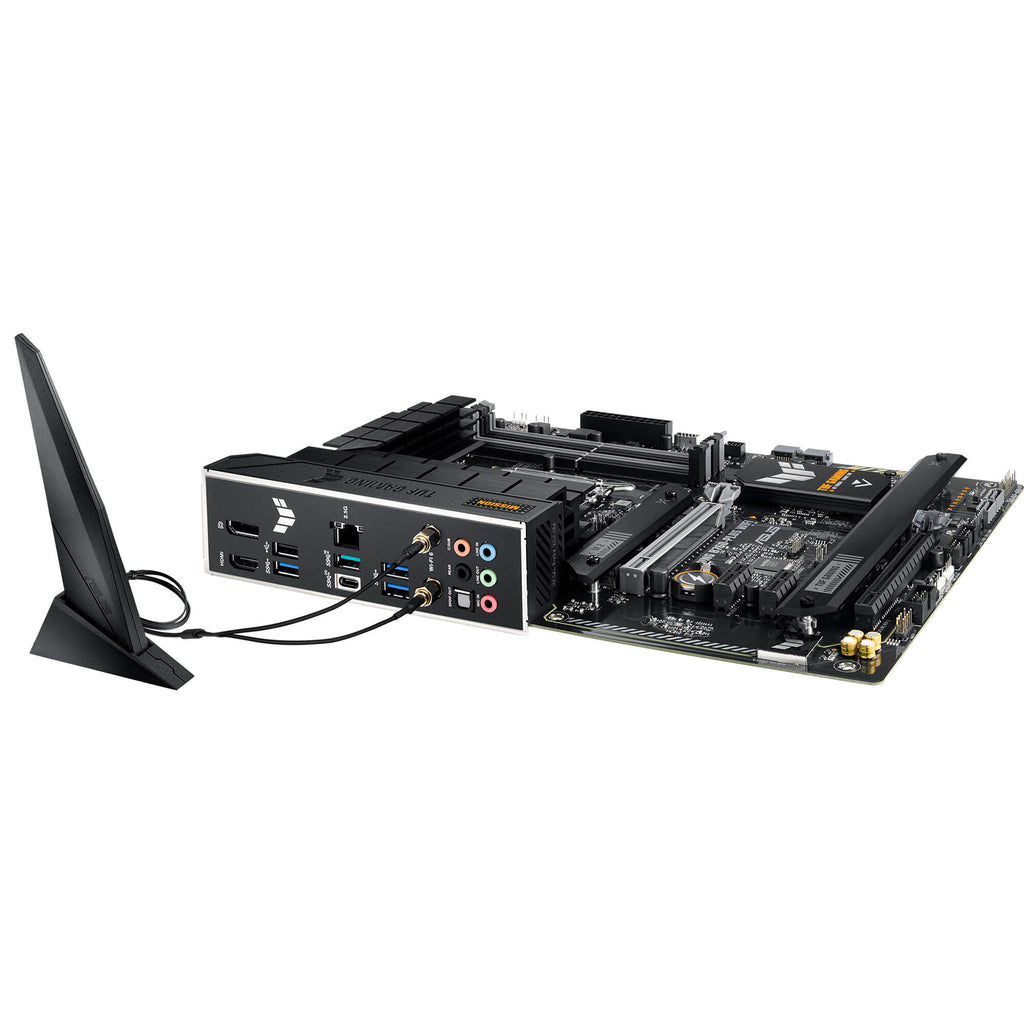

Whether you prefer wired or wireless networking, the TUF GAMING B760-PLUS WIFI includes a 2.5 Gigabit Ethernet port and Wi-Fi 6 (802.11ax) wireless capabilities. TUF LANGuard technology ensures you get the strongest wired signal possible with lower latency.
USB Connectivity
Equipped with various ports and headers designed to provide power to external devices, you get USB 3.2 Gen 1 and Gen 2 ports, designed to provide power to resource-demanding peripherals with data transfer speeds up to 5 and 10 Gb/s, respectively. The USB 3.2 Gen 2x2 boasts up to 20 Gb/s data transfer speeds, allowing you to use advanced devices such as audio and video interfaces. An internal Thunderbolt 4 header enables you to equip your system with an optional Thunderbolt 4 card, unlocking 40 Gb/s transfer speeds, daisy chaining, and additional video-out support.
DIY Friendly
Whether you are a seasoned builder or brand new, the TUF GAMING B760-PLUS WIFI provides you with several additions that make installation easier. SafeDIMM adds a metal divider on the RAM slots for safer installation of memory modules while Q-DIMM allows you to install memory modules easily with a single locking mechanism. SafeSlot Core+ fortifies your PCIe 5.0 slot with a metal reinforcement for stronger retention designed to support heavier graphics cards. M.2 Q-Latch makes installation and removal of M.2 storage drives quick and easy. Q-LED uses various LEDs that tell you which components are running properly upon startup, making troubleshooting easier in the event of a failure.
Aesthetics
Illuminate your finished product in an array of lighting and effects with integrated RGB headers, allowing you to use a wide range of RGB and ARGB strips. Aura Sync can unify your compatible devices like mice and keyboards to match your rig for a unique theme that fits your style.
Sound
Immerse yourself deep into your games with Realtek 7.1-channel audio support, delivering a high-quality audio experience. ASUS AI Noise Canceling Mic technology uses an artificial intelligence to filter out unwanted sound so your teammates can hear you clearly with less distractions.
UEFI BIOS
Manage your system and enable overclocking with UEFI BIOS. Advanced mode allows you to fine-tune your system with a wide range of settings and options while EZ mode simplifies the experience. EZ Flash 3 allows you to upgrade your BIOS firmware to the latest iteration by using a USB drive to save and upload the file. The CrashFree BIOS 3 rescue function resets your system in the event of an update failure or corruption.
ASUS Exclusive Software
Included with your TUF GAMING B760-PLUS WIFI is a suite of exclusive software designed to help you monitor, manage, and overclock your system. You get the ASUS Armoury Crate package with AURA Sync, AURA Creator, and Two-Way AI Noise Cancelation.
UPC: 197105095113

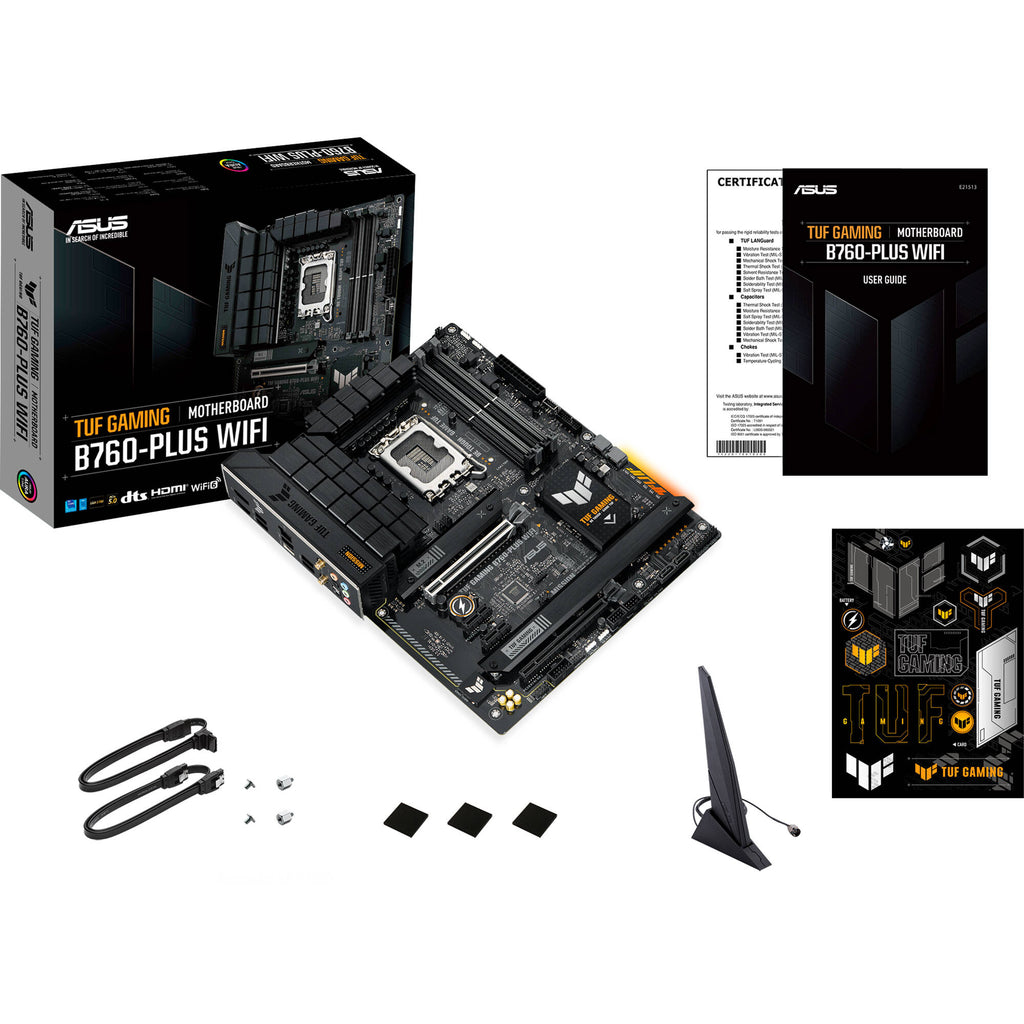

In the Box
- ASUS TUF GAMING B760-PLUS WIFI LGA1700 ATX Motherboard
- 2 x SATA Cables
- Wi-Fi Moving Antenna
- 2 x M.2 Rubber Packages
- Screw Package for M.2 SSD
- TUF Gaming Sticker
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- TUF Performance
- Comprehensive Cooling
- Networking
- USB Connectivity
- DIY Friendly
- Aesthetics
- Sound
- UEFI BIOS
- ASUS Exclusive Software
ASUS TUF GAMING B760-PLUS WIFI Specs
Key Specs
| Chipset |
Intel B760
|
| CPU Socket |
LGA 1700
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
|
| M.2 |
2x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
1x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) |
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 3.0 x16 (x4 mode) 2x PCIe 3.0 x1 |
| Wi-Fi |
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with 2 x 2 MU-MIMO Support
|
| Form Factor |
ATX
|
CPU
| Chipset |
Intel B760
|
| CPU Socket |
LGA 1700
|

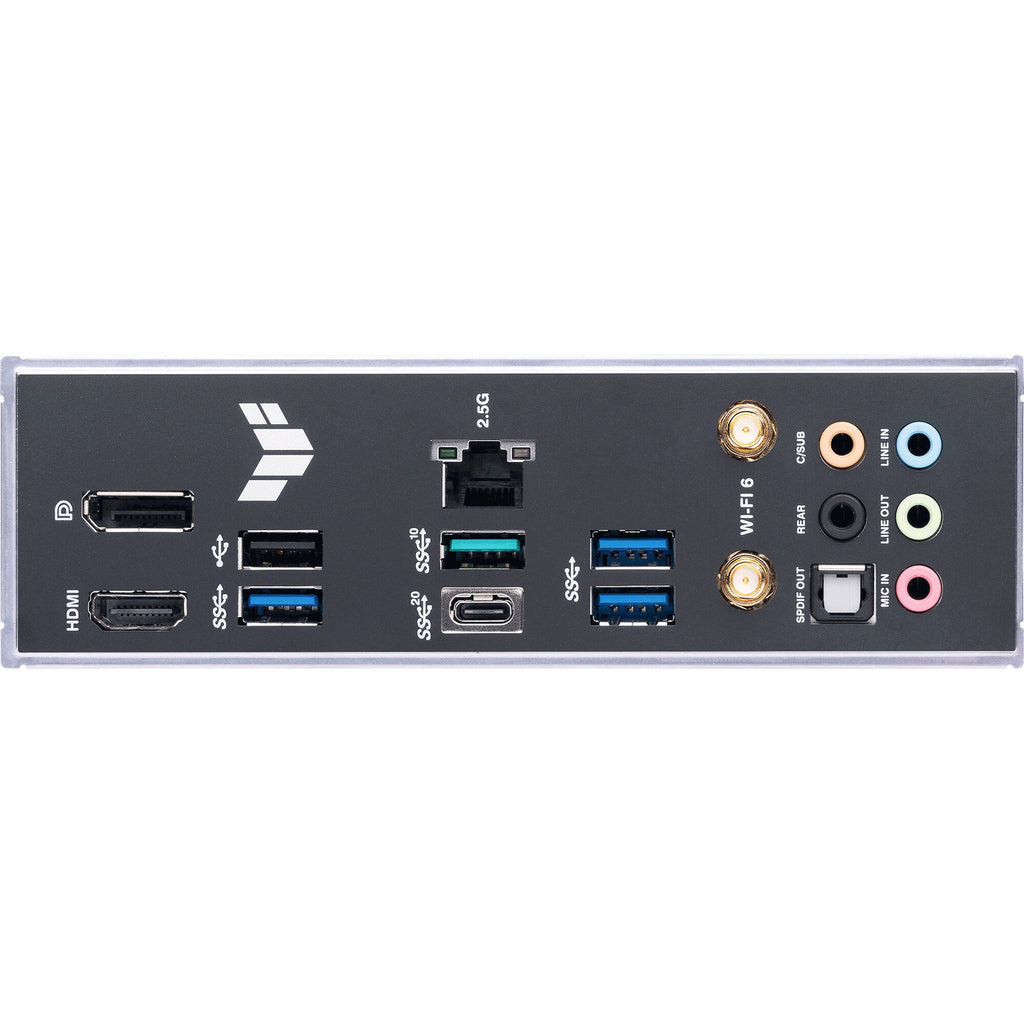

Back Panel I/O
| USB |
1x USB-C (USB 3.2 Gen 2x2)
1x USB-A (USB 3.1/3.2 Gen 2) 3x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 1x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x HDMI
1x DisplayPort |
| Audio |
5x 1/8" / 3.5 mm
1x S/PDIF |
| Ethernet / Controller |
1x Realtek 2.5Gigabit
|
| Wi-Fi Antenna |
2x Connector
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
|
| Maximum Capacity |
192 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| M.2 |
2x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
1x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) |
| RAID Support |
RAID 0, 1, 5, 10 (SATA)
|
Internal I/O
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 3.0 x16 (x4 mode) 2x PCIe 3.0 x1 |
| USB |
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
2x 4-Pin CPU
4x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
1x 8-Pin CPU 1x 4-Pin CPU |
| Security |
Chassis Intrusion
|
| LED Header |
4x RGB
|
| Audio |
No
|
| Diagnostics |
Clear CMOS
|
| Add-On |
1x Thunderbolt Header
|
| Legacy |
1x Serial
|
BIOS
| ROM |
128 Mb
|
Front Panel I/O
| Front Panel I/O |
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
|
Audio
| Audio Codec |
Realtek (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with 2 x 2 MU-MIMO Support
|
| Bluetooth |
5.2
|
Software
| OS Compatibility |
Windows 10 to 11
|
Physical
| Form Factor |
ATX
|
| Dimensions |
9.6 x 12" / 24.4 x 30.5 cm
|
Packaging Info
| Package Weight |
3.88 lb
|
| Box Dimensions (LxWxH) |
14 x 10.8 x 2.8"
|
