Description
ASUS B860-I GAMING WIFI Overview
Power immersive gaming and content creation with the ASUS ROG Strix B860-I GAMING WIFI Mini-ITX Motherboard as your foundation for your custom build. Supporting Intel Core Ultra Series 2 processors, this compact socket LGA 1851 motherboard offers fast connectivity and AI-driven performance features.
Two DDR5 DIMM slots are available, supporting up to 96GB of 9066 MT/s overclocked memory for smooth multitasking, large projects, and demanding applications. For storage, you can install an M.2 PCIe 5.0 SSD alongside one PCIe 4.0 and four SATA III drives to store your games library and important files. A PCIe 5.0 x16 slot is available for expansions such as a powerful graphics card.
The rear panel includes a 40 Gb/s Thunderbolt 4 port, which is complemented by a 20 Gb/s USB-C port. There is also a 10 Gb/s compatible USB-A port in addition to three USB-A 3.2 Gen 1 ports that work with 5 Gb/s devices. The two USB-A 2.0 ports may be reserved for peripherals such as keyboards and mice. Built-in Wi-Fi 7 (802.11be) support and a 2.5 Gb/s Ethernet port provide you with fast connections to compatible network devices. Windows 11 is required to take advantage of all the motherboard's features.
Performance
AI Ready
Designed for AI computing, this motherboard offers the power and connectivity needed for demanding applications.
Overclocking Memory
This motherboard is ready for enthusiast-grade kits courtesy of Intel Extreme Memory Profile (XMP) overlocking support.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an exclusive firmware feature for PMIC-restricted memory modules.
Power Design
Sporting 10+1+2+1 80A power stages with ProCool power connectors, this motherboard delivers reliable and stable performance with high-core count CPUs, graphics cards, and other power-intensive components.
Advanced Cooling
Designed for overclocking, this motherboard maintains optimal performance and stability with fan and AIO pump headers, and heatsinks for the M.2 slots and VRM.
SupremeFX Audio
Supporting 7.1 surround sound, the integrated audio system delivers deep, immersive experiences. With a Savitech SV3H712 AMP, the front panel delivers 32-bit, 192 kHz playback with a 113 dB SNR recording input.
Connectivity
Wi-Fi 7
Wi-Fi 7 supports 320 MHz bandwidth on the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.
2.5G Ethernet
An onboard 2.5G Ethernet port provides fast and stable connectivity to compatible wired devices.
DIY Friendly
Easy M.2 Installation
The ASUS M.2 Q-Latch and Q-Slide allow you to quickly install or remove M.2 SSDs without the need for tools or screws.
PCIe Slot Q-Release Slim
With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. Users no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
Q-Antenna
With Q-Antenna, attaching a Wi-Fi antenna to your PC is a snap. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place.
Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components are functioning normally during startup. It can also alert them when memory modules have not been properly installed.
Clear CMOS
Clear the CMOS at the touch of a button to help remove data corruption from the chip.
Software Utilities
Dolby Atmos
Dolby Atmos expands on traditional surround sound systems by adding height channels, which enables immersive three-dimensional audio to be perceived from above or below the listener.
ASUS GlideX
Using this app enables smooth screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, across multiple platforms.
HWINFO
This comprehensive diagnostic tool provides detailed information about hardware components and real-time system monitoring.
ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
AIDA64 Extreme
The AIDA64 Extreme tool provides detailed information about the hardware components and software, perform benchmark tests, and help prevent possible hardware issues. A 60-day trial subscription is included.
Play in Style
Armoury Crate
Customize Aura Sync RGB and control ASUS devices using the Armoury Crate software.
Addressable Gen 2 RGB headers
The two addressable Gen 2 headers automatically optimize lighting effects for the number of LEDs present on compatible ARGB gear. You can sync the effects Aura Sync compatible peripherals such as keyboards, mice, and monitors.
UPC: 197105815995
Items Included
- ASUS Republic of Gamers STRIX B860-I GAMING WIFI LGA 1851 Mini-ITX Motherboard
- 2 x SATA III Cable
- ASUS WiFi Q-Antenna
- Cable Tie Package
- 2 x M.2 SSD Screw Package
- Fan Bracket
- ROG Keychain
- ROG Strix Stickers
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
ASUS B860-I GAMING WIFI Specs
Key Specs
| Chipset |
Intel B860
|
| CPU Socket |
LGA 1851
|
| Memory Slots |
2x 288-Pin
|
| Memory Support |
DDR5 9066 MT/s
|
| Storage Slots |
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) |
| Expansion Slots |
1x PCIe 5.0 x16
|
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
|
| Form Factor |
Mini-ITX
|
CPU
| Chipset |
Intel B860
|
| CPU Socket |
LGA 1851
|

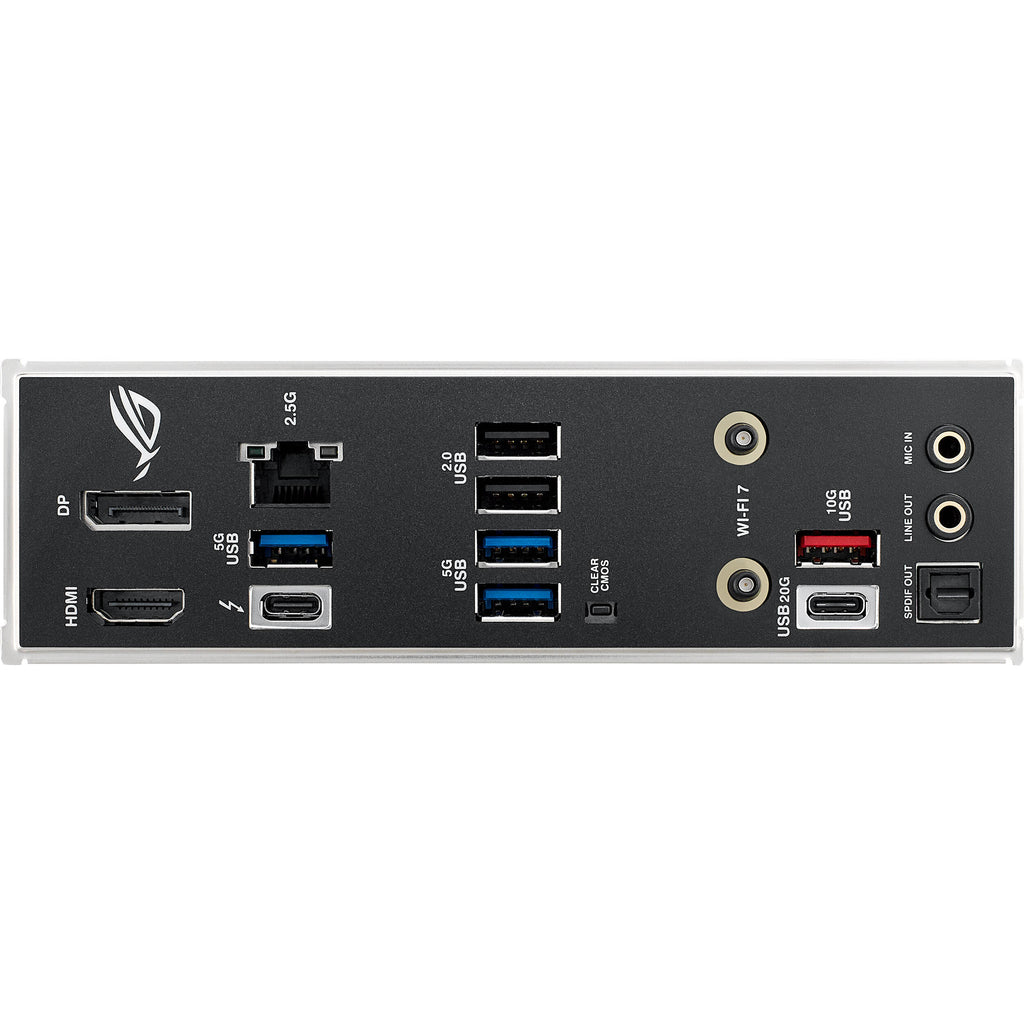

Back Panel I/O
| USB |
1x USB-C (USB 3.2 Gen 2x2)
1x USB-A (USB 3.1/3.2 Gen 2) 3x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 2.0) |
| Thunderbolt |
1x Thunderbolt 4
|
| Display |
1x HDMI 2.1
1x DisplayPort 1.4 |
| Audio |
2x 1/8" / 3.5 mm
1x S/PDIF |
| Ethernet / Controller |
1x Intel 2.5Gigabit
|
| Wi-Fi Antenna |
2x Connector
|
| Buttons |
Clear CMOS
|
Memory
| Memory Slots |
2x 288-Pin
|
| Memory Support |
DDR5 9066 MT/s
|
| Maximum Capacity |
96 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| Storage Slots |
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) |
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1, 5, 10
|
Internal I/O
| Expansion Slots |
1x PCIe 5.0 x16
|
| USB |
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 2.0 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 2 USB-A Port) |
| Air Cooling |
1x 4-Pin CPU
1x 4-Pin System 1x Thermal Sensor |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
1x 8-Pin CPU |
| LED Header |
2x RGB
|
| Audio |
1x Speaker
|
BIOS
| ROM |
256 Mb
|
Front Panel I/O
| Front Panel I/O |
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
|
Audio
| Audio Codec |
SupremeFX (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
|
| Bluetooth |
5.4
|
| Module Support |
1 E Key M.2
|
Software
| OS Compatibility |
Windows 11
|
Physical
| Form Factor |
Mini-ITX
|
| Dimensions |
6.7 x 6.7" / 170.2 x 170.2 mm
|
Packaging Info
| Package Weight |
2.91 lb
|
| Box Dimensions (LxWxH) |
9.4 x 8.3 x 3.7"
|
