ASUS Radeon RX 9070 TUF Gaming OC Graphics Card

Based on the RDNA 4 architecture, the ASUS Radeon RX 9070 TUF Gaming OC Graphics Card delivers enhanced ray tracing and AI performance to 4K games and content creation. The GPU features 16GB of GDDR6 VRAM and a 256-bit memory interface, offering improved performance and power efficiency over the previous RDNA-based generation.

The front panel of the card features DisplayPort 2.1a and HDMI 2.1 ports. In addition to high-resolution gaming, computationally intensive programs can utilize the GPU's 64 compute units and 3584 stream processors to accelerate content creation. This GPU can reach speeds of up to 2670 MHz in overclocked mode.

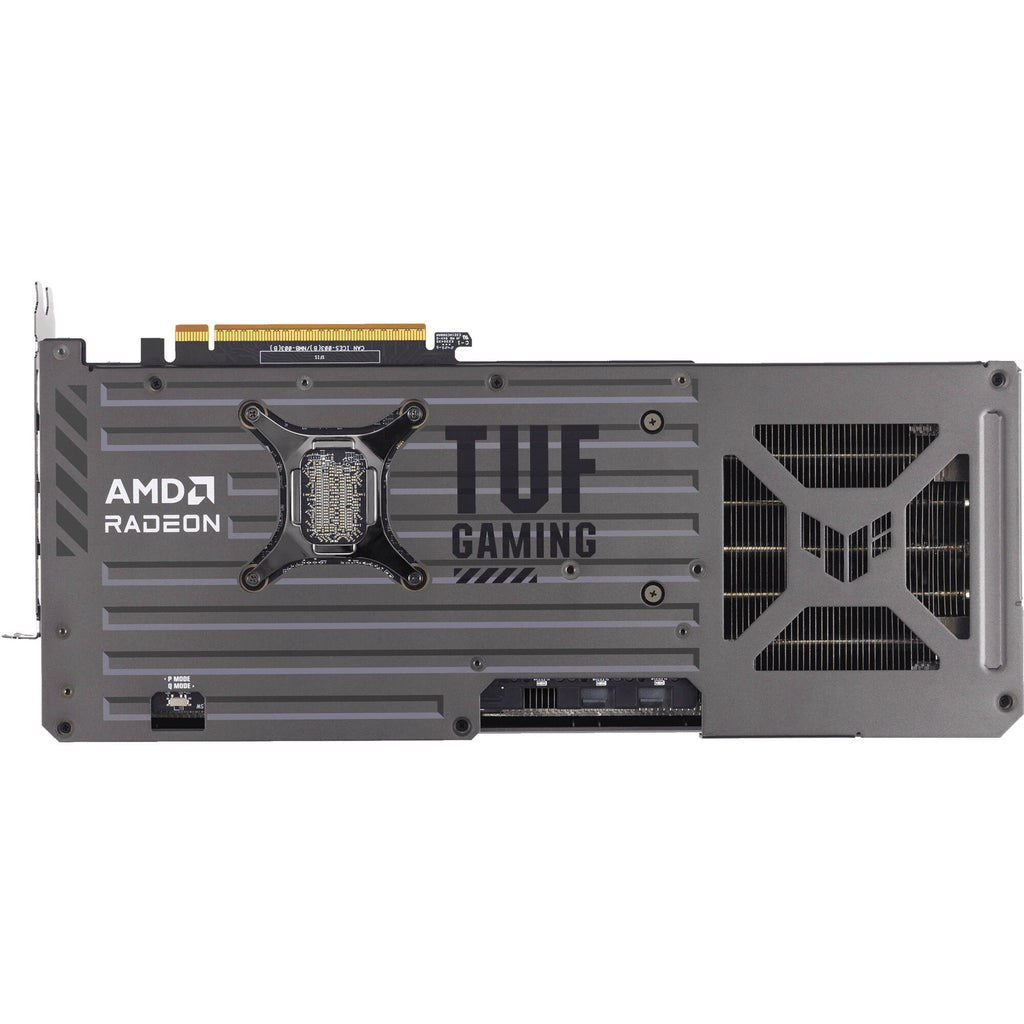

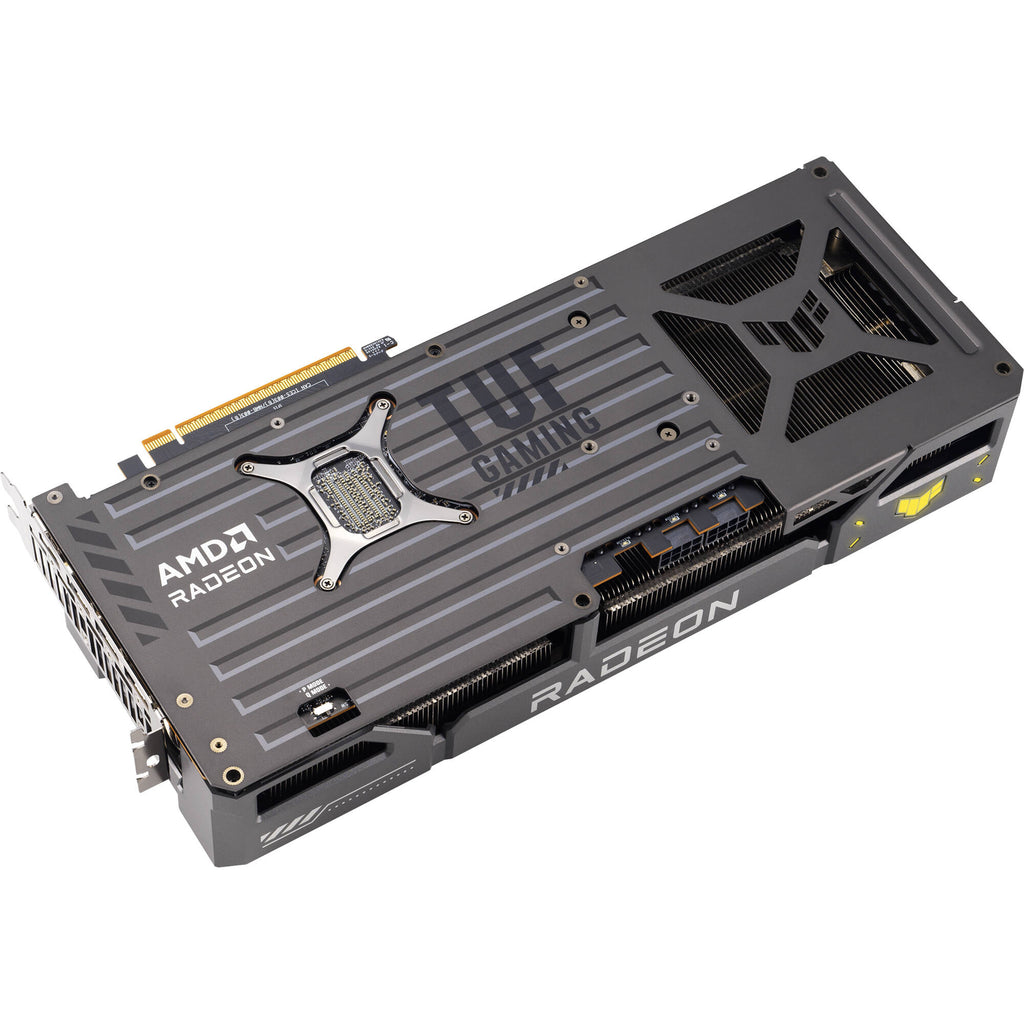

When it comes to cooling, the TUF GAMING OC features triple Axial-tech alternate-spinning fans, which have longer blades for improved airflow and dispersion. The heat sink soaks up the heat while a vented backplate significantly enhances heat dissipation. Add a MaxContact design and phase-change GPU thermal pad, and this GPU will stay cool during intensive gameplay.

Easy Installation

An integrated GPU guard and bracket secure your GPU by helping to reduce the risk of cracks while ensuring stable mounting.

A dual BIOS switch lets you manually toggle between Performance and Quiet modes.

With 3rd Gen ray tracing accelerators, this GPU delivers up to twice the performance of the previous generation for lifelike lighting, shadows, and reflections.

Supercharged with AI

The 2nd Gen AI accelerators with support for FP8/INT4 formats provide up to 8x higher performance from the previous generation. AMD Noise Suppression uses AI to help reduce background audio noise from your surrounding environment for improved audio clarity while streaming and communicating with teammates.

The AMD Radiance Display Engine and Enhanced Media Engine enhance video recording and streaming while enhancing the image quality for AV1, HEVC, and H.264 codecs. Full AV1 encode/decode support delivers exceptional image quality at lower bit rates and smaller file sizes.

Seamless Upscaling

AMD's FidelityFX Super Resolution Technology 4 (FSR 4) is designed to deliver high-quality upscaling with demanding workloads such as 4K gaming with maximum ray tracing settings with supported games.

ASUS RX 9070 TUF Gaming Specs

GPU Model	AMD Radeon RX 9070
Stream Processors	3584
Dedicated AI Cores	Yes
Interface	PCI Express 5.0 x16
Video RAM	16 GB GDDR6
Video Output	3x DisplayPort 2.1a 1x HDMI 2.1b
Power Connection	3x 8-Pin PCI Connector
Recommended System Power Requirement	750 W
GPU Width	3.2-Slot

GPU Model	AMD Radeon RX 9070
Stream Processors	3584
Clock Speed	Base Mode: 2170 MHz Boost Mode: 2650 MHz OC Mode: 2670 MHz
Dedicated AI Cores	Yes
Interface	PCI Express 5.0 x16
Supported APIs	DirectX: 12 OpenGL: 4.6

Video RAM	16 GB GDDR6
Memory Speed	20 Gb/s
Memory Interface Width	256-Bit
Memory Bandwidth	640 GB/s

Video Output

3x DisplayPort 2.1a 1x HDMI 2.1b

Power Connection	3x 8-Pin PCI Connector
Recommended System Power Requirement	750 W

Expansion Slot Compatibility	Full Height
Height	5.5" / 140.00 mm
Length	13.0" / 330.00 mm
GPU Width	3.2-Slot
OS Compatibility	Windows

Cooler Type	Blower-Style Fan
Lighting	RGB LED
