| ₹ 152895.0 includes GST and import duties. | |
| B2B customers can avail ₹ 23316.49 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

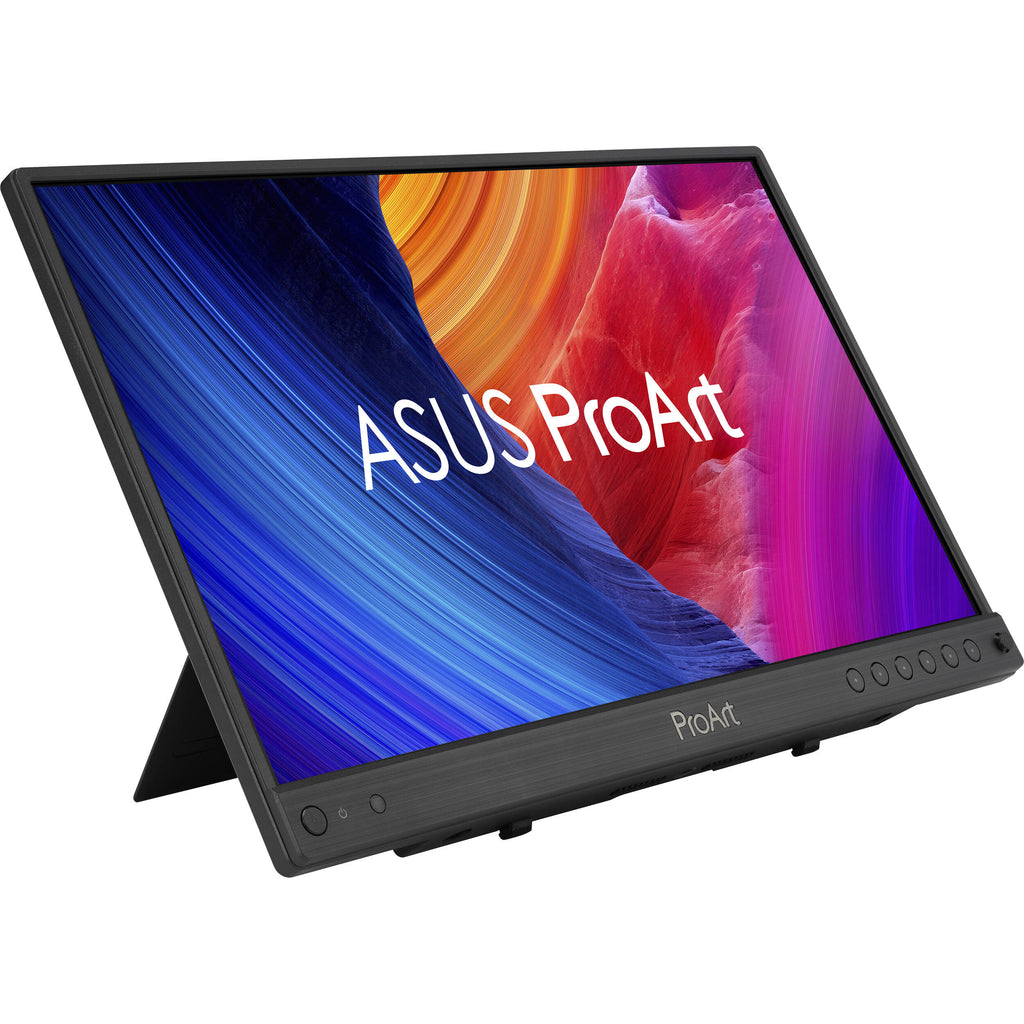

ASUS PA16USV Overview
Designed for DITs, video directors, and camera operators, the ASUS ProArt Display 15.6" 4K UHD HDR Portable Monitor delivers highly accurate colors that bring out the finest details in your creations. Factory calibrated for Delta E <2 accuracy, this Calman Verified UHD 4K 3840 x 2160 resolution display covers 100% of the sRGB and Rec. 709 gamuts, supporting 16.7 million colors with HDR10, a 1200:1 contrast ratio, 5 ms GtG response time, and 400 nits brightness.
With 12G-SDI connectivity, you can transmit uncompressed 4K, 60 Hz footage directly from a camera with exceptionally low latency. You can also transfer video and power over a single cable by connecting a DisplayPort in Alt. Mode compatible laptop to the designated USB-C port. An HDMI 2.0 port is also available. The USB-C 3.2 Gen 1 port supports up to 5 Gb/s data transfers with compatible peripherals. Plug a pair of headphones into the 3.5mm jack for listening privacy.
Empowering Content Creators
Digital Imaging Technician (DIT)
DITs need a high-quality SDI monitor for on-set quick color grading and managing production workflow. It can provide accurate color reproduction and details from camera and present to director/customers.
Director Monitoring
Directors need an accurate monitor for on-set review and decision-making. The ProArt Display is designed to provide precise color reproduction, allowing directors to see what the camera captures and make informed decisions on lighting and framing.
Focus Puller / Camera Assistant
Focus pullers require excellent resolution and color accuracy. This SDI monitor provides clear images for precise focus adjustments during shooting, ensuring sharpness and clarity in dynamic scenes.
4K HDR Imagery On-Set
Uncompressed 4K Video
A 23.6" panel with a 4K UHD (3840 x 2160) resolution delivers four times the pixel density and three times more onscreen space than similarly sized Full HD displays, resulting in sharper visuals with greater levels of detail.
Lifelike Views with Wide Viewing Angles
A frameless IPS panel provides 170? viewing angles both horizontally and vertically, so you can enjoy its beautiful visuals from almost any direction.
High Dynamic Range
The ProArt Display PA16USV features up to 400 nits of brightness and HDR10 for brighter whites and darker blacks for a rich viewing experience.
Multiple PQ Curves
ASUS ProArt Displays support multiple HDR10 curves, including PQ Hard Clip, PQ Optimized, and PQ Basic, which can cover all content creation needs.
PQ Hard Clip
This setting preserves the PQ curve until it displays maximum luminance. Anything brighter will be mapped to the maximum luminance of the display.
PQ Optimized
This PQ curve setting reproduces accurate gradations that correspond to the maximum brightness of the monitor to deliver optimized HDR performance.
PQ Basic
Present general HDR performance.
PQ Hard Clip
This setting preserves the PQ curve until it displays maximum luminance. Anything brighter will be mapped to the maximum luminance of the display.
PQ Optimized
This PQ curve setting reproduces accurate gradations that correspond to the maximum brightness of the monitor to deliver optimized HDR performance.
PQ Basic
Present general HDR performance.
Streamlined, Efficient Workflows
12G-SDI Connectivity
SDI (Serial Digital Interface) is a professional video signal that's preferred in production environments, providing longer distance without video compression with reliability. The BNC-type cable has specialized connectors on each end to lock into the devices they connect to, so it cannot be easily dropped or pulled out.
Compared with general 3G-SDI, 12G-SDI provides up to 4x the bandwidth and allows both receiving and transmitting uncompressed video up to 4K/60 Hz video footage directly from camera devices with ultra-low latency.
Connect to Your Workflow
A USB-C port enables fast data transfers and video signals while powering the display with compatible devices using a single cable. There is also one HDMI 2.0 port for compatibility with current and future displays and peripherals, plus one USB-C 3.2 Gen 1 data port and a 3.5mm headphone jack.
Flexible Mounting
The portable ProArt Display fits into a variety of workspaces with its built-in kickstand, included mini stand, and 75 x 75 mm VESA pattern.
Diverse Viewing Options
Picture-by-Picture (PbP)
View two to four different settings simultaneously by placing multiple input sources onscreen side-by-side; and configure each individual window's color settings with sRGB, Adobe RGB, DCI-P3, Rec. 2020, User Mode 1, or User Mode 2.
Picture-in-Picture (PiP)
Easily place your second input source in a window in one corner of the display.
View two to four different settings simultaneously by placing multiple input sources onscreen side-by-side; and configure each individual window's color settings with sRGB, Adobe RGB, DCI-P3, Rec. 2020, User Mode 1, or User Mode 2.
Picture-in-Picture (PiP)
Easily place your second input source in a window in one corner of the display.
Caring for Your Eyes
ASUS Flicker-Free Technology
It's time to say goodbye to those tired, strained eyes. ProArt Displays feature TUV Rheinland-certified ASUS Flicker-Free technology to reduce flicker and minimize instances of eyestrain and other damaging ailments for a comfortable viewing experience.
Blue Light Filter
The TUV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light and you can easily access this via a hotkey. ProArt displays have undergone stringent performance tests and have been certified by TUV Rheinland laboratories to be flicker-free and to emit low blue light levels.
It's time to say goodbye to those tired, strained eyes. ProArt Displays feature TUV Rheinland-certified ASUS Flicker-Free technology to reduce flicker and minimize instances of eyestrain and other damaging ailments for a comfortable viewing experience.
Blue Light Filter
The TUV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light and you can easily access this via a hotkey. ProArt displays have undergone stringent performance tests and have been certified by TUV Rheinland laboratories to be flicker-free and to emit low blue light levels.
Ergonomic Design
A comfortable viewing position is always easy to achieve with ASUS ProArt Display. An ergonomically designed quick release stand with -3 to 21? tilt, ?30? swivel, ?90? pivot, and 5.1" height adjustments provides comfortable viewing and usage experiences. Furthermore, it is 100 x 100mm VESA wall mountable to save on desktop space.
Accurate Real-Time On-Set Preview
QuickFit Plus is a clever feature that overlays a grid on the screen and allows you to better align and preview. Center Marker and Safety Area can provide a real-time preview when you are on set shooting to help avoid video that falls outside of the screen area. Ruler provides the actual size of an inch ruler on the edge, but you can customize the working size to fit your preference.
Three Free Months of Adobe Creative Cloud
Enjoy a trial membership to Adobe Creative Cloud with the purchase of select ASUS products.
UPC: 197105406131
Items Included
- ASUS ProArt Display 15.6" 4K UHD HDR Portable Monitor
- Power Adapter
- Power Cable
- Mini Stand
- HDMI Cable
- USB-C Cable
- Color Pre-Calibration Report
- Limited 3-Year Manufacturer Warranty
Additional Resources
ASUS PA16USV Specs
Key Specs
| Display Size |
15.6"
|
| Panel Type |
IPS-Type LCD
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
400 nits / cd/m2
|
| HDR Support |
Yes: HDR10
|
| Finish |
Anti-Glare
|
| Touchscreen |
No
|
| A/V Inputs |
1x 12G-SDI
1x HDMI 2.0 |
| USB I/O |
1x USB-C 3.0 / 3.1/3.2 Gen 1 with DP Alt Mode
1x USB-C 3.0 / 3.1/3.2 Gen 1 |
Display
| Display Size |
15.6"
|
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
16:9
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
400 nits / cd/m2
|
| HDR Support |
Yes: HDR10
|
| Contrast Ratio |
1200:1
|
| Response Time |
5 ms (GtG)
|
| Refresh Rate |
60 Hz
|
| Variable Refresh Technology |
No
|
| Color Support |
16.7 Million Colors
|
| Color Gamut |
100% sRGB
100% Rec. 709 |
| Viewing Angle (H x V) |
70 x 170?
|
| Finish |
Anti-Glare
|
Surface
| Touchscreen |
No
|
Connectivity
| A/V Inputs |
1x 12G-SDI
1x HDMI 2.0 |
| HDCP Support |
Yes: Version 2.2
|
| USB I/O |
1x USB-C 3.0 / 3.1/3.2 Gen 1 with DP Alt Mode
1x USB-C 3.0 / 3.1/3.2 Gen 1 |
| Ethernet I/O |
No
|
Speaker
| Built-In Speakers |
No
|
Electrical
| Power Consumption |
Typical: < 15.0 W
Standby: 0.5 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
External
|
General
| Certifications |
ENERGY STAR, EPEAT, TUV
|
| Adjustments |
Tilt -20 to 70?
|
| Lock Slot |
Yes: Kensington
|
| Dimensions |
14.1 x 9.6 x 4.3" / 35.7 x 24.3 x 10.9 cm (with Stand)
14.1 x 8.9 x 1.1" / 35.7 x 22.5 x 2.7 cm (without Stand) |
| Weight |
3.1 lb / 1.4 kg (with Stand)
2.9 lb / 1.3 kg (without Stand) |
Packaging Info
| Package Weight |
13.135 lb
|
| Box Dimensions (LxWxH) |
22.1 x 14.2 x 6.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 149837.1 |
| 3-5 | ₹ 148308.15 |
| 5-10 | ₹ 145250.25 |
| 10+ | ₹ 142192.35 |
Bulk discount will be automatically applied during checkout based on quantity.
