Description

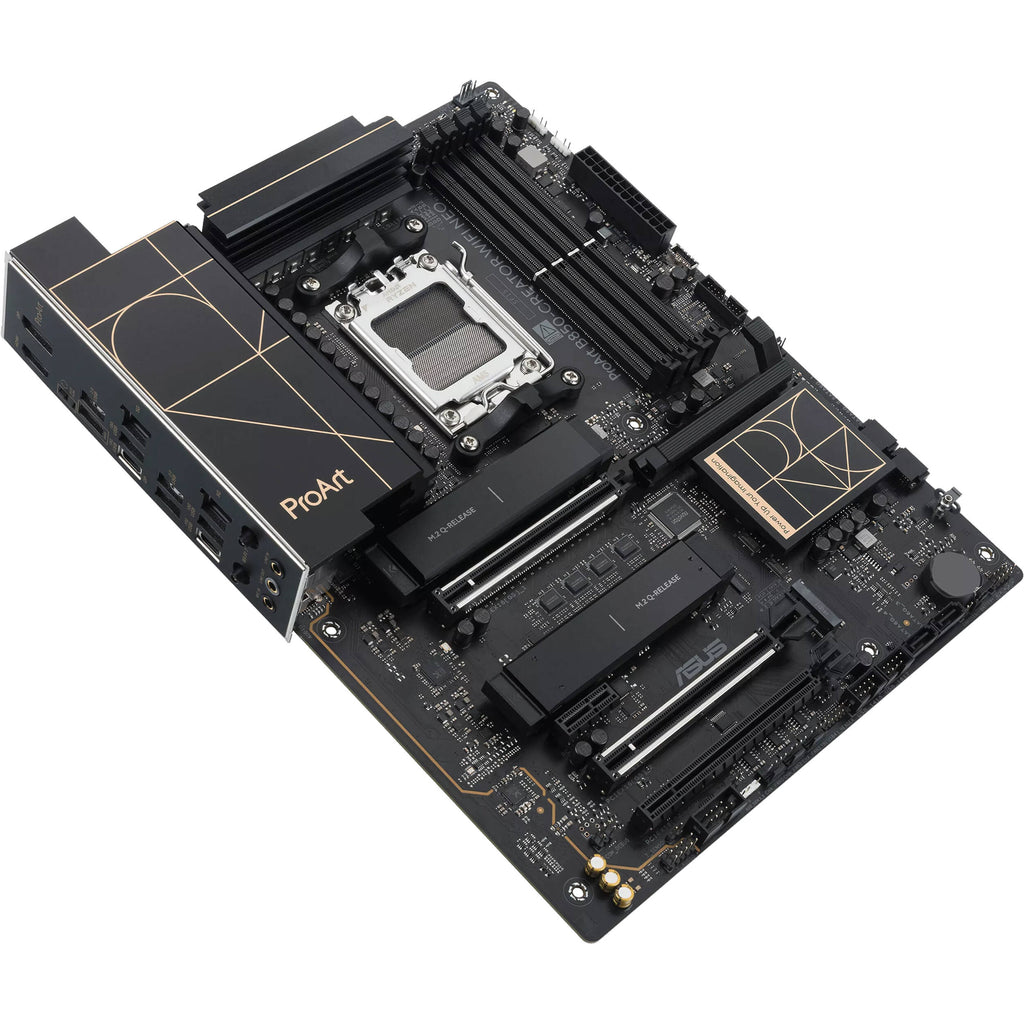

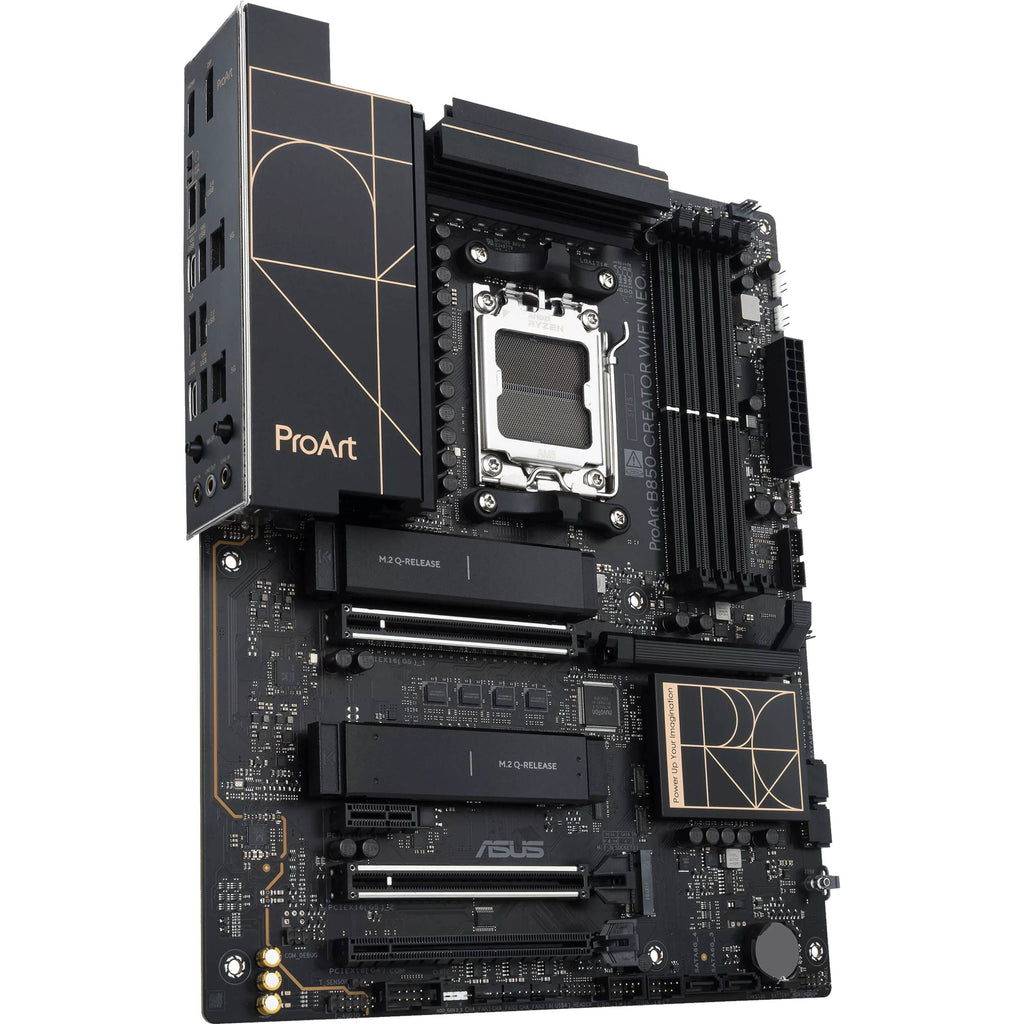

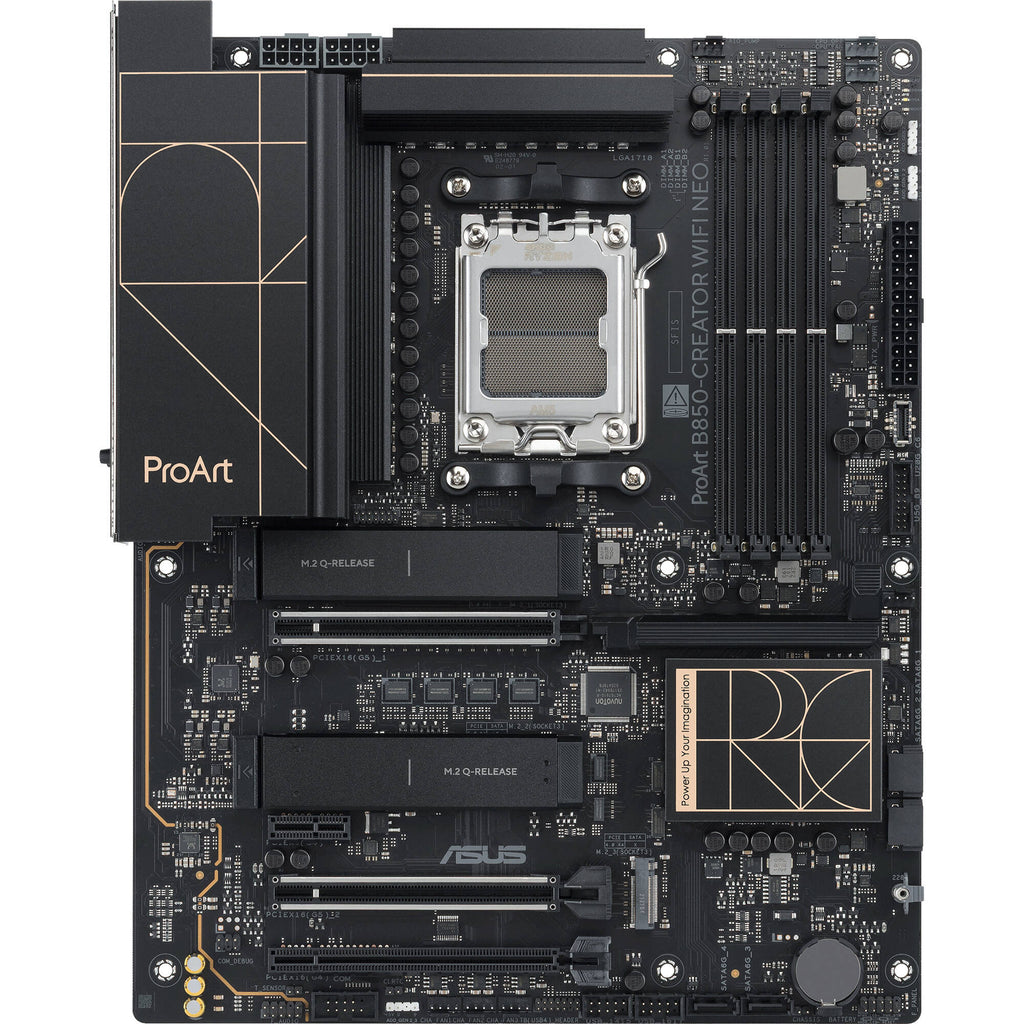

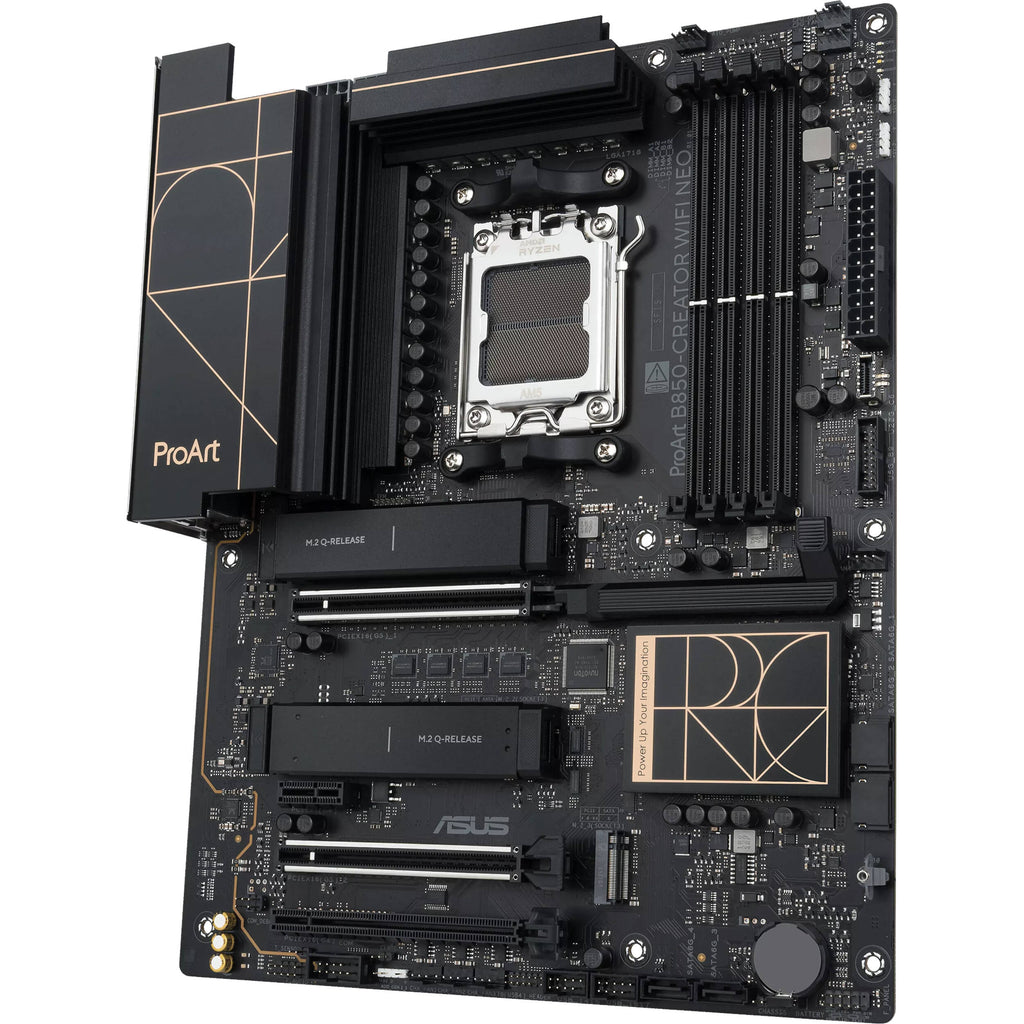

ASUS B850-CREATOR WIFI NEO Overview
Designed primarily for creative professionals and enthusiasts, the ASUS ProArt B850-CREATOR NEO WiFi AM5 ATX Motherboard supports up to AMD 8000 and 9000 series socket AM5 processors while providing robust connectivity to enhance your workflow.
Four DDR5 DIMM slots are available, supporting up to 256GB of 9000+ MT/s memory for smooth multitasking, large projects, and demanding applications. For storage, you can install up to two M.2 PCIe 5.0 x4 SSDs alongside one PCIe 4.0 M.2 2280. There are also four SATA III connectors. Install up to two PCIe 5.0 x16 expansion cards, which can work in x16 or x8/x8 modes, in addition to a PCIe 4.0 x16 card in x4 mode. With two USB-C 3.2 Gen 2 ports on the rear panel, you can connect 10 Gb/s compatible devices or a USB-C compatible 8K display. They are complemented by two 10 Gb/s USB-A ports and four USB-A 2.0 ports for peripherals such as a wireless keyboard adapter. An internal front-panel header supports a 20 Gb/s USB-C 3.2 Gen 2x2 with 30W power delivery. Built-in Wi-Fi 7 (802.11be) support and two 5GbE Ethernet ports provide exceptionally fast connections to compatible network devices. Windows 11 is required to take advantage of all the motherboard's features.
High-Speed Connectivity
Dual 5 GbE Ethernet
Dual Ethernet ports provide fast data transfers simultaneously. The two 5 GbE LAN ports provide flexible network configuration for professional environments. Dedicate bandwidth for online connectivity and local storage systems to enhance workflow efficiency and system reliability.
Wi-Fi 7
Wi-Fi 7 is up to 4.8X faster than the Wi-Fi 6 standard, thanks access to the 320 MHz channels on the 6 GHz band and 4K QAM. Multi-Link Operation (MLO) provides a more stable Wi-Fi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and IoT devices.

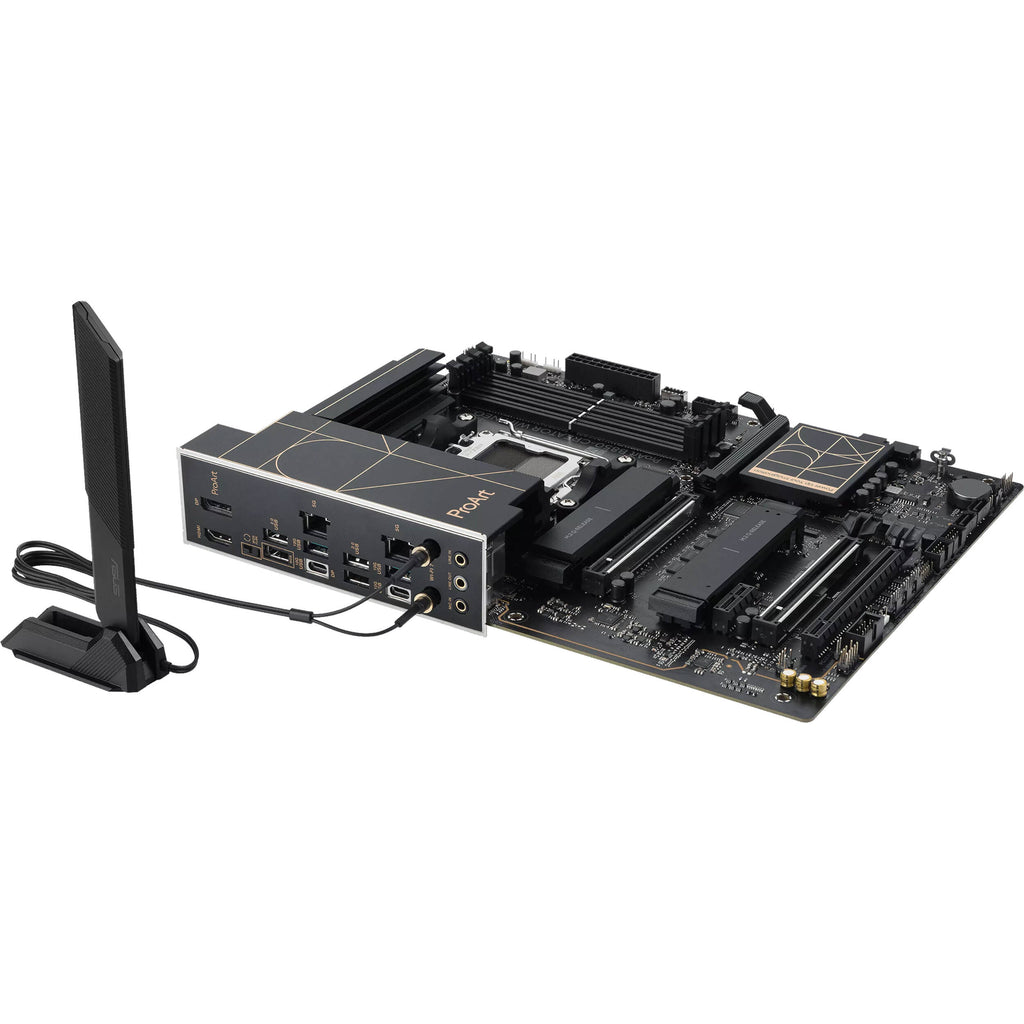

ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5, and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances. You can also pair wireless Bluetooth peripherals such as speakers, headsets, keyboards, and mice with the wireless system.
PCIe 5.0 Support
M.2 Slots
The two PCIe 5.0 M.2 slots provide up to 128 Gb/s data transfers with compatible SSDs, and all three M.2 slots support NVMe RAID configurations to enhance performance and increase data redundancy.
PCIe 5.0 Expansion Slots
Both of the PCIe 5.0 x16 slots can transfer up to 64 GB/s with powerful graphics cards and compatible expansions. They are protected by SafeSlot retention brackets, and the Q-Release Slim on the top slot makes it easy to change out devices.
USB-C DP Alt Mode
The USB-C 3.2 Gen 2 port supports transfer speeds of up to 10 Gb/s while also supporting DP Alt mode to provide DisplayPort 1.4 output at up to 8K resolution at 30 Hz.
Quick Charging
With Quick Charge 4+ support, the 20 Gb/s front panel USB-C connector can provide up to 30W charging to devices such as pen displays, tablets, and phones.
Building a Powerful Workstation
Robust Power Design
Sporting 14(80A)+2(80A)+(80A) power stages with ProCool power connectors, the ProArt B850-Creator WiFi Neo delivers reliable and stable performance with high-core count CPUs, graphics cards, and other power-intensive components. High-end chokes and capacitors are engineered to resist extreme temperatures while the eight-layer PCB quickly dissipates heat around voltage regulators and offers greater overclocking headroom.
Overclocking DDR5 Memory
For those who want to fly past stock DDR5 speeds, the ProArt B850-Creator WiFi Neo is ready for enthusiast-grade kits thanks to the AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.
ASUS Enhanced Memory Profile (AEMP)
This firmware feature for PMIC-restricted memory modules automatically detects the memory chips on your kit and then presents optimized frequency, timing, and voltage profiles that you can effortlessly apply.
Server Grade DRAM Enhancement
Achieve up to 9 GT/s on the ProArt Creator WiFi Neo with its upgraded memory slot layout and PCB design.
AI Enhancements
- AI Cache Boost optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.
- AI Cooling II provides optimized thermals and reduced noise with dynamic fan speed adjustments based on the CPU temperature.
- AI Advisor allows users to explore the functionality and advanced features of motherboards in a simple and straightforward way.
Easy DIY
PCIe Slot Q-Release
With PCIe Slot Q-Release, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. Users no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
M.2 Q-Release
The M.2 heat sink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
M.2 Q-Latch
The ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
M.2 Q-Slide
The new latch design includes a sliding M.2 cover for easy device installations.
ProArt Creator Hub
Personalize settings and optimize your workflow using the intuitive overview dashboard seen in the ProArt Creator Hub. Quickly switch fan profiles and performance modes, as well as selecting up to eight apps that can be launched at the same time using a single desktop shortcut.
ASUS Control Center Express Features
USB Port Management
Enable or disable the USB port, or set it to Read Only to prevent data leaks.?
Software Blacklist
For added security, a software blacklist is available to help prevent the use of high-risk applications.
Registry Editor On/Off
Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.
UPC: 199291504448
- ASUS ProArt B850-CREATOR NEO WiFi AM5 ATX Motherboard
- 2 x SATA III Cable
- ASUS WiFi Q-Antenna
- Q-Connector
- M.2 Q-Slide Package (2-in-1)
- Rubber Package for M.2 (2-in-1)
- Screw for M.2 Q-Latch
- ProArt Accessory Bag
- Limited 3-Year Manufacturer Warranty
ASUS B850-CREATOR WIFI NEO Specs
Key Specs
| Chipset |
AMD B850
|
| CPU Socket |
AM5
|
| Memory Slots |
4x 288-Pin
|
| Memory Type Support |
DDR5, 9000 MT/s Maximum Supported Speed
|
| M.2 Slots |
2280
|
| Expansion Slots |
2x PCIe 5.0 x16
1x PCIe 4.0 x16 1x PCIe 4.0 x1 |
| Wi-Fi |
Wi-Fi 7 (802.11be)
|
| Form Factor |
ATX
|
CPU
| Chipset |
AMD B850
|
| CPU Socket |
AM5
|

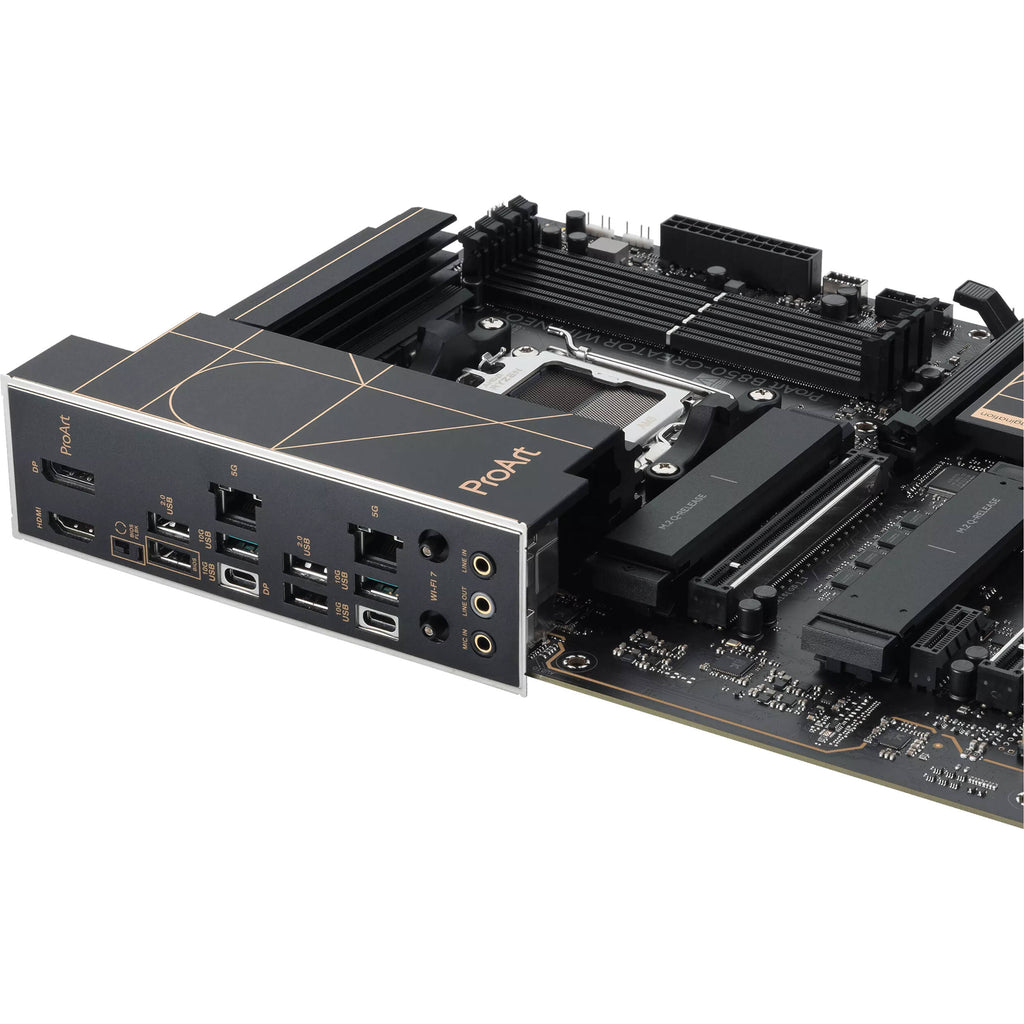

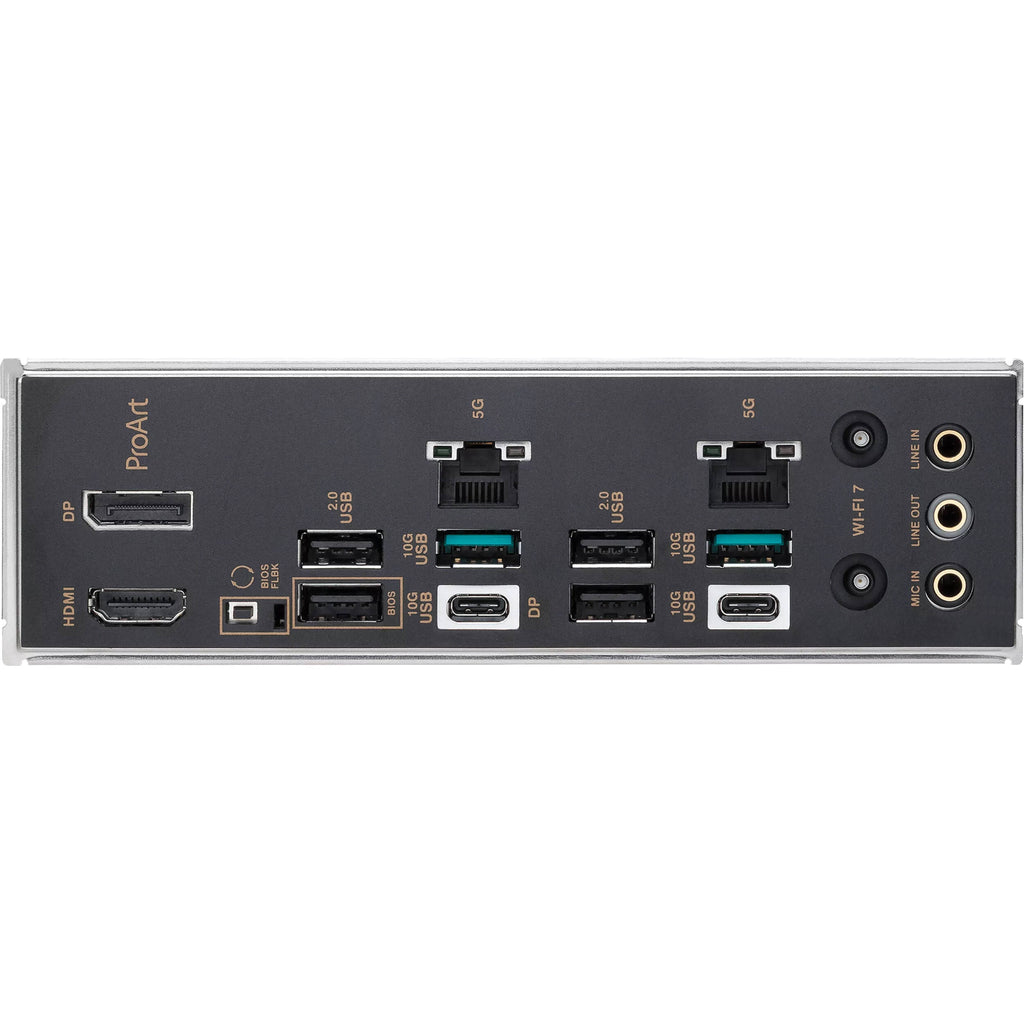

Back Panel I/O
| USB |
2x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x HDMI
1x DisplayPort |
| Audio |
3x 1/8" / 3.5 mm
|
| Ethernet / Controller |
2x Realtek 5GbE
|
| Wi-Fi Antenna |
2x Connector
|
| Buttons |
BIOS Flashback
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Type Support |
DDR5, 9000 MT/s Maximum Supported Speed
|
| Maximum Capacity |
256 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| M.2 Slots |
2x M.2 (M Key) 2280/2260/2242 (PCIe 5.0 x4)
1x M.2 (M Key) 2280 (PCIe 4.0 x4) |
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1, 5, 10
|
Internal I/O
| Expansion Slots |
2x PCIe 5.0 x16
1x PCIe 4.0 x16 1x PCIe 4.0 x1 |
| USB |
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
2x 4-Pin CPU
4x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
2x 8-Pin ATX |
| Security |
Chassis Intrusion, TPM Header
|
| LED Header |
3x RGB
|
| Diagnostics |
Clear CMOS
|
| Add-On |
1x Thunderbolt Header
|
BIOS
| ROM |
512 Mb
|
Front Panel I/O
| Front Panel I/O |
AAFP
|
Audio
| Audio Codec |
Realtek (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 7 (802.11be): Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
|
| Bluetooth |
Yes
|
Software
| OS Compatibility |
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
