Description

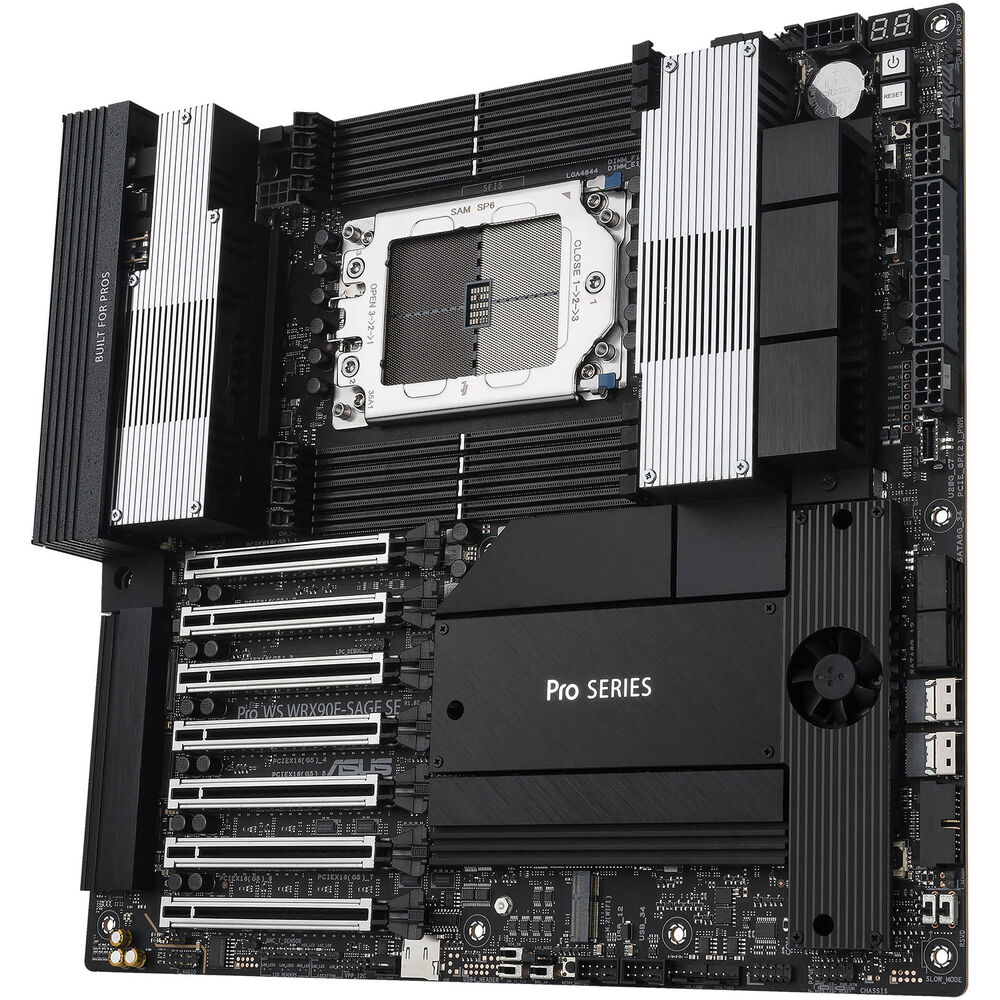

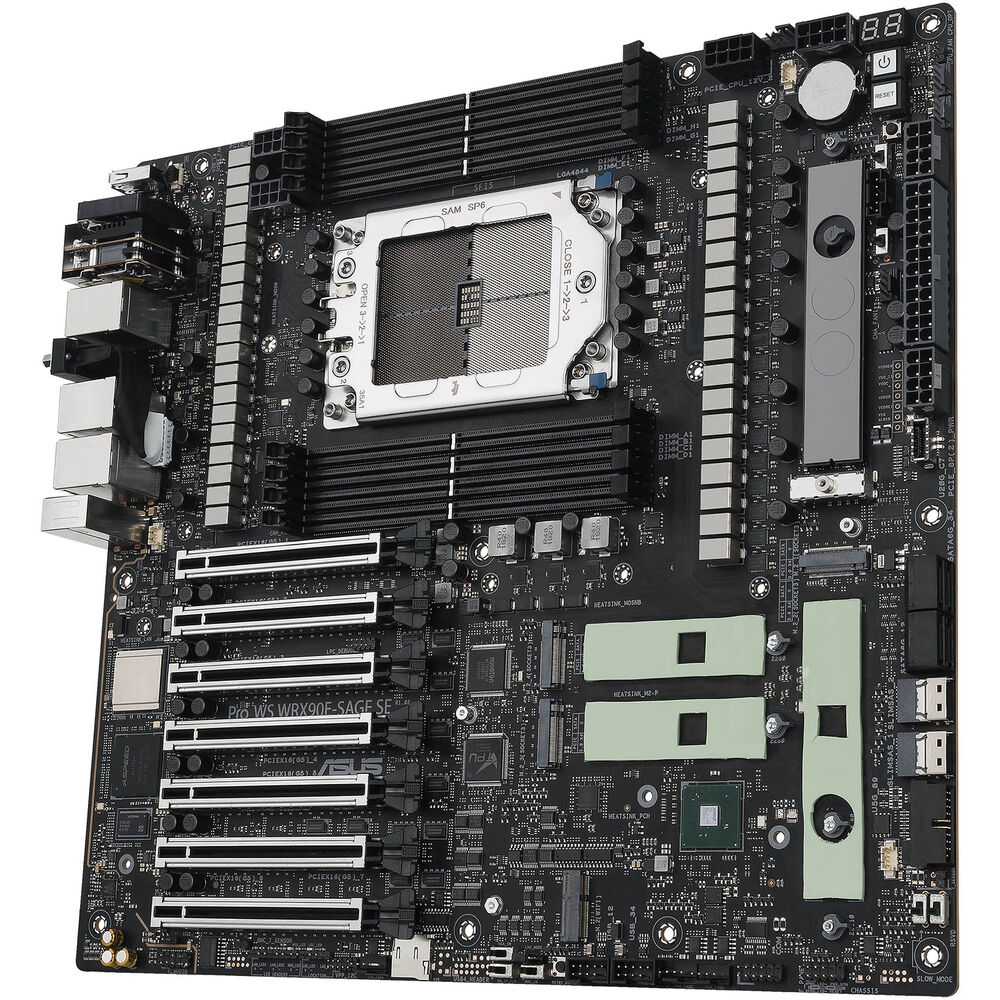

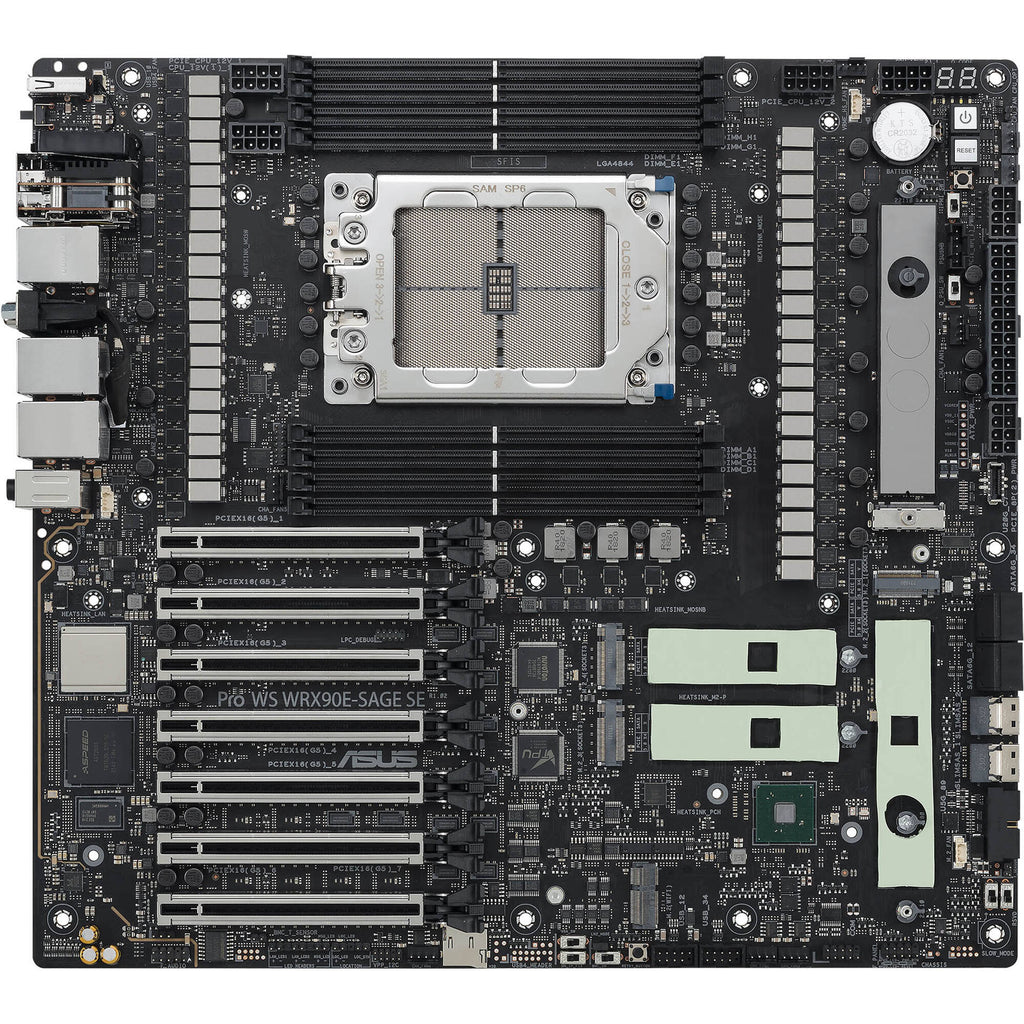

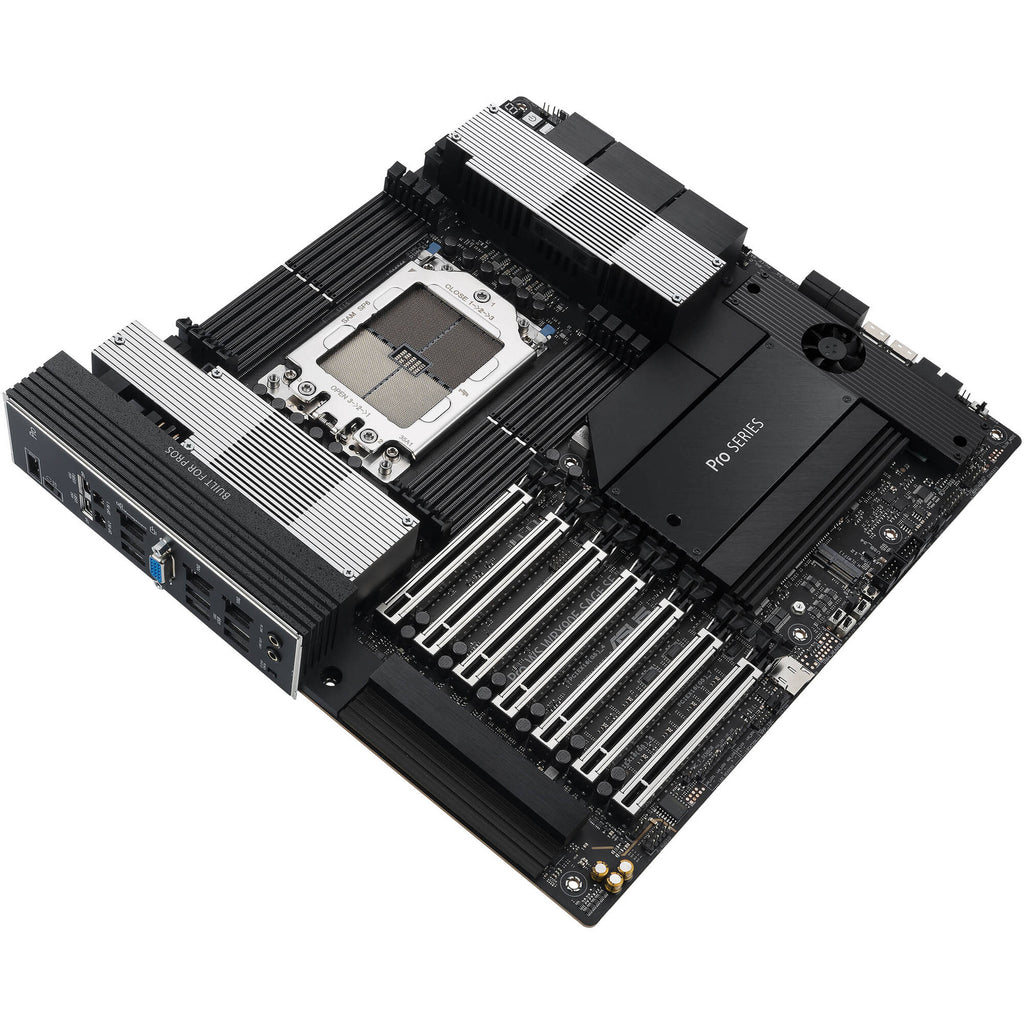

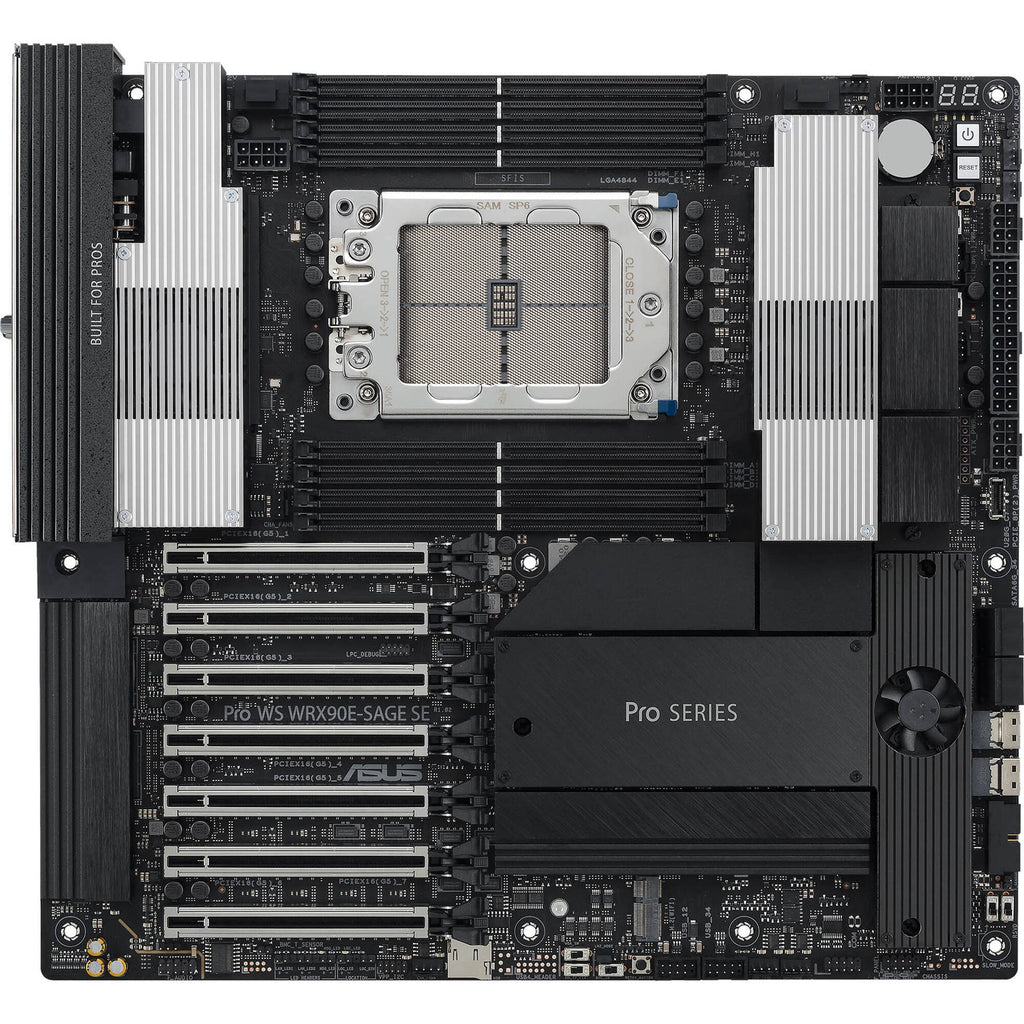

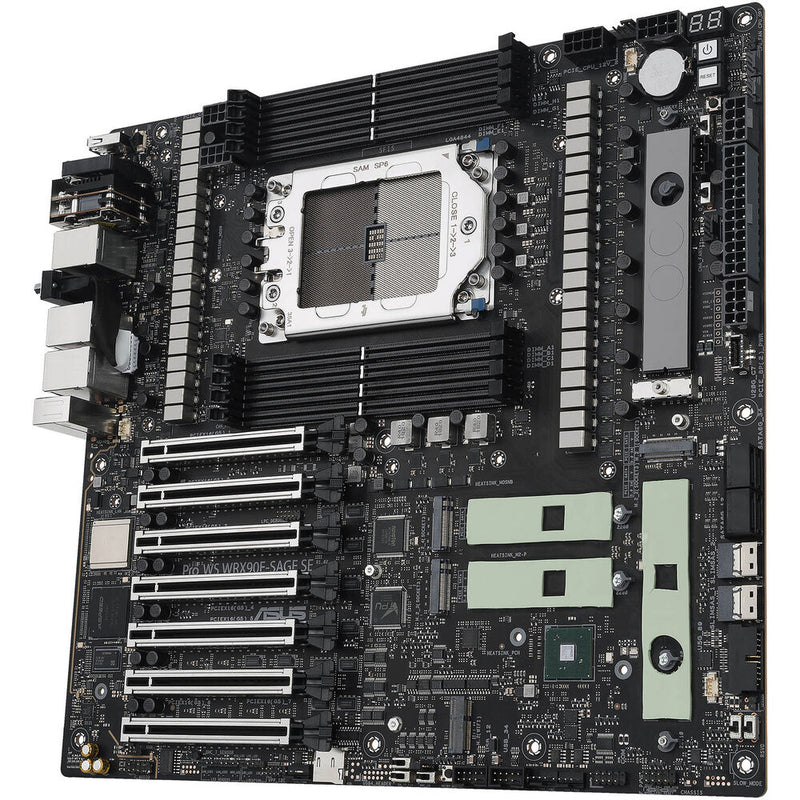

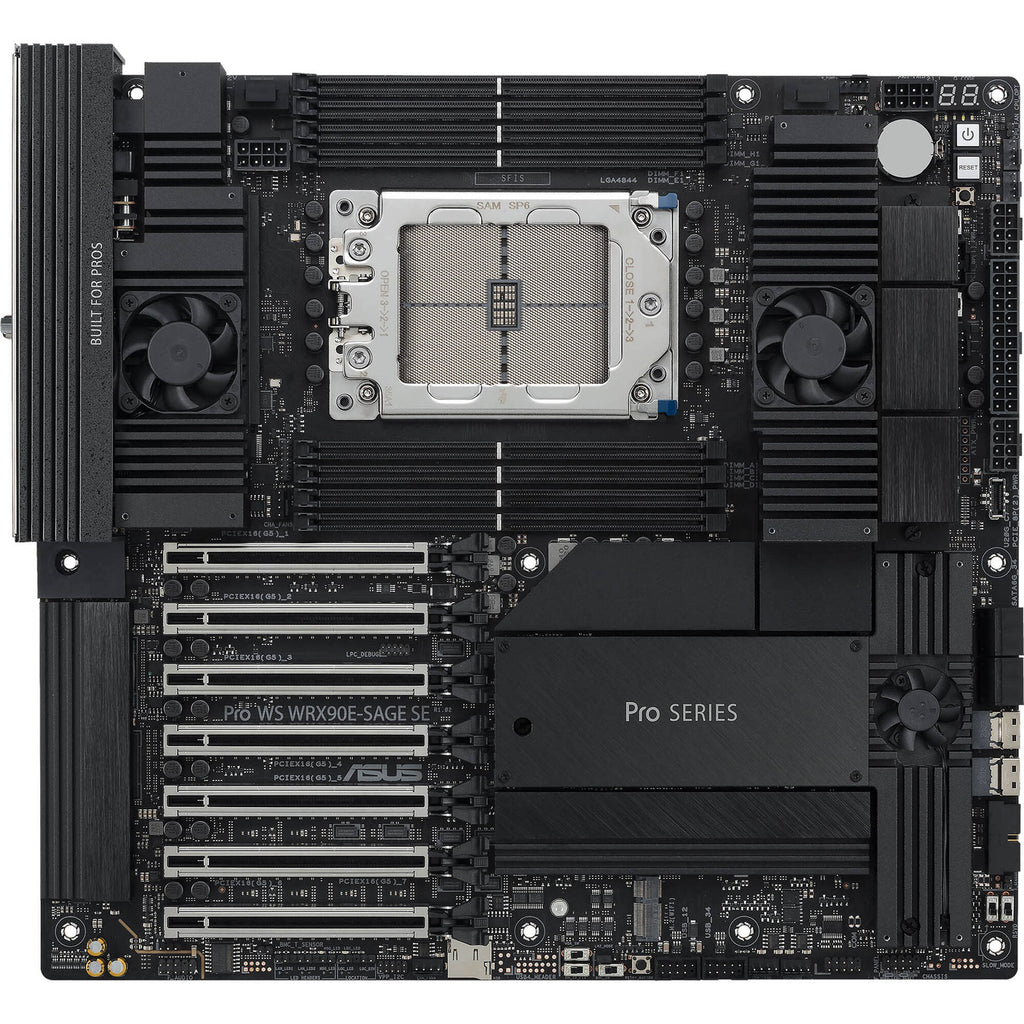

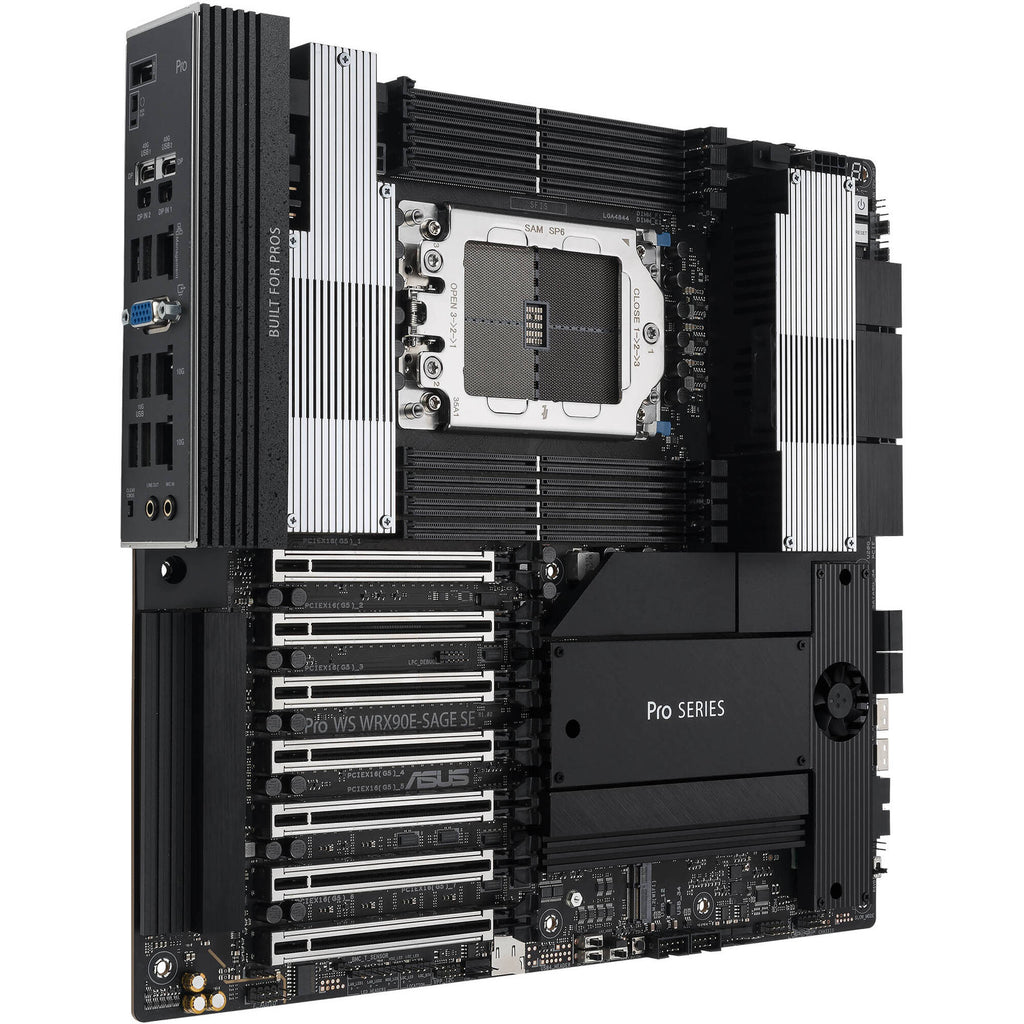

ASUS WS WRX90E-SAGE SE Overview
Lay a strong foundation for your workstation build using the ASUS Pro WS WRX90E-SAGE SE EEB Motherboard. With support for AMD's Ryzen Threadripper PRO 7000 WX-Series processors through the WRX90 chipset, up to 2TB of quad-channel DDR5 RAM across the eight RAM slots, and four M.2 storage slots, this motherboard can accommodate builds of varying performance to fit your needs. The Pro WS WRX90E-SAGE SE is compatible with both Windows 10 (64-bit) and 11 operating systems.
Form Factor and Expansion
The EEB form factor provides ample room for the larger Threadripper CPUs with up to 96-cores, eight RAM slots, and large VRMs that help cool your components. Six PCIe 5.0 x16 slots are perfect for storage expansion or powerful graphics cards, and there is one PCIe 5.0 x16 slot in x8 mode.
Rear I/O
The rear panel of the motherboard offers access to a wide variety of ports to enhance your workstation.
- Two USB4 ports reach speeds up to 40 Gb/s for peripherals like external SSDs
- Six USB-A 3.2 Gen 2 ports offer 10 Gb/s
- A VGA output and two mini DisplayPort outputs connect the CPU's integrated graphics to external displays.
- Dual Intel 10 GbE Ethernet ports and a single Realtek Gigabit Ethernet port provide wired connections to the internet.
- Two audio jacks allow you to access the Realtek ALC1220P 5.1 audio.
Long-Term Storage and Short-Term Memory
Four M.2 PCIe 5.0 x4 slots and four SATA III ports provide a well of potential long-term storage space. Additionally, two SlimSAS slots support a range of NVMe devices such as industrial-grade drives, servers, and advanced networking equipment to help you build your digital asset library.
Eight slots have ECC support and can utilize up to 2TB of quad-channel DDR5 RAM which greatly improves your workstation's multitasking capabilities. This means running multiple applications at once, having multiple instances of applications open such as separate internet tabs or photoshop projects, and switching between them will perform more consistently.
Robust Power and Thermal Design
32+3+3+3 power stages with two 8-pin power connectors for the CPU provide plenty of power to the most important components of your build, while large multi-layered VRMs, heat sinks, and thermal pads keep the chipset, M.2 storage drives, and numerous PCIe slots cool.
Server-Grade IPMI Remote Management and Onboard BMC
A dedicated LAN port links to an onboard AST2600 BMC controller for hardware and software-level management. Additionally, the ASUS Control Center Express software enables real-time monitoring and management.
PCIe Q-Release Slim
The graphics card of your system can be removed by directly pulling up instead of pressing a PCIe latch for a streamlined and more consistent user experience.
UPC: 197105441149
In the Box
- ASUS Pro WS WRX90E-SAGE SE EEB Motherboard
- 2 x CPU 8-Pin to PCIe 8-Pin Adapter Cable
- 24-Pin Power Adapter Cable
- 2 x Mini DisplayPort to DisplayPort Cable
- 4 x SATA III Cables
- Thermistor Cable Pack
- Q Connector
- 2 x M.2 Q-Latch Package
- AMI License Sticker
- M.2 Rubber Packages
- Screw Package for M.2 Key E
- Asus Control Center Express Activation Key Card
- Limited 3-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
ASUS WS WRX90E-SAGE SESpecs
Key Specs
| Chipset |
AMD WRX90
|
| CPU Socket |
sTR5
|
| Memory Slots |
8x 288-Pin
|
| Memory Support |
DDR5 MT/s
|
| Storage Slots |
2x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4) |
| Expansion Slots |
6x PCIe 5.0 x16
1x PCIe 5.0 x16 (x8 mode) |
| Wi-Fi |
No
|
| Form Factor |
EEB
|
CPU
| Chipset |
AMD WRX90
|
| CPU Socket |
sTR5
|
Back Panel I/O
| USB |
2x USB-C (USB4)
6x USB-A (USB 3.1/3.2 Gen 2) 1x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x VGA
2x Mini DisplayPort Output |
| Audio |
2x 1/8" / 3.5 mm
|
| Ethernet / Controller |
2x Intel 10GbE
1x Realtek Gigabit |
| Buttons |
BIOS Flashback, Clear CMOS
|
Memory
| Memory Slots |
8x 288-Pin
|
| Memory Support |
DDR5 MT/s
|
| Maximum Capacity |
2 TB
|
| Channel Architecture |
Quad Channel
|
| ECC Support |
ECC Buffered
|
Storage Expansion
| SATA |
4x SATA III
|
| Storage Slots |
2x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4) |
| RAID Support |
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2) |
Internal I/O
| Expansion Slots |
6x PCIe 5.0 x16
1x PCIe 5.0 x16 (x8 mode) |
| USB |
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
1x 4-Pin CPU
1x 4-Pin CPU 5x 4-Pin System 2x VRM Heatsink 1x 4-Pin M.2 |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
2x 8-Pin ATX 2x 8-Pin CPU 2x 8-Pin CPU |
| Security |
TPM Header
|
| Audio |
1x Speaker
|
| Diagnostics |
LN Mode, ReTry, Safe Boot, Slow Mode, Start
|
BIOS
| ROM |
256 Mb
|
Audio
| Audio Codec |
Realtek ALC1220P (5.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
No
|
| Bluetooth |
No
|
Software
| OS Compatibility |
Windows 11
Windows 10 (64-Bit Only) |
Physical
| Form Factor |
EEB
|
| Dimensions |
12 x 13" / 30.5 x 33.0 cm
|
Packaging Info
| Package Weight |
10 lb
|
| Box Dimensions (LxWxH) |
15 x 14.25 x 3.25"
|
