Description
ASUS PRO Q870M-C-CSM Overview

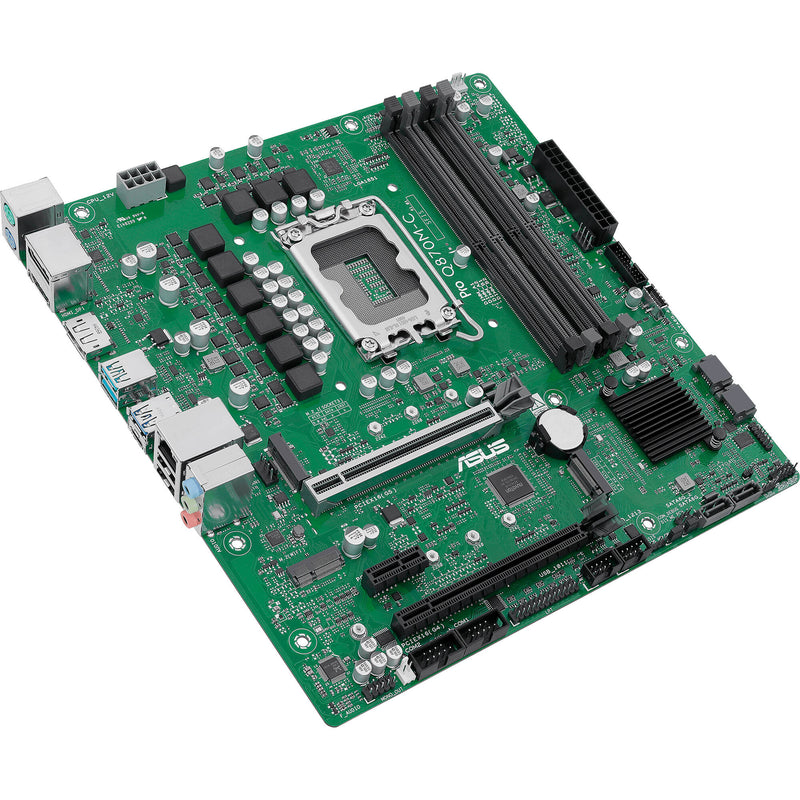

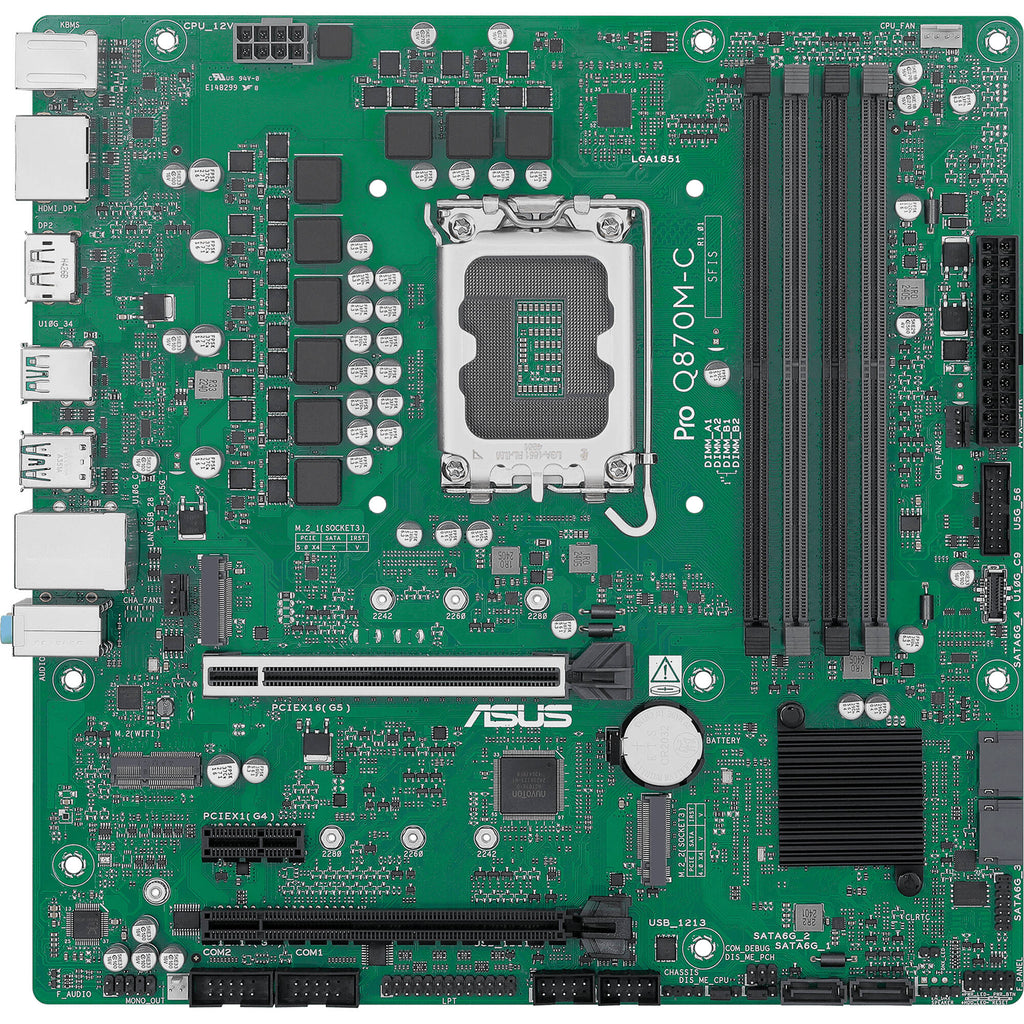

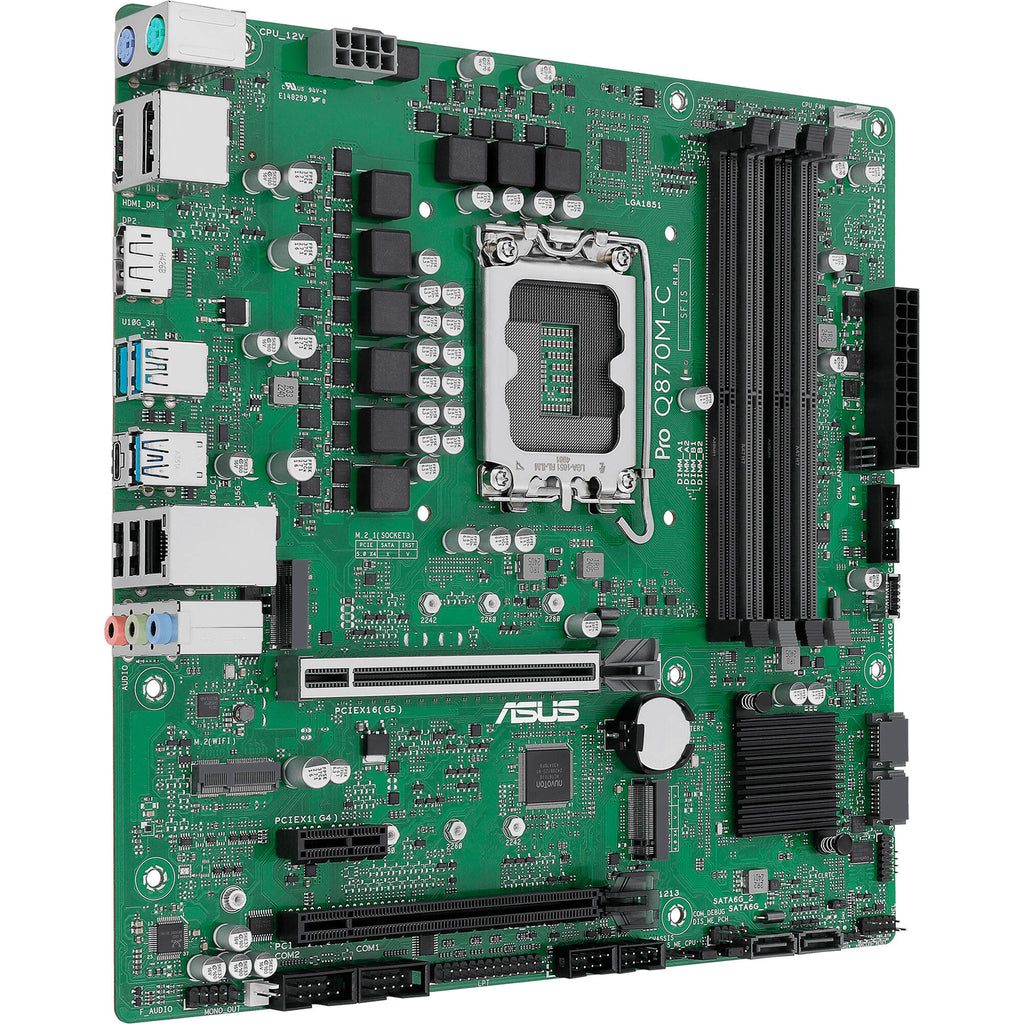

Designed for business professionals, the ASUS Pro Q870M-C-CSM LGA 1851 Micro-ATX Motherboard allows you to build a compact, yet powerful and reliable system. It is also backed by enterprise class features to help streamline IT management.
Supporting the Q870 chipset, this compact motherboard allows you to install an Intel Core Ultra Series 2 processor in the LGA 1851 socket. Four DDR5 slots are available, supporting up to 256GB of 6400 MT/s clocked unbuffered memory, which can provide smooth multitasking experiences. For storage, there's an M.2 PCIe 5.0 2280 slot that can transfer up to 128 Gb/s alongside a PCIe 4.0 slot, which can quickly load demanding applications. Four SATA III connectors are also available. Add a powerful graphics card with the PCIe 5.0 x16 slot while other compatible expansions may be installed into the PCIe 4.0 x16 (x4 mode) and PCIe 4.0 x1 slots.

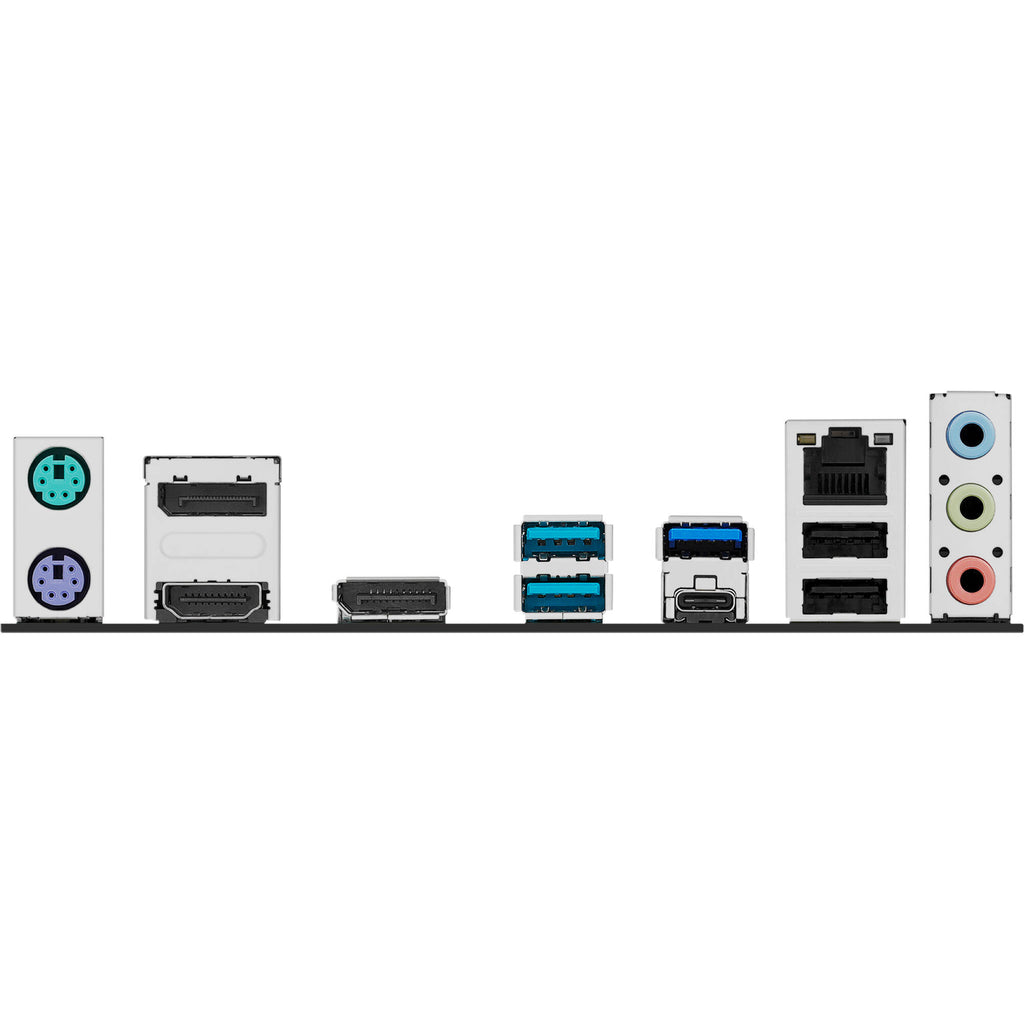

The rear panel features one USB-C and two USB-A 3.2 Gen 2 ports that can transfer up to 10 Gb/s with compatible devices. The USB-A 3.2 Gen 1 port works with up to 5 Gb/s devices. You can use the two USB-A 2.0 ports for peripherals such as mice and keyboards. Connect to compatible networks with the Gigabit Ethernet port. Windows 10 or 11 64-bit is needed to take advantage of all the motherboard's features.

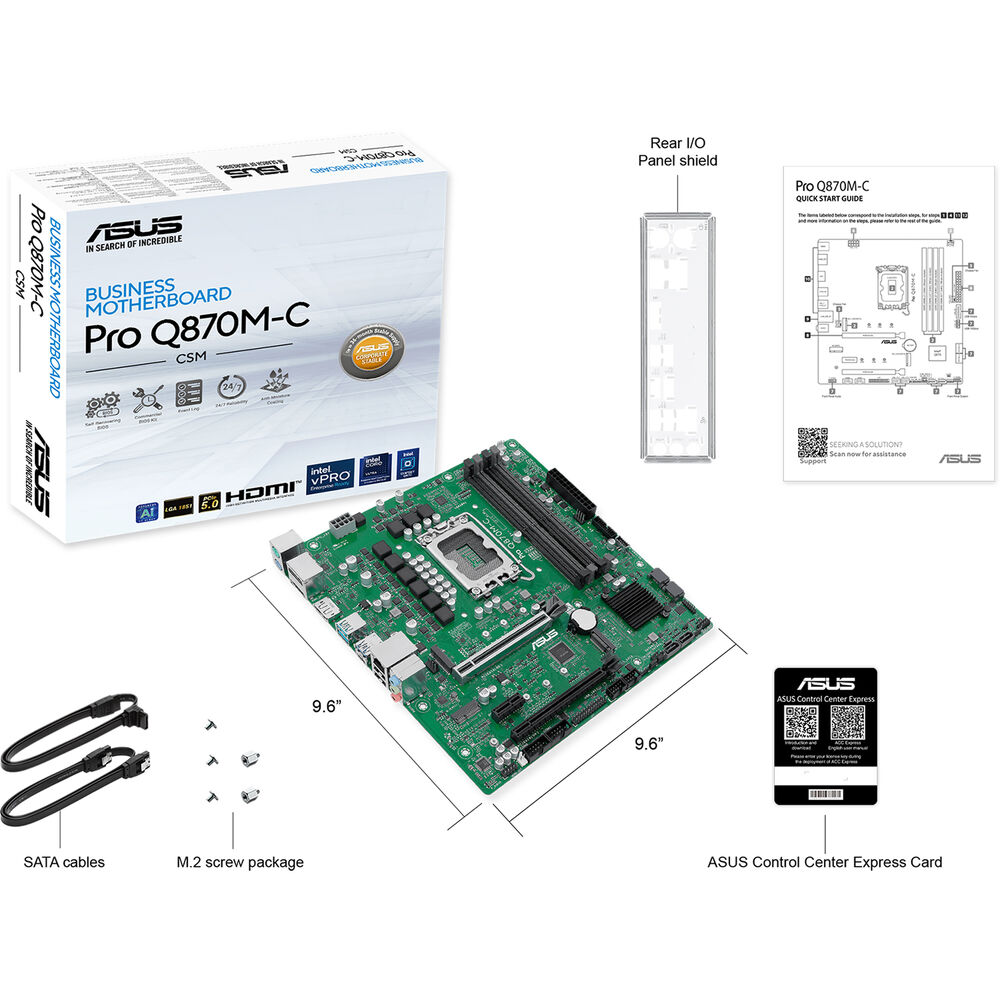

Items Included
- ASUS Pro Q870M-C-CSM LGA 1851 Micro-ATX Motherboard
- 2 x SATA III Cables
- Screw Package for M.2 SSD

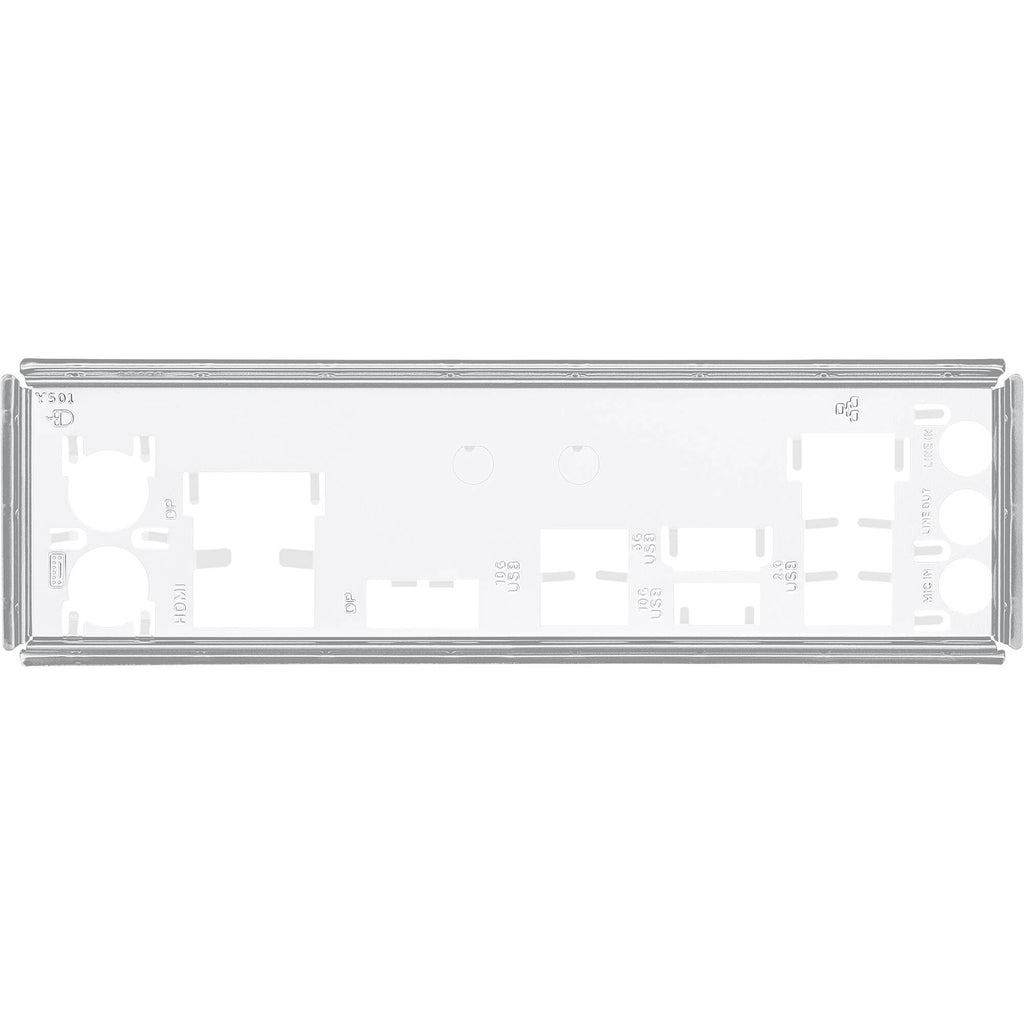

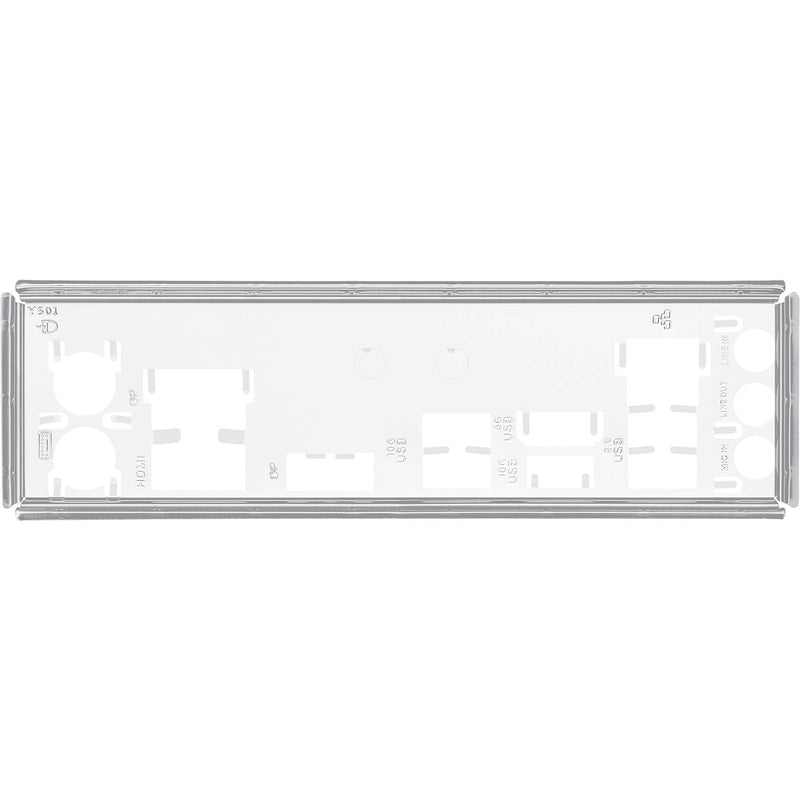

- I/O Shield
- ASUS Control Center Express Activation Key Card
- Limited 3-Year Manufacturer Warranty
Additional Resources
ASUS PRO Q870M-C-CSM Specs
| Chipset |
Intel Q870
|
| CPU Socket |
LGA 1851
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 6400 MT/s
|
| Storage Slots |
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) |
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode) 1x PCIe 4.0 x1 |
| Wi-Fi |
No
|
| Form Factor |
Micro-ATX
|
| Chipset |
Intel Q870
|
| CPU Socket |
LGA 1851
|
| USB |
1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2) 1x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x HDMI 2.1
2x DisplayPort 1.4 |
| Audio |
3x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x Intel I219LM Gigabit
|
| PS/2 |
2x PS/2
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 6400 MT/s
|
| Maximum Capacity |
256 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC, Clocked Unbuffered
|
| SATA |
4x SATA III
|
| Storage Slots |
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) |
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1, 5, 10
|
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode) 1x PCIe 4.0 x1 |
| USB |
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
1x 4-Pin System
1x 4-Pin CPU |
| Power Connectors |
1x 24-Pin Mainboard
1x 8-Pin CPU |
| Security |
Chassis Intrusion, TPM Module
|
| Audio |
1x Speaker
|
| Diagnostics |
2-Digit Debug LED
|
| Legacy |
2x Serial
1x Parallel |
| ROM |
256 Mb
|
| Front Panel I/O |
AAFP
|
| Audio Codec |
Realtek (7.1-Channel)
|
| DAC |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Module Support |
1 E Key M.2
|
| OS Compatibility |
Windows 10 to 11 (64-Bit Only)
|
| Form Factor |
Micro-ATX
|
| Dimensions |
9.6 x 9.6" / 24.4 x 24.4 cm
|
| Package Weight |
2.095 lb
|
| Box Dimensions (LxWxH) |
11.2 x 10.6 x 2"
|
