Description

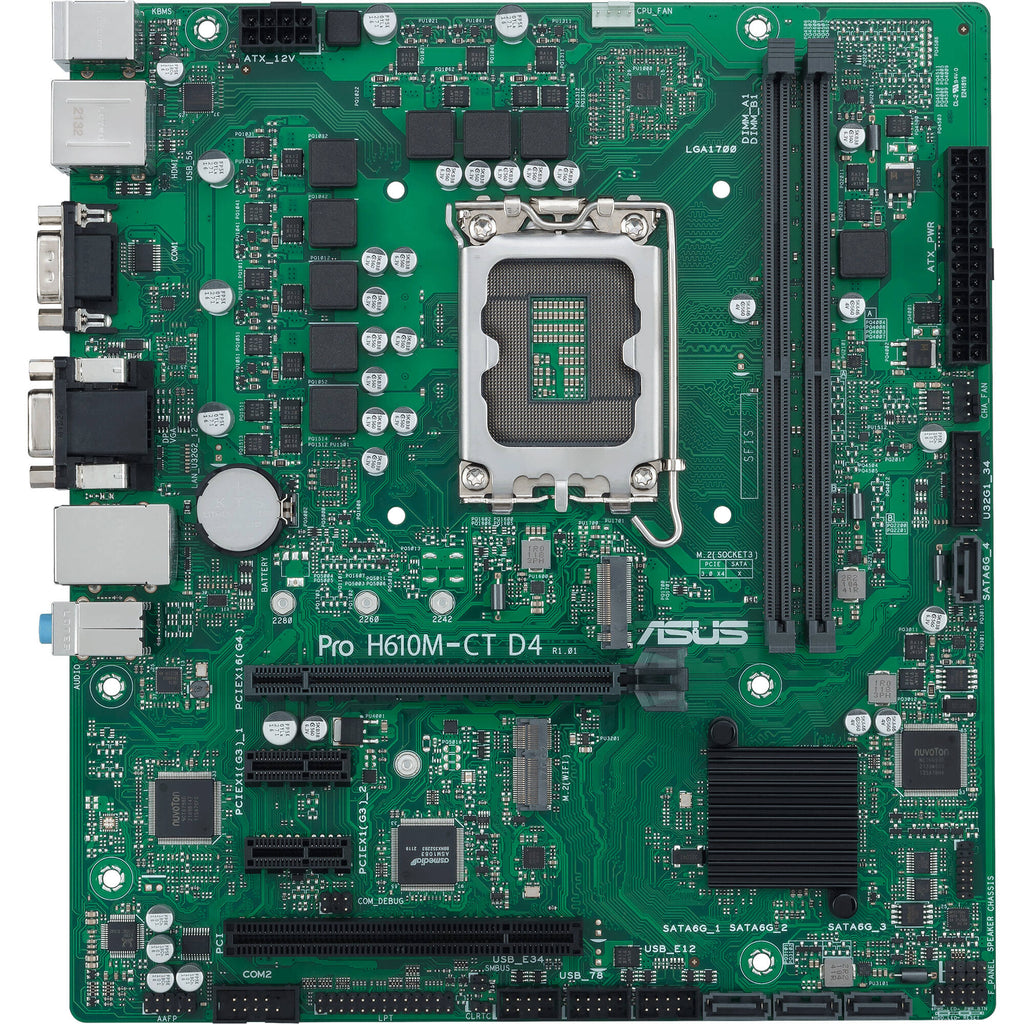

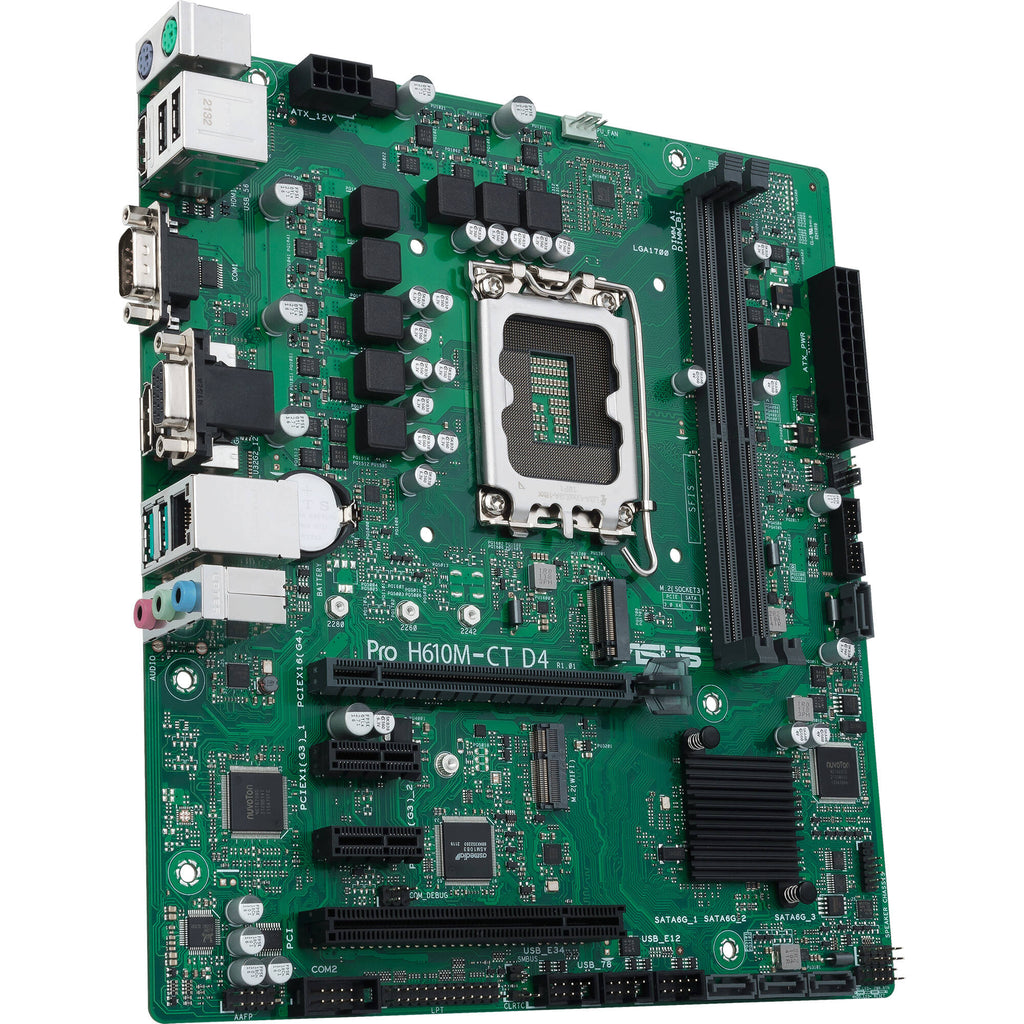

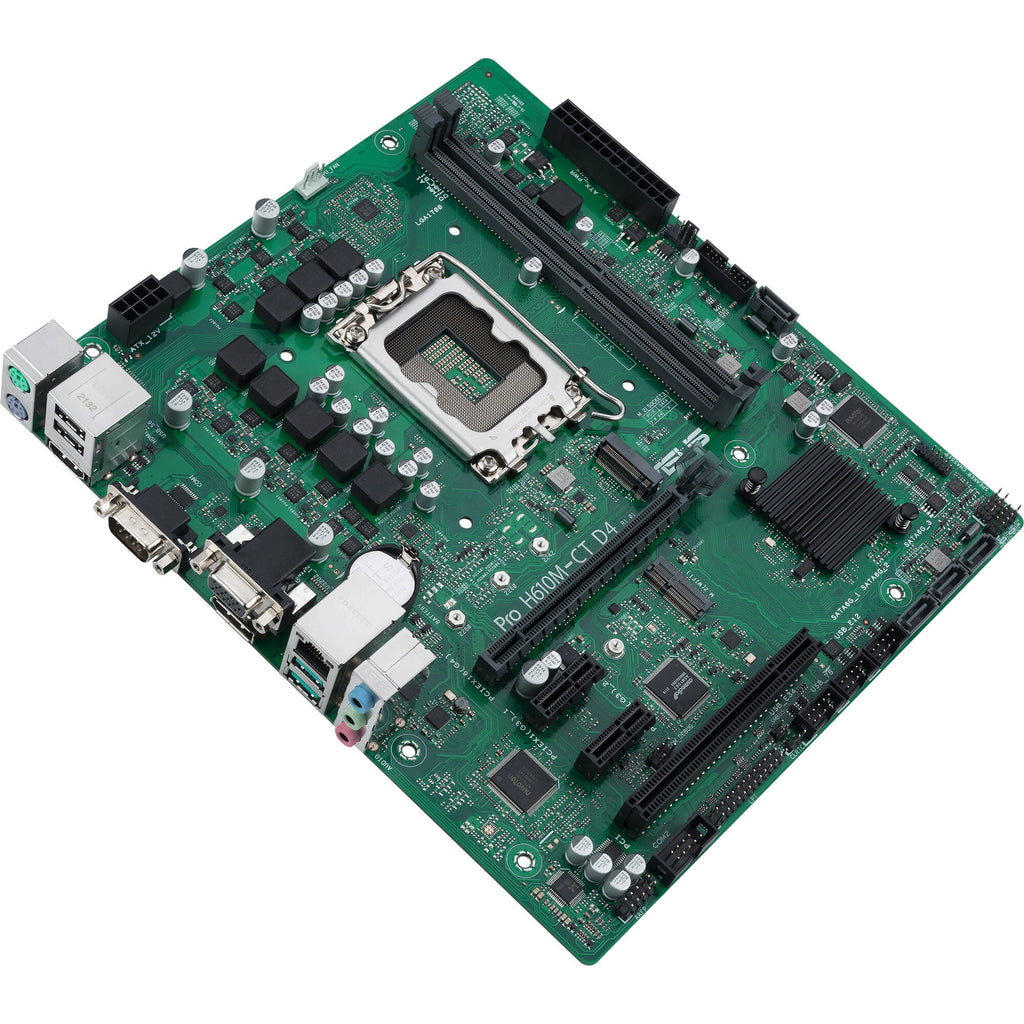

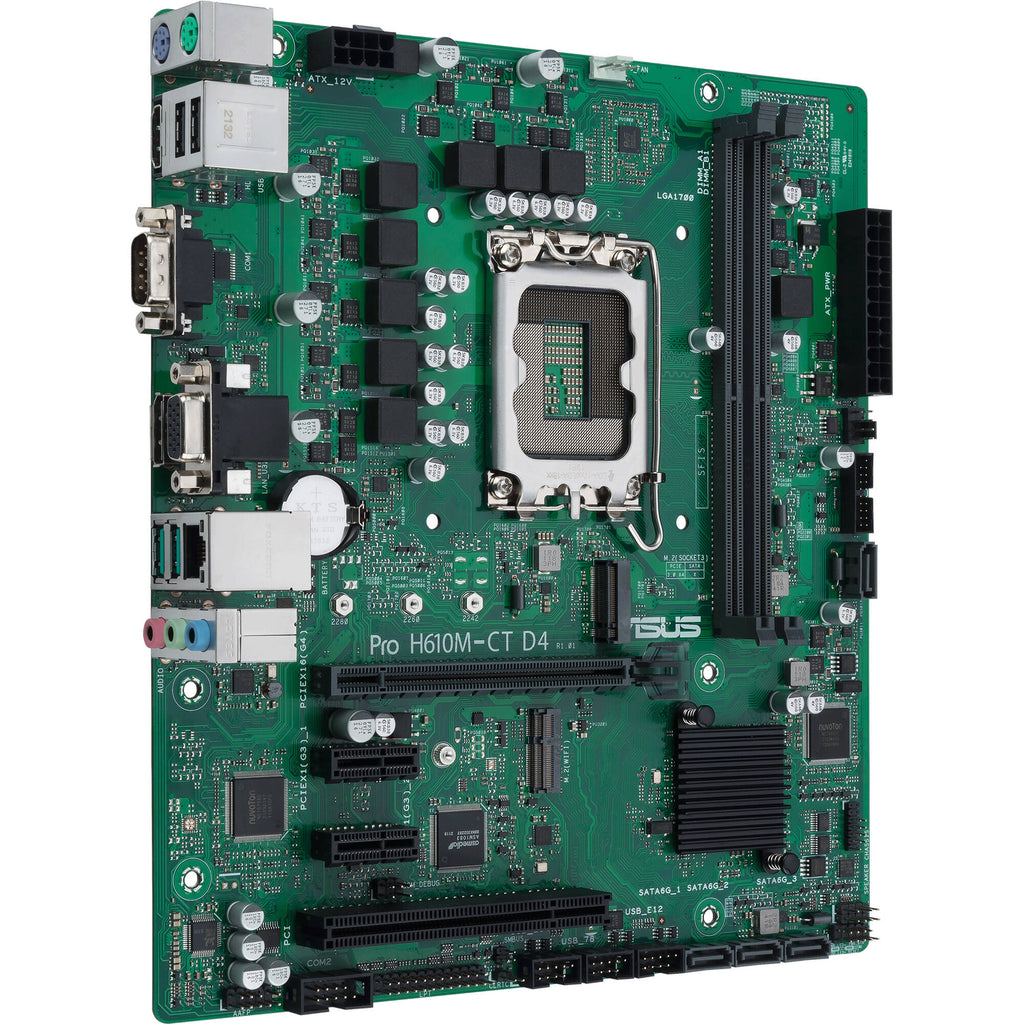

ASUS PRO H610M-CT D4-CSM Overview
- 1Description
- 2ASUS Corporate Stable Model
- 3ASUS Control Center Express
- 4Optimize IT Endpoint Management
- 5Automate IT Maintenance
- 6Securely Manage All Endpoints
- 7PCIe 4.0
- 8ASUS Boot Defender
- 9ASUS Self-Recovering BIOS
- 10Trusted Platform Module (TPM)
- 11NIST SP 800-193 Compliant
- 12ASUS Secure Boot
- 13ASUS Boot Defender
- 14ASUS Self-Recovering BIOS
- 1524/7 Reliability Test
- 16Anti-Moisture Coating
- 17Anti-Sulfur Resistors
- 18LANGuard
- 19Overvoltage Protection
- 20Stainless-Steel Back I/O
- 21ESD Guards
- 22ASUS Management Suite
- 23ASUS Commercial BIOS Kit
- 24Q-LED
- 25COM Debug Header
- 26Box Headers
Bring reliability and stability in a small form factor to your enterprise workstation with the Pro H610M-CT D4-CSM LGA 1700 Micro-ATX Motherboard from ASUS. Designed for commercial applications, this micro-ATX motherboard incorporates the H610 chipset and LGA 1700 socket, making it compatible with the 12th generation of Intel Core processors. Install up to 64GB of dual-channel DDR4 RAM across two memory slots, with speeds up to 3200 MHz. Connect storage drives using the four SATA III or one M.2 interfaces. Adapter cards can be installed in the PCIe 4.0 x16 slot, while additional expansion cards can be installed in the two PCIe 3.0 x1 slots.

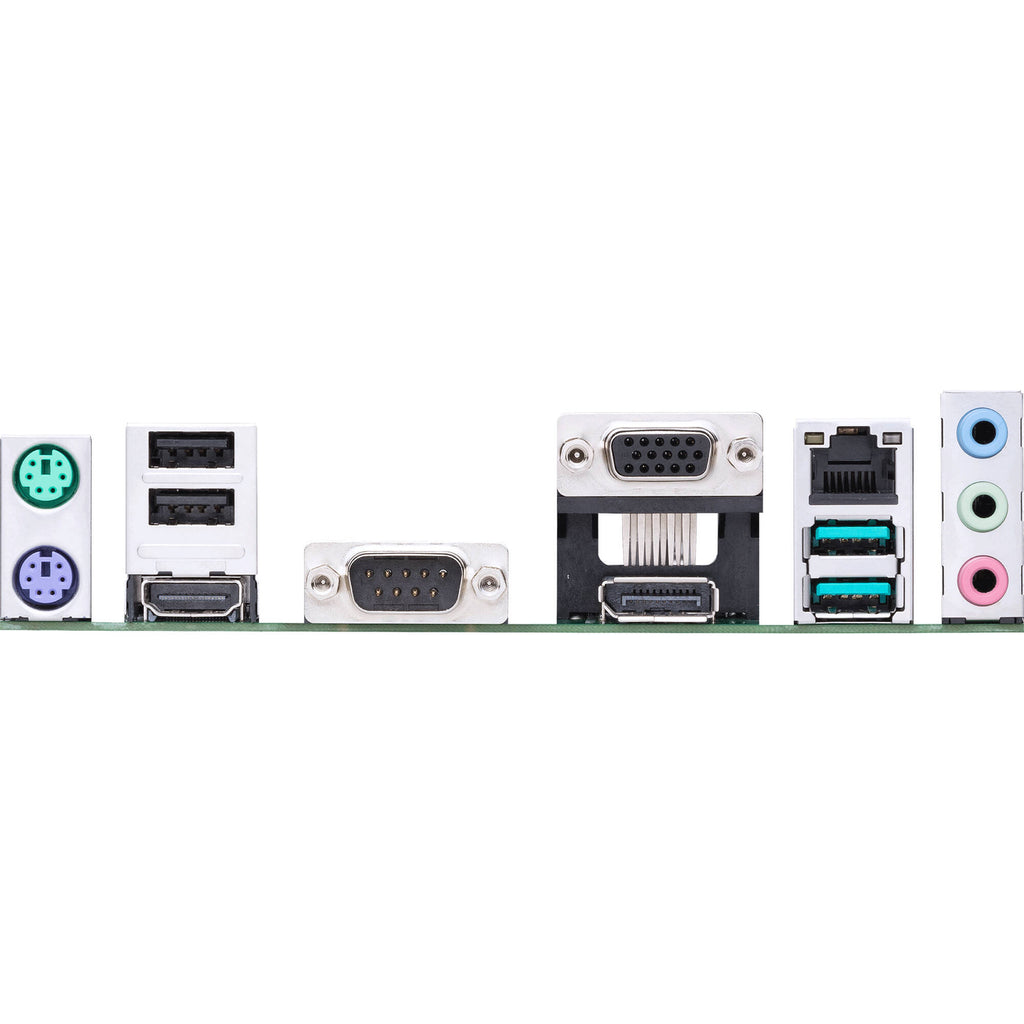

The rear stainless steel I/O panel features two USB 3.2 Gen 1 Type-A ports and two USB 2.0 Type-A ports to connect your accessories to. Connect an older mouse or keyboard using the two PS/2 ports. Displays can be connected to the rear panel via HDMI, DisplayPort, and VGA outputs. Audio devices can be connected to the three 3.5mm jacks while an RJ45 port supports Gigabit Ethernet. Internal headers include an LPT header, SMBUS header, and a COM header along with a COM debug header. In addition to an integrated TPM chip for Windows 11 support, this commercial motherboard also features the ASUS Control Center Express for remote management and IT operations. The ASUS Pro H610M-CT D4-CSM is compatible with the windows 10 and Windows 11 (64-bit) operating systems.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. ASUS CSM offers up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express, server-grade IT management software.
ASUS Control Center Express
The ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express.
Optimize IT Endpoint Management
The ASUS Control Center Express is designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely.
Automate IT Maintenance
Allow IT staff top schedule automatic updates of the latest BIOS, software, and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility.
Securely Manage All Endpoints
Securely manage endpoint configuration, portable storage access, and PC software applications by enabling them to create grouping rules on individual devices.
PCIe 4.0
This business motherboard is specially designed for 12th Gen Intel Core processors and offers PCIe 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it's needed.
ASUS Boot Defender
ASUS Boot Defender on ASUS Business motherboards is designed to automatically protect, detect, and recover the boot environment against any intrusions and attacks.
ASUS Self-Recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.
Trusted Platform Module (TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities, and ensures platform integrity.
NIST SP 800-193 Compliant
ASUS Business motherboards with ASUS Boot Defender adhere to the National Institute of Standards and Technology (NIST) Platform Firmware Resiliency guidelines to protect against potentially destructive attacks.
ASUS Secure Boot
ASUS business motherboards are set to check the firmware and signature of each piece of boot software.
ASUS Boot Defender
ASUS Boot Defender ensures your PC is secure even before you boot up the OS and offers additional protection beyond the OS environment. On start-up, it verifies the BIOS code to detect attacks or corrupted firmware. It's designed to automatically protect and repair the compromised BIOS code to safeguard PCs from intrusions and attacks. The ASUS Defender controller uses hardware-based Root-of-Trust (ROT) with immutable and non-bypassable boot firmware to form a chain of trust (COT) with integrity for a secure computing system.
ASUS Self-Recovering BIOS
The user can simply reboot the system during a BIOS update crash and the ASUS Self-recovering BIOS will restore the latest BIOS update. This helps users ensure safe BIOS updates, reduce maintenance frequency and costs, while requiring no extra software and providing automatic update failure detection and recovery.
24/7 Reliability Test
Optimized for twenty-four-seven operations, this motherboard is tested under temperature conditions up to 113°F and relative humidity up to 80% to ensure it can handle diverse temperature and humidity ranges.
Anti-Moisture Coating
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers, and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.
Anti-Sulfur Resistors
Considering the long-term reliability required for commercial products, ASUS business motherboards are equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by being constructed in a high-grade ceramic body. With anti-sulfur resistors, ASUS Business motherboards can be operated under harsh environments.
LANGuard
ASUS LANGuard is a hardware-level networking protection that employs signal-coupling technology and anti-EMI surface-mounted capacitors, ensuring a more reliable connection and better throughput, while also boasting greater tolerance to static electricity and improved protection against power surges.
Overvoltage Protection
This circuit design employs built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages.
Stainless-Steel Back I/O
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
ESD Guards
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/- 15kV for contact discharge, arranged in an active protection circuit design that prolongs the life of components.
ASUS Management Suite
This management suite facilitates efficient customization. Access BIOS updates, AC power loss events, RTC reset times, chassis-intrusion records, and hardware change and status reports.
ASUS Commercial BIOS Kit
Customize BIOS options, including the boot logo and DMI, with your company logo and name. Add or remove an activation key or update the management engine without flashing the whole BIOS.
Q-LED
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
COM Debug Header
This 6-1 pin COM debug header allows for faster and more efficient motherboard troubleshooting. IT administrators can view error and debugging codes to get a better idea of initialization and recovery processes when connecting to a debug card (sold separately).
Box Headers
All USB headers are box style, enabling fast connector installation and preventing pin damage.
UPC: 195553687652
In the Box
- ASUS Pro H610M-CT D4-CSM LGA 1700 Micro-ATX Motherboard
- 2 x SATA III Cables

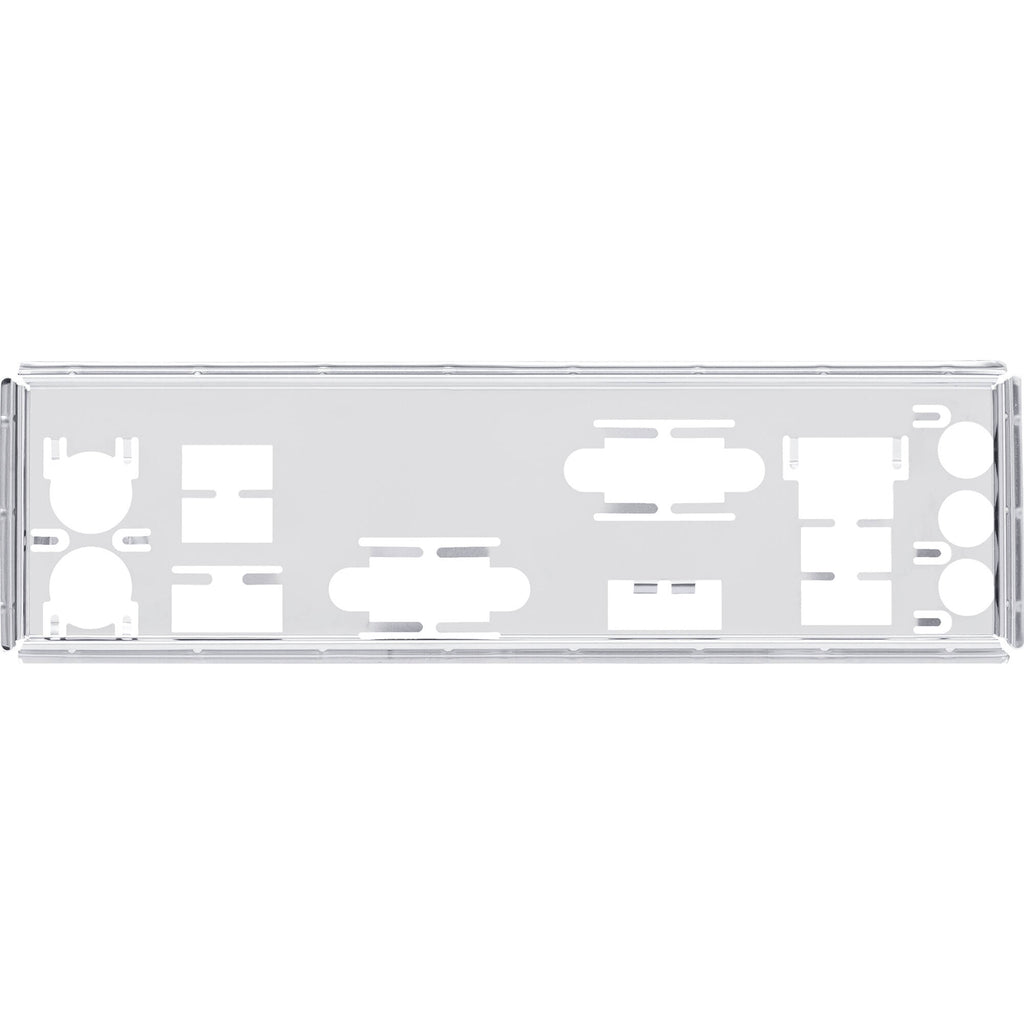

- I/O Shield
- M.2 SSD Screw Package
- M.2 Key E Screw Package
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- ASUS Corporate Stable Model
- ASUS Control Center Express
- Optimize IT Endpoint Management
- Automate IT Maintenance
- Securely Manage All Endpoints
- PCIe 4.0
- ASUS Boot Defender
- ASUS Self-Recovering BIOS
- Trusted Platform Module (TPM)
- NIST SP 800-193 Compliant
- ASUS Secure Boot
- ASUS Boot Defender
- ASUS Self-Recovering BIOS
- 24/7 Reliability Test
- Anti-Moisture Coating
- Anti-Sulfur Resistors
- LANGuard
- Overvoltage Protection
- Stainless-Steel Back I/O
- ESD Guards
- ASUS Management Suite
- ASUS Commercial BIOS Kit
- Q-LED
- COM Debug Header
- Box Headers
ASUS PRO H610M-CT D4-CSM Specs
CPU
| Chipset | Intel H610 |
| CPU Socket | LGA 1700 |
Back Panel I/O
| USB | 2 x USB-A (USB 3.1/3.2 Gen 2) 2 x USB-A (USB 2.0) |
| Thunderbolt | None |
| Display | 1 x DisplayPort 1.4 Output 1 x VGA Output 1 x HDMI 2.1 Output |
| Audio | 3 x 1/8" / 3.5 mm |
| Ethernet / Controller | 1 x Intel Gigabit |
| PS/2 | 2 x PS/2 |
| Buttons | Clear CMOS |
Memory
| Memory Slots | 2 x 288-Pin |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz |
| Maximum Capacity | 64 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
Storage Expansion
| SATA | 4 x SATA III |
| M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4) |
Internal I/O
| Expansion Slots | 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x PCI x1 |
| USB | 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 3 x 2.0 Header (Supports 6 USB-A Port) |
| Air Cooling | 1 x 4-Pin CPU 1 x 4-Pin System |
| Power Connectors | 1 x 24-Pin Mainboard 1 x 20-Pin Mainboard |
| Security | Chassis Intrusion, TPM Module |
| Audio | 1 x Speaker |
| Diagnostics | 2-Digit Debug LED, Clear CMOS |
| Legacy | 1 x Parallel 1 x Serial |
BIOS
| ROM | 128 Mb |
Front Panel I/O
| Front Panel I/O | AAFP |
Audio
| Audio Codec | Realtek (7.1-Channel) |
Wireless
