Description

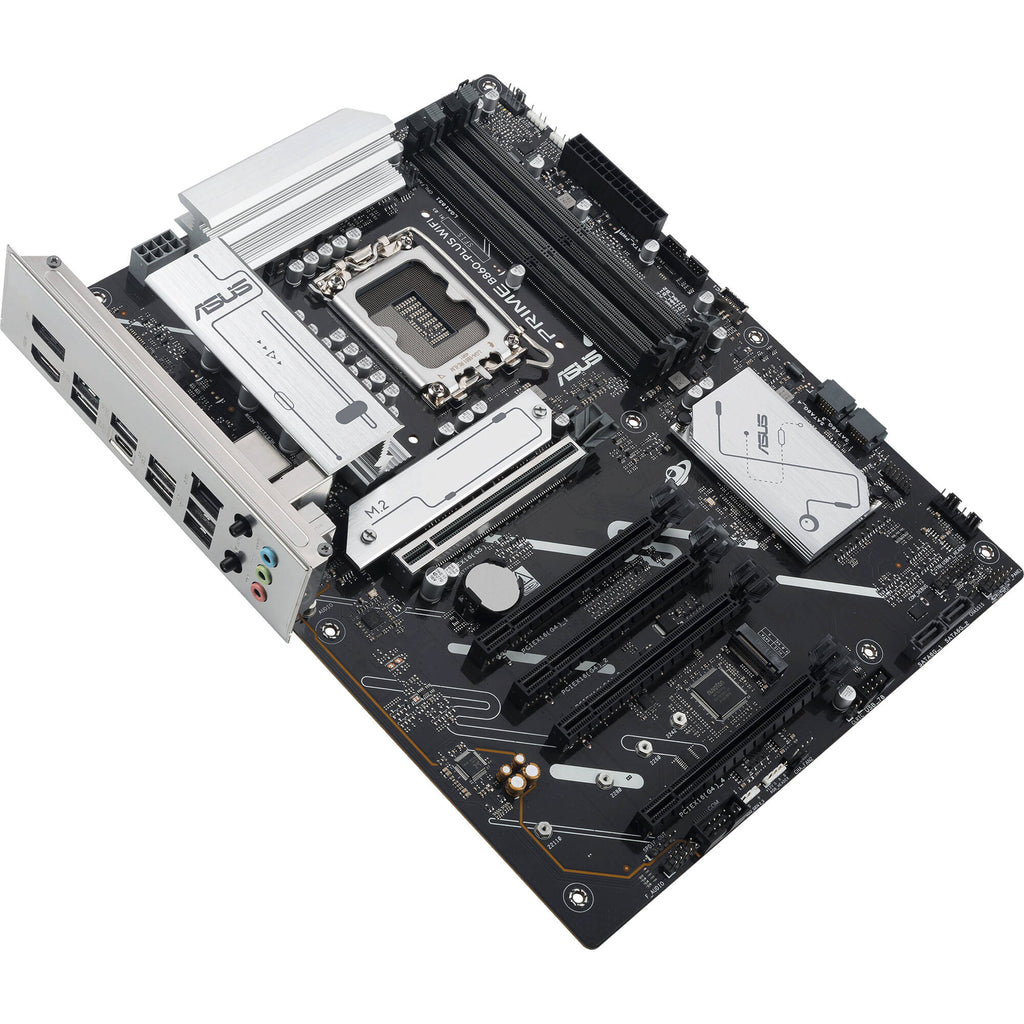

ASUS PRIME B860-PLUS WIFI Overview
Designed to provide builders with stable and reliable performance, the ASUS PRIME B860-PLUS Motherboard may be outfitted to drive immersive entertainment and high-quality content creation. With support for Intel Core Ultra series 2 desktop processors with the LGA 1851 socket, this ATX motherboard delivers smooth performance for demanding applications and AI workloads.
Install an M.2 PCIe 5.0 SSD alongside one PCIe 4.0 and four SATA III drives, providing you with plenty of space to store your games library, applications, and multimedia files. The four DDR5 DIMM slots support up to 192GB of 8200 MT/s overclocked memory. You can install a powerful graphics card into the available PCIe 5.0 x16 slot while reserving the four PCIe 4.0 x16 slots for other compatible expansions.

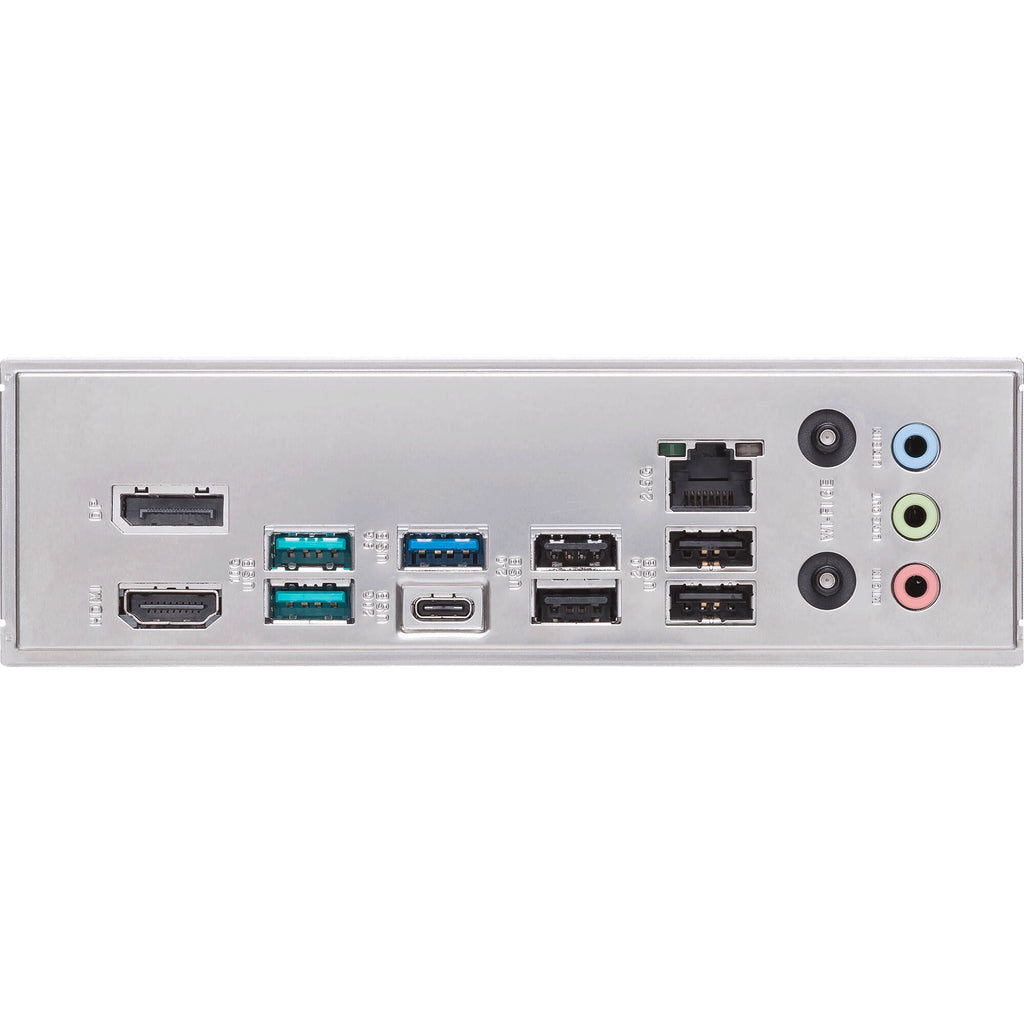

The rear panel features one USB-C port that can transfer up to 20 Gb/s compatible devices or connect a compatible display. There are also two 10 Gb/s USB-A ports alongside one USB-A 3.2 Gen 1 port that works with 5 Gb/s devices. You can use the four USB-A 2.0 ports for keyboards, mice, and other peripherals. Built-in Wi-Fi 6E (802.11ax) support and a 2.5 Gb/s Ethernet port provide you with fast connections to compatible network devices for smooth video streaming and low-latency online games. Windows 10 or later is required to take advantage of all this motherboard's features.
Items Included
- ASUS PRIME B860-PLUS LGA 1851 ATX Motherboard
- 2 x SATA III Cable
- ASUS WiFi Q-Antenna
- M.2 Rubber Package
- Screw for M.2 SSD
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
ASUS PRIME B860-PLUS WIFI Specs
| Chipset |
Intel B860
|
| CPU Socket |
LGA 1851
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 8200 MT/s
|
| Storage Slots |
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4) |
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode) 3x PCIe 4.0 x16 (x1 mode) |
| Wi-Fi |
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
|
| Form Factor |
ATX
|
| Chipset |
Intel B860
|
| CPU Socket |
LGA 1851
|
| USB |
1x USB-C (USB 3.2 Gen 2x2)
2x USB-A (USB 3.1/3.2 Gen 2) 1x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x HDMI 2.1
1x DisplayPort 1.4 |
| Audio |
3x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x Realtek 2.5Gigabit
|
| Wi-Fi Antenna |
2x Connector
|
| Buttons |
BIOS Flashback
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 8200 MT/s
|
| Maximum Capacity |
192 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
| SATA |
4x SATA III
|
| Storage Slots |
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4) |
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1, 5, 10
|
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode) 3x PCIe 4.0 x16 (x1 mode) |
| USB |
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 2 USB-A Port) |
| Air Cooling |
2x 4-Pin CPU
4x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
1x 8-Pin CPU |
| Security |
Chassis Intrusion, TPM Header
|
| LED Header |
4x RGB
|
| Audio |
1x Speaker
1x S/PDIF |
| Diagnostics |
Clear CMOS, Flash BIOS
|
| Add-On |
1x Thunderbolt Header
|
| Legacy |
1x Serial
|
| ROM |
2x 128 Mb
|
| Front Panel I/O |
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1
|
| Audio Codec |
Realtek (7.1-Channel)
|
| DAC |
No
|
| Wi-Fi |
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
|
| Bluetooth |
5.3
|
| Module Support |
1 E Key M.2
|
| OS Compatibility |
Windows 10 or Later
|
| Form Factor |
ATX
|
| Dimensions |
12 x 9.6" / 30.5 x 24.4 cm
|
| Package Weight |
3.39 lb
|
| Box Dimensions (LxWxH) |
14.6 x 10.7 x 2.7"
|
