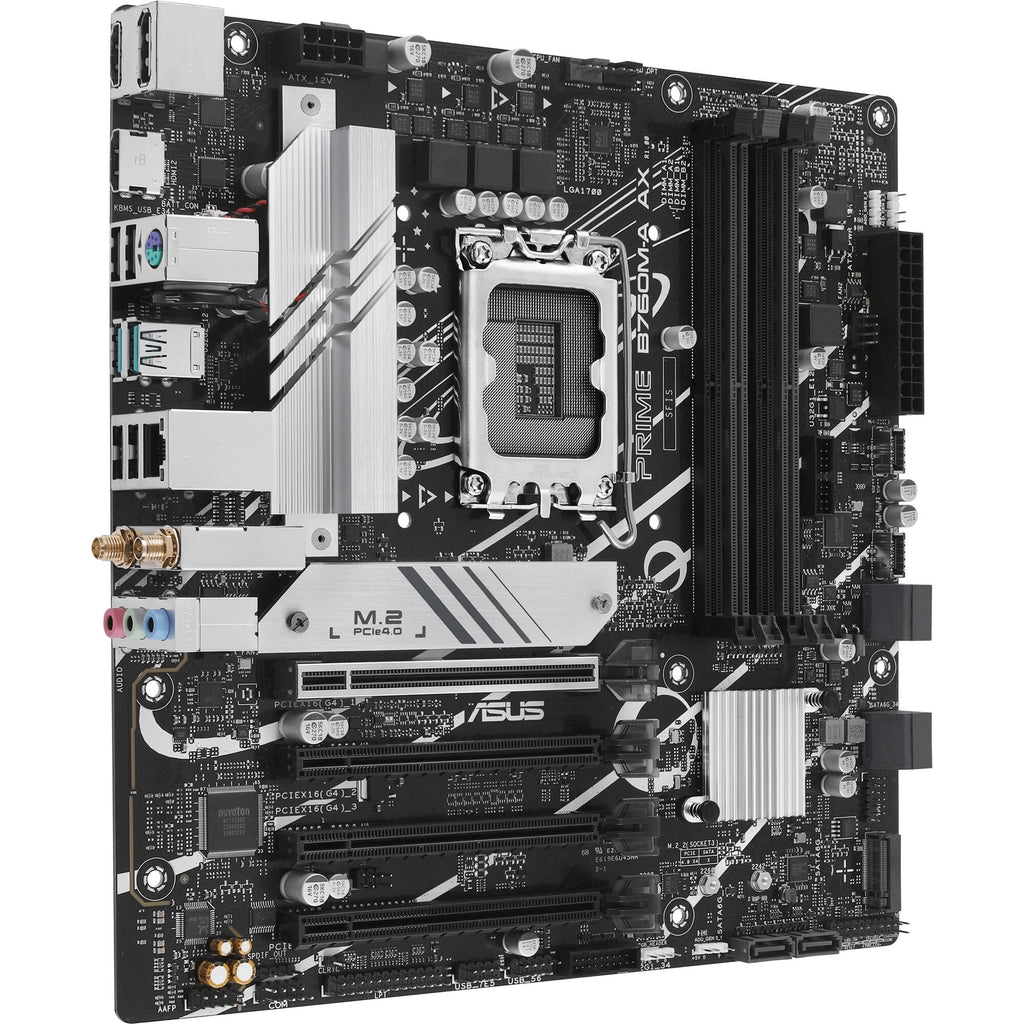

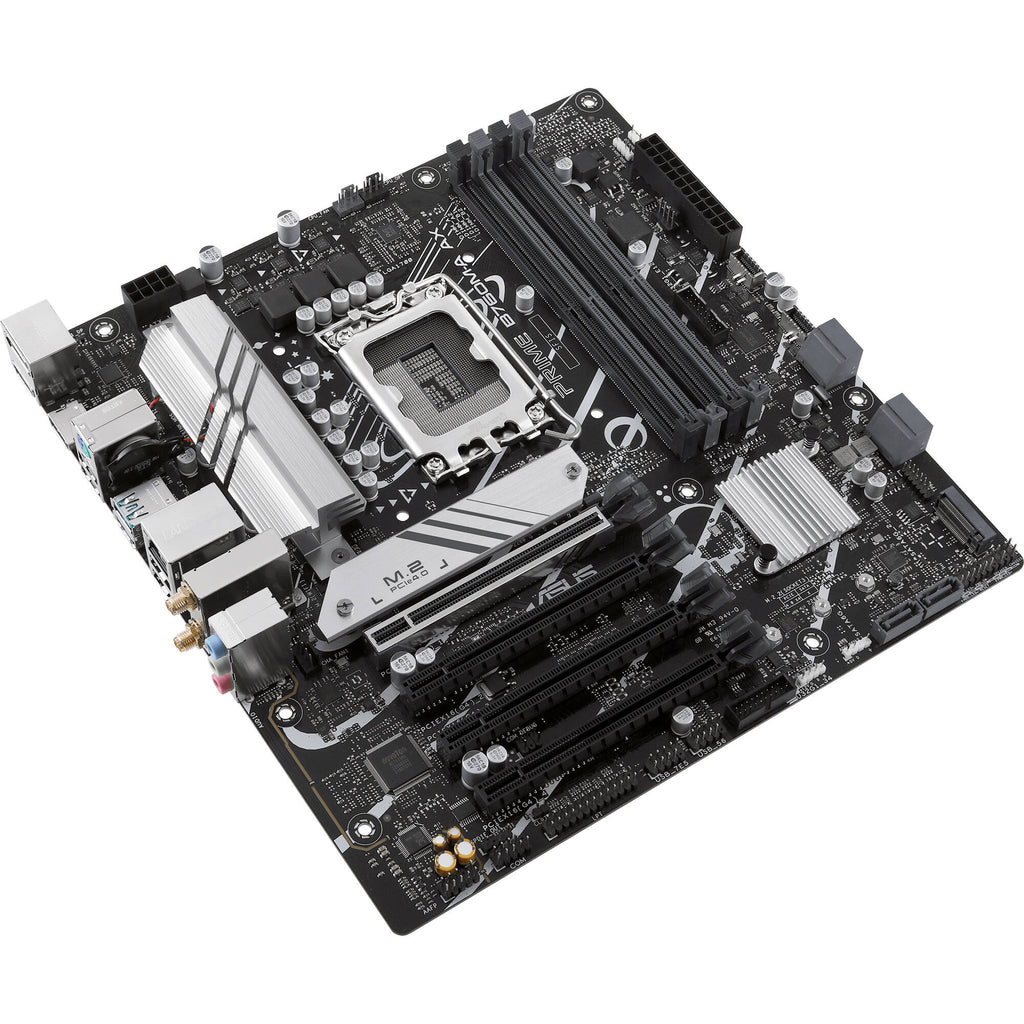

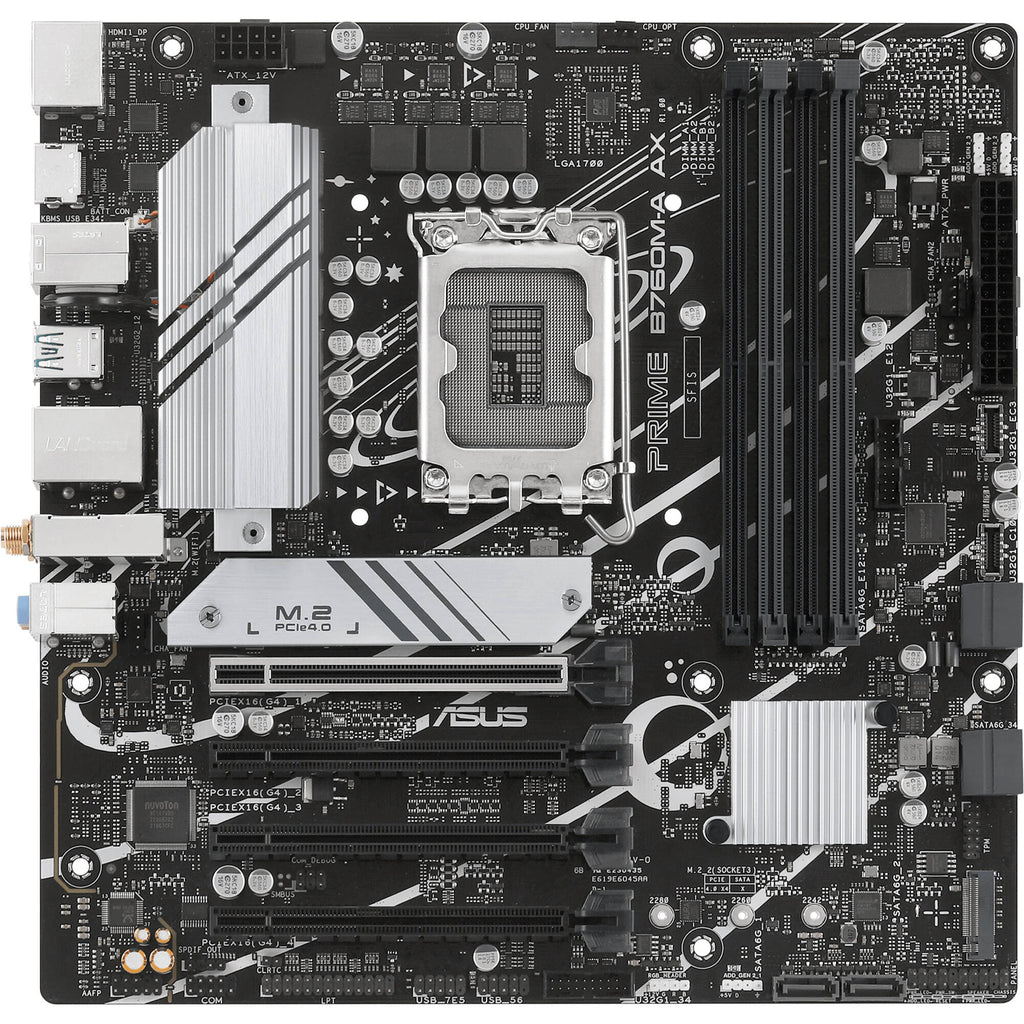

ASUS PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard

Roll over image to zoom in

ASUS PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard


	₹ 22615.0 includes GST and import duties.
	B2B customers can avail ₹ 3448.79 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	ASUS
SKU:	6980994465877
MPN:	PRIME B760M-A AX
UPC/HSN:	197105079007

Share this product

ASUS PRIME B760M-A AX Overview

1Description
2Designed for 12th & 13th Gen Intel Processors
3Cooling
4Customization
5ASUS OptiMem II

Harness the power of 12th and 13th Gen Intel processors with the PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard from ASUS. Designed for business environments, the PRIME provides robust functionality enabling you to install a wide range of components.

An Intel B760 chipset rests at the heart of this motherboard, giving you access to an LGA 1700 socket, four dual-channel DDR5 RAM slots, six SATA III ports, and two M.2 interfaces. Install a wide range of graphics and utility cards with a multitude of expansion slots including one PCIe 4.0 x16, one PCIe 4.0 x16 (in x4 mode), and two PCIe 4.0 x16 (in x1 mode) slots. An array of USB ports and headers allows you to connect resource-demanding peripherals such as external drives and more with USB 3.2 Gen 1 and Gen 2 Type-A and Type-C Ports. USB-A 2.0 ports allow you to connect a wide range of peripherals such as keyboards and mice while USB-A 3.2 Gen 1 ports support resource-demanding devices like external storage drives. With Bluetooth 5.2 technology, you can utilize wireless devices for a true cable-free experience. Wi-Fi 6 (802.11ax) technology and an integrated Realtek 2.5 Gigabit Ethernet port deliver an enhanced data signal whether you want a wireless or wired connection, giving you a solid connection essential for competitive online gaming, cloud data access, and more. The PRIME supports Windows 10 (64-Bit) as well as Windows 11 (64-Bit) right out of the box.

Designed for 12th & 13th Gen Intel Processors

Designed to be used with 12th and 13th Gen Intel processors, the PRIME motherboard delivers power and connectivity suitable for business professionals and gamers alike. When paired with an Intel 12th Gen processor, you unlock PCIe 4.0 connectivity, enhancing speeds for your DDR5 RAM, M.2 storage devices, and your x16 expansion slot. Additionally, you gain support for Intel Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, enhancing system-wide performance.

Cooling

Sporting a comprehensive cooling system designed to balance power and temperature, the PRIME utilizes many tools such as a large VRM heat sink and PCH heat sink designed to dissipate heat away from major board components. Hybrid fan headers allow you to connect and manage fans, while Fan Xpert software enables you to adjust fan settings when needed.

Customization

Illuminate your rig in an array of colors and effects with integrated RGB headers. Able to be used in tandem with ASUS AURA Sync and Armoury Crate, you can set custom colors and effects across internal lighting strips as well as external peripherals, adding a layer of self-expression to your desktop.

ASUS OptiMem II

Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.

UPC: 197105079007

In the Box

ASUS PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard
2 x SATA Cables
Moving Antenna

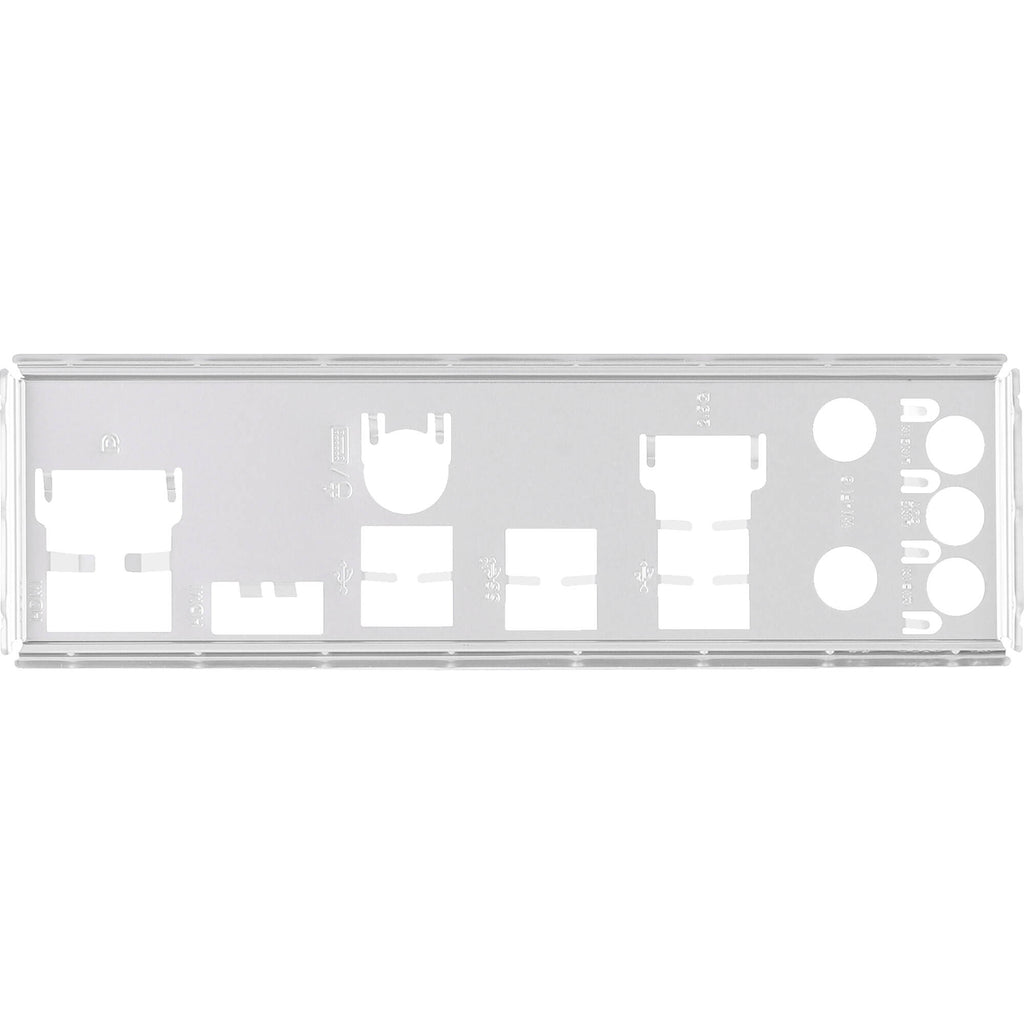

I/O Shield
M.2 Rubber Package
M.2 SSD Screw Package
Limited 3-Year Manufacturer Warranty

Table of Contents

Description
Designed for 12th & 13th Gen Intel Processors
Cooling
Customization
ASUS OptiMem II

ASUS PRIME B760M-A AX Specs

Key Specs

Chipset	Intel B760
CPU Socket	LGA 1700
Memory Slots	4 x 288-Pin
Memory Support	DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
M.2	2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
Expansion Slots	1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4 mode) 2 x PCIe 4.0 x16 (x1 mode)
Form Factor	Micro-ATX

CPU

Chipset	Intel B760
CPU Socket	LGA 1700

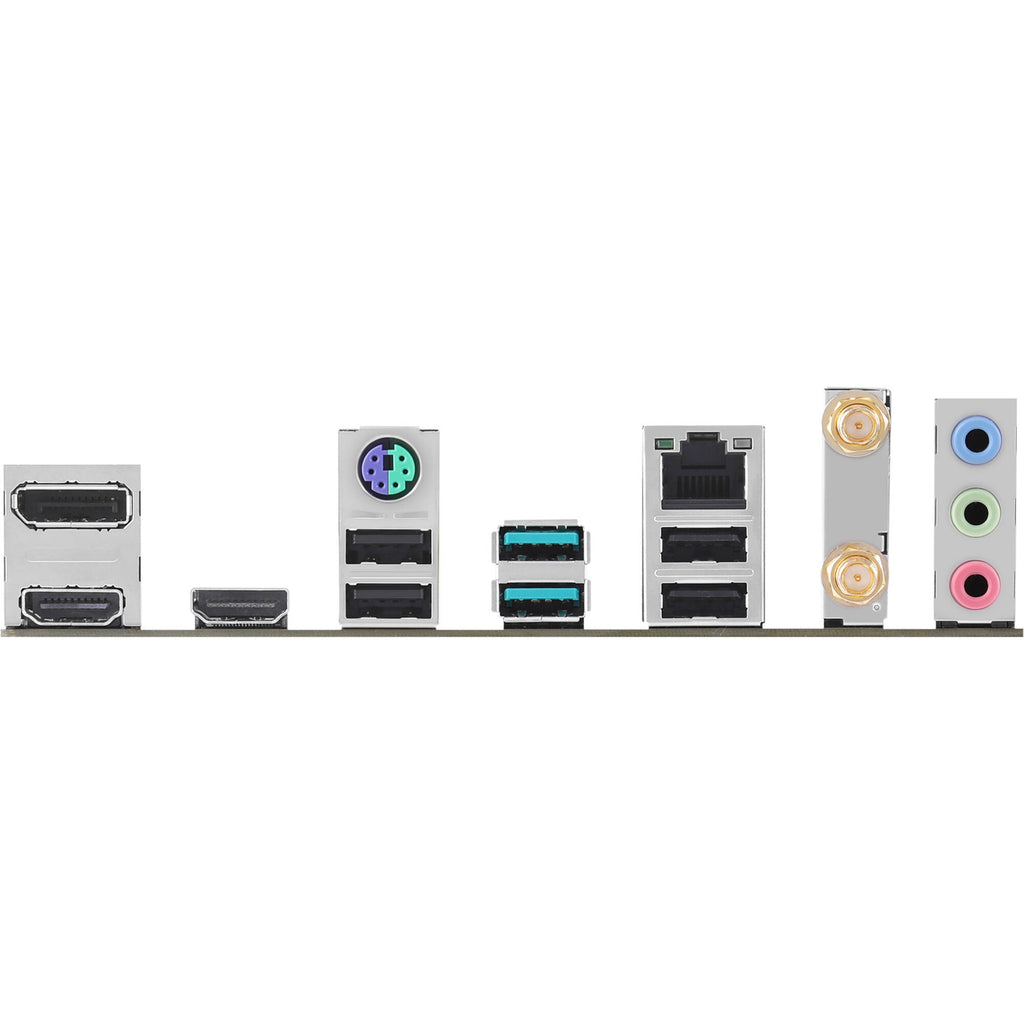

Back Panel I/O

USB	2 x USB-A (USB 3.1/3.2 Gen 2) 4 x USB-A (USB 2.0)
Thunderbolt	No
Display	1 x DisplayPort 2 x HDMI
Audio	3 x 1/8" / 3.5 mm
Ethernet / Controller	1 x Realtek 2.5Gigabit
PS/2	1 x Combo
Wi-Fi Antenna	2 x Connector

Memory

Memory Slots	4 x 288-Pin
Memory Support	DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	6 x SATA III
M.2	2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10 (SATA)

Internal I/O

Expansion Slots	1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4 mode) 2 x PCIe 4.0 x16 (x1 mode)
USB	2 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 2 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-C Port) 2 x 2.0 Header (Supports 4 USB-A Port)
Air Cooling	2 x 4-Pin CPU 2 x 4-Pin System
Power Connectors	1 x 24-Pin Mainboard 1 x 8-Pin CPU
Security	Chassis Intrusion, TPM Header
LED Header	4 x RGB
Audio	1 x S/PDIF
Diagnostics	Clear CMOS
Legacy	1 x Serial

BIOS

ROM

128 Mb

Front Panel I/O

AAFP, USB 3.0 / 3.1/3.2 Gen 1

Audio

Audio Codec	Realtek (7.1-Channel)
DAC	No

Wireless

Bluetooth	No
Wireless	Yes

Software

OS Compatibility

Windows 10 to 11
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility

Physical

Form Factor	Micro-ATX
Dimensions	9.6 x 9.6" / 24.4 x 24.4 cm

Packaging Info

Package Weight	2.74 lb
Box Dimensions (LxWxH)	11.5 x 10.8 x 2.8"
