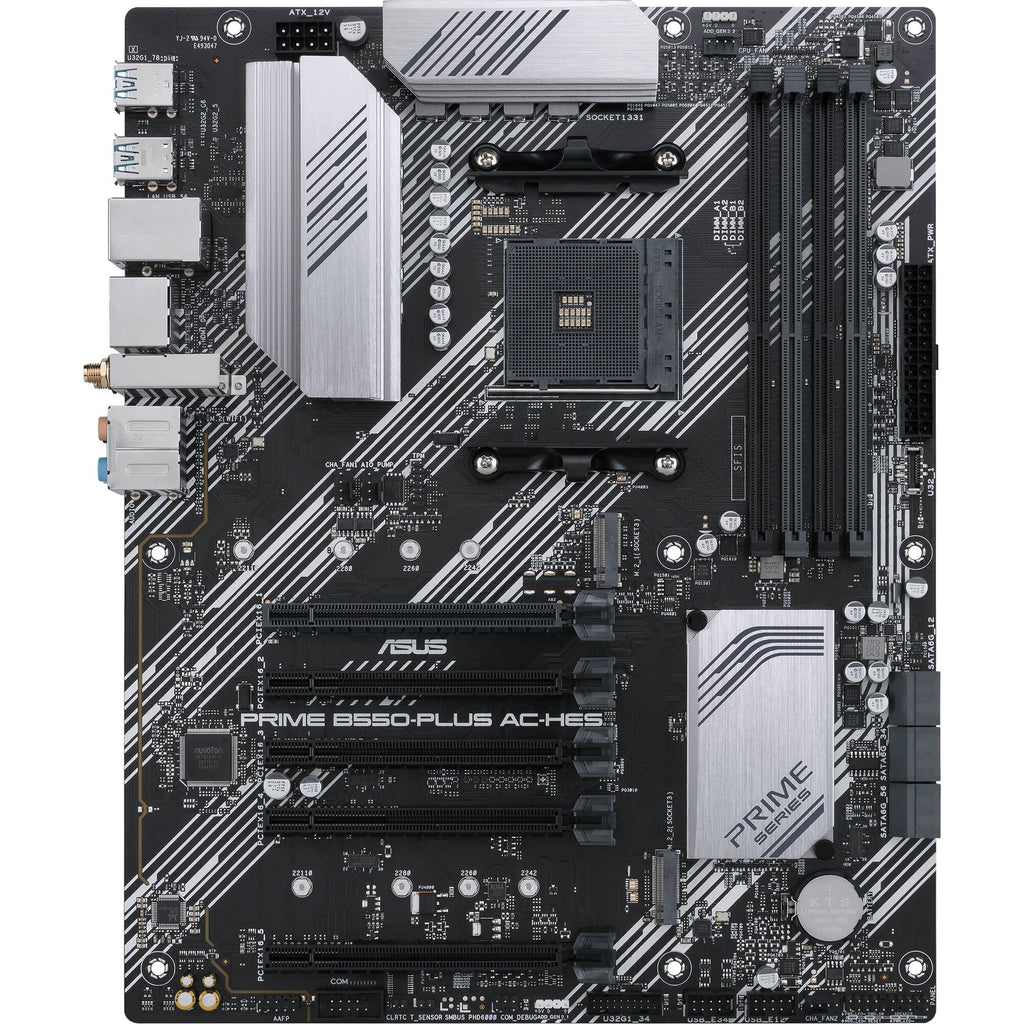

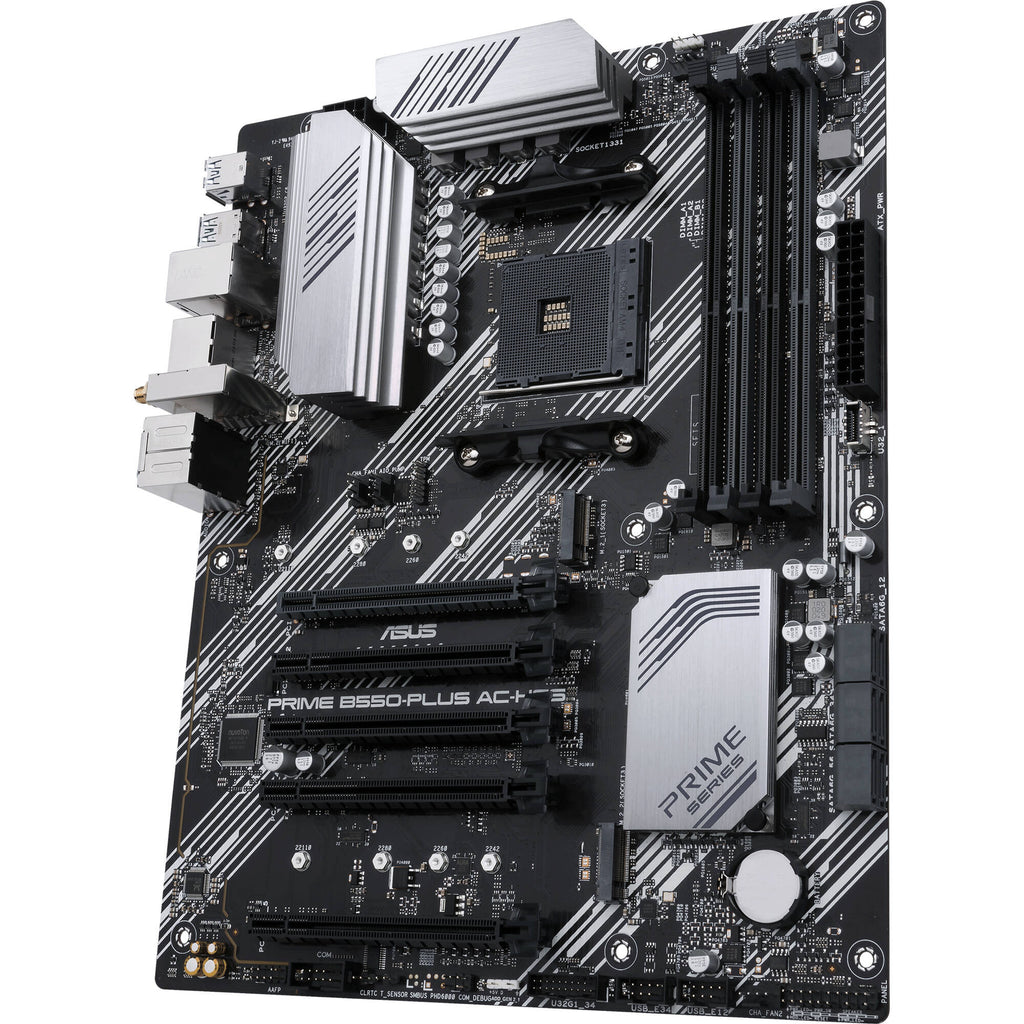

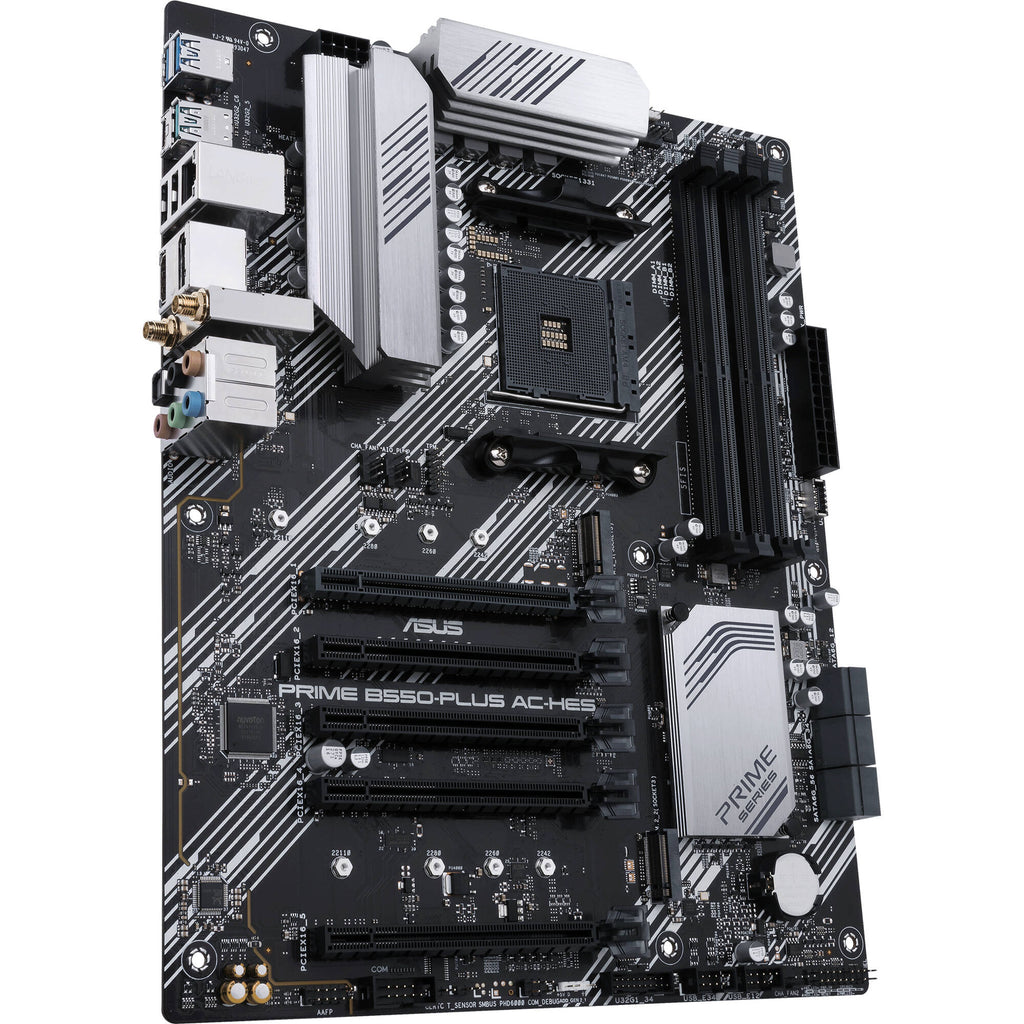

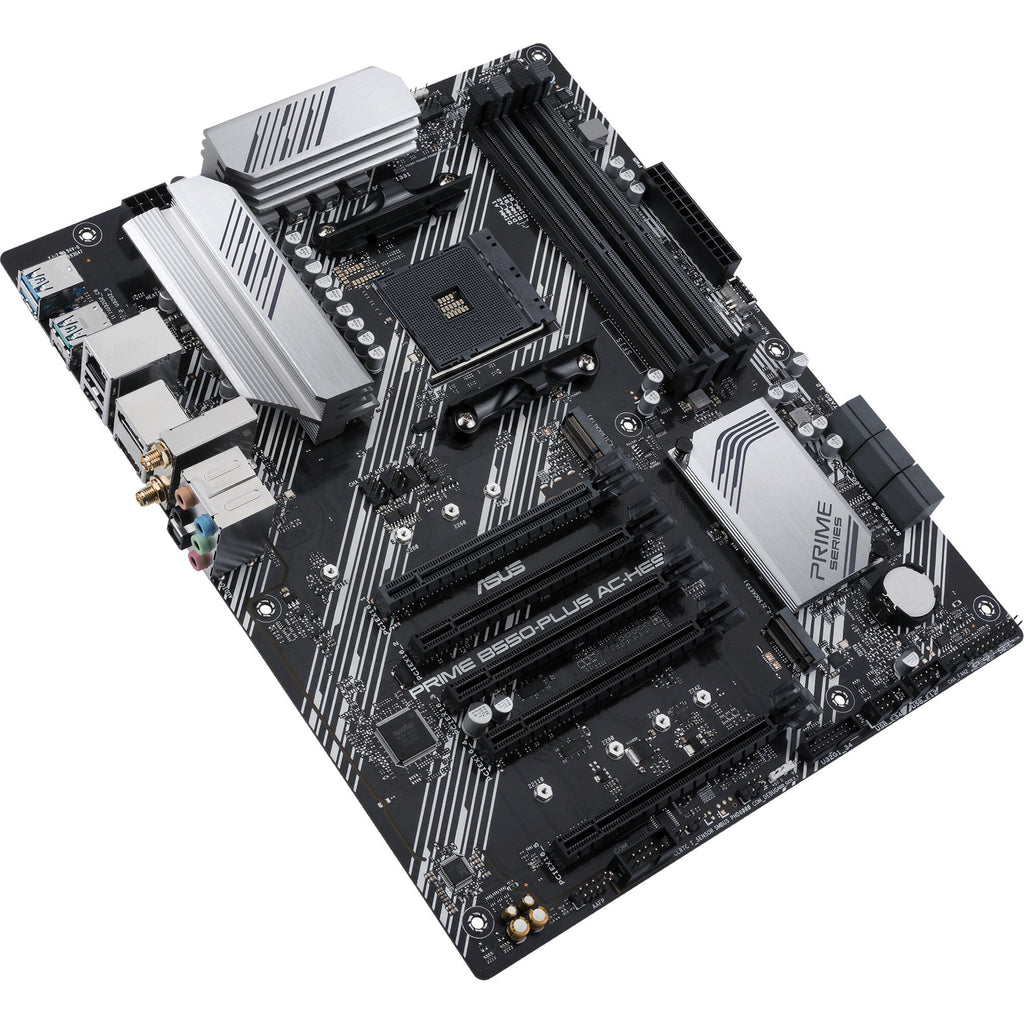

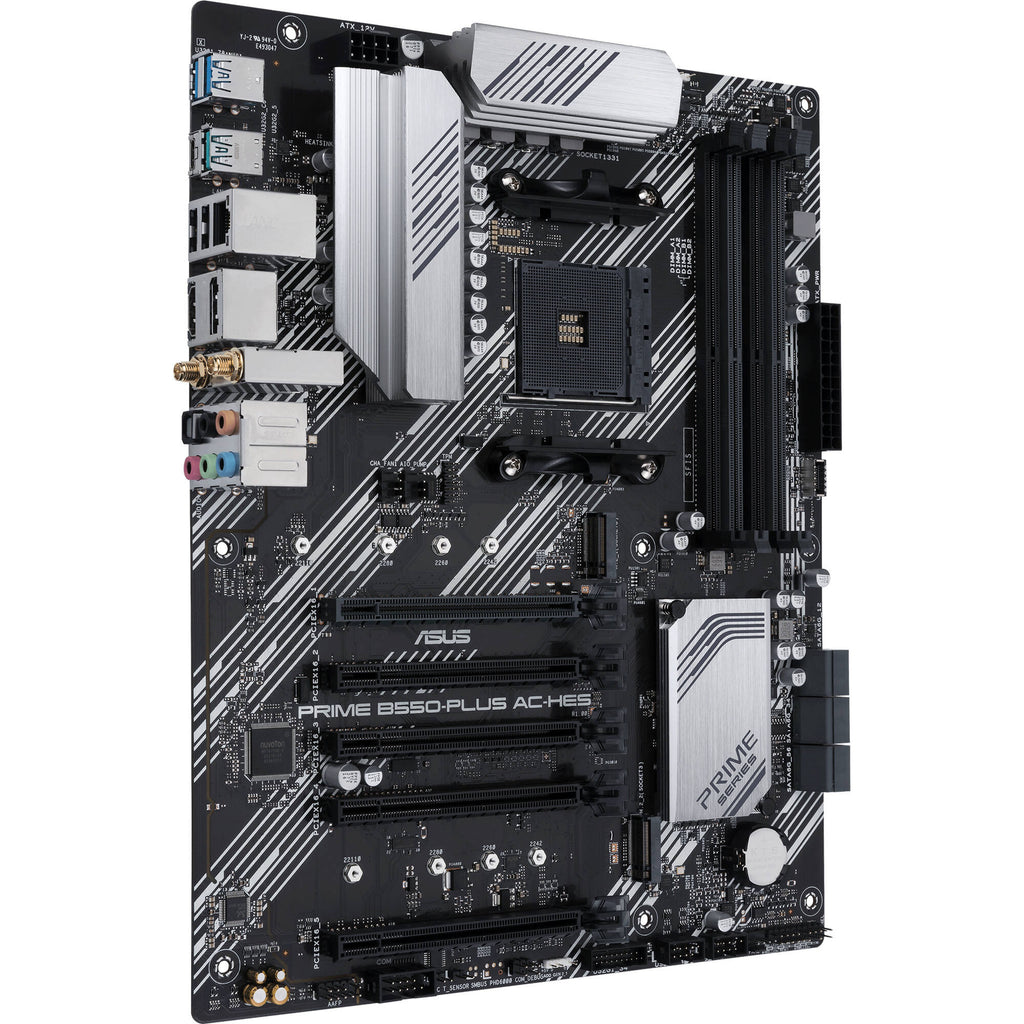

ASUS PRIME B550-PLUS AC-HES AM4 ATX Motherboard

Roll over image to zoom in

ASUS PRIME B550-PLUS AC-HES AM4 ATX Motherboard


	₹ 19330.0 includes GST and import duties.
	B2B customers can avail ₹ 2947.83 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	ASUS
SKU:	7439908733013
MPN:	PRIME B550-PLUS AC-HES
UPC/HSN:	195553397162

Share this product

ASUS B550-PLUS AC-HES Overview

Build a powerful AMD Ryzen system with the PRIME B550-PLUS AC-HES AM4 ATX Motherboard from ASUS. Powered by the AMD B550 chipset, this motherboard supports Ryzen 5000, 4000, and 3000 series processors with the AM4 socket. Designed for power, this ATX motherboard utilizes the PCIe 4.0 data bandwidth to deliver high performance for intensive tasks such as gaming, video editing, and more. Use up to 128GB of dual-channel DDR4 memory, reaching 4866 MHz when overclocked, thanks to four memory slots. Storage wise, this motherboard supports two M.2 slots and six SATA III ports, which can be configured into RAID 0, 1, or 10 configurations. The PCIe 4.0 x16 slot accommodates a high-end graphics card, while the additional PCIe 3.0 x16 and PCIe 3.0 x1 slots are available for compatible expansion cards.

Utilize your CPU's integrated graphics and connect a monitor directly to the back I/O panel thanks to DisplayPort and HDMI ports. Take advantage of the Gigabit Ethernet port for a stable wired connection. Connect peripherals such as keyboards and mice to the rear panel's USB 2.0 ports, while external storage devices can be connected the USB-C or USB-A 3.2 Gen 2 ports. Windows 11 or Windows 10 64-Bit is required to take advantage of this motherboard's features.

Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of the AMD Ryzen 5000 series. Boasting a robust power design, comprehensive cooling solution, and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Digi+ VRM Control

The Digi+ voltage-regulator module (VRM) delivers real-time control overvoltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

All-Around Energy Efficiency

Enjoy system-wide power savings thanks to the Energy Processing Unit (EPU). The EPU automatically optimizes power consumption and maximizes savings with Away mode.

Flexible Cooling Controls

Fan Xpert 2+ software provides comprehensive control over system fans. Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Wi-Fi 5 via External Antennas

The Prime B550-PLUS AC-HES has Wi-Fi 5 (802.11ac) via an external 1x1 2.4/5GHz antenna for up to 433.4 Mb/s transfer speeds.

VRM Heatsink and Thermal Pads

The VRM heatsinks feature an underneath thermal pad that improves heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design

Prime B550 series motherboards feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

UEFI Bios

The ASUS UEFI BIOS provides everything you need to configure, tweak, and tune your system. Its EZ mode offers intelligently simplified options for PC DIY beginners, while Advanced mode offers comprehensive features and complete customization for seasoned veterans.

SafeSlot Core

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.

Aura Sync

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for RGB LED strips connected to the onboard RGB headers, and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Addressable Gen 2 Header

The addressable Gen 2 header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.

Armoury Crate

Armoury Crate is a software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlights to help you stay in touch with the ASUS community.

UPC: 195553397162

Items Included

ASUS PRIME B550-PLUS AC-HES AM4 ATX Motherboard
2 x SATA III Cable
ASUS Wi-Fi Moving Antennas

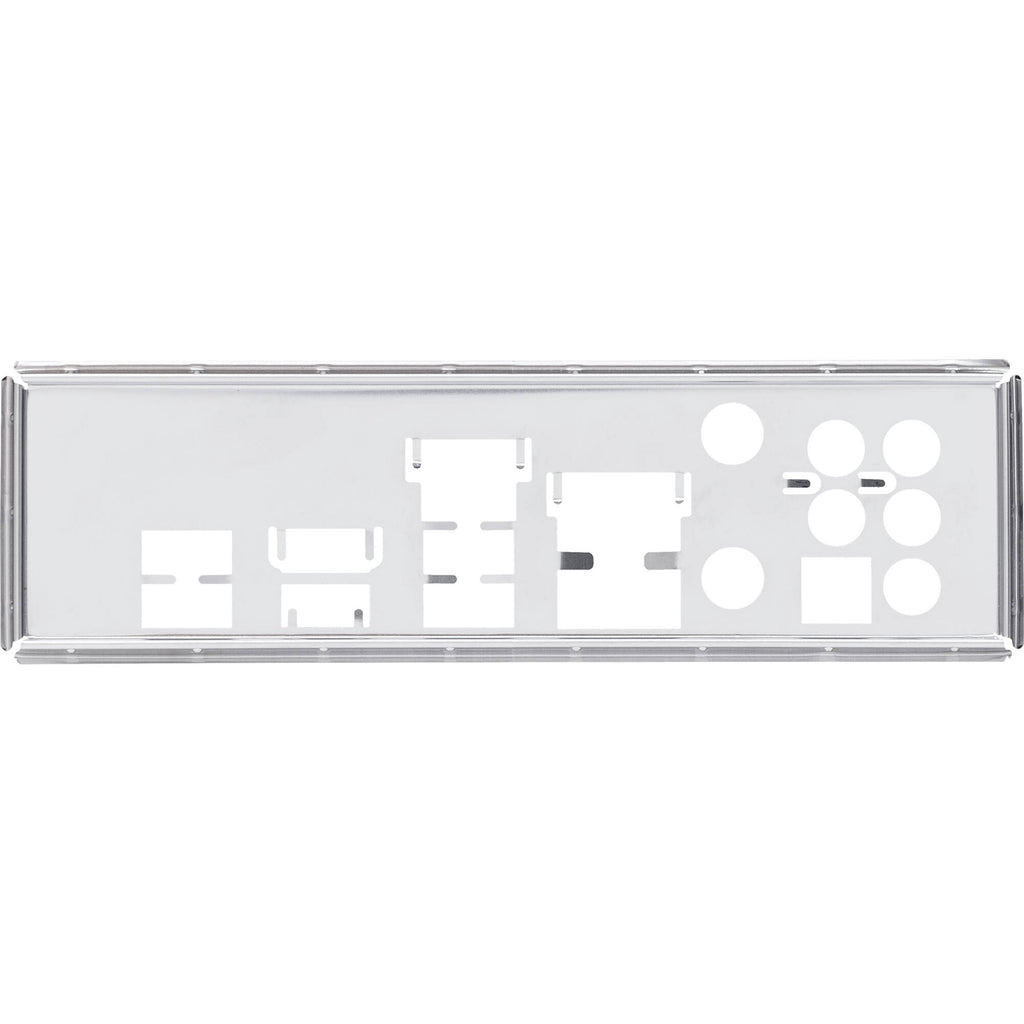

I/O Shield
M.2 SSD Screw Package
Limited 3-Year Manufacturer Warranty

Additional Resources

No additional resources available

ASUS B550-PLUS AC-HES Specs

Key Specs

Chipset	AMD B550
CPU Socket	AM4
Memory Slots	4x 288-Pin
Memory Type Support	DDR4, 4800 MT/s Maximum Supported Speed
M.2 Slots	22110
Expansion Slots	1x PCIe 4.0 x16 (x1 mode) 3x PCIe 3.0 x16 (x4 mode)
Wi-Fi	Wi-Fi 5 (802.11ac)
Form Factor	ATX

CPU

Chipset	AMD B550
CPU Socket	AM4

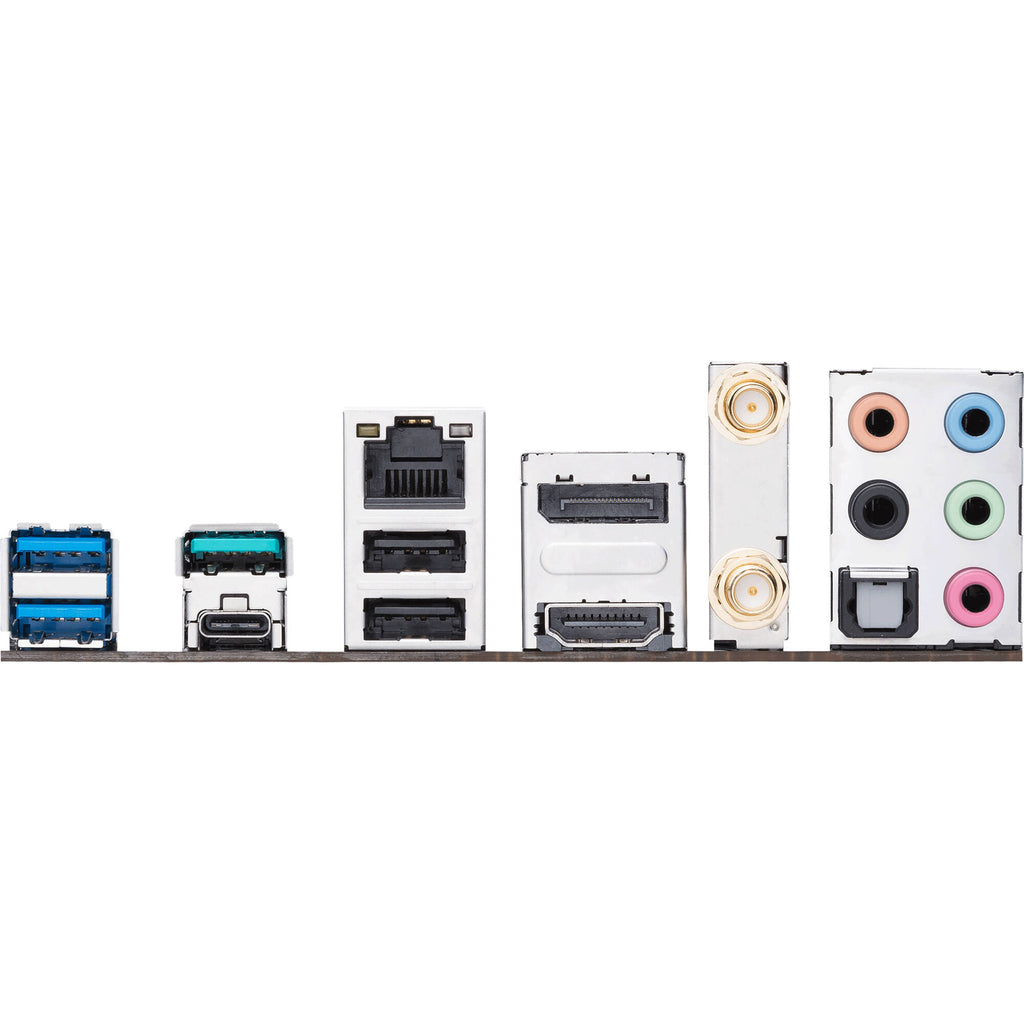

Back Panel I/O

USB	1x USB-C (USB 3.1/3.2 Gen 2) 1x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0)
Thunderbolt	No
Display	1x DisplayPort
Audio	5x 1/8" / 3.5 mm 1x S/PDIF
Ethernet / Controller	1x Realtek Gigabit
Buttons	Clear CMOS

Memory

Memory Slots	4x 288-Pin
Memory Type Support	DDR4, 4800 MT/s Maximum Supported Speed
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	ECC Unbuffered

Storage Expansion

SATA	6x SATA III
M.2 Slots	2x M.2 (M Key) 22110/2280/2260/2242 (PCIe 4.0 x4)
RAID Support	RAID 0, 1, 10

Internal I/O

Expansion Slots	1x PCIe 4.0 x16 (x1 mode) 3x PCIe 3.0 x16 (x4 mode)
USB	1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	1x 4-Pin CPU
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 1x 12V-2X6 (12VHPWR)
Security	Chassis Intrusion, TPM Header
LED Header	1x RGB
Diagnostics	Clear CMOS

BIOS

ROM

256 Mb

Front Panel I/O

AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1

Audio

Audio Codec	Realtek ALC887/897 (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 5 (802.11ac)
Bluetooth	Yes

Software

OS Compatibility

Windows 10 (64-Bit Only)

Physical

Form Factor	ATX
Dimensions	12.0 x 9.6" / 30.5 x 24.4 cm

Packaging Info

Package Weight	3.42 lb
Box Dimensions (LxWxH)	13.75 x 10.75 x 2.75"
