Description
ASUS Prime AP201 Overview
- 1Description
- 2I/O Connections
- 3Cooling Capabilities
- 4DIY Design

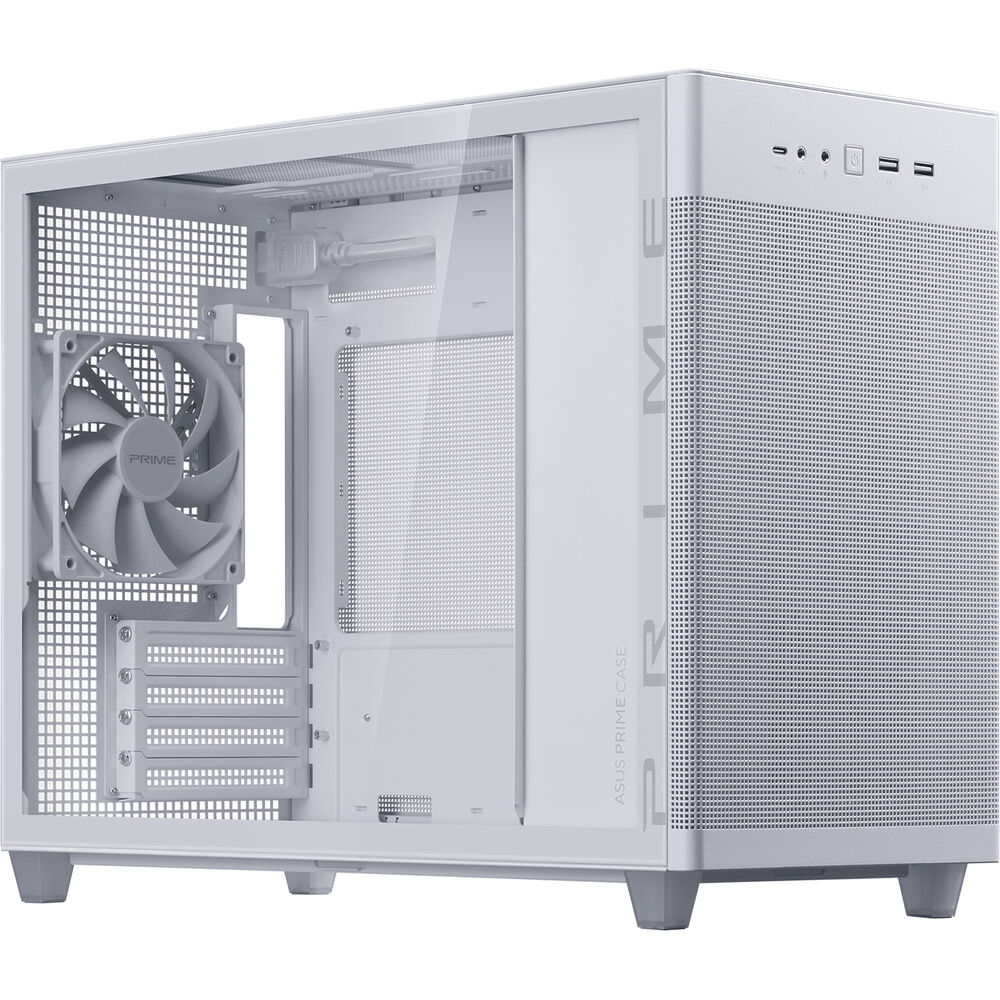

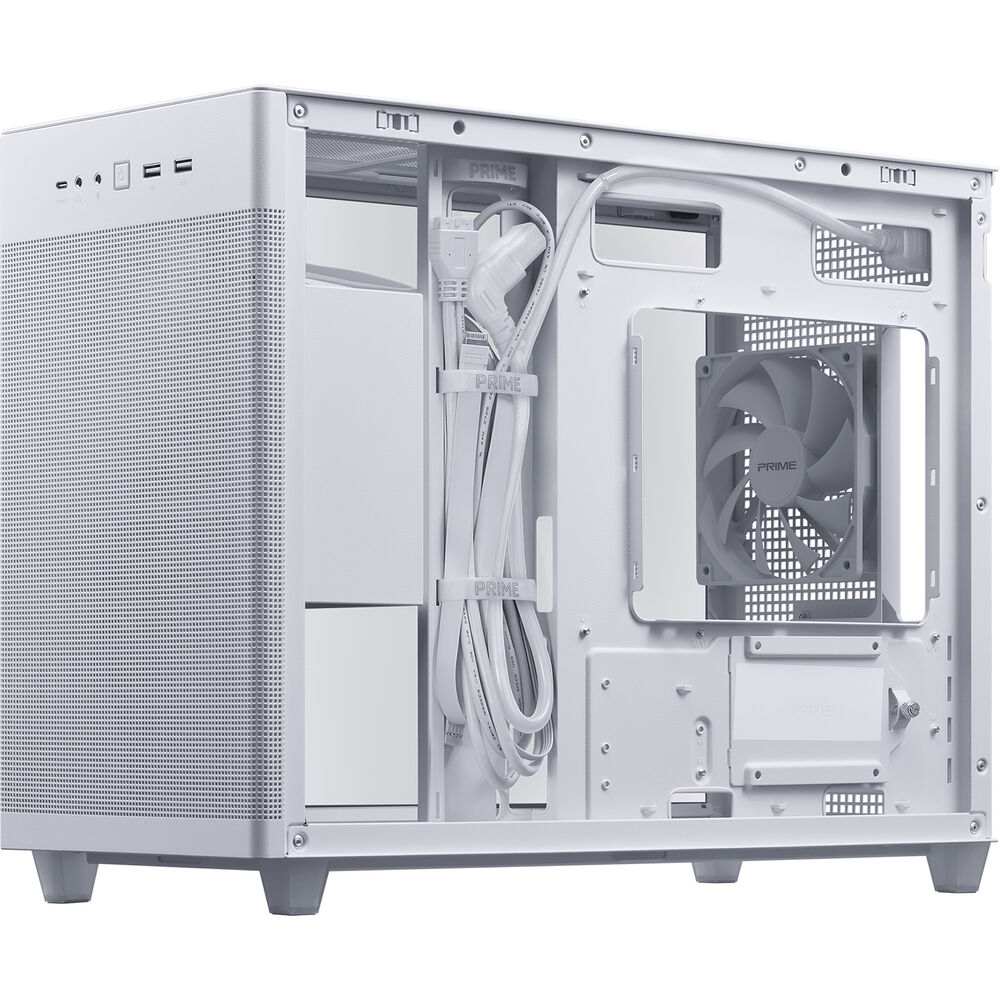

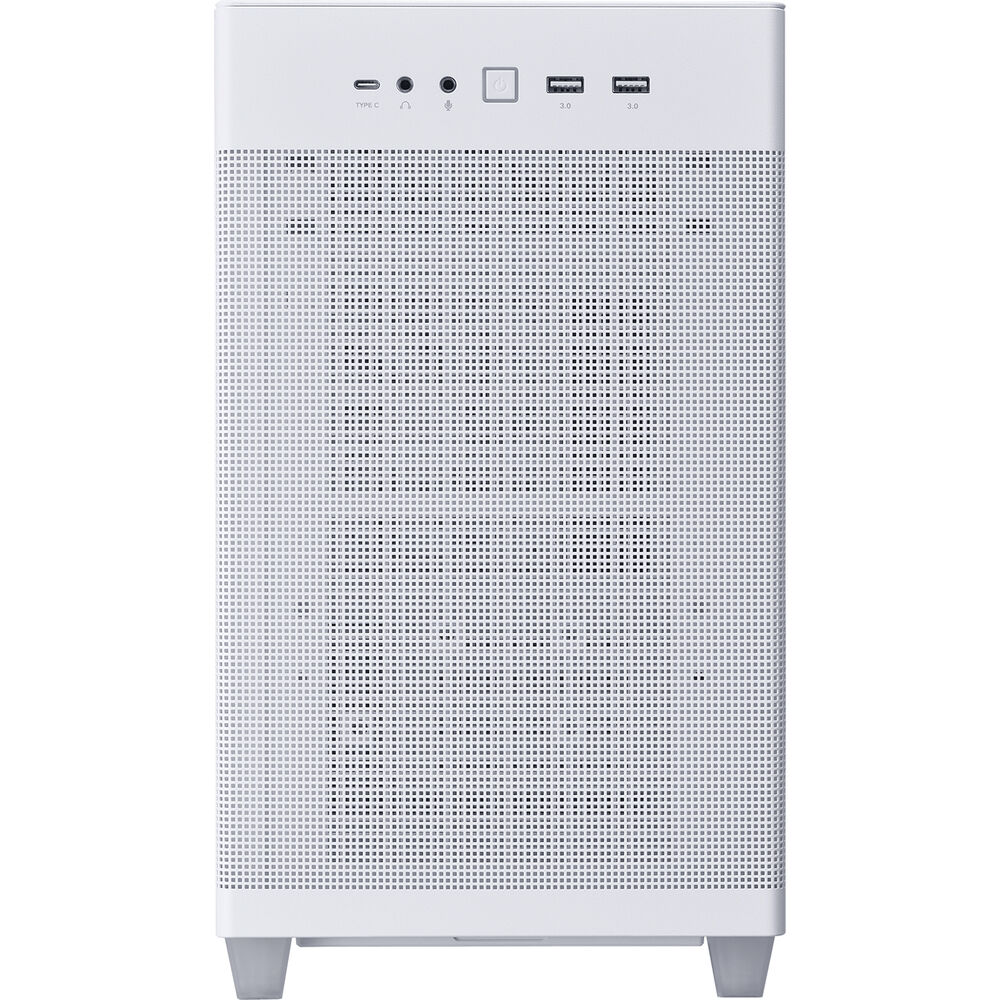

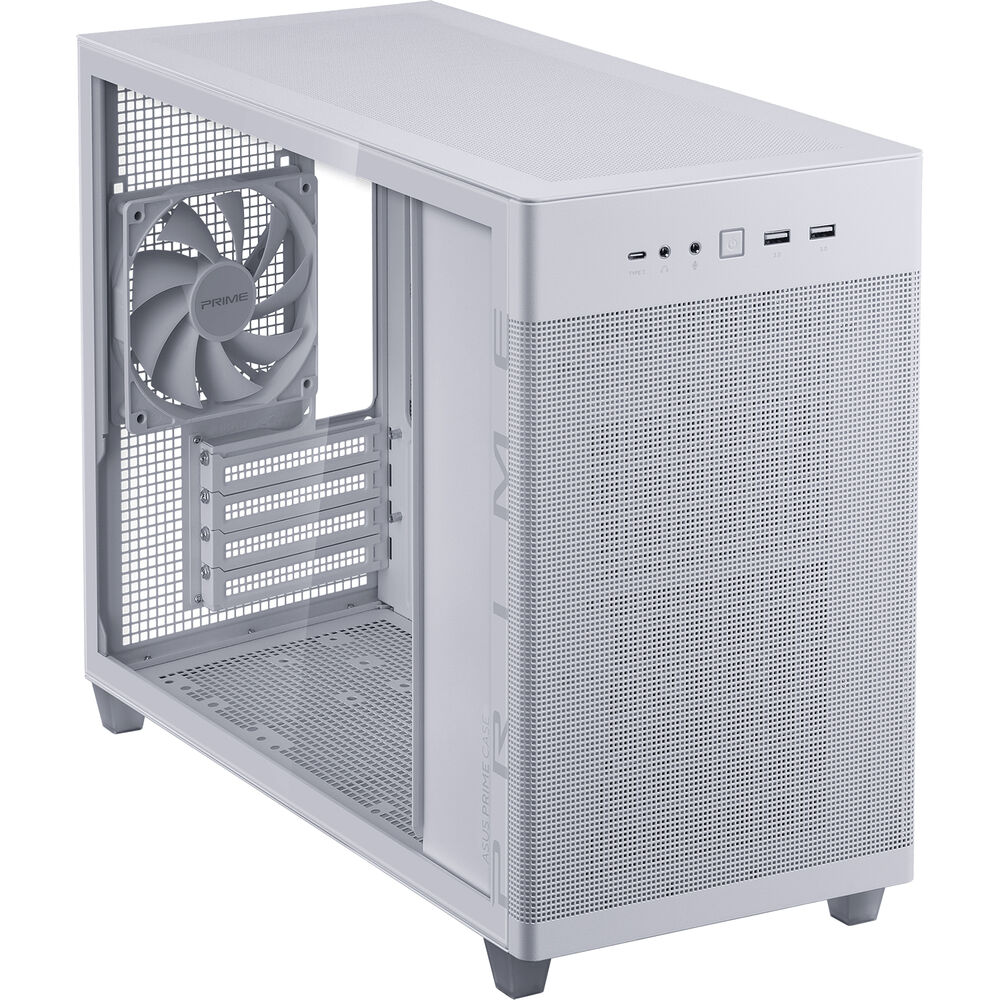

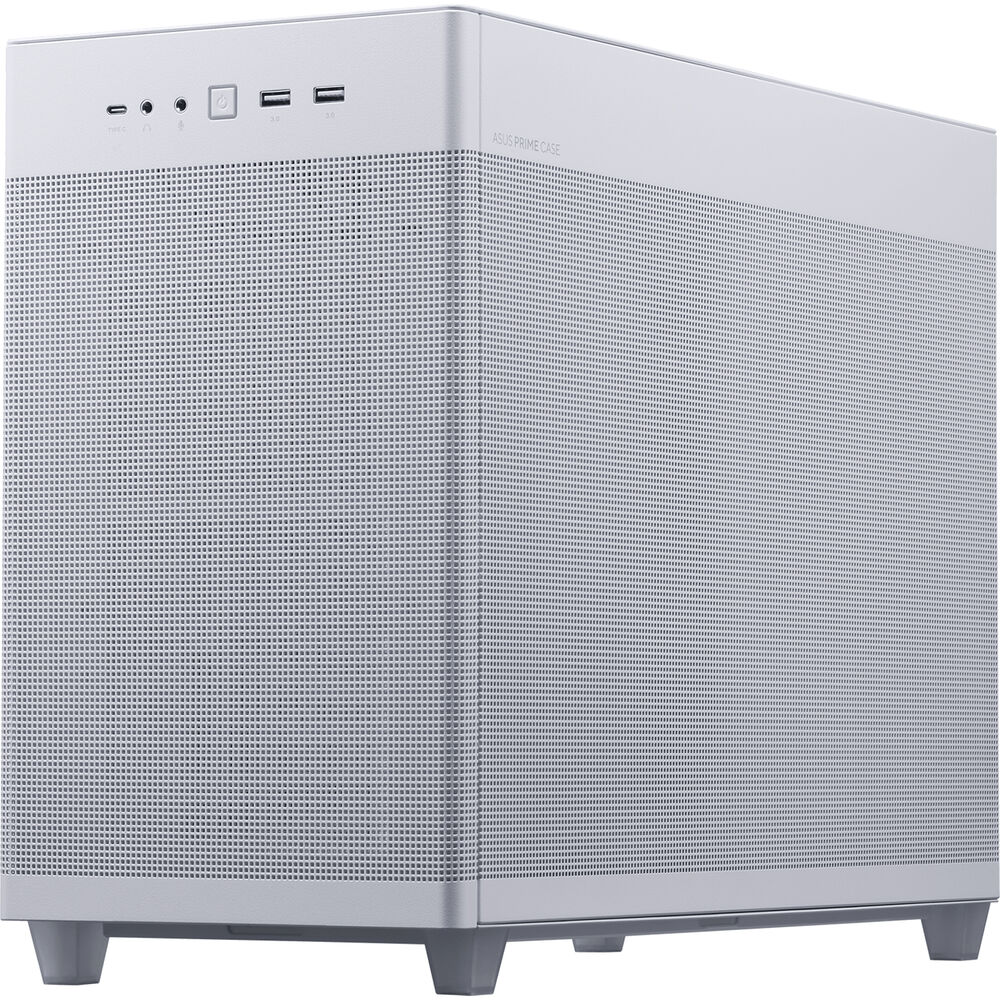

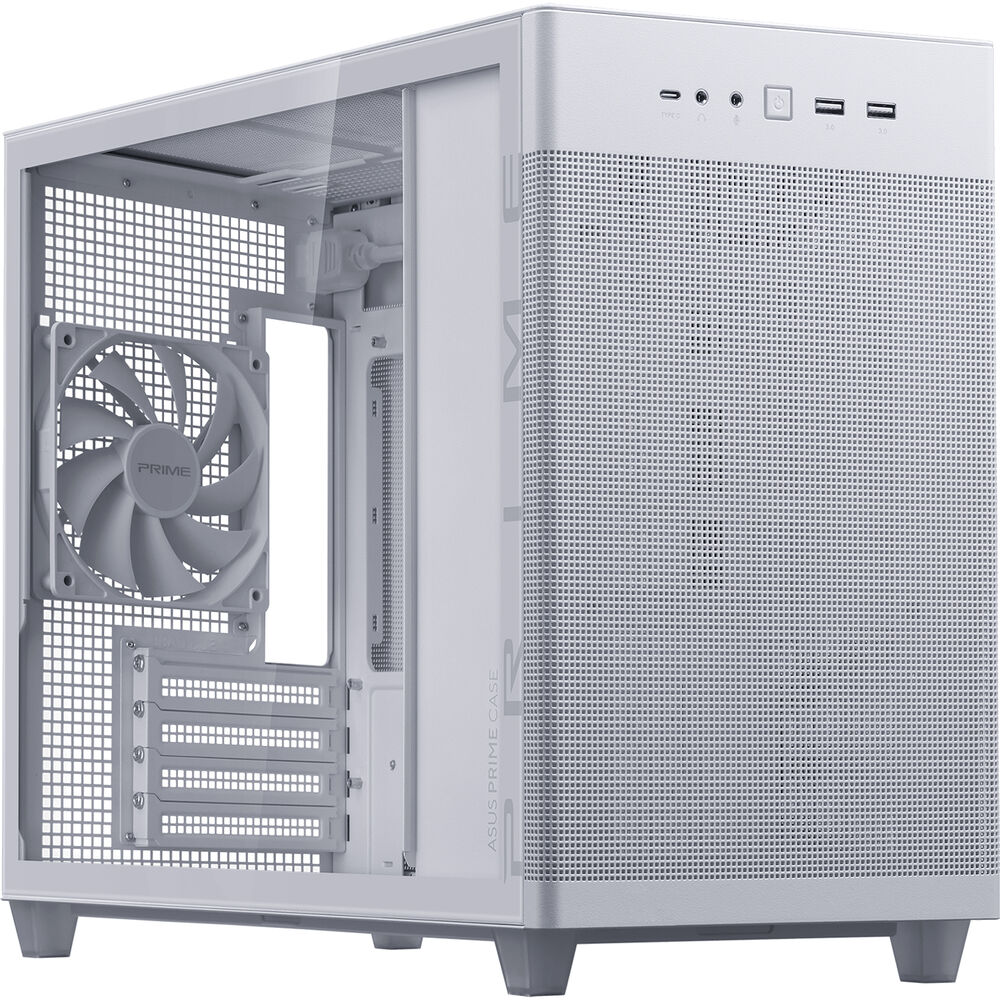

Save room on your desk or entertainment system with the white ASUS Prime AP201 Micro-ATX Case. Designed for those who prefer small builds the Prime AP201 features robust functionality and utility in a compact package.
Intended for micro-ATX and mini-ITX motherboards, the AP201 can leverage performance-focused components without affecting performance. You get four expansion slots plus enough clearance to install graphics cards up to 13.3" in length and CPU coolers up to 6.7" tall. Construct your digital library with support for various storage drives with one 2.5" bay located behind the motherboard plate and three other placements for 2.5 or 3.5" drives at the bottom and front of the AP201. Front panel I/O ports give you instant access to two USB-A 3.2 Gen 1 ports, one USB-C 3.2 Gen 2 port, and dual 3.5mm audio jacks for microphone and headphone support. Despite the reduced size, you can install a variety of cooling fans as well as radiators up to 360mm in length. The tempered glass side window shows off your system's internal components and lighting while the mesh panels help to ensure your system remains cool even under heavy loads.
In the Box
- ASUS Prime AP201 Micro-ATX Case (White, Tempered Glass)
- Screw Kit
- 12 x Rubber Washers
- Standoff Tool
- 8 x Cable Ties
- Limited 2-Year Manufacturer Warranty
- Description
- I/O Connections
- Cooling Capabilities
- DIY Design
ASUS Prime AP201 Specs
| Motherboard Support |
Micro-ATX, Mini-ITX
|
| Drive Mounting (Non-Bay) |
Motherboard Tray:
1 x 2.5" or Side: 1 x 2.5/3.5" and Bottom: 2 x 2.5/3.5" |
| Expansion Slots |
4 x Full Height
|
| Maximum GPU Length |
13.3" / 338 mm
|
| CPU Cooler Height |
6.7" / 170 mm
|
| Fans Included |
Rear:
1 x 120 mm Non-LED (Unspecified rpm) |
| I/O |
2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
1 x USB-C (USB 3.1/3.2 Gen 2) |
| Windowed Panel |
Yes
|
| Built-In Lighting |
No
|
| Motherboard Support |
Micro-ATX, Mini-ITX
|
| External Drive Bays |
No
|
| Drive Mounting (Non-Bay) |
Motherboard Tray:
1 x 2.5" or Side: 1 x 2.5/3.5" and Bottom: 2 x 2.5/3.5" |
| Expansion Slots |
4 x Full Height
|
| Maximum GPU Length |
13.3" / 338 mm
|
| CPU Cooler Height |
6.7" / 170 mm
|
| Supported PSU Size |
ATX
|
| Maximum PSU Length |
7.1" / 180 mm
|
| PSU Mounting Location |
Middle
|
| Fan Mounting |
Bottom:
2 x 120 mm Rear: 1 x 120 mm Top: 3 x 120 mm or 2 x 140 mm |
| Fans Included |
Rear:
1 x 120 mm Non-LED (Unspecified rpm) |
| Maximum Radiator Size |
Rear:
120 mm Top: 360 mm |
| Fan Controller Included |
No
|
| Filter Locations |
Bottom
|
| I/O |
2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
1 x USB-C (USB 3.1/3.2 Gen 2) |
| Media/Memory Card Slot |
No
|
| Audio I/O |
1 x 3.5 mm Input
1 x 3.5 mm Output |
| Display Outputs |
No
|
| Windowed Panel |
Yes
|
| Color |
White
|
| Built-In Lighting |
No
|
| Tool-Less Design |
Yes
|
| Cable Management Space |
1.3" / 32 mm
|
| Dimensions (W x H x D) |
0.7 x 1.1 x 1.5' / 205 x 350 x 460 mm
|
| Weight |
12.8 lb / 5.8 kg
|
| Package Weight |
17.9 lb
|
| Box Dimensions (LxWxH) |
20.8 x 17.6 x 11.7"
|
