Description

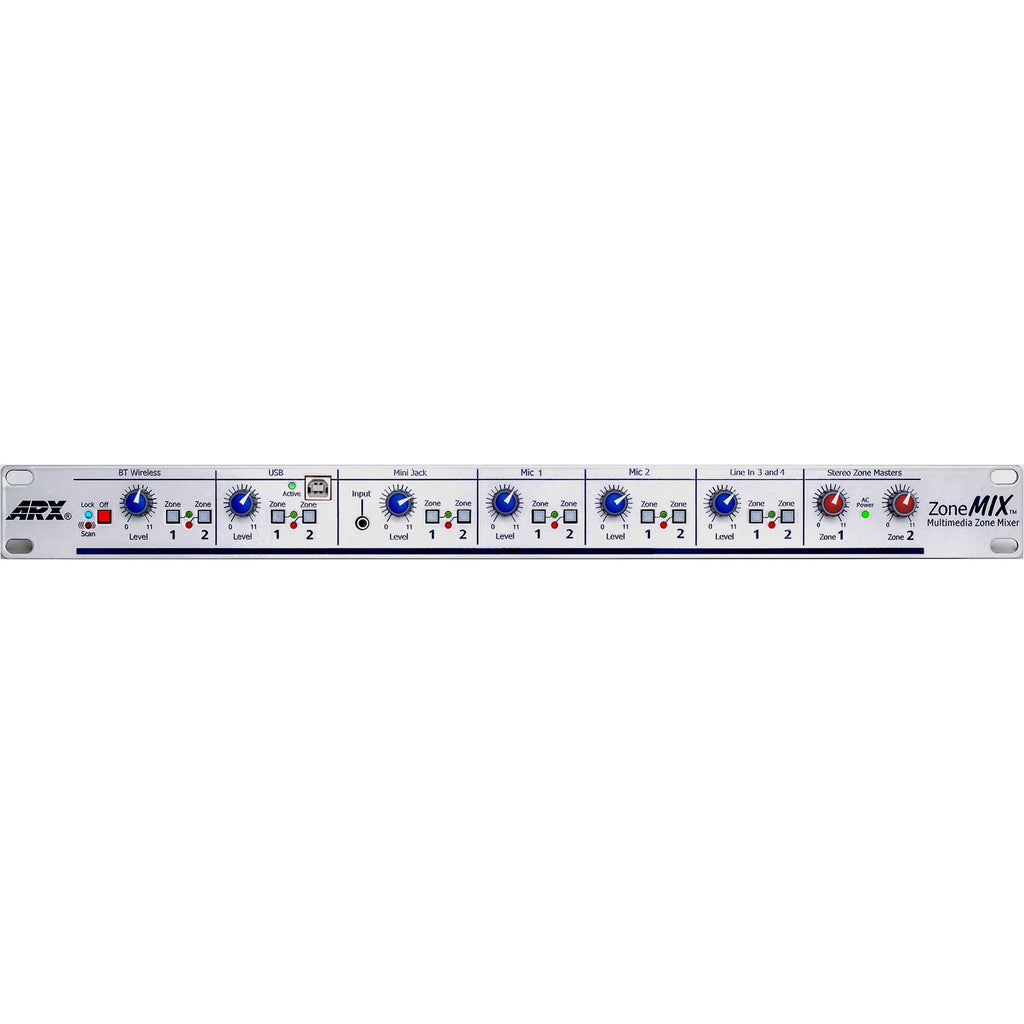

ARX ZoneMIX Overview
The ARX ZoneMIX is a professional-grade, multi-channel zone mixer designed to meet the evolving needs of modern AV installations. With its robust input options?including Bluetooth wireless audio, USB, and analog sources?and flexible zone routing in a compact 1 RU format, ZoneMIX delivers clean, powerful sound and intuitive control for a wide range of venues and applications.
Versatile Inputs for Modern Sources
ZoneMIX accommodates a wide variety of signal types:
- Wireless Audio, USB, and mini-jack inputs for seamless playback from phones, tablets, and laptops
- 2 balanced XLR mic inputs with low-noise preamps and adjustable gain (0 to 50 dB)
- Stereo RCA line input for standard AV sources
Whether you?re mixing music in a gym, paging in a restaurant, or routing audio in a corporate AV system, the ZoneMIX adapts to any scenario.
Flexible Zone Routing
All inputs can be independently assigned to Stereo Zone 1, Zone 2, or Both, giving you total control over where audio is sent. The master outputs are electronically balanced XLRs and can be switched to mono, making ZoneMIX ideal for distributed sound systems.
High-Performance Audio
Engineered for pristine sound, the ZoneMIX delivers:
- Frequency response of 20 Hz to 20 kHz ?1 dB
- Extremely low distortion (<0.005% from 100 Hz to 10 kHz)
- High headroom with max output level of +20 dB
- Signal-to-noise ratio of -90 dB (unweighted)
It?s a mixer that doesn?t compromise?built for clean, quiet performance in demanding environments.
Compact, Intuitive, and Install-Ready
The ZoneMIX fits into a single rack unit and features a user-friendly front-panel layout for quick access and adjustments. Power is connected via a standard IEC inlet with built-in fuse protection. It is available in two AC voltage-specific models: 100 to 120 VAC or 220 to 240 VAC.
Ideal for
- Sound reinforcement in multi-zone venues
- AV integration in hospitality, education, and retail
- Restaurants, gyms, karaoke, clubs, and more
- Reliable playback from portable devices
Additional Details
- Wireless, USB, and mini-jack inputs
- 2 balanced mic inputs with gain trim
- Stereo RCA line input
- Route any input to Zone 1, 2, or both
- Balanced XLR outputs, switchable to mono
- Low-noise and low-distortion design
- Compact 1 RU chassis with intuitive layout
Items Included
- ARX ZoneMIX Multimedia Zone Mixer
- IEC Power Cord
- Limited 12-Month Manufacturer Warranty (Labor)
- Limited 24-Month Manufacturer Warranty (Parts)
Additional Resources
No additional resources available
ARX ZoneMIX Specs
Inputs/Outputs
| USB I/O |
1 x USB-B Female Input
|
| Audio I/O |
2x XLR Mic Input
2x RCA Line Input 2x XLR Line Output |
Wireless
| Wireless |
Bluetooth
|
| Mobile App Compatible |
No
|
Power
| Power Source |
USB, AC Input
|
| AC Input Power |
100 to 120 VAC, 50 / 60 Hz
|
| Power Consumption |
8 W
|
Physical
| Mounting |
Side: 2x Rack Ears
|
| Color |
Gray
|
