Description
ARX MSX 48 DS Overview
The ARX MSX 48 DS is a professional-grade passive microphone/line splitter designed to meet the evolving demands of modern audio production environments. Built on the same foundation as the MSX 48, the MSX 48 DS offers 16 channels of ultralow noise, transformer-isolated splitting?now with space-saving D-Sub Monitor and Aux outputs for streamlined integration in complex systems.
Passive Design, Professional Performance
The MSX 48 DS requires no power and supports both low-level microphone and high-level line signals with equal fidelity. Each input channel provides a direct hardwired Main/FOH output (phantom power compatible), along with two transformer-isolated splits: a Monitor split and an Auxiliary split?delivered via industry-standard 25-pin D-Sub connectors on the rear panel.
Transformer-Isolated Signal Path
Internally, high-performance transformers provide true galvanic isolation on all Monitor and Auxiliary outputs. Each output uses its own transformer winding to prevent signal interaction and maintain clean, stable audio distribution across multiple destinations.
Rugged Build and Installation Flexibility

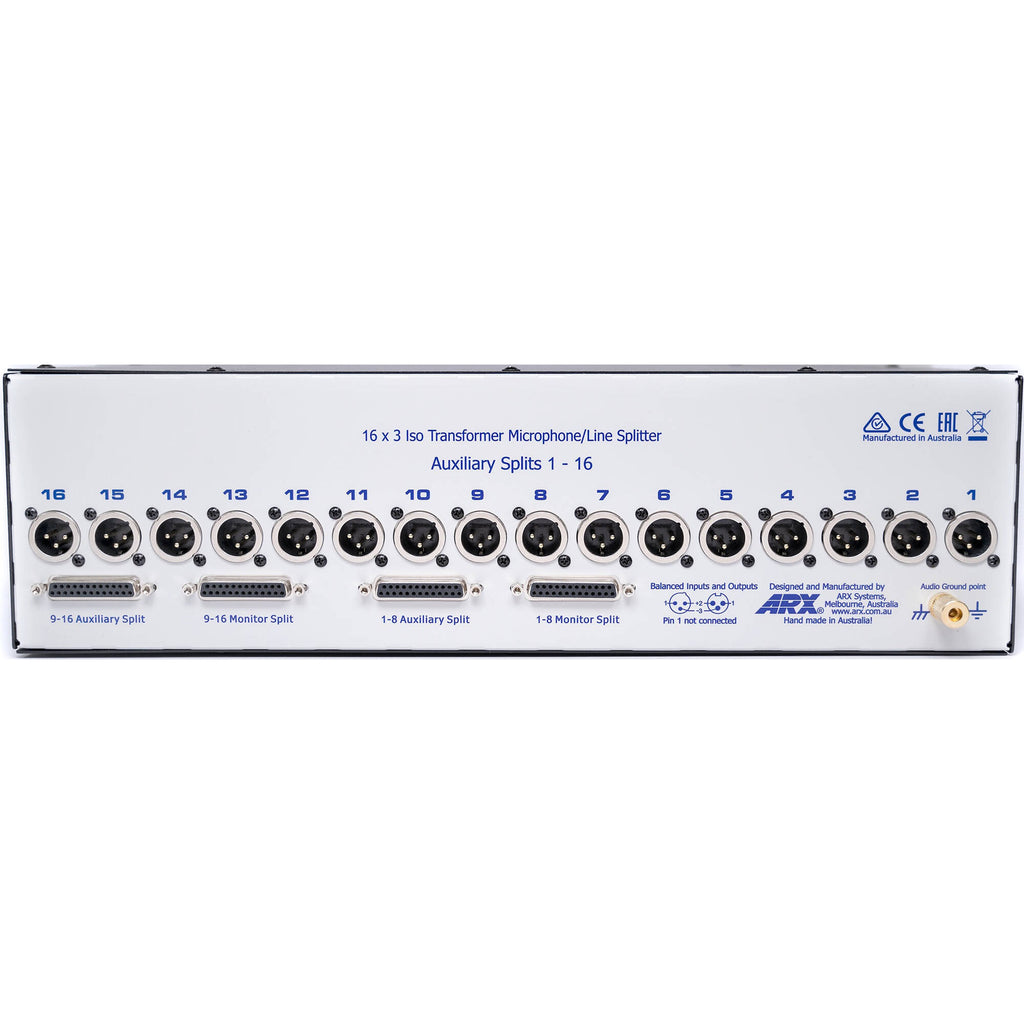

The MSX 48 DS is housed in a durable, all-steel chassis that provides excellent shielding against electromagnetic interference. Inputs and Main outputs use high-grade Amphenol XLR connectors with gold-plated pins, while D-Sub connectors reduce space requirements and simplify rack-based wiring in large installations. A front-panel labeling strip and a rear chassis ground terminal are included for ease of setup.
Ready for Complex Systems
The MSX 48 DS eliminates the need for external patch panels or breakout boxes. It offers a clean, compact, and highly efficient solution for audio engineers working in live sound, recording, or broadcast applications where D-Sub interfacing is preferred.
Applications
- Live sound reinforcement
- Broadcast and OB truck feeds
- Studio and venue installations
- Rack-based audio systems
- D-Sub compatible workflows
Details at a Glance
- Sixteen channel, three-way mic/line splitter
- Passive design?no power required
- Transformer-balanced inputs and outputs
- Hardwired Main outputs pass phantom power
- D-Sub Monitor and Auxiliary splits
- Galvanic isolation with individual transformer windings
- Gold-plated Amphenol XLR input connectors
- Steel chassis with excellent interference shielding
- Rear-panel chassis ground point

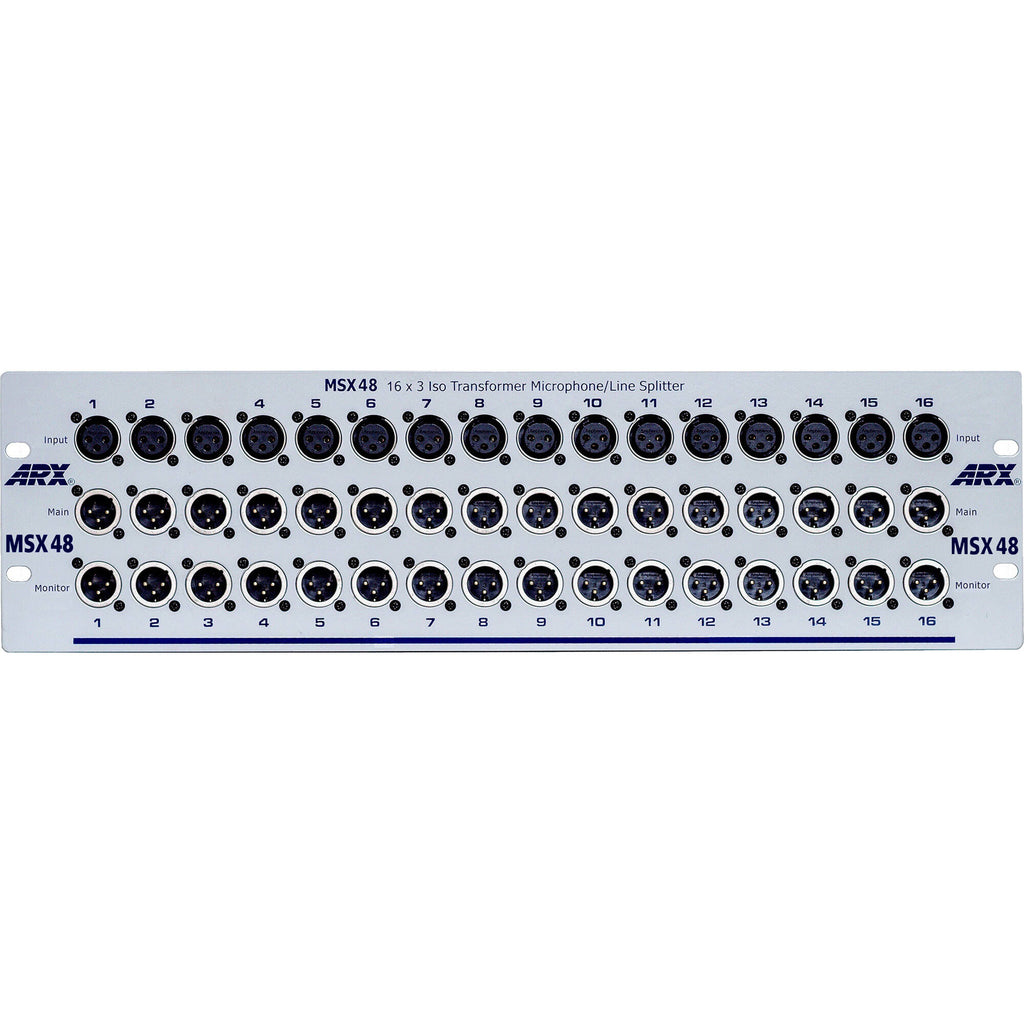

- Channel labeling strip on front panel
Items Included
- ARX MSX 48 DS 16x48 Passive Transformer-Balanced Mic/Line Splitter with D-Sub Outputs
- Limited 12-Month Manufacturer Warranty (Labor)
- Limited 24-Month Manufacturer Warranty (Parts)
Additional Resources
No additional resources available
ARX MSX 48 DS Specs
General
| Inputs |
16 x 3-Pin XLR Female
|
| Outputs |
16 x 3-Pin XLR Male (Main)
2 x 25-Pin D-Sub Outputs (Monitor and Aux) |
| Input Impedance |
300 Ohms
|
| Maximum Output Level |
+20 dBm
|
| Frequency Response |
30 Hz to 20 kHz (?1 dB)
|
| THD |
At Maximum Output: 0.2% (30 Hz to 20 kHz at 20 dBm)
|
| Insertion Loss |
0.5 dB at 1 kHz (600-Ohm Source and Load)
|
Physical
| Color |
Gray
|
| Weight |
13.5 lb / 6.1 kg
|
