Description
ARX MAXIMIX Overview
The ARX MaxiMix is a professional-grade line mixer designed specifically for installation contractors who need accurate, reliable control over multiple line-level audio sources. With its wide dynamic range, high headroom, and low noise performance, the MaxiMix solves the challenges typically associated with line-level mixing?uneven levels, RF interference, and insufficient gain?making it an ideal solution for a wide range of permanent audio installations.
Dual Mixdown Groups with Flexible Modes
At the heart of the MaxiMix are two independent 4-channel mixdown groups, each with individual input level controls and integrated RF filtering. The mixer supports stereo or mono operation: in stereo mode, each group provides separate balanced outputs; in mono mode, all eight inputs are linked and summed to a single output pair?ideal for compact system configurations.
Each input offers up to +6 dB of gain and full attenuation, allowing seamless integration of varying line-level sources.
Balanced XLR I/O for Clean Signal Paths

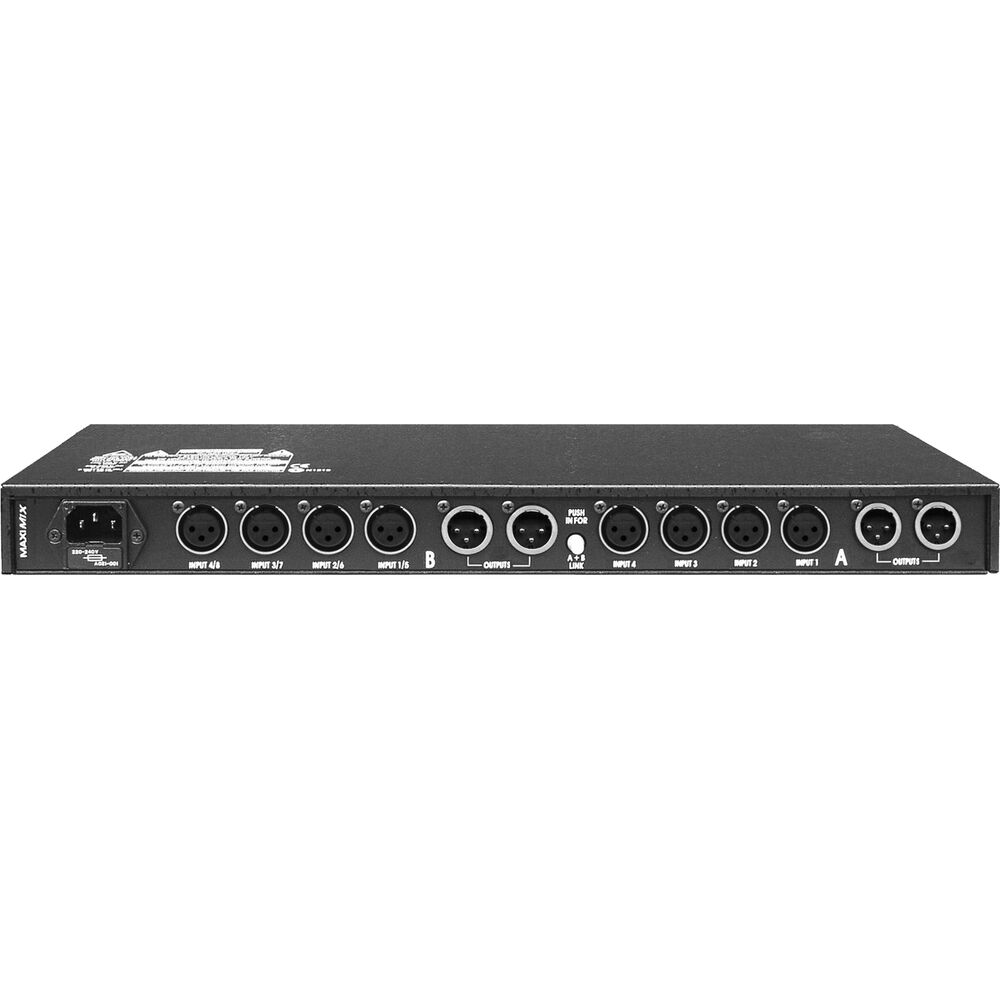

With electronically balanced XLR connectors on both inputs and outputs, the MaxiMix ensures clean, professional audio interfacing. Each stereo output features dual male XLR jacks, while all eight inputs are equipped with female XLR connectors. The fully balanced signal path minimizes noise and interference, even over long cable runs.
Built for Demanding Installations

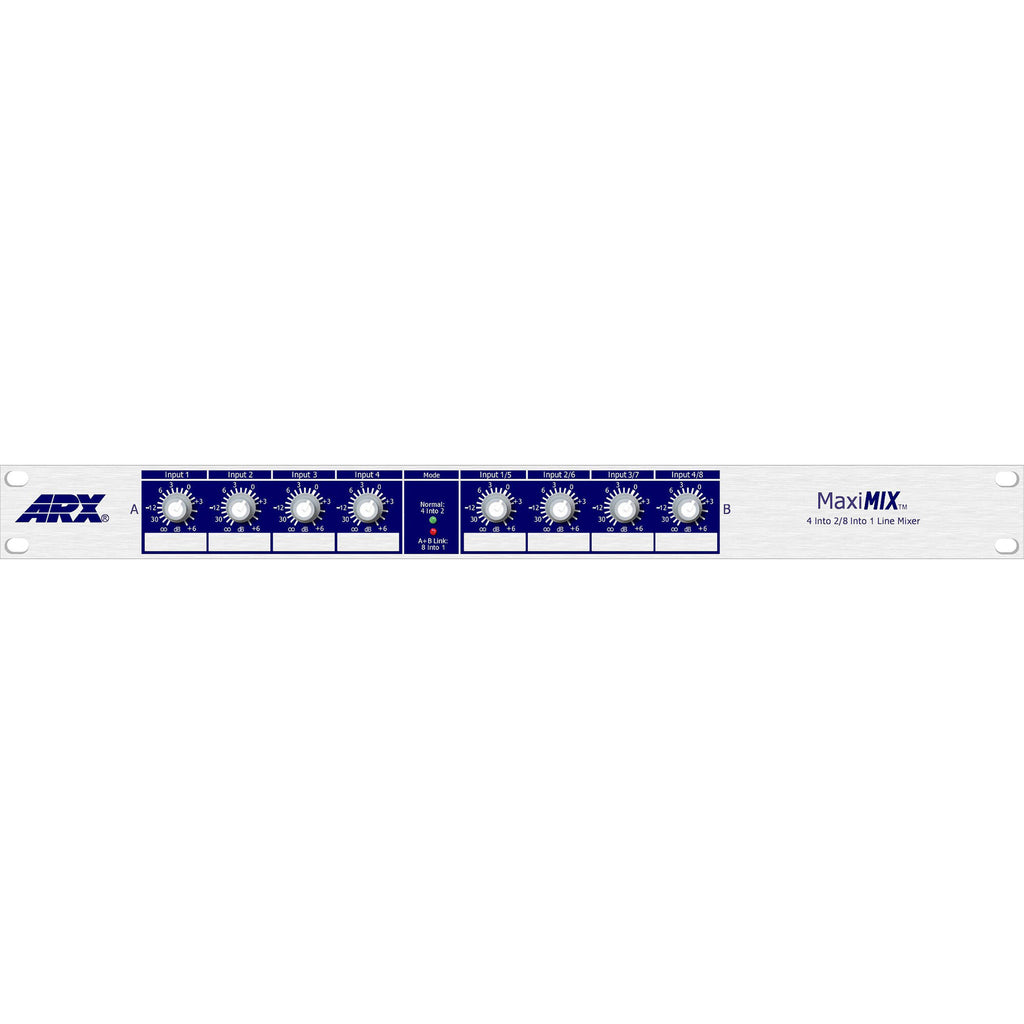

Internally optimized for performance, the MaxiMix offers exceptional headroom and better-than-digital noise characteristics. The all-analog architecture is housed in a compact, rack-ready chassis, with clear front-panel labeling, channel marker space, and status LEDs for visual confirmation of mode and operation.
Universal Power Compatibility
The MaxiMix includes a built-in universal power supply with a selectable voltage switch (100-120 or 220-240 VAC) and a standard IEC connector for quick integration into global installation environments.
Typical Applications
- Master mixer for multi-zone installations
- Sub-mixer for keyboards, drum machines, or effects returns
- Audio-for-video, KTV, live music, and DJ signal integration
- Conference room or house of worship line-signal management
Additional Features
- 8 Balanced XLR line inputs with level control
- 2 independent stereo mixdown groups
- Mono or stereo mode with switchable operation
- RF filtering on all inputs
- Up to +6 dB gain per channel
- Dual XLR balanced outputs per group
- Wide dynamic range and high headroom
- Marker panel for easy channel labeling
- Universal AC power (100?240V) with voltage selector
- Compact, rack-friendly steel chassis
Items Included
- ARX MaxiMIX Line Mixer
- IEC Power Cord
- Limited 12-Month Manufacturer Warranty (Parts and Labor)
- Limited 24-Month Manufacturer Warranty (Parts)
Additional Resources
No additional resources available
ARX MAXIMIX Specs
Key Specs
| Number of Analog Input Channels |
8
|
| Number of Mic Preamps |
No
|
| Analog Output Channels |
2x Mono Master Output
|
| Mix Routing |
2x Main Mix
|
| EQ |
No
|
| Built-In Effects |
No
|
| Wireless |
No
|
| Rack Mountable |
Yes
|
Mixer
| Number of Analog Input Channels |
8
|
| Number of Mic Preamps |
No
|
| Analog Output Channels |
2x Mono Master Output
|
| Mix Routing |
2x Main Mix
|
| Faders & Level Adjustment |
8x Channel Knob
|
| Meters |
No
|
Signal Processing
| Gain/Trim Range |
Up to +6 dB
|
| Dynamic Processing |
No
|
| EQ |
No
|
| Solo/Mute |
No
|
| Built-In Effects |
No
|
Performance
| Frequency Response |
20 Hz to 20 kHz
|
| Analog Dynamic Range |
120 dB
|
| I/O Impedance |
Input:
44 Kilohms (Balanced) 22 Kilohms (Unbalanced) Output: 300 Ohms (Balanced) 150 Ohms (Unbalanced) |
| Noise Floor |
-95 dB Unweighted
|
| SNR |
101 dBA
|
| THD |
0.0033% at Unity Gain
|
Connectivity
| Analog Inputs |
8x XLR Input
|
| Analog Outputs |
4x XLR Output
|
| Phantom Power |
No
|
| Digital I/O |
No
|
| Wireless |
No
|
Power
| AC Input Power |
100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz |
Physical
| Rack Mountable |
Yes
|
| Rackmount Size |
1 U
|
