Description
ARX BSX 16 Overview

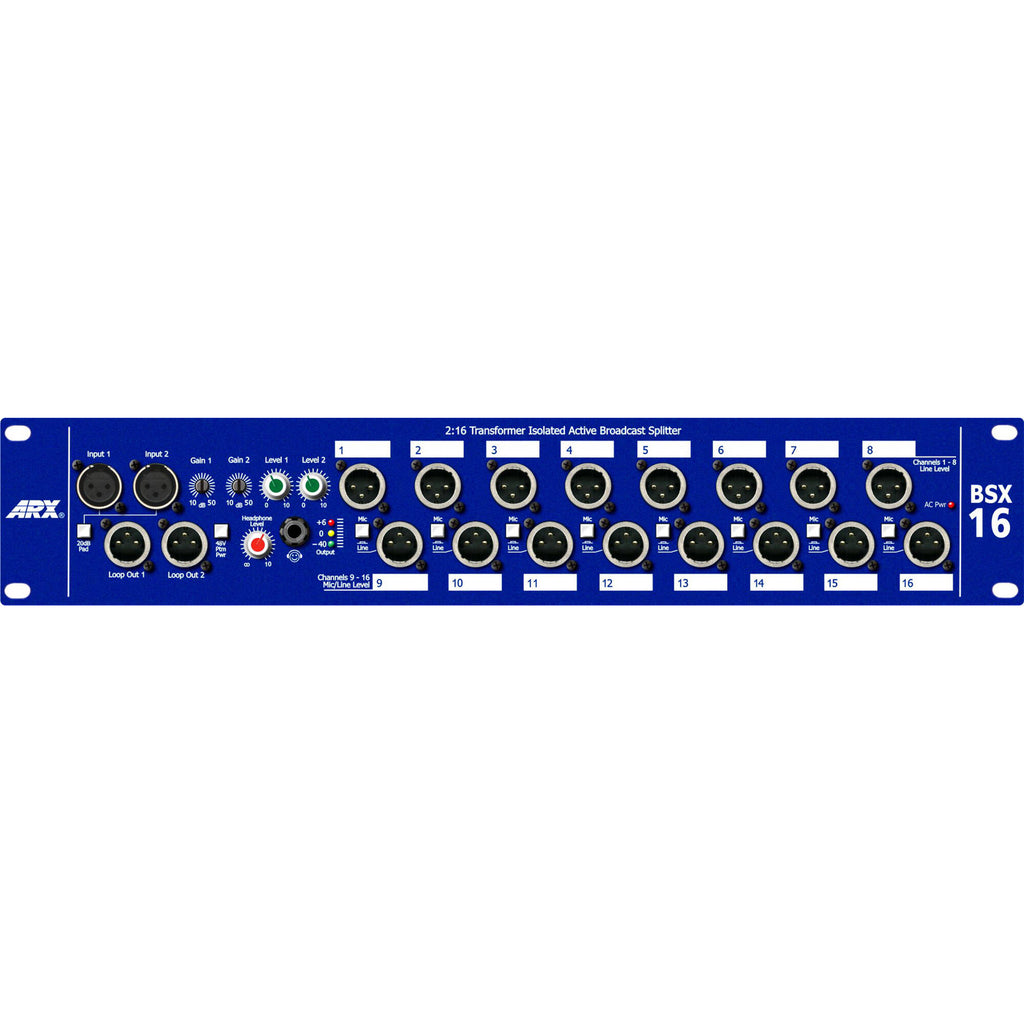

The ARX BSX 16 is a single-channel, 16-way active microphone/line splitter purpose-built for demanding broadcast and ENG environments. Designed to accommodate dual microphone setups?such as dual lecterns?the BSX 16 features two electronically balanced inputs, each with individual gain and level controls. Its intuitive layout and ultralow-noise design ensure professional-grade performance in press feeds, system distribution, and live broadcast applications.
Flexible Output Configuration

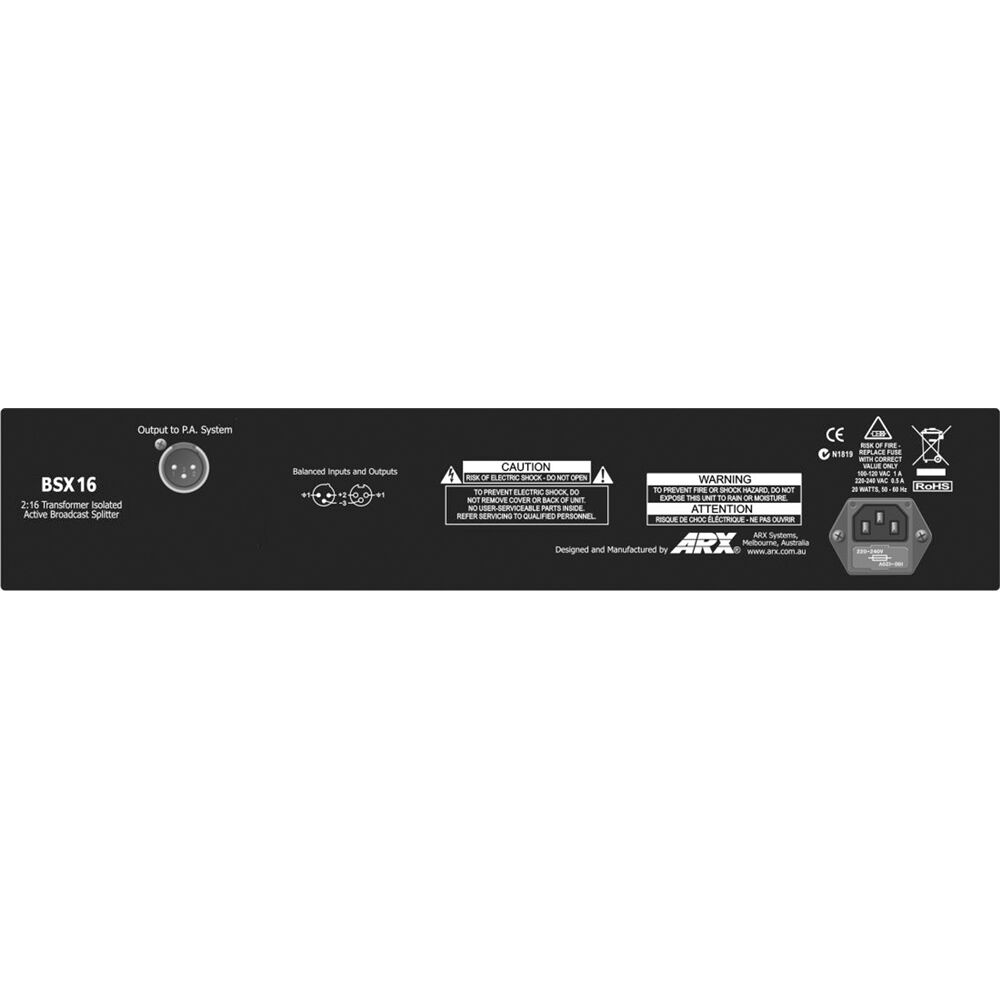

Each of the 16 transformer-isolated outputs delivers clean, interference-free signal splitting. Outputs 1-8 operate at line level, while outputs 9-16 are switchable between mic or line level, providing flexible output configuration for a wide range of systems. A rear-panel XLR PA output and dual front-panel loop outputs allow for signal pass-through to additional devices or a mixing console.
Monitoring and Metering
The BSX 16 includes built-in headphone monitoring with a dedicated pre-fade level control, giving users confidence in signal quality before the feed. LED output metering provides visual feedback at -40, 0, and +6 dB levels for quick reference during setup and operation.
Silent and Reliable Power Handling
Phantom power is engaged silently via ARX's proprietary 'SilentSwitch' circuitry, minimizing unwanted noise during activation. A -20 dB input pad switch accommodates high-level input signals, while precision internal RF filtering and high common mode rejection ratio (CMRR) ensure optimal performance in complex environments.
Engineered for Demanding Use
Internally, the BSX 16 features a double-shielded, transformer-based power supply and precision components throughout. Each unit is hand assembled, burn-tested for 48 hours, and subjected to a 100% visual and functional quality check prior to shipping-delivering consistent reliability in mission-critical applications.
Additional Details
- 16-way active press/broadcast splitter
- Transformer-isolated XLR outputs
- Dual inputs with independent gain/level
- Outputs 1?8 line level; 9?16 mic/line switchable
- Loop outputs and rear PA output
- SilentSwitch 48V phantom power
- ?20 dB pad switch for high-level sources
- LED output metering and headphone monitoring
- Electronically balanced inputs
- Double-shielded internal power supply
- Hand-assembled and fully QC-tested in Australia
Items Included
- ARX BSX 16 Transformer-Isolated Active Broadcast Splitter
- IEC Power Cord
- Limited 12-Month Manufacturer Warranty (Labor)
- Limited 24-Month Manufacturer Warranty (Parts)
Additional Resources
No additional resources available
ARX BSX 16 Specs
Inputs/Outputs
| Audio I/O |
2x XLR 3-Pin Input
8x XLR 3-Pin Line Output 8x XLR 3-Pin Line/Mic Output 2x XLR 3-Pin Output (Loop Through Outs) |
Wireless
| Mobile App Compatible |
No
|
Power
| Power Source |
AC Input
|
| AC Input Power |
100 to 120 VAC, 50 / 60 Hz at 2 A
220 to 240 VAC, 50 / 60 Hz at 1 A |
Physical
| Mounting |
Side: 2x Rack Ears
|
| Color |
Gray
|
| Dimensions |
19 x 7.9 x 3.5" / 482 x 200 x 89 mm
|
| Weight |
12 lb / 5.4 kg
|
