Description
ARX AV DI PLUS Overview
The ARX Audibox AV-DI Plus is a versatile, stereo active direct box purpose-built for today?s audiovisual environments. Whether you're interfacing a smartphone, laptop, tablet, or audio playback device with a professional sound system, the AV-DI Plus delivers clean, balanced signal conversion with rugged reliability.
Versatile
Designed with flexibility in mind, the AV-DI Plus features multiple input formats, including dual 1/4", RCA, and 3.5mm stereo mini jack connectors, and it outputs a balanced, low-impedance signal via dual Amphenol XLR connectors. This makes it ideal for integrating consumer-grade audio sources into professional AV, studio, or live sound systems.
Useful
A -20 dB pad accommodates high-level sources, while a switchable mono output lets you sum stereo signals when only one mixer channel is available. Switchable ground isolation prevents hum and ground loops in complex setups, and the unit can be powered via phantom power or an external 12 to 18 VDC supply.
Rugged
Built into ARX's signature all-steel chassis with a fiberglass PCB, the AV-DI Plus is a compact yet rugged solution that's perfect for sound reinforcement, broadcasting, studios, and corporate AV installations.
Additional Features
- Converts unbalanced signals to balanced, low-impedance outputs

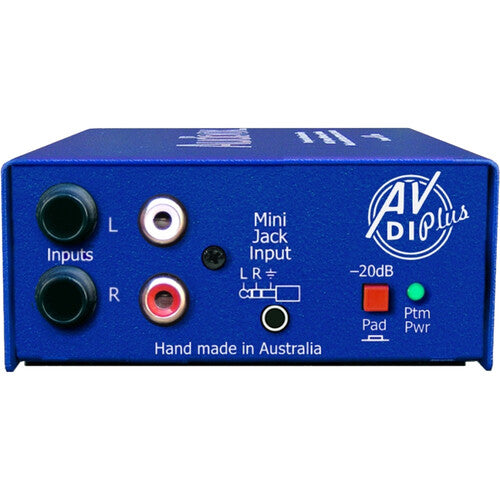

- Inputs: Dual 1/4", RCA, and 3.5mm stereo mini jack

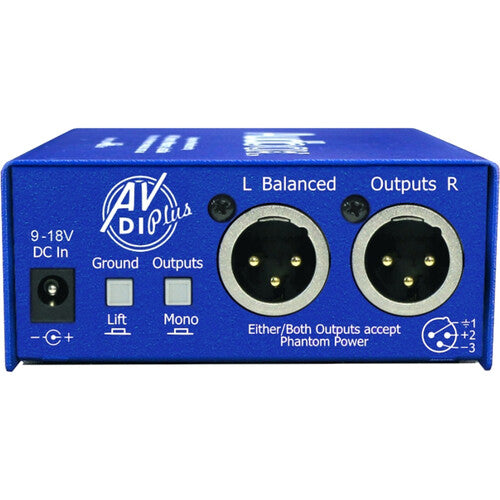

- Outputs: Dual balanced Amphenol XLR connectors
- -20 dB input pad handles high-level sources
- Mono switch sums stereo signal for single-channel output
- Switchable ground lift for noise-free operation
- Phantom or 12?18 VDC external power options
- Heavy-duty steel housing with fiberglass PCB
- Optional under-table mounting bracket available
- Designed and built by ARX in Australia
Items Included
- ARX AV-DI Plus Audibox Stereo Audiovisual Active Direct Box
- Limited 12-Month Manufacturer Warranty (Labor)
- Limited 24-Month Manufacturer Warranty (Parts)
Additional Resources
No additional resources available
ARX AV DI PLUS Specs
General
| Item Type |
Standard DI
|
| Number of Channels |
2-Channel
|
| Active/Passive |
Active
|
| Circuitry |
Solid-State
|
Preamp
| Pad |
-20 dB
|
| Ground Lift |
Yes
|
| Polarity Reverse |
No
|
EQ & Tone Shaping
| Low-Cut/High-Pass Filter |
No
|
Connectivity
| Audio I/O |
2x 1/4" TS Unbalanced Input
2x RCA Unbalanced Input 1x 1/8" / 3.5 mm TRS Unbalanced Input 2x XLR 3-Pin Balanced Output |
| Merge/Summing |
Selectable Stereo or Summed-Mono Output
|
Performance
| Frequency Response |
20 Hz to 20 kHz ?0.3 dB
|
| Maximum Input Level |
+28 dB
|
| Input Impedance |
47 Kilohms
|
Power
| Operating Voltage |
AC Input
|
| AC/DC Power Adapter |
9 to 18 VDC
|
