Description
ARX USB-DI PLUS Overview
The ARX Audibox USB DI Plus is a robust 2-channel direct box purpose-built for reliable interfacing between digital or analog sources and professional audio systems. With its dual-mode operation and fixed-level output, this model offers plug-and-play simplicity with a tamper-proof design ideal for permanent installations and production environments.
When USB digital audio isn?t available?such as with phones or tablets?the unit can be switched to Analog mode. In this configuration, it buffers the audio signal from the headphone or line output and delivers a balanced professional signal to the XLR outputs. Analog mode is completely passive and requires no power, making it a flexible and reliable option for mobile devices.
Housed in a heavy-duty steel chassis with a textured polyurethane finish and slip-resistant rubber base, the USB DI Plus is built to withstand demanding applications. It?s an ideal solution for interfacing any USB-equipped computer?or analog source?with balanced professional sound systems. An optional bracket kit is available for secure under-table mounting.
- Dual-mode USB and analog direct box
- 24-bit high-resolution USB DAC
- Supports 44.1, 48, and 96 kHz sample rates

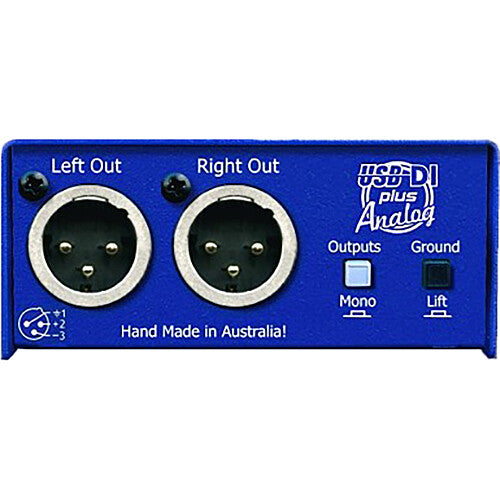

- Transformer-isolated balanced XLR outputs
- Plug-and-play operation?no drivers required
- Fixed-level output with no volume control

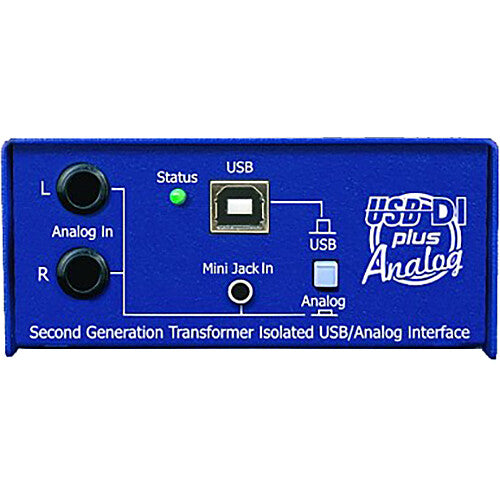

- Front-panel USB, 3.5mm, and 1/4" inputs
- Mono/stereo switch and ground lift
- USB status LED for power confirmation
- Rugged all-steel construction
- Includes USB cable; handmade in Australia
Items Included
- ARX Audibox USB DI Plus USB/Analog Direct Box
- USB-A to USB-B Cable
- Limited 12-Month Manufacturer Warranty (Labor)
- Limited 24-Month Manufacturer Warranty (Parts)
Additional Resources
No additional resources available
ARX USB-DI PLUS Specs
| Item Type |
Standard DI
|
| Number of Channels |
2-Channel
|
| Active/Passive |
Active
|
| Circuitry |
Solid-State
|
| Pad |
No
|
| Ground Lift |
Yes
|
| Polarity Reverse |
No
|
| Low-Cut/High-Pass Filter |
No
|
| Audio I/O |
2x 1/4" TS Unbalanced Input
1x 1/8" / 3.5 mm TRS Unbalanced Input 2x XLR 3-Pin Balanced Output |
| USB I/O |
1x USB-B
|
| Frequency Response |
20 Hz to 20 kHz ?0.5 dB
|
| Output Impedance |
300 Ohms
|
| Operating Voltage |
5 V (USB Bus Power)
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
