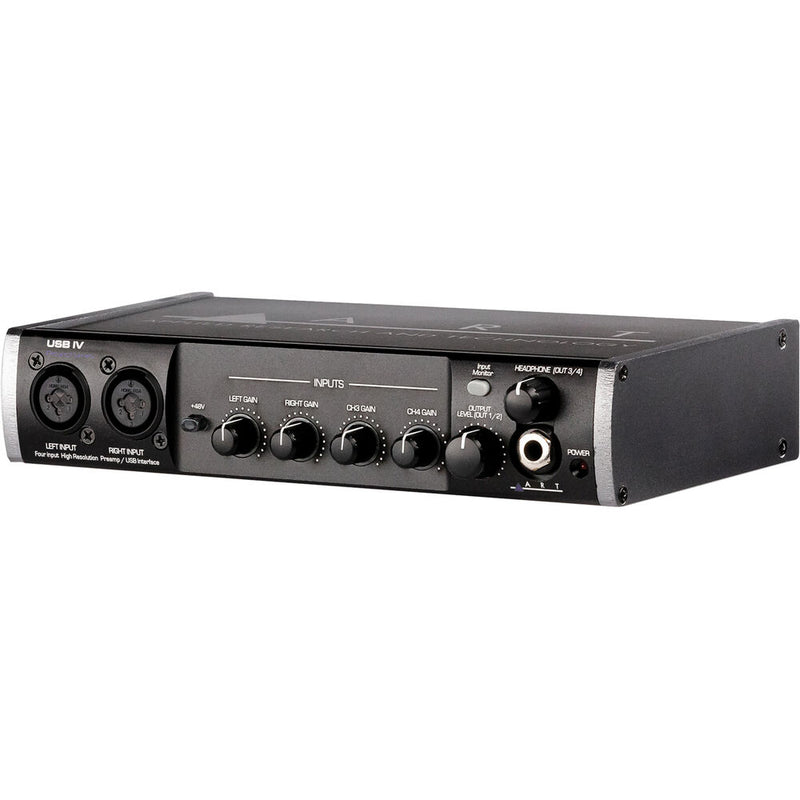

ART USB IV Overview

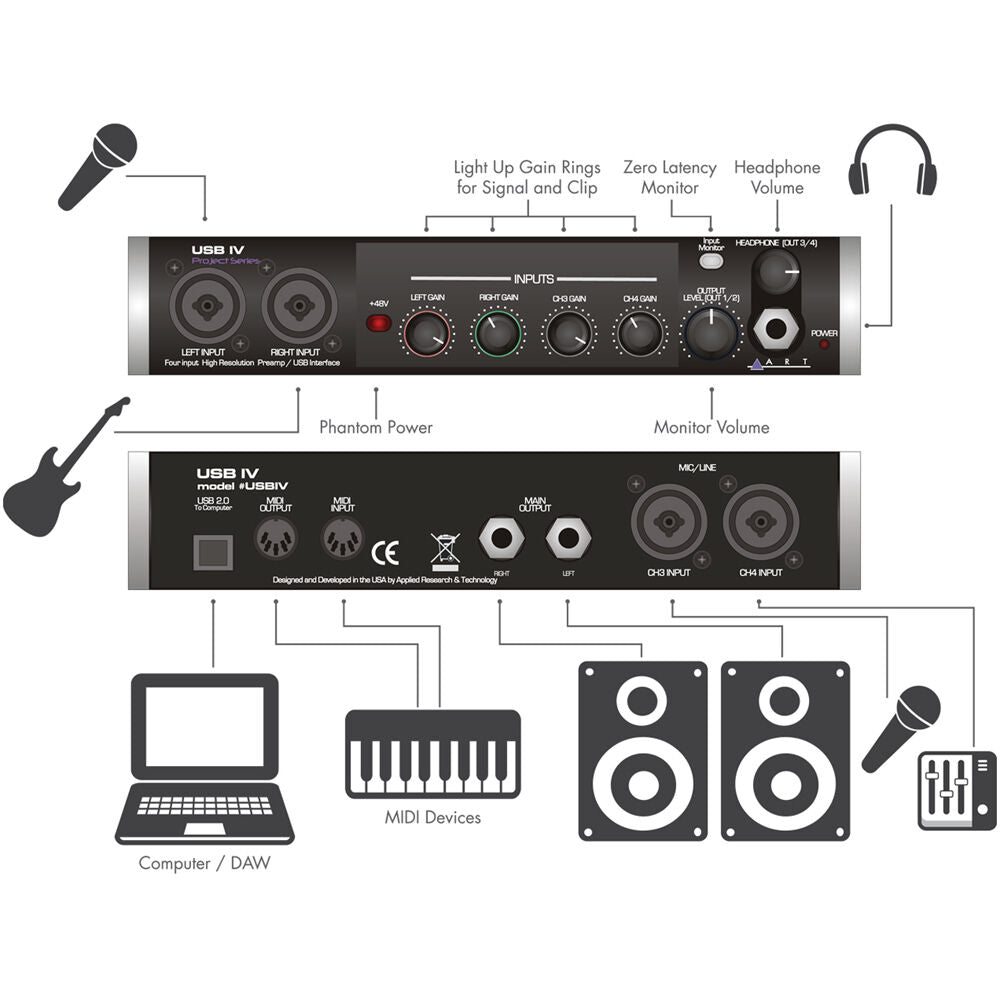

The ART USB IV is a 4-input / 4-output USB audio/MIDI interface offering high resolution, user-friendly functionality, and a compact footprint for songwriters, beatmakers, and musicians in personal, mobile, and project studios. It features four XLR-1/4" combo inputs with low-noise mic preamps and selectable phantom power�the first two support mic/Hi-Z signals, while the last two accommodate mic- or line-level signals.

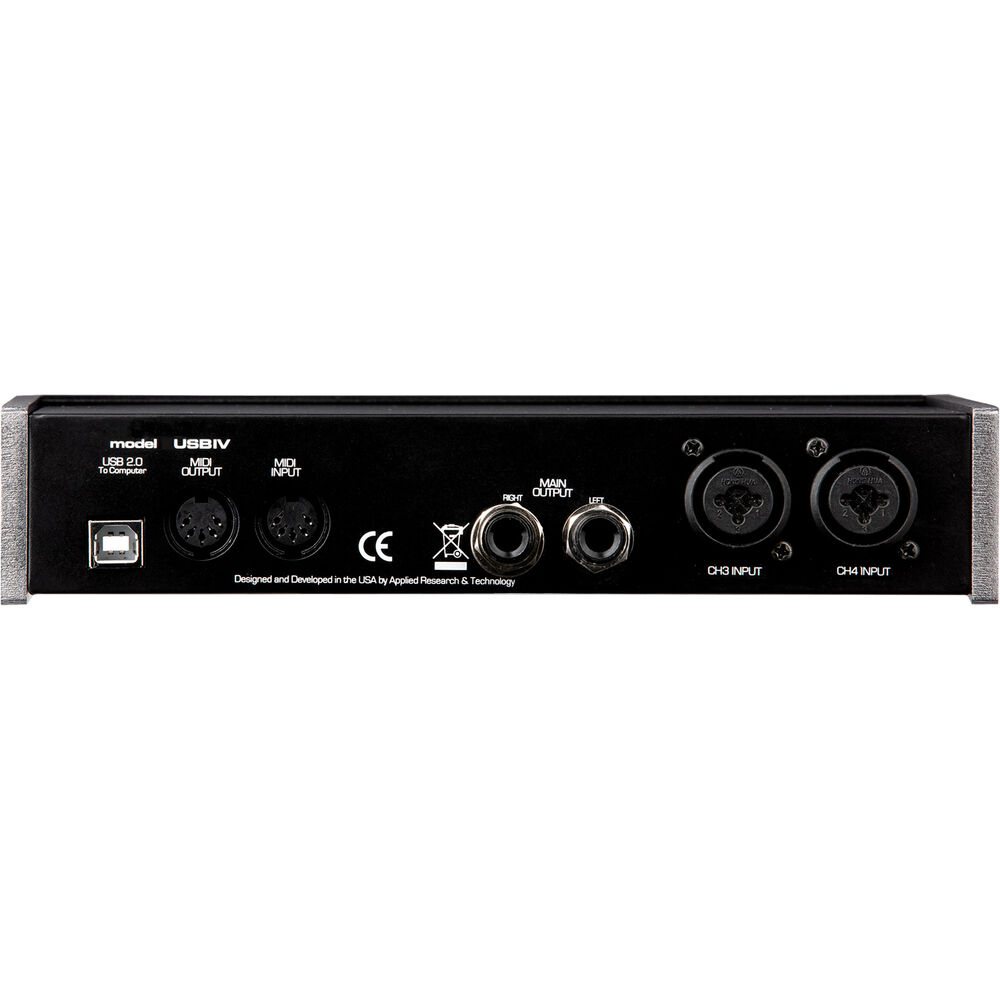

The USB IV utilizes 32-bit A/D-D/A converters to deliver accurate audio quality at sample rates up to 192 kHz. Outputs include stereo 1/4" main outs and a 1/4" headphone port with independent level controls and separate audio feeds�great for sending to monitors and a dedicated cue mix. The 5-pin MIDI I/O sockets on the rear panel allow easy hookup to external MIDI equipment such as a keyboard, synth, or sound module.
A front-panel switch for input monitoring lets you listen to the input signal with low latency and no routing required. Custom transformers are utilized to inhibit system noise and ground loops for quiet, quality performance. The included Cubasis LE software is a digital audio workstation that provides recording, editing, and mixing functions, perfect for getting started on your own musical creations.
- 32-bit A/D and D/A converters
- Supports sample rates from 44.1 to 192 kHz
- Low-noise discrete mic preamps
- Selectable 48 VDC phantom power

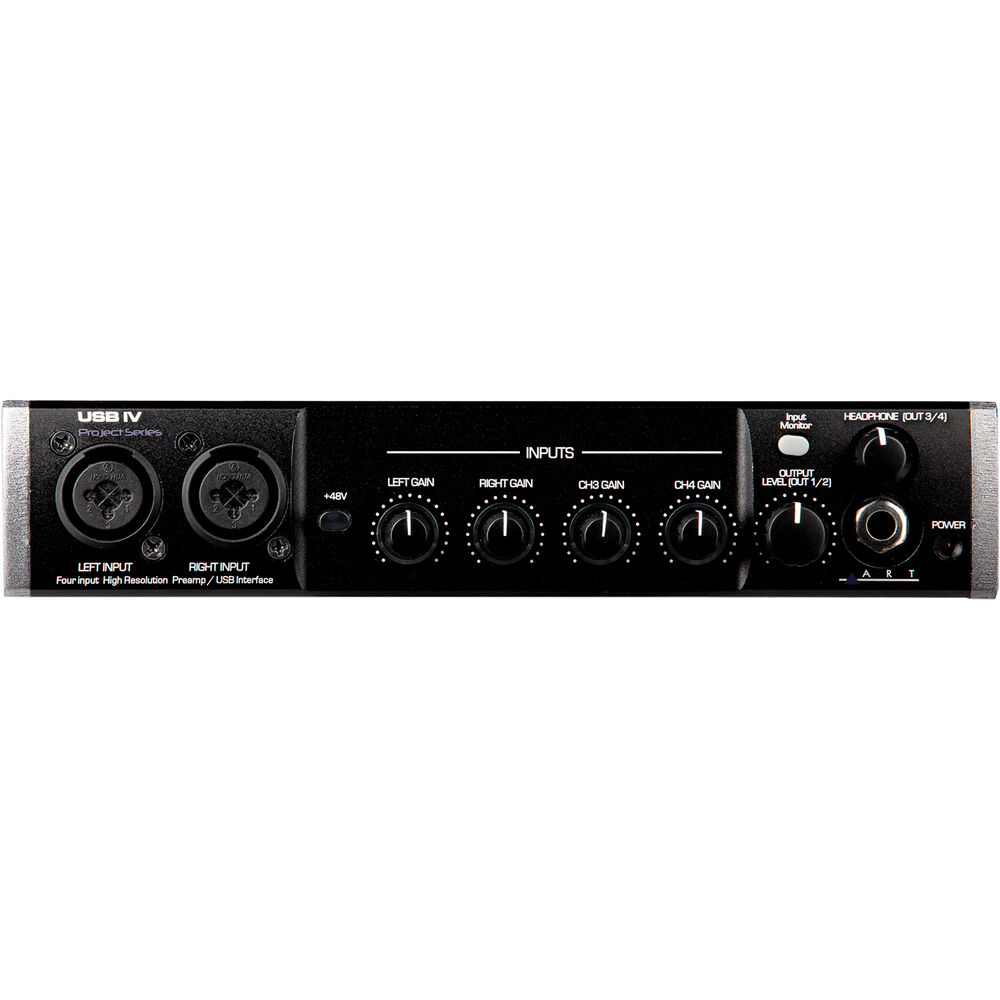

- Two front-panel XLR-1/4" combo inputs for microphones or Hi-Z instruments such as electric guitar/bass
- Two rear-panel XLR-1/4" combo inputs for microphones or line-level sources
- Selectable input monitoring for zero-latency monitoring
- Independent controls for input gain, main output level, and headphone volume
- Balanced 1/4" jacks for main outputs 1-2
- Outputs 3-4 feed the stereo 1/4" headphone port
- USB 2.0 host connectivity
- USB powered for convenience and portability
- Transformer-isolated outputs
In the Box
- ART USB IV 4-Input / 4-Output USB Audio/MIDI Interface
- Cubasis LE
- Limited 3-Year Warranty
ART USB IV Specs
| Form Factor | Tabletop |
| Display | None |
| Channels of I/O | Analog: 4 Input / 4 Output at 192 kHz |
| Max Sample Rate/Resolution | 192 kHz / 32-Bit |
| Number of Mic Preamps | 4 |
| Analog Audio I/O | 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Hi-Z Input 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input 2 x 1/4" TRS Balanced Line Output 1 x 1/4" TRS Unbalanced Headphone Output |
| Phantom Power | 48 V, Selectable On/Off (Applied to All Inputs) |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x USB Type-B (USB 2.0) |
| MIDI I/O | 1 x DIN 5-Pin Input 1 x DIN 5-Pin Output |
| Frequency Response | 20 Hz to 20 kHz ±1 dB |
| Max Input Level | +12 dBu (Balanced) +14 dBu (Unbalanced) |
| Max Output Level | Line Outputs: +10 dBu (Balanced) |
| Headphone Output Power | 50 mW per Channel |
| Dynamic Range | 110 dB |
| THD | < 0.01% |
| Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
| Bit Depths | 32-Bit (AD/DA Conversion) |
| Sync Sources | Internal |
| Memory Card Slot | None |
| OS Compatibility | macOS Windows |
| Required Hardware | Available USB 1.1 Port or USB 2.0 Port USB Cable (Not Included) |
| Power Requirements | USB Bus Power |
| Anti-Theft Features | None |
| Dimensions | 6.5 x 5.9 x 1.75" / 16.5 x 15 x 4.45 cm |
| Weight | 2.9 lb / 1.3 kg (with Accessories) |
| Package Weight | 3.345 lb |
| Box Dimensions (LxWxH) | 10.3 x 7.2 x 2.8" |
