Description
- 4 Stereo Inputs and Outputs
- Multiple Configurations
- 1/4" TRS Connectors
- Independent Level Controls

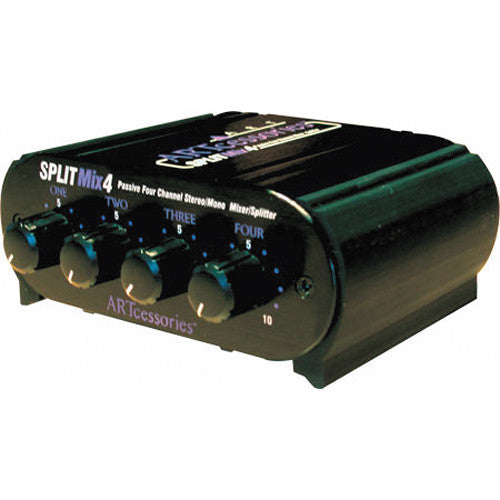

The SPLITMix4 from ART is a passive hybrid mixer that can be configured for a variety of applications. The compact unit can mix 4 stereo inputs down to a single stereo output, split a single stereo input to 4 outputs, and more. The unit has 1/4" TRS input and output connectors, which can also accept mono TS connectors. Each channel has its own level control for convenient customization. The unit is entirely passive, so no batteries or power supply are required.
- Compact design
- Standard 1/4" TRS stereo input and output connectors provide a variety of configuration possibilities 1
Please Note:
Connectors are also compatible with 1/4" TS mono plugs
close
- Independent level controls on each channel
- Entirely passive; no batteries or power supply required
UPC: 840402018834
| Frequency Response | 20Hz - 20kHz |
| Total Harmonic Distortion (THD) | < 0.005% |
| Phase Response | < 10° @ 20kHz |
| Connectors | 5 x 1/4" TRS Inputs 5 x 1/4" TRS Outputs |
| Input Impedance | 25-100 kOhms |
| Output Impedance | 1-4 kOhms |
| Insertion Loss | 12dB |
| Attenuation / Gain | > 90dB |
| Channel Isolation | > 90dB |
| Dimensions (HxWxD) | 1.85 x 4.6 x 4.1" (47 x 117 x 104mm) |
| Weight | 0.84 lbs (0.38kg) |
| Packaging Info | |
|---|---|
| Package Weight | 1.0 lb |
| Box Dimensions (LxWxH) | 12.4 x 6.7 x 2.3" |
In the Box
ART SPLITMix4 4-Channel Passive Splitter/Mixer
- 1-Year Limited Warranty
