Description
ART PS 4X4 PRO USB Overview
- 1Description
- 2APF (Advanced Power Filtering)
- 3Common Mode and Differential Mode Topologies
- 4Additional Features

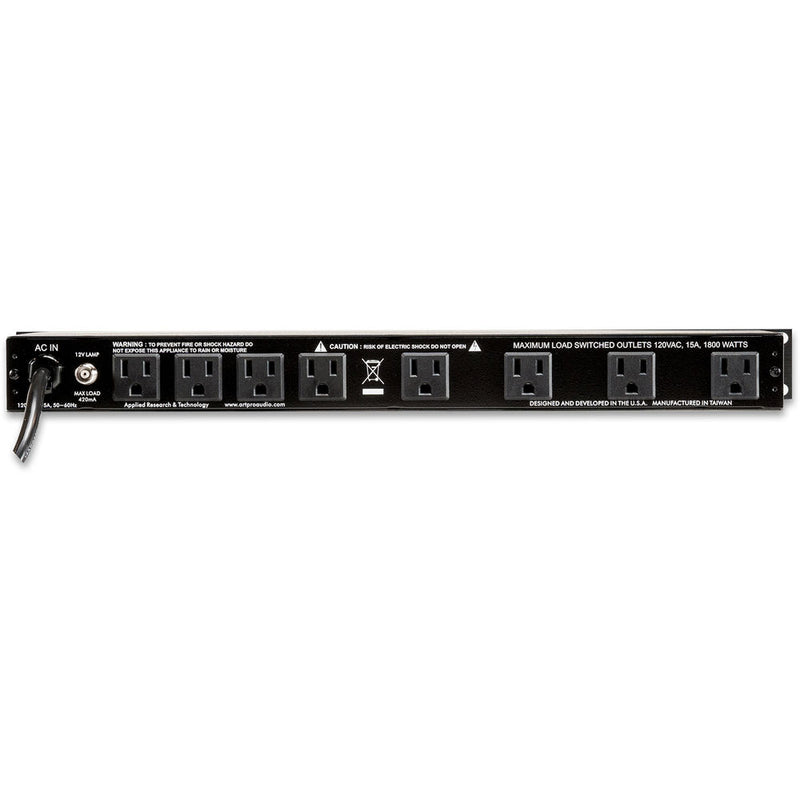

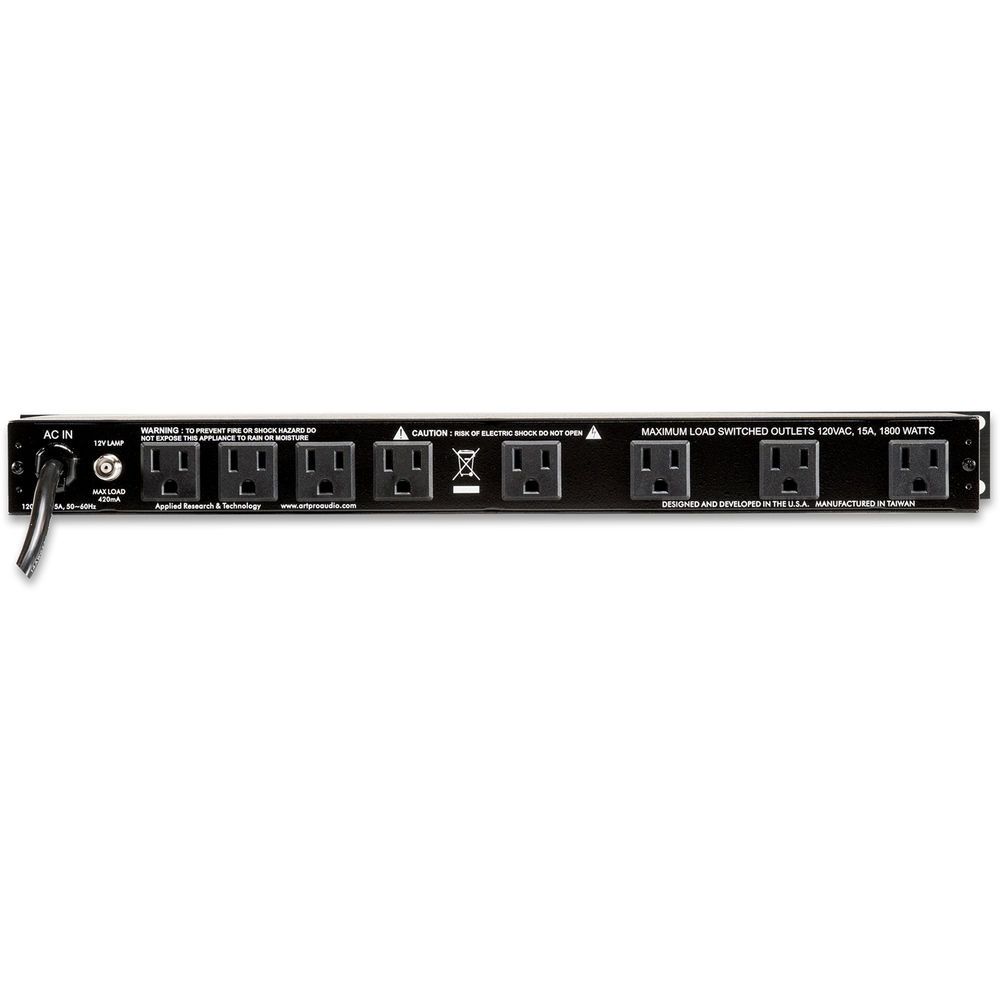

Distribute and filter power for up to nine devices with the ART PS4x4 PRO USB Dual LED Metered Rackmount Power Station. It features eight rear outlets with a front-panel switch, plus an extra unswitched outlet on the front. Two front-panel USB ports let you keep your compatible mobile devices charged, and the reset button allows you to reset the circuit breaker. A gooseneck light can be attached to the back, and two pullout light pipes help you see the front of your rack.
APF (Advanced Power Filtering)
APF is designed to filter out digital and dimmer hash as well as high-frequency noise above the audio range.
Common Mode and Differential Mode Topologies
By using these two topologies in series for the filter design, the PS4X4 PRO USB is engineered to block virtually all of the unwanted noise between the AC line and the ground, as well as both sides of the AC line, to help reduce ground loop problems in your system. Additionally, any signals above 10 kHz are filtered from the line with over 40 dB of attenuation above 100 kHz.
Additional Features
- Surge and spike protection
- EMI and RFI filtering
- Front-mounted unswitched power outlet

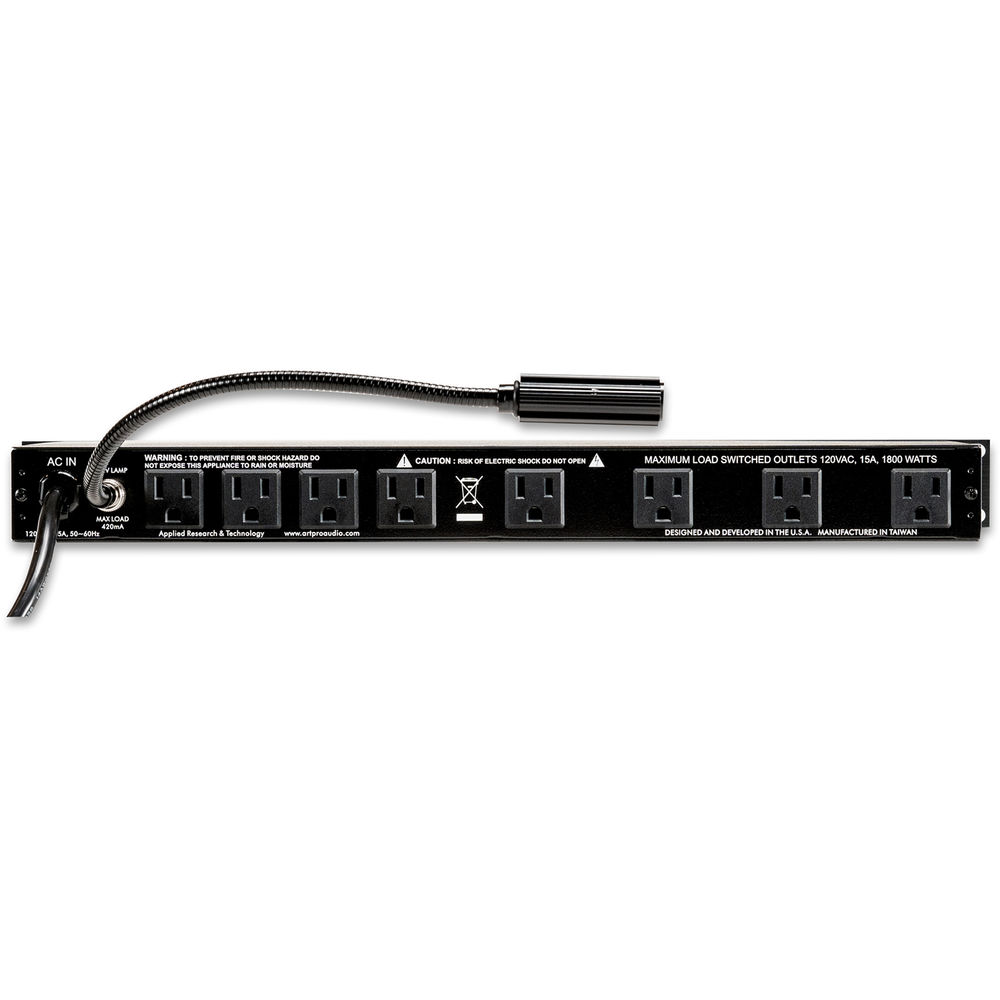

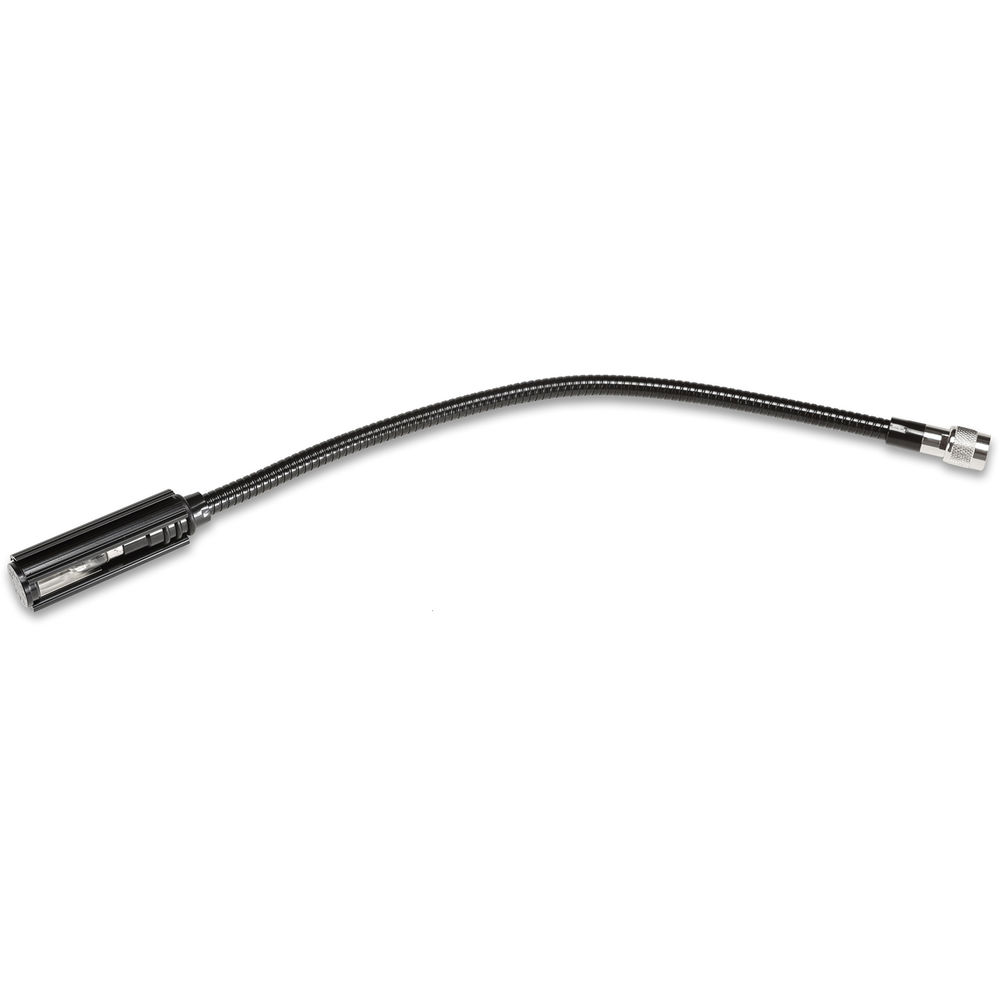

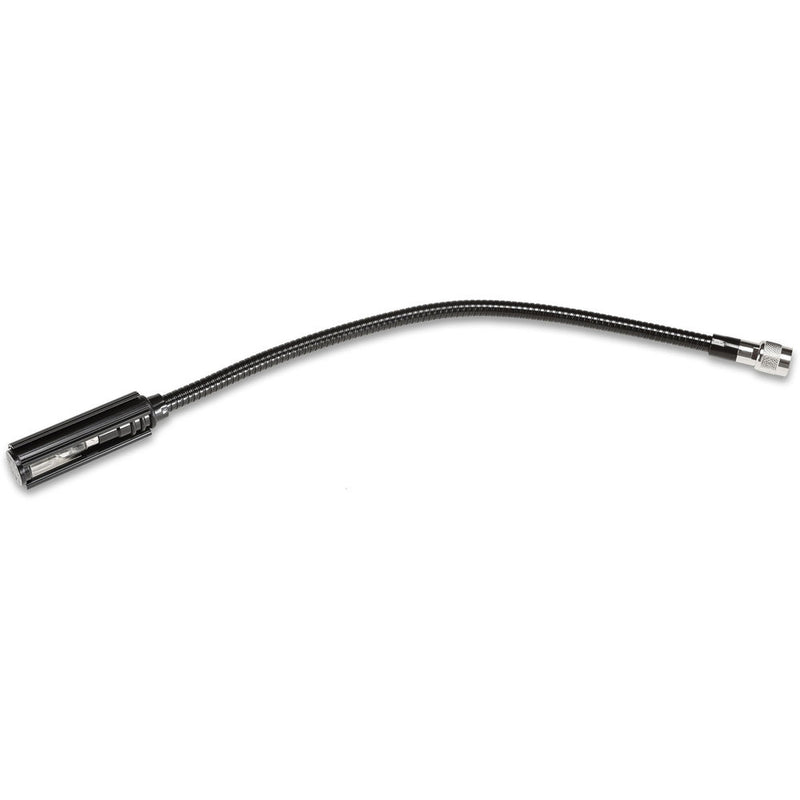

- Adjustable, detachable rear-mounted gooseneck light source to illuminate behind the rack
- Four rear outlets spaced 1.25" apart to accommodate large power plugs
- Pullout light pipes with AutoOff and Dimmer
- Front-mounted circuit breaker reset switch
- LED digital readouts to monitor input voltage and load current
- Meter preview momentary rocker switch
UPC: 840402047308
Table of Contents
- Description
- APF (Advanced Power Filtering)
- Common Mode and Differential Mode Topologies
- Additional Features
ART PS 4X4 PRO USB Specs
Connections
| Outlets | 8 x NEMA 5-15R (Rear Panel) 1 x NEMA 5-15R (Front Panel, Unswitched) |
| USB Ports | 2 x USB Type-A |
| Lamp I/O | 1 x BNC (Rear Panel) |
Electrical
| AC Input Power | 120 VAC, 50 / 60 Hz |
| Load Capacity | 1800 W |
| USB Output | 5 V, 2.1 A 5 V, 1 A |
| Lamp Power | 12 VDC at 420 mA (Max) |
Protection & Conditioning
| Circuit Breaker | Yes, at 15 A |
Physical
| Rackmount Size | 1 RU |
| Material of Construction | Steel |
| Dimensions | 19 x 6.5 x 1.75" / 48.2 x 16.5 x 4.4 cm |
| Weight | 6.6 lb / 3 kg |
Packaging Info
| Package Weight | 7.595 lb |
| Box Dimensions (LxWxH) | 21.8 x 9.7 x 2.9" |
