Description

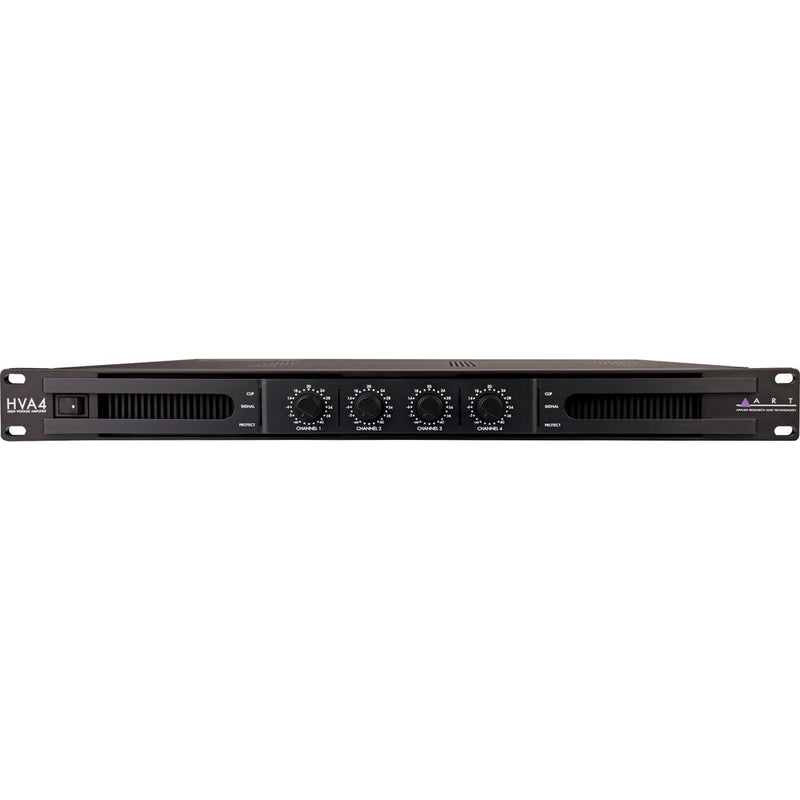

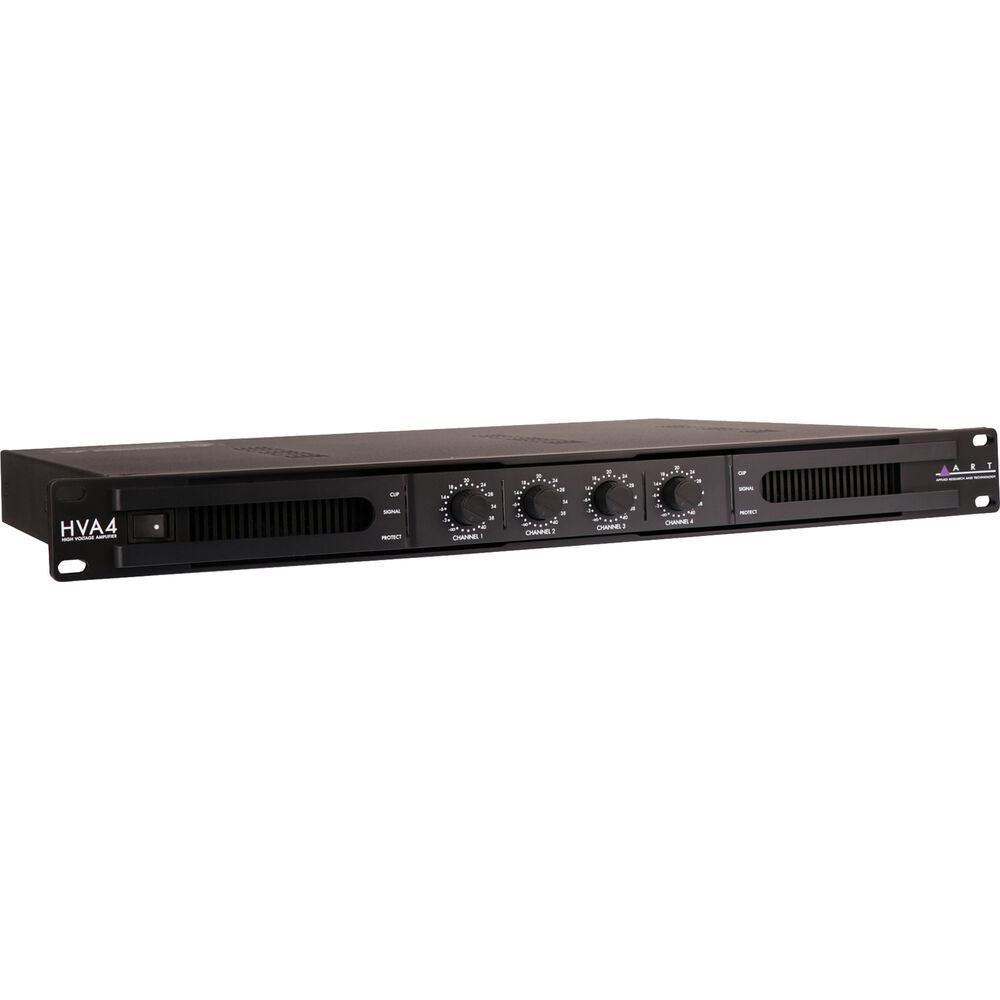

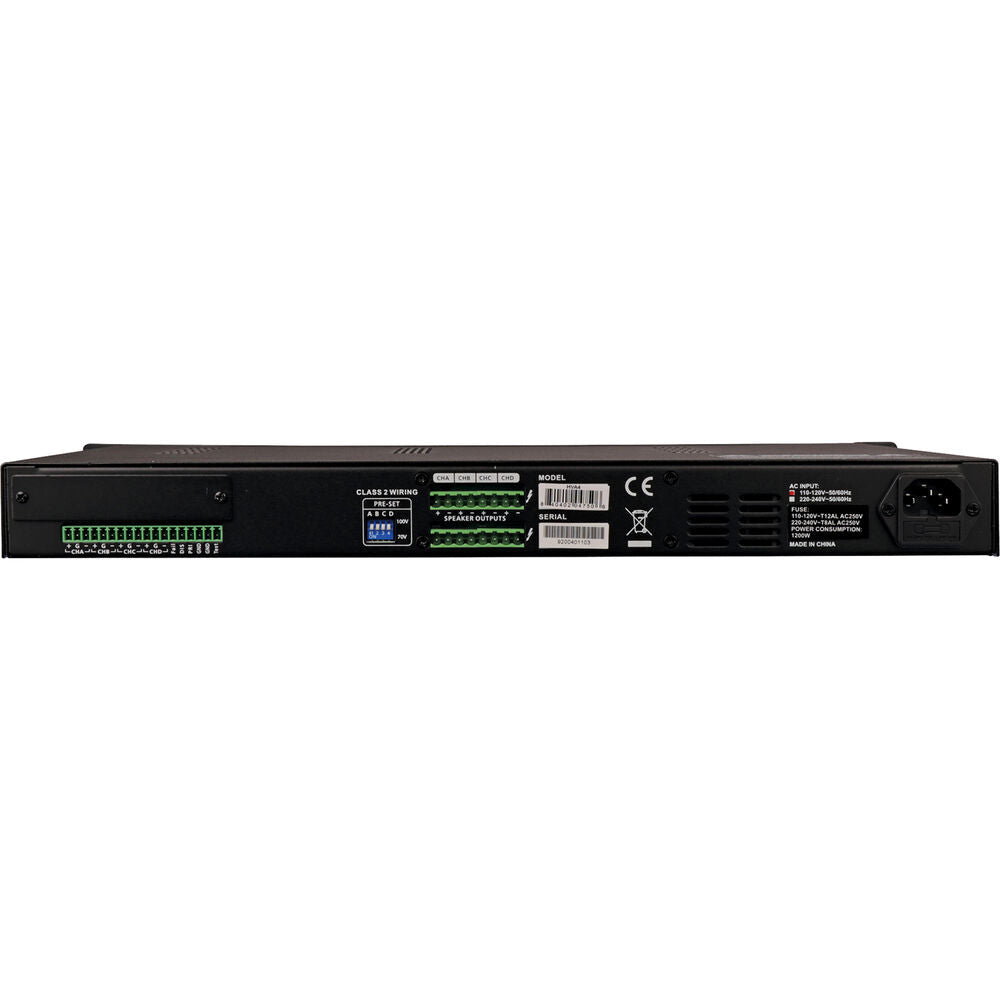

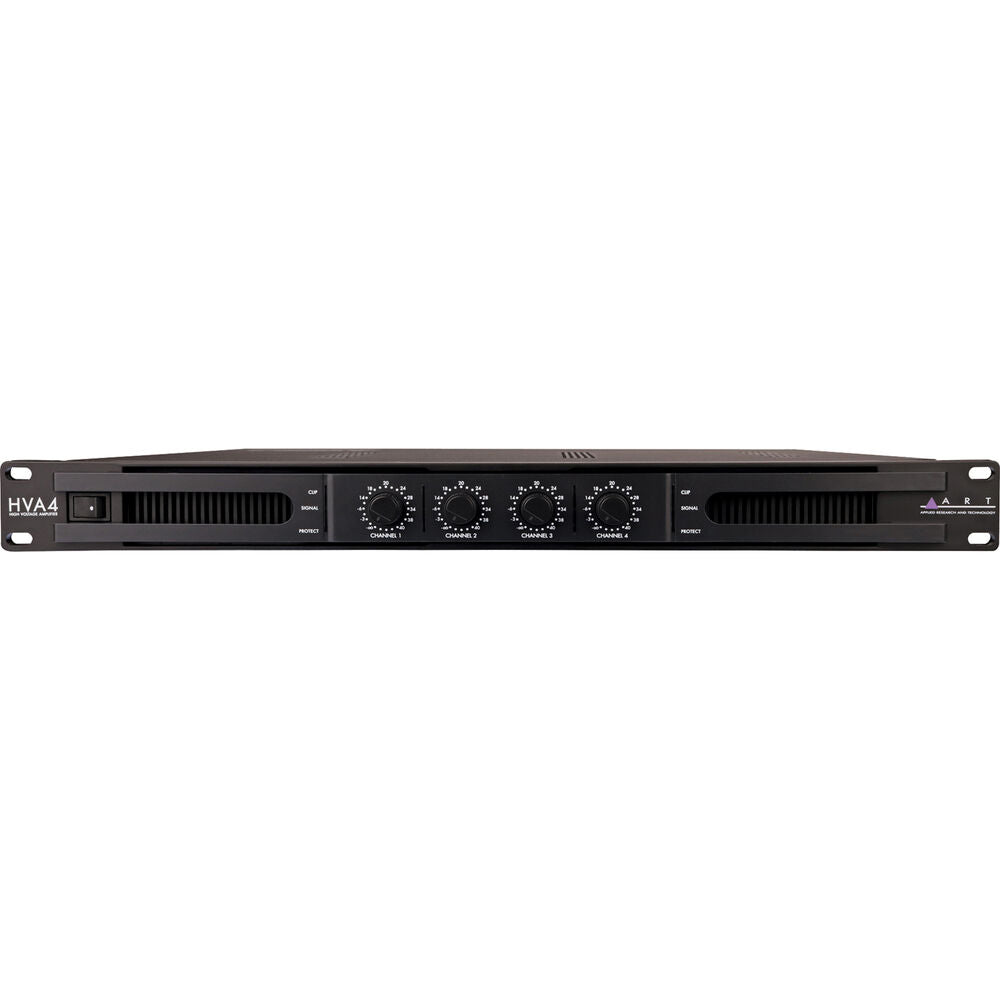

ART HVA4 Overview
System installers looking for a high-quality 70/100V power amplifier for their next install will be impressed with the ART HVA4 rack-mountable 4-channel power amplifier designed for retail, restaurants, meeting rooms, and other 70/100V installations.
The amplifier employs a Class-D topology that provides high output with low noise and low distortion. The HVA4 provides an output power rating of 270W with all channels driven or a bridged output of 300W. All inputs and outputs are available with Euroblock connectors. The amplifier includes front-mounted gain controls and indicator LEDS for signal, clip protect, and power. The amplifier also includes a comprehensive set of protection circuits that safe guard against shorts, thermal overload, and power on/off muting. The HVA4 includes a power cord.
- High current switching power allowing high power output with low noise and low distortion
- Short circuit, thermal, and power on/off muting protection
- Built-in limiter
- Euroblock input and output
- Front-mounted gain controls for easy access
- Signal, clip protect, and power LED indicators to monitor performance
- Disable amplifier outputs remotely
- Priority, remote test trigger
- Remote failure status indicator
- 4-channel installation amplifier
- 70/100V line operation
- Power output (70/100V): 4x270W
- 1 RU rack 19-inch size
- Switching power, class-D amplifier
In the Box
- ART HVA4 4-Channel Class-D Installation Amplifier (270W/Channel at 70/100V)
- Power Cord
- Limited 3-Year Warranty
ART HVA4 Specs
| Number of Channels | 4 |
| Power Rating | 70 V / 100 V: 4 x 270 W Peak per Channel 70 V / 100 V: 300 W Peak Both Channels Driven |
| Amplifier Class | Class-D |
| Load Impedance / Voltage | 70 / 100 V |
| Protections | On/Off Muting, Short Circuit, Thermal |
| Frequency Response | 120 Hz to 17 kHz |
| Damping Factor | > 200 |
| Input Sensitivity | 0.9 V to 1.1 V |
| Input Impedance | 20 Kilohms (Balanced) 10 Kilohms (Unbalanced) |
| Max Gain | 40 dB (at 100 V) |
| SNR | > 95 dB |
| THD+N | < 0.1% |
| Crosstalk | > 70 dB |
| Limiting | Yes |
| I/O | 2 x Block 6-Pin Balanced Line Input 1 x Block 8-Pin Speaker Output |
| Digital I/O | None |
| USB | None |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
| AC Power Connector | 1 x IEC 15 A / NEMA 5-15 |
| Display & Indicators | Multi-Color LED (Clip/Power/Protect/Signal) |
| Rackmount Size | 1 RU |
| Cooling | Fan (Variable Speed) |
| Dimensions | 19.0 x 1.8 x 14.2" / 482.6 x 45.7 x 360.7 mm |
| Weight | 13.7 lb / 6.2 kg |
