Description
ARRI Trinity 2 Overview
- 1Description
- 2ARRI TRH-2 Ring Main Cable (Standard, 25.6")
- 3ARRI DUB-3 Dovetail Utility Base
- 4ARRI TRINITY Side-to-Side Fine Adjustment
- 5ARRI Stabilizer Adapter Mount SAM-Zero
- 6ARRI 24V Camera Power Gen 2 for ALEXA Mini & AMIRA (8-Pin, 27.6")
- 7ARRI Camera Power Gen. 2, 4-Pin XLR, 12V Cable (27.6", Straight)
- 8ARRI 3mm Hex Key (0.11" Allen Wrench)
- 9ARRI Gimbal Handle Extender (1.37")
- 10ARRI TPD-2 TRINITY Pendulum Gen. 2
- 11ARRI CW-1 Counterweight (5.3 oz)
- 12ARRI 19mm CSS Clamp Bridge 52
- 13ARRI RCP-3 FS Can Bus Cable (10")

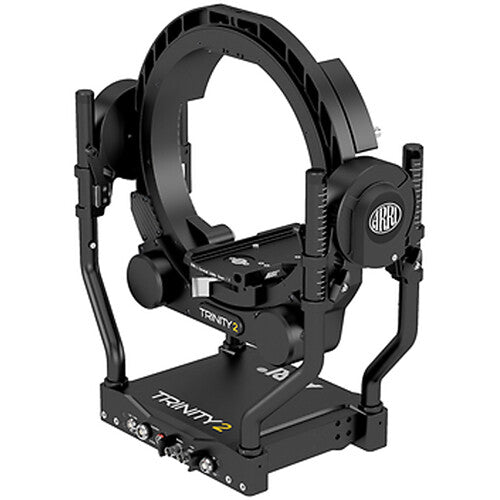

The ARRI TRINITY 2 Upgrade Set for ARTEMIS 2 enables you to transform your existing ARTEMIS 2 stabilizer into a five-axis TRINITY system for camera rigs up to 66 lb. Upgrade components include the 16-pin TRINITY Head Gen 2, the BHM-2 Battery Hanger Module, the 16-pin TST-2 artemis Top Stage Gen 2, the TPD-2 Pendulum Gen 2, the RCP-3 Remote Control Panel, DUB-3 and SAM-Zero camera plates, cabling, counterweights, and more.
Use this upgraded stabilizer to create wide-ranging, revealing shots with high-to-low or vice versa moves. When held at a 45° angle and twisted left or right, the TRINITY can even be used to peek around corners. The compact TRINITY system is compatible with ARRI ALEXA LF, Mini LF, Mini, AMIRA, 235, and 416 cameras or third-party cameras with similar dimensions and form factors.

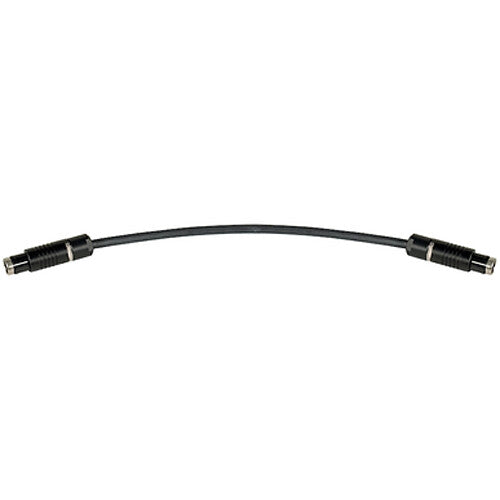

The standard TRH-2 Ring Main Cable from ARRI is compatible with the TRINITY 2 stabilizers using the standard center post. This 25.6" cable is used to transmit high-capacity 12/24V power, data, LBUS, CAN Bus, tally, and one 12G-SDI video signal.
The ARRI DUB-3 Dovetail Utility Base is a compact version of the DUB-1 with the same tool-free clamping mechanism. Use it to mount any SAM (stabilizer adapter mount) dovetail on your TRINITY 2 or upgraded TRINITY Gen 1 stabilizer with QL.
- TRINITY 2, TRINITY Gen 1 upgrade with QL
- All SAM dovetail plates
The TRINITY Side-to-Side Fine Adjustment from ARRI enables precise camera positioning on your TRINITY stabilizer rig. This component is compatible with the TRINITY 2A and TRINITY Gen 1 stabilizers using the DUB-3 compact Dovetail Utility Base.
- TRINITY 2 stabilizer
- TRINITY Gen 1 stabilizer
- DUB-3 Dovetail Utility Base
The Stabilizer Adapter Mount SAM-Zero is the standard camera plate for most ARRI Camera Stabilizer Systems products. This 10" plate enables most cameras with 3/8"-16 base threads to be safely mounted onto ARRI ARTEMIS 2, TRINITY 1 and 2, or MAXIMA stabilizers and ARRI SHR-3 or SRH-360 remote heads.
- TRINITY 2, TRINITY Gen 1
- ARTEMIS 2
- SRH-3, SRH-360
Use the 24V Camera Power Gen 2 from ARRI to connect an ALEXA Mini or AMIRA to an ARTEMIS 2 or TRINITY 2 stabilizer. This 27.6" straight cable has a 7-pin 2B LEMO connector on one end and an 8-pin 2B LEMO on the other.
- ALEXA Mini and AMIRA cameras
- ARTEMIS 2 and TRINITY 2 stabilizers
Use the 12V Camera Power Gen 2 Cable from ARRI to connect a camera to your ARTEMIS 2 or TRINITY 2 stabilizer. This 27.6" cable has a straight 4-pin XLR connector on one end and a 7-pin 2B LEMO cable on the other.
This 3mm Hex Key from ARRI can be used with ARTEMIS and TRINITY stabilizers and select camera accessories.

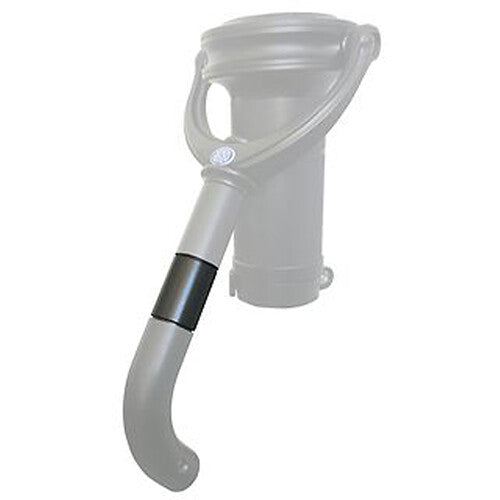

Use the Gimbal Handle Extender from ARRI to extend the length of your artemis gimbal handle by 1.37". This extender is compatible only with artemis gimbals with a bent round handle.

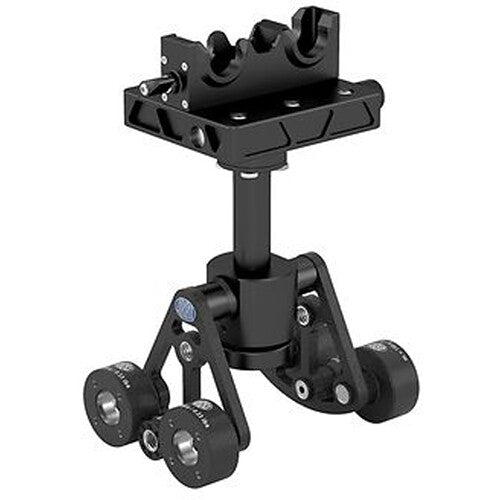

The clamp-on TPD-2 TRINITY Pendulum Gen. 2 from ARRI forms the lower weight base of the TRINITY Gen. 1 or TRINITY 2 stabilizer. Its rotating arm enables the mass of the pendulum to generate drop-down moves and to offset the weight of your camera in various stabilizer configurations. Four 3/8"-16 threads enable you to add a customized number of counterweights.
The compact CW-1 Counterweight from ARRI enables you to add 5.3 ounces when balancing your artemis, MAXIMA, or TRINITY stabilizer, or the SRH-3 or SRH-360 remote head.
- artemis, MAXIMA, and TRINITY stabilizers
- SRH-3 and SRH-360 remote heads
The ARRI 19mm CSS Clamp Bridge 52 fastens onto a pair of 19mm rods on your stabilizer rig. This bridge is compatible with the TRINITY 2 battery hanger, TRINITY Gen 1 stabilizer, and artemis Gen 1 stabilizer.
- TRINITY 2 battery hanger
- TRINITY Gen 1 stabilizer
- artemis Gen 1 stabilizer
Use this 10" RCP-3 FS Can Bus Cable from ARRI to connect the RCP-3 remote control panel to the TRINITY 2 Stabilizer.
In the Box
- ARRI TRH-2 Ring Main Cable (Standard, 25.6")
- ARRI DUB-3 Dovetail Utility Base
- ARRI TRINITY Side-to-Side Fine Adjustment
- ARRI Stabilizer Adapter Mount SAM-Zero
- 2 x 3/8"-16 Screw
- ARRI 24V Camera Power Gen 2 for ALEXA Mini & AMIRA (8-Pin, 27.6")
- ARRI Camera Power Gen. 2, 4-Pin XLR, 12V Cable (27.6", Straight)
- ARRI BNC to BNC 4.5 GHz HD SDI Cable for Camera and Monitor (31.5')
- ARRI 3mm Hex Key (0.11" Allen Wrench)
- ARRI Gimbal Handle Extender (1.37")
- ARRI TPD-2 TRINITY Pendulum Gen. 2
- 4 x ARRI CW-1 Counterweight (5.3 oz)
- ARRI 19mm CSS Clamp Bridge 52
- ARRI RCP-3 FS Can Bus Cable (10")
- TRH-2 TRINITY Head Gen 2, 16-Pin, X-Body
- TRH-2 Post Connector Assembly, 16-Pin

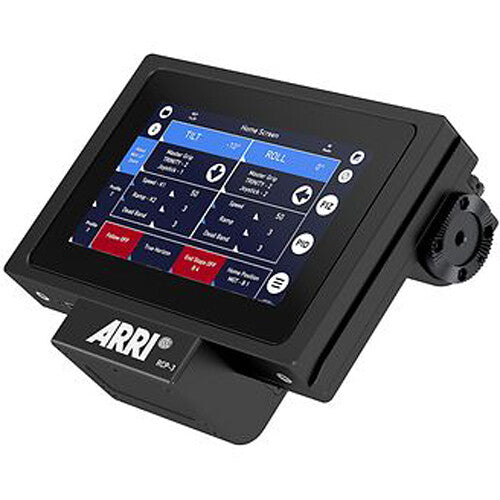

- RCP-3 Remote Control Panel
- Description
- ARRI TRH-2 Ring Main Cable (Standard, 25.6")
- ARRI DUB-3 Dovetail Utility Base
- ARRI TRINITY Side-to-Side Fine Adjustment
- ARRI Stabilizer Adapter Mount SAM-Zero
- ARRI 24V Camera Power Gen 2 for ALEXA Mini & AMIRA (8-Pin, 27.6")
- ARRI Camera Power Gen. 2, 4-Pin XLR, 12V Cable (27.6", Straight)
- ARRI 3mm Hex Key (0.11" Allen Wrench)
- ARRI Gimbal Handle Extender (1.37")
- ARRI TPD-2 TRINITY Pendulum Gen. 2
- ARRI CW-1 Counterweight (5.3 oz)
- ARRI 19mm CSS Clamp Bridge 52
- ARRI RCP-3 FS Can Bus Cable (10")
ARRI TRH-2 Ring Main Cable (Standard, 25.6") Specs
| Compatibility | ARRI TRINITY 2 |
| Connector 1 | 1 x LEMO, Straight |
| Connector 2 | 1 x LEMO, Right-Angle |
| Cable Length | 25.6" / 65 cm |
ARRI DUB-3 Dovetail Utility Base Specs
| Materials | Aluminum |
ARRI 24V Camera Power Gen 2 for ALEXA Mini & AMIRA (8-Pin, 27.6") Specs
| Compatibility | ARRI ALEXA Mini ARRI AMIRA ARRI ARTEMIS 2 ARRI TRINITY 2 |
| Connector 1 | 1 x 7-Pin 2B LEMO Male |
| Connector 2 | 1 x 8-Pin 2B LEMO Male |
| Voltage | 24 V |
