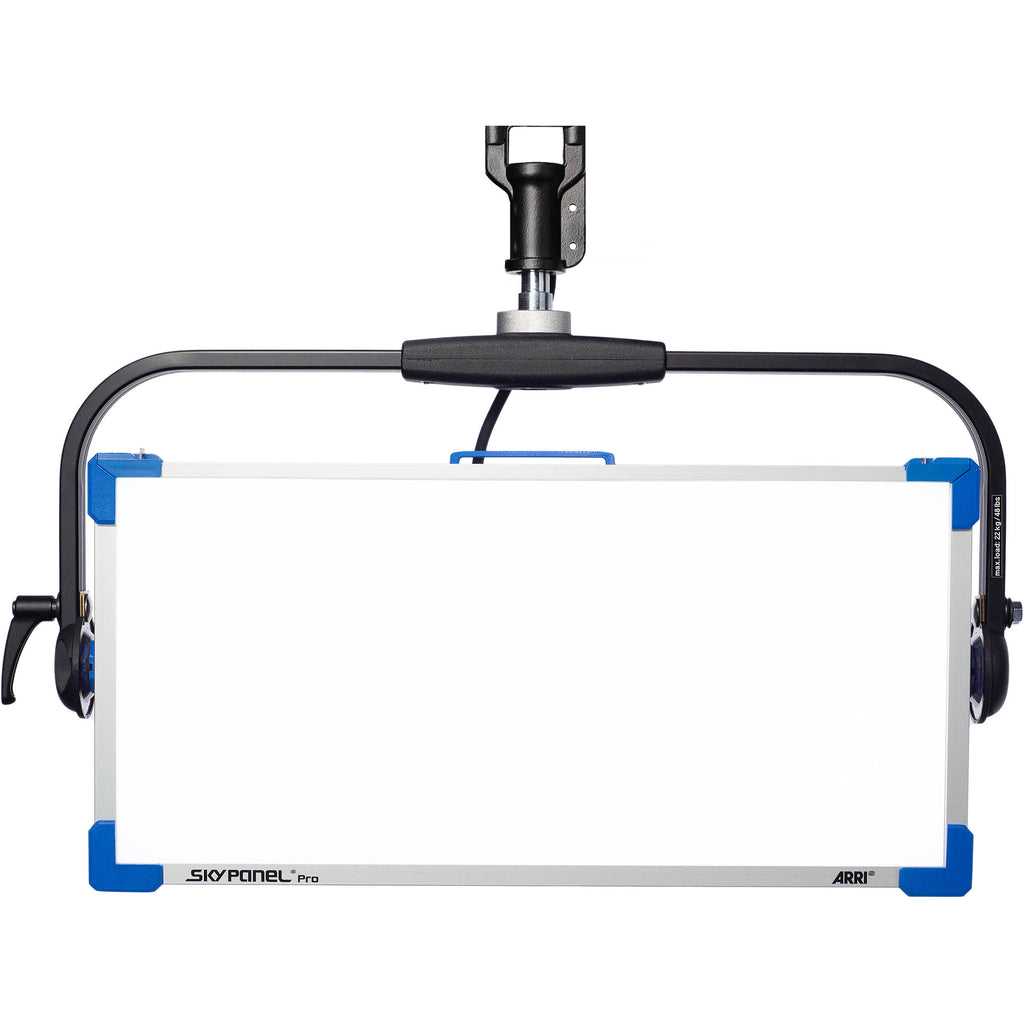

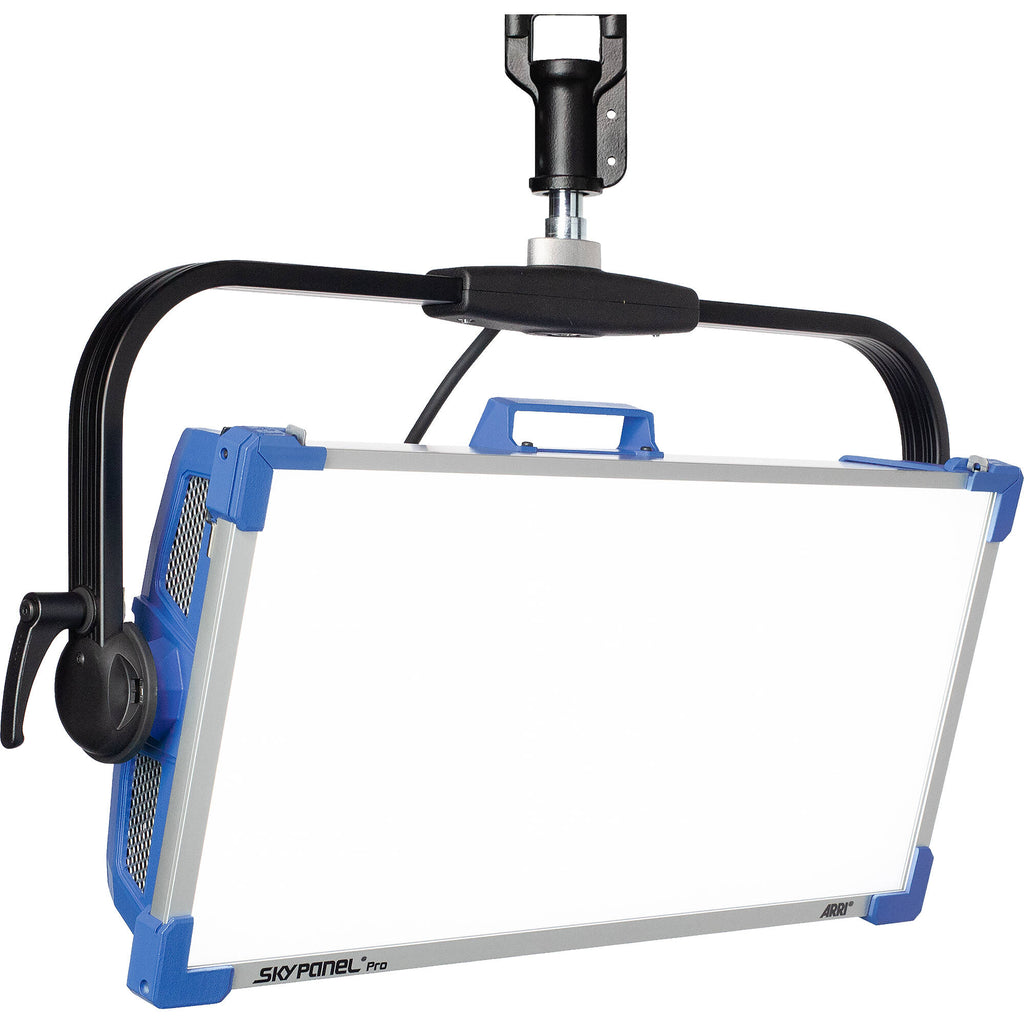

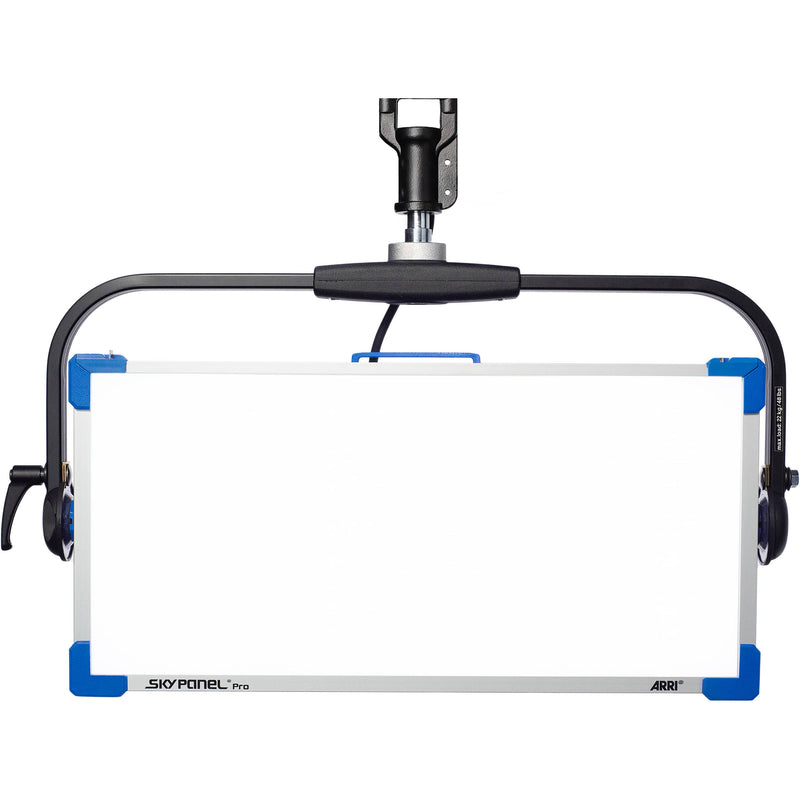

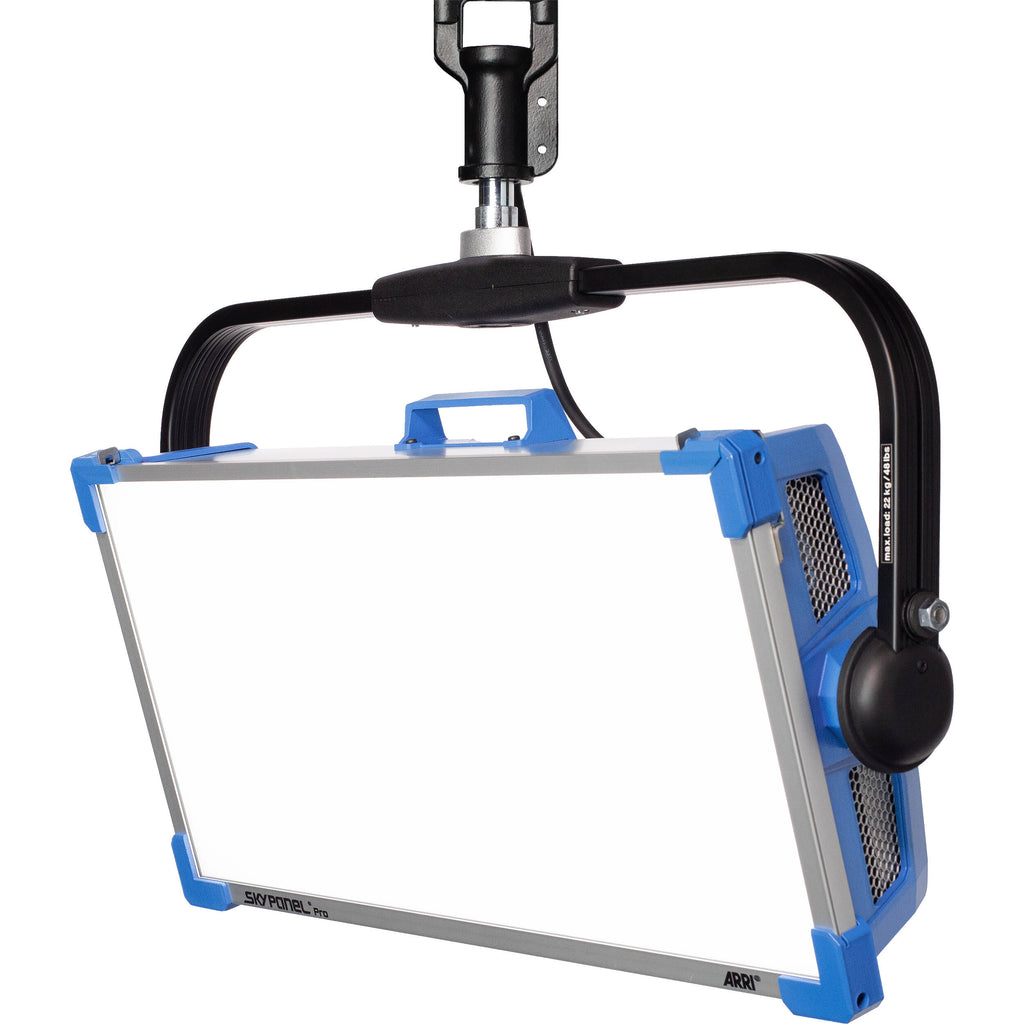

ARRI SkyPanel S60 Pro MAN Set (Edison, Blue/Silver)

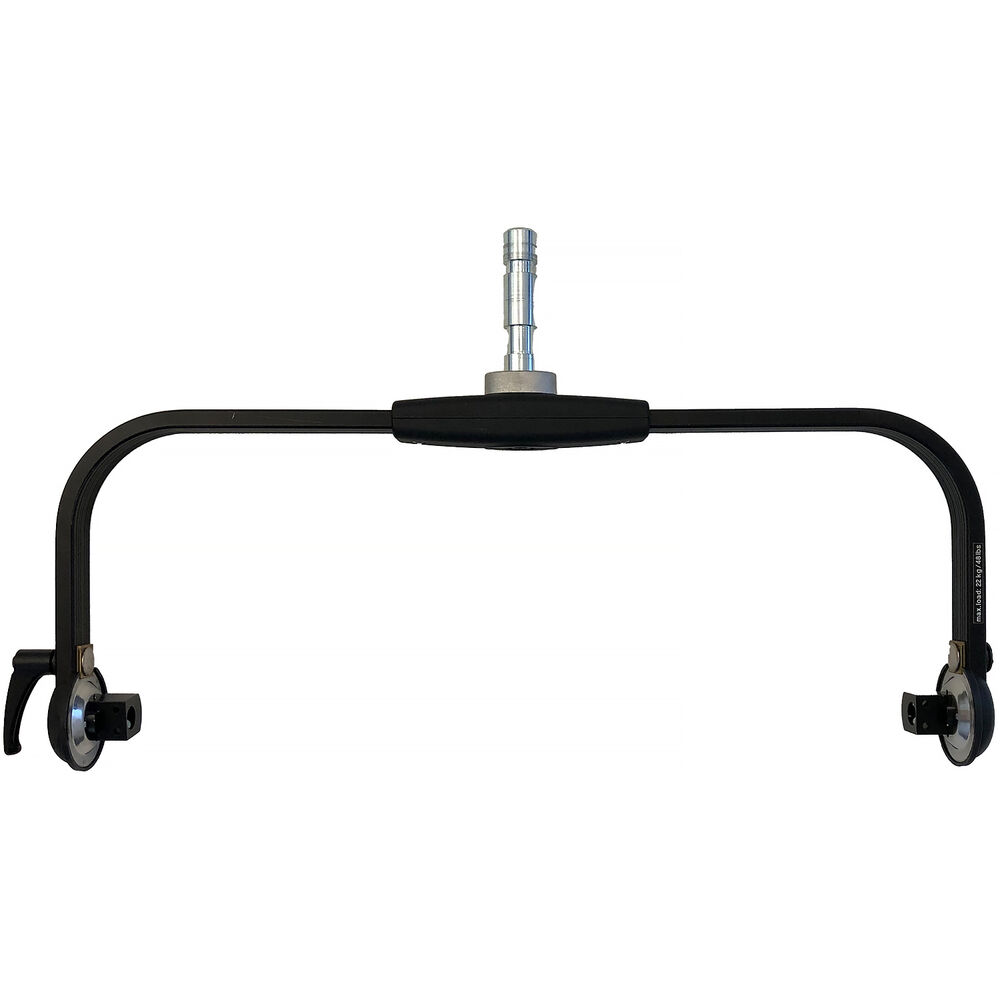

Only available as part of a kit, this version of the SkyPanel S60 Pro LED light from ARRI comprises the blue/silver S60 Pro and a diffusion panel; it requires a separate yoke and power cable. It features built-in wireless capabilities, new software features, expanded connectivity, and seamless integration with the SkyPanel line.

This professional LED light features accurate color rendering and blends the familiar attributes of the S60-C with increased connectivity and updates that improve your workflow. Features of this 25.4 x 11.8" LED panel include increased output, enhanced dimming, and an integrated power supply. Built-in wireless capabilities, new software features, expanded connectivity, and seamless integration with the SkyPanel line enable the S60 Pro to effortlessly fit into your workflow or rental inventory.

• The S60 Pro's output averages about 20% brighter than the classic S60-C.
• A featured setting matches the output of the Classic S60-C to the S60 Pro for setups that mix the two fixtures.
• This light provides enhanced low dimming performance.
• Four LED zones offer better pixel control.
• The S60 Pro offers a CCT range of 2800-10,000K.

• Color consistency extending across the ARRI SkyPanel line enables the S60 Pro to seamlessly integrate with your existing workflow.
• Compatibility with S60-C front and mounting accessories lets you use your existing accessories.

Streamline your preproduction workflow using the S60 Pro's digital twin. This virtual asset enables you to pre-visualize fixture setups, directly copy settings from the digital twin, sync virtual and real-world systems, and accelerate your post process by recreating setups using precise metadata.

• Software is LiOS-based and the onboard user interface is taken from the SkyPanel S60 Classic.
• Hardwired Ethernet/LAN input and output can continue to pass data while the fixture is powered off.
• A wide range of interfaces includes AC input and pass-through, 48V battery input, DMX/RDM in/out, USB-C, and dual Ethernet ports.

Choose CloudIO from ClayPaky to access streamlined diagnostics, remote assistance, firmware updates, and other features useful for rental house and studio inventories.

• Built-in Bluetooth and LumenRadio CRMX plus DMX/RDM in/out provide multiple control options for your S60 Pro.
• Choose from lighting console, web portal, smartphone, or tablet control.

Kit Contains:

ARRI SkyPanel S60 Pro (No Yoke or Cable, Blue/Silver)

Item Type	1x LED Light Panel
Included Storage Case	No
Photometrics	103° at 3200K: 1412 fc / 15,200 Lux at 3.3' / 1 m  157 fc / 1690 Lux at 9.8' / 3 m 56 fc / 610 Lux at 16.4' / 5 m 103° at 5600K: 1477 fc / 15,900 Lux at 3.3' / 1 m  164 fc / 1770 Lux at 9.8' / 3 m 59 fc / 640 Lux at 16.4' / 5 m
Color Temperature	2800 to 10,000K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 95 TLCI 90 TM-30 Rg 91
Dimming	App-Controlled / Built-In Dimmer / DMX / RDM (Continuous)  � 0 to 100%
Front Accessory Mount	Proprietary
Wireless Remote Control Type	Bluetooth 5.0 Wireless DMX
Power Source	AC Power (Cable Included) Battery (Not Included)
Battery	1x Battery Power Station, 48 to 52 VDC (Not Included)
Input Power	48 to 52 VDC 110 to 240 VAC, 50 / 60 Hz
Power Consumption	500 W

Item Type	1x LED Light Panel
Included Filters	Diffusion
Included Storage Case	No
Lumens	39,200 (at 3200K) 41,100 (at 5600K)
Photometrics	103° at 3200K: 1412 fc / 15,200 Lux at 3.3' / 1 m  157 fc / 1690 Lux at 9.8' / 3 m 56 fc / 610 Lux at 16.4' / 5 m 103° at 5600K: 1477 fc / 15,900 Lux at 3.3' / 1 m  164 fc / 1770 Lux at 9.8' / 3 m 59 fc / 640 Lux at 16.4' / 5 m
Color Temperature	2800 to 10,000K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 95 TLCI 90 TM-30 Rg 91
Dimming	App-Controlled / Built-In Dimmer / DMX / RDM (Continuous)  � 0 to 100%
Expected Lamp Life	40,000 Hours (L70)
Beam Angle	103°
Built-In Flash	No
Pixel Zones	4
Preprogrammed Effects	Yes
Umbrella Mount	No
Front Accessory Mount	Proprietary

Wireless Remote Control Type	Bluetooth 5.0 Wireless DMX
Mobile App Compatible	Yes: Android & iOS App Name: Arri LiCo Functionality: Adjust Settings, Remote Control

Power Source	AC Power (Cable Included) Battery (Not Included)
Inputs/Outputs	2x RJ45 Network Input/Output 1x XLR 5-Pin Female DMX Output 1x XLR 5-Pin Male DMX Input 1x USB-C Service Input 1x XLR 3-Pin Battery Input 1x powerCON TRUE1 AC Power Input 1x powerCON TRUE1 AC Power Output
Battery	1x Battery Power Station, 48 to 52 VDC (Not Included)
Input Power	48 to 52 VDC 110 to 240 VAC, 50 / 60 Hz

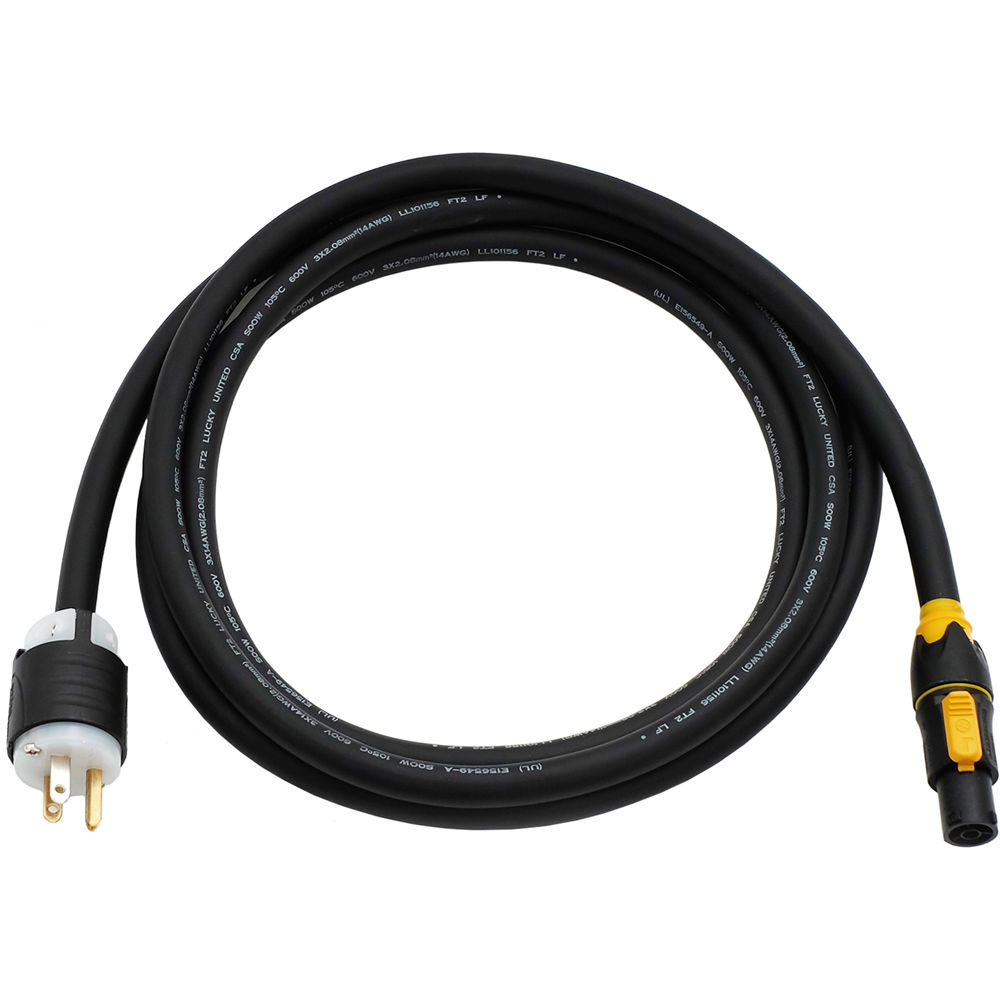

Included Adapter / Cable	1x Bare Ends to powerCON TRUE1 Cable
Inline Switch	No
Power Pass-Thru	Yes
Power Consumption	500 W

Display	Yes
Environmental Resistance	Dust-Resistant (IP20)
Operating Conditions	-4 to 113°F / -20 to 45°C
Certifications	CB, CE, ENEC, FCC, PSE, cNRTLus
Dimensions	25.4 x 13.7 x 5.3" / 64.5 x 34.8 x 13.5 cm
Weight	33.1 lb / 15 kg (Fixture with Yoke)

Package Weight	36.5 lb
Box Dimensions (LxWxH)	33.5 x 18.25 x 12"
