ARRI Handle Extension Set for ALEXA 35 Overview

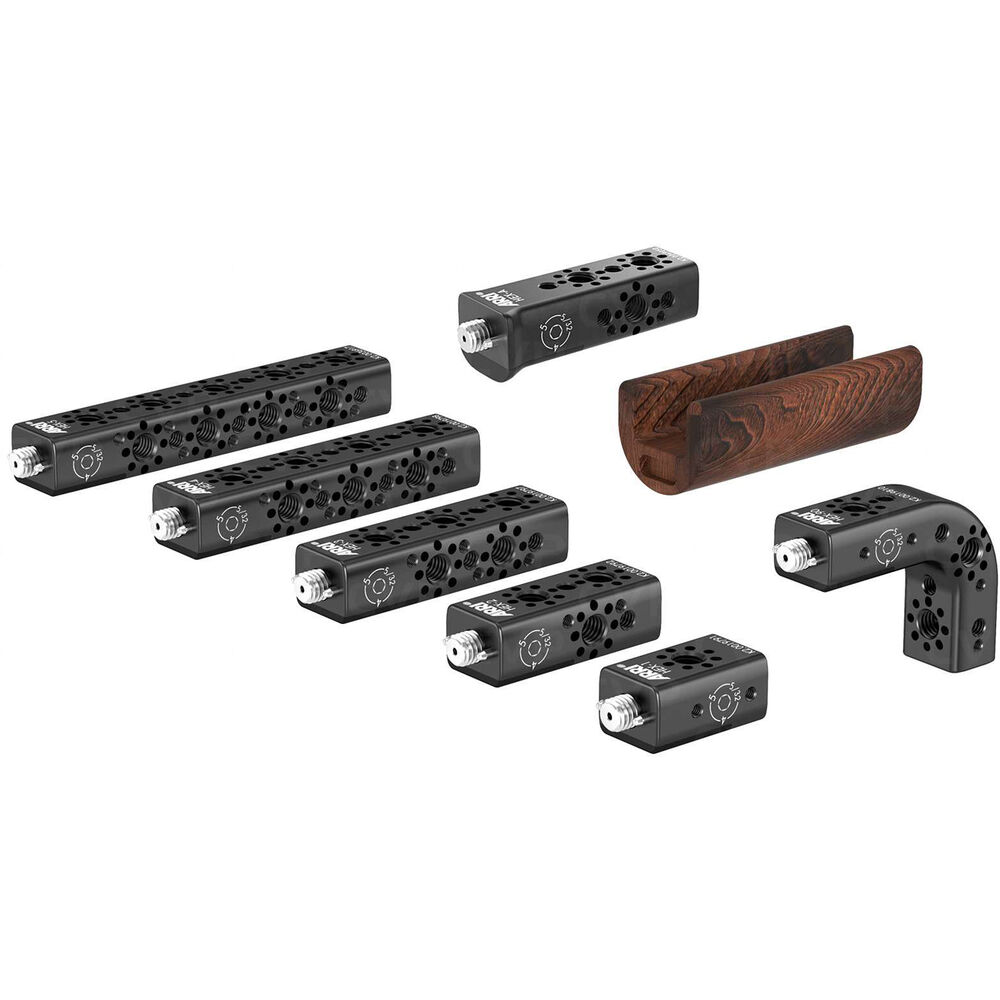

Designed to expand the ARRI Camera Center Handle CCH-4 for use with the ALEXA 35, this Handle Extension Set from ARRI allows the creation of customized handle designs for ergonomic camera operation. The set includes six straight HEX handle extenders of different lengths (HEX-1, 2, 3, 4, 5, and A), a right-angle HEX-90 extender, and a wooden shell for ideal rig optimization.
Each HEX extender sports an ARRI anti-twist 3/8"-16 screw at the front and a corresponding thread interface at the back, as well as multiple 3/8"-16, 1/4"-20, and 5/32" accessory mounting threads. Providing highly flexible configuration options, the set can be used to build a Hollywood-style handle, allowing operation from the rear of the camera without touching the on-board battery.
- ARRI CCH-4 and other top handles with ARRI-style 3/8"-16 threads
- Combine the included HEX components in customizable configurations
- Attach multiple extensions end to end
- Use to mount accessories with 3/8"-16, 1/4"-20, or 5/32" screws
- ARRI Handle Extension Set for ALEXA 35
- ARRI Handle Extension HEX-1
- ARRI Handle Extension HEX-2
- ARRI Handle Extension HEX-3
- ARRI Handle Extension HEX-4
- ARRI Handle Extension HEX-5
- ARRI Handle Extension HEX-90
- ARRI Handle Extension HEX-A
- ARRI Wooden Shell for HEX
- Foam Inlay for Pelican 1170 Case
- Limited 1-Year Manufacturer Warranty
No additional resources available
ARRI Handle Extension Set for ALEXA 35 Specs
| Compatibility |
ARRI ALEXA 35 / Camera Center Handle CCH-4 / Camera Center Handle CCH-2
|
| Mounting |
Multiple ARRI Anti-Twist 3/8"-16 Screw
Multiple ARRI Anti-Twist 3/8"-16 Thread Multiple 1/4"-20 Thread Multiple 5/32" Thread |
| Load Capacity |
200 lb / 90.7 kg (HEX-1)
175 lb / 79.4 kg (HEX-2) 110 lb / 49.9 kg (HEX-3) 90 lb / 40.8 kg (HEX-4) 65 lb / 29.5 kg (HEX-5) 130 lb / 59 kg (HEX-90) 165 lb / 74.8 kg (HEX-A) |
| Color |
Black / Woodgrain
|
| Material of Construction |
Aluminum Alloy, Wood
|
| Dimensions |
1.6 x 1 x 0.8" / 41.5 x 25 x 20 mm (HEX-1)
2.4 x 1 x 0.8" / 61.5 x 25 x 20 mm (HEX-2) 3.4 x 1 x 0.8" / 86.9 x 25 x 20 mm (HEX-3) 4.4 x 1 x 0.8" / 112.3 x 25 x 20 mm (HEX-4) 5.4 x 1 x 0.8" / 137.7 x 25 x 20 mm (HEX-5) 3 x 2.4 x 0.8" / 76 x 60 x 20 mm (HEX-90) 4 x 1.6" / 101.2 x 41 mm (Wooden Shell for HEX) |
| Package Weight |
1.91 lb
|
| Box Dimensions (LxWxH) |
12.3 x 6.9 x 3.3"
|
