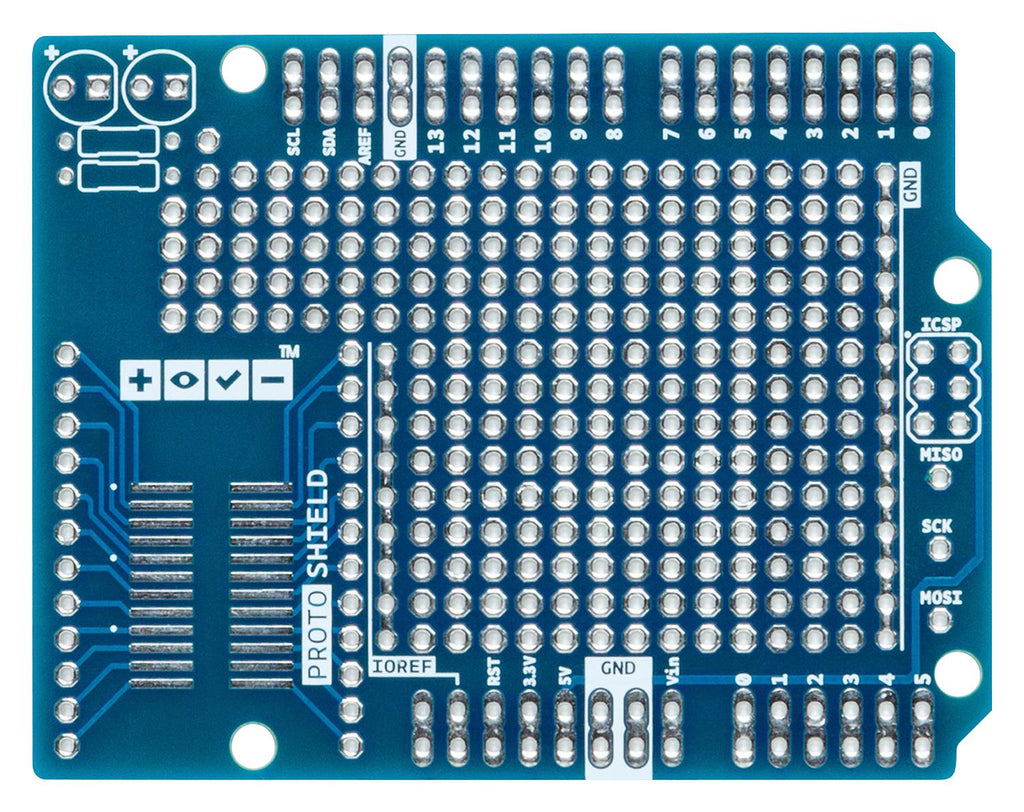

Prototyping board that is made for designing custom circuits and testing with an Arduino board. Based around the 1.0 Ardunio pinout, it will also support the use of a mini breadboard (not included) for soldereless operation.
- Provides 24 pins with SMD footprint
- Footprint for ICSP, 2x LED and resistors
- IOREF and GND power lines
- SPI Signal pads
Product details
| Accessory Type |
ProtoShield Rev3 |
| For Use With |
Arduino Development Boards |
| Product Range |
- |
Other details
| Brand |
ARDUINO |
| Part Number |
TSX00083 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
