Description

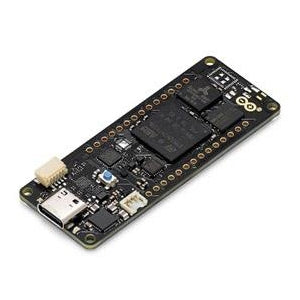

Arduino Portenta H7 Lite is a cost-effective solution, designed for complex environments where radio communication is not suitable or possible.
Features & Specs
- MICROCONTROLLER: STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU
- SECURE ELEMENT (DEFAULT): Microchip ATECC608
- BOARD POWER SUPPLY (USB/VIN): 5V
- SUPPORTED BATTERY: Li-Po Single Cell, 3.7V, 700mAh Minimum (integrated charger)
- CIRCUIT OPERATING VOLTAGE: 3.3V
- CURRENT CONSUMPTION: 2.95 μA in Standby mode (Backup SRAM OFF, RTC/LSE ON)
- TIMERS: 22x timers and watchdogs
- UART: 4x ports (2 with flow control)
- ETHERNET PHY: 10 / 100 Mbps (through expansion port only)
- SD CARD: Interface for SD Card connector (through expansion port only)
- OPERATIONAL TEMPERATURE: -40 °C to +85 °C
- MKR HEADERS: Use any of the existing industrial MKR shields on it
- HIGH-DENSITY CONNECTORS: Two 80 pin connectors will expose all of the board's peripherals to other devices
- CAMERA INTERFACE: 8-bit, up to 80 MHz
- ADC: 3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS)
- DAC: 2× 12-bit DAC (1 MHz)
- USB-C: Host / Device, High / Full Speed, Power delivery
- Arduino Part #: ABX00045
Features & Specs
- MICROCONTROLLER: STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU
- SECURE ELEMENT (DEFAULT): Microchip ATECC608
- BOARD POWER SUPPLY (USB/VIN): 5V
- SUPPORTED BATTERY: Li-Po Single Cell, 3.7V, 700mAh Minimum (integrated charger)
- CIRCUIT OPERATING VOLTAGE: 3.3V
- CURRENT CONSUMPTION: 2.95 μA in Standby mode (Backup SRAM OFF, RTC/LSE ON)
- TIMERS: 22x timers and watchdogs
- UART: 4x ports (2 with flow control)
- ETHERNET PHY: 10 / 100 Mbps (through expansion port only)
- SD CARD: Interface for SD Card connector (through expansion port only)
- OPERATIONAL TEMPERATURE: -40 °C to +85 °C
- MKR HEADERS: Use any of the existing industrial MKR shields on it
- HIGH-DENSITY CONNECTORS: Two 80 pin connectors will expose all of the board's peripherals to other devices
- CAMERA INTERFACE: 8-bit, up to 80 MHz
- ADC: 3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS)
- DAC: 2× 12-bit DAC (1 MHz)
- USB-C: Host / Device, High / Full Speed, Power delivery
- Arduino Part #: ABX00045
