Description

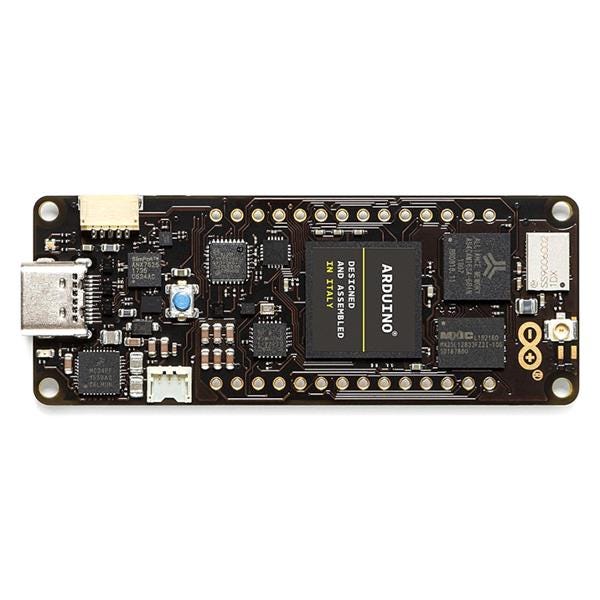

Arduino Portenta H7 is a dual core unit that features a 480MHz Arm® Cortex®-M7 and a 240MHz Arm Cortex M4.
Features & Specs
- Microcontroller: STM32H747XI dual Cortex®-M7+M4 32-bit low power ARM MCU
- Radio module: Murata 1DX dual WiFi 802.11b/g/n 65Mbps and Bluetooth 5.1 BR/EDR/LE
- Secure Element (default): NXP SE0502
- Board Power Supply (USB/VIN): 5V
- Supported Battery: Li-Po Single Cell, 3.7V, 700mAh Minimum (integrated charger)
- Circuit Operating Voltage: 3.3V
- Current Consumption: 2.95μA in Standby mode (Backup SRAM OFF, RTC/LSE ON)
- Display Connector: MIPI DSI host & MIPI D-PHY to interface with low-pin count large display
- GPU: Chrom-ART graphical hardware Accelerator™
- Timers: 22x timers and watchdogs
- UART: 4x ports (2 with flow control)
- Ethernet PHY: 10/100Mbps (through expansion port only)
- SD Card: Interface for SD Card connector (through expansion port only)
- Operational Temperature: -40°C to +85°C (excl. Wireless module) / -10°C to +55°C (incl. Wireless module)
- MKR Headers: Use any of the existing industrial MKR shields
- High-density Connectors: Two 80 pin connectors will expose all of the board's peripherals to other devices
- Camera Interface: 8-bit, up to 80MHz
- ADC: 3x ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6MSPS)
- DAC: 2x 12-bit DAC (1 MHz)
- USB-C: Host/Device, DisplayPort out, High/Full Speed, Power delivery
- Arduino Part #: ABX00042
Features & Specs
- Microcontroller: STM32H747XI dual Cortex®-M7+M4 32-bit low power ARM MCU
- Radio module: Murata 1DX dual WiFi 802.11b/g/n 65Mbps and Bluetooth 5.1 BR/EDR/LE
- Secure Element (default): NXP SE0502
- Board Power Supply (USB/VIN): 5V
- Supported Battery: Li-Po Single Cell, 3.7V, 700mAh Minimum (integrated charger)
- Circuit Operating Voltage: 3.3V
- Current Consumption: 2.95μA in Standby mode (Backup SRAM OFF, RTC/LSE ON)
- Display Connector: MIPI DSI host & MIPI D-PHY to interface with low-pin count large display
- GPU: Chrom-ART graphical hardware Accelerator™
- Timers: 22x timers and watchdogs
- UART: 4x ports (2 with flow control)
- Ethernet PHY: 10/100Mbps (through expansion port only)
- SD Card: Interface for SD Card connector (through expansion port only)
- Operational Temperature: -40°C to +85°C (excl. Wireless module) / -10°C to +55°C (incl. Wireless module)
- MKR Headers: Use any of the existing industrial MKR shields
- High-density Connectors: Two 80 pin connectors will expose all of the board's peripherals to other devices
- Camera Interface: 8-bit, up to 80MHz
- ADC: 3x ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6MSPS)
- DAC: 2x 12-bit DAC (1 MHz)
- USB-C: Host/Device, DisplayPort out, High/Full Speed, Power delivery
- Arduino Part #: ABX00042
