Description

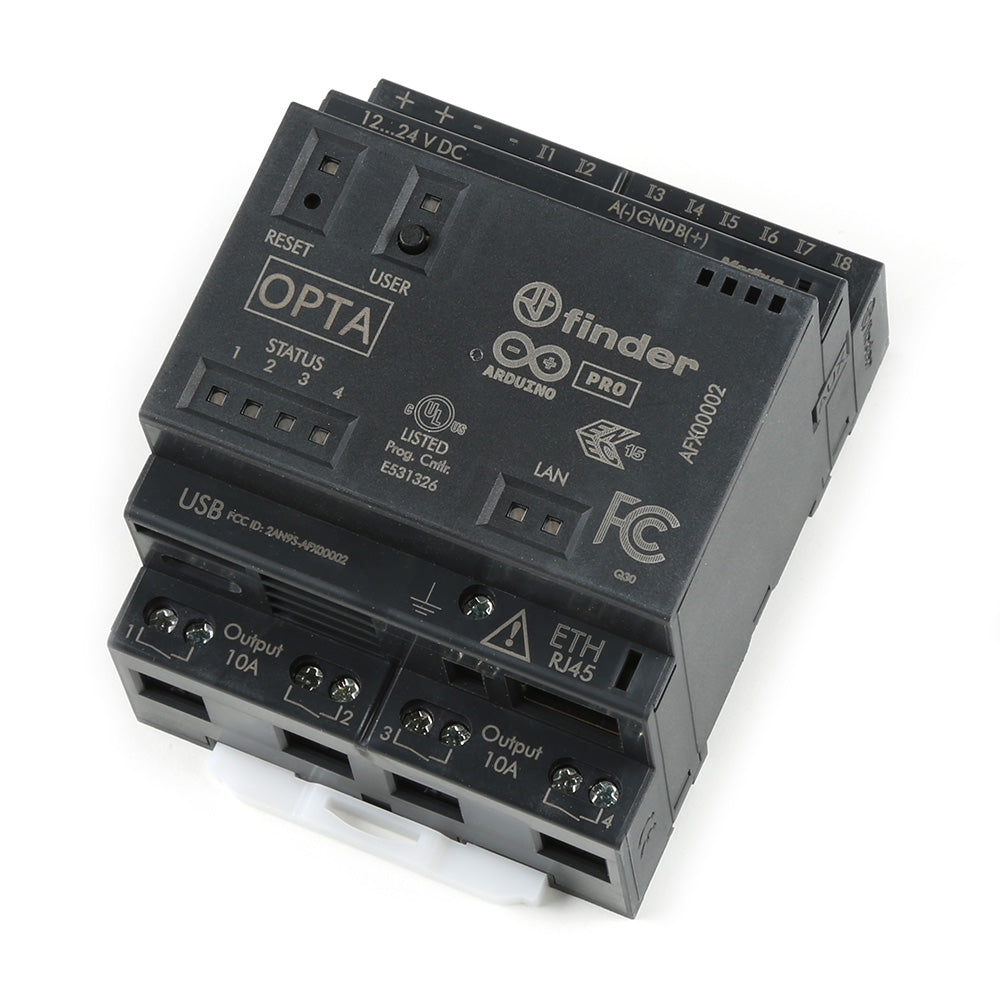

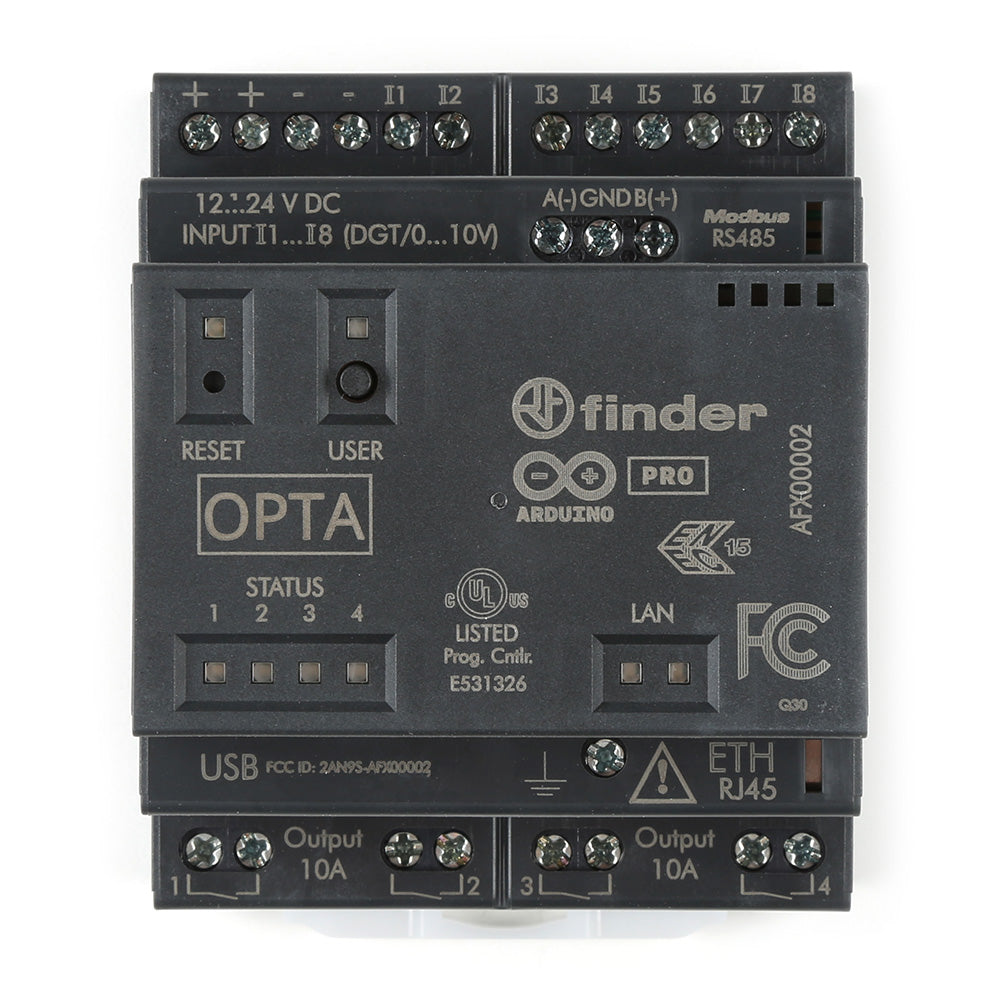

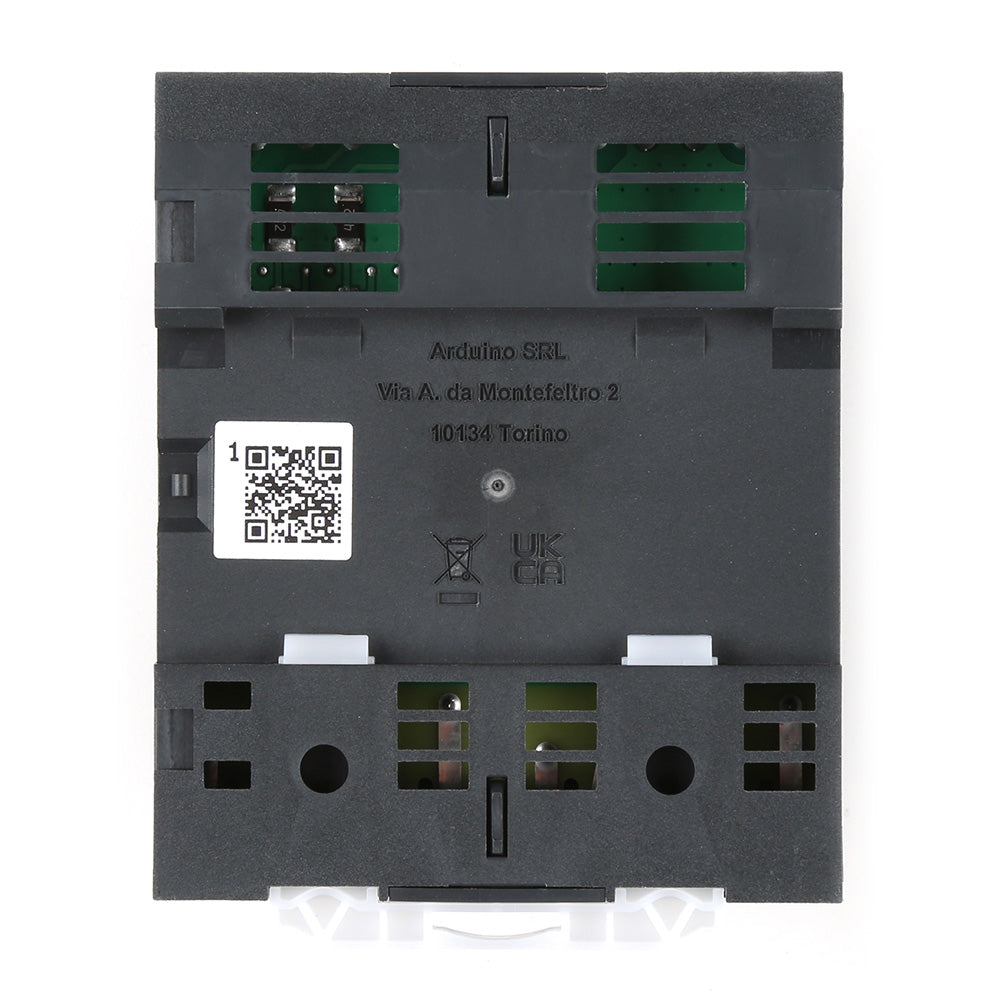

Arduino Opta is a secure, easy-to-use micro PLC (Programmable Logic Controller) with Industrial IoT capabilities.
Features & Specs
- Input: 8x configurable digital / analog (0-10V) input
- Processor: STM32H747XI Dual ARM® Cortex®:
- Cortex -M7 core up to 480 MHz
- Cortex -M4 core up to 240 MHz
- Connectivity: Support 10/100 Ethernet (TCP/IP or Modbus TCP), USB-C, RS485 half duplex, Wi-Fi + Bluetooth® Low Energy
- Memory: 1MB RAM (programming), 2MB internal + 16MB Flash QSPI
- RTC: Typical 10 days power retention at 25°C, NTP sync available through ethernet
- IP Protection: IP20
- Output: 4x relays (250 V AC - 10A)
- Programming Languages:
- Arduino programming language via IDE
- IEC-61131-3
- Ladder Diagram (LD)
- Function Block Diagram (FBD)
- Sequential Function Chart (SFC)
- Structured Text (ST)
- Instruction List (IL)
- Security: ATECC608B Secure Element
- Supply Voltage: 12-24 V DC
- Operating Temperature: -20°C to +50°C (-4°F to 122°F)
- Dimensions:
- Width: 69mm
- Length: 80mm
- Height: 90mm
- Weight: 210g (7.4oz.)
- Certifications: cULus listed, ENEC, CE
Features & Specs
- Input: 8x configurable digital / analog (0-10V) input
- Processor: STM32H747XI Dual ARM® Cortex®:
- Cortex -M7 core up to 480 MHz
- Cortex -M4 core up to 240 MHz
- Connectivity: Support 10/100 Ethernet (TCP/IP or Modbus TCP), USB-C, RS485 half duplex, Wi-Fi + Bluetooth® Low Energy
- Memory: 1MB RAM (programming), 2MB internal + 16MB Flash QSPI
- RTC: Typical 10 days power retention at 25°C, NTP sync available through ethernet
- IP Protection: IP20
- Output: 4x relays (250 V AC - 10A)
- Programming Languages:
- Arduino programming language via IDE
- IEC-61131-3
- Ladder Diagram (LD)
- Function Block Diagram (FBD)
- Sequential Function Chart (SFC)
- Structured Text (ST)
- Instruction List (IL)
- Security: ATECC608B Secure Element
- Supply Voltage: 12-24 V DC
- Operating Temperature: -20°C to +50°C (-4°F to 122°F)
- Dimensions:
- Width: 69mm
- Length: 80mm
- Height: 90mm
- Weight: 210g (7.4oz.)
- Certifications: cULus listed, ENEC, CE
