| ₹ 6145.0 includes GST and import duties. | |
| B2B customers can avail ₹ 937.11 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

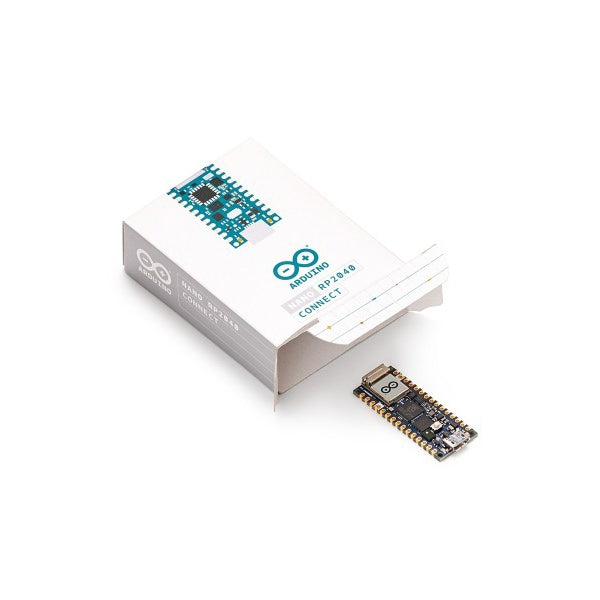

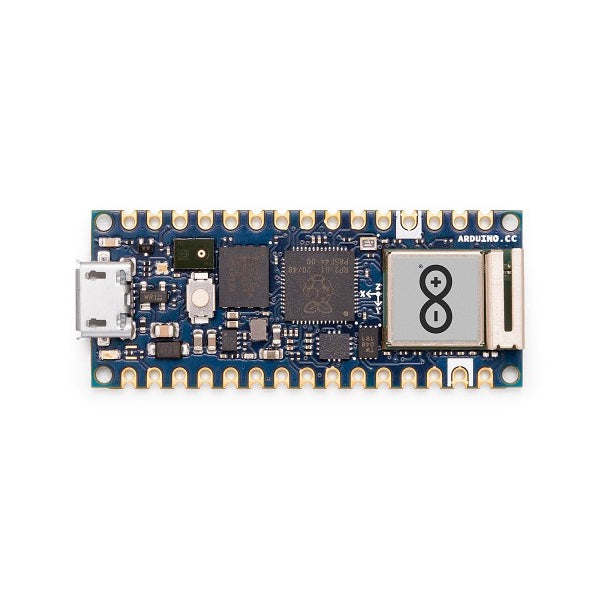

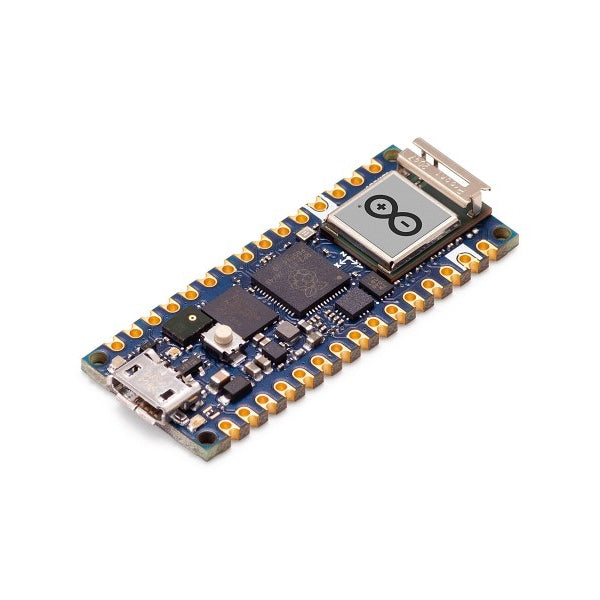

The Arduino Nano RP2040 Connect is based on the RP2040 chip and integrates sensors and connectivity.
Features & Specs
- Microcontroller: Raspberry Pi RP2040
- USB connector: Micro USB
- Built-in LED pin: 13
- Digital I/O Pins: 20
- Analog Input Pins: 8
- PWM pins: 20 (Except A6, A7)
- External interrupts: 20 (Except A6, A7)
- Wi-Fi: Nina W102 uBlox module
- Bluetooth: Nina W102 uBlox module
- Secure element: ATECC608A-MAHDA-T Crypto IC
- IMU: LSM6DSOXTR: (6-axis)
- Microphone: MP34DT05
- UART: Yes
- I2C: Yes
- SPI: Yes
- Circuit operating voltage: 3.3V
- Input Voltage (VIN): 5-21V
- DC Current per I/O pin: 4 mA
- Clock speed Processor: 133 MHz
- Memory:
- AT25SF128A-MHB-T: 16MB Flash IC
- Nina W102 uBlox module: 448 KB ROM, 520KB SRAM, 16MB Flash
- Weight: 6 g
- Width: 18 mm
- Length: 45 mm
- Arduino Part #: ABX00052
Features & Specs
- Microcontroller: Raspberry Pi RP2040
- USB connector: Micro USB
- Built-in LED pin: 13
- Digital I/O Pins: 20
- Analog Input Pins: 8
- PWM pins: 20 (Except A6, A7)
- External interrupts: 20 (Except A6, A7)
- Wi-Fi: Nina W102 uBlox module
- Bluetooth: Nina W102 uBlox module
- Secure element: ATECC608A-MAHDA-T Crypto IC
- IMU: LSM6DSOXTR: (6-axis)
- Microphone: MP34DT05
- UART: Yes
- I2C: Yes
- SPI: Yes
- Circuit operating voltage: 3.3V
- Input Voltage (VIN): 5-21V
- DC Current per I/O pin: 4 mA
- Clock speed Processor: 133 MHz
- Memory:
- AT25SF128A-MHB-T: 16MB Flash IC
- Nina W102 uBlox module: 448 KB ROM, 520KB SRAM, 16MB Flash
- Weight: 6 g
- Width: 18 mm
- Length: 45 mm
- Arduino Part #: ABX00052
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 6022.1 |
| 3-5 | ₹ 5960.65 |
| 5-10 | ₹ 5837.75 |
| 10+ | ₹ 5714.85 |
Bulk discount will be automatically applied during checkout based on quantity.
