Description

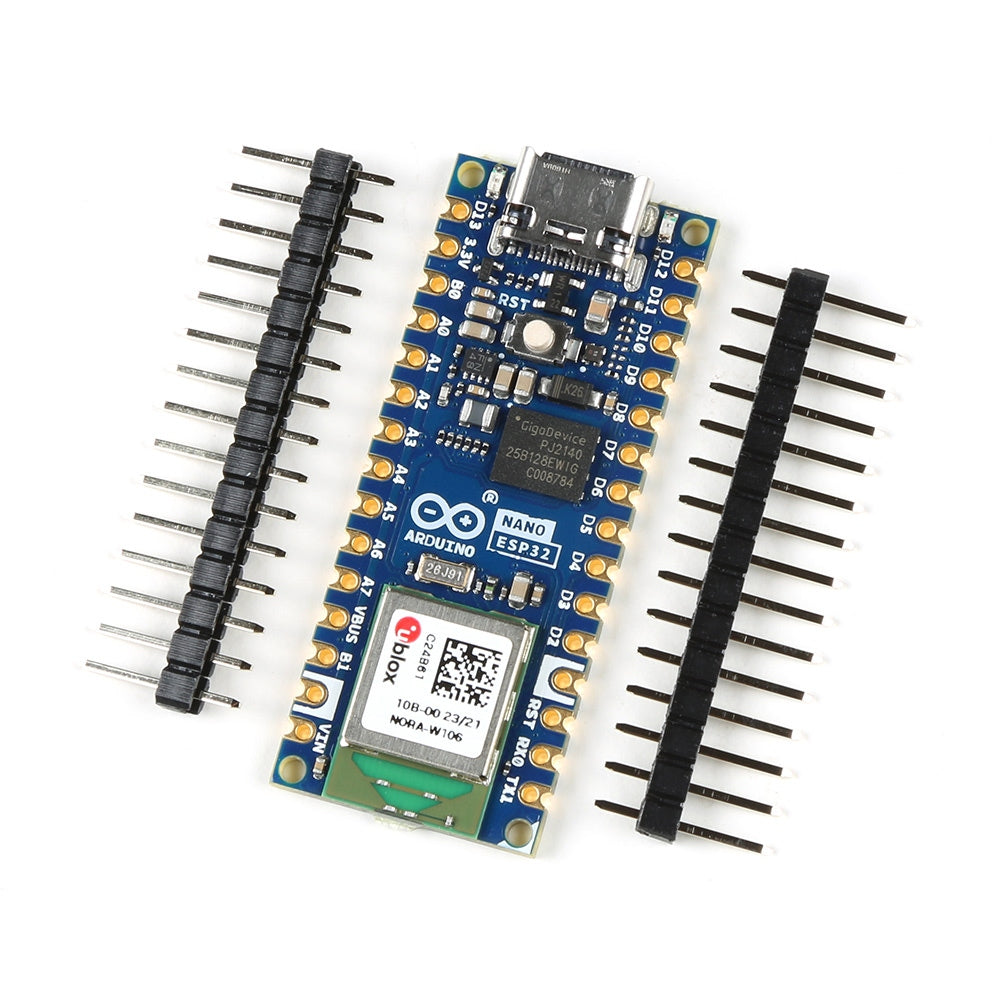

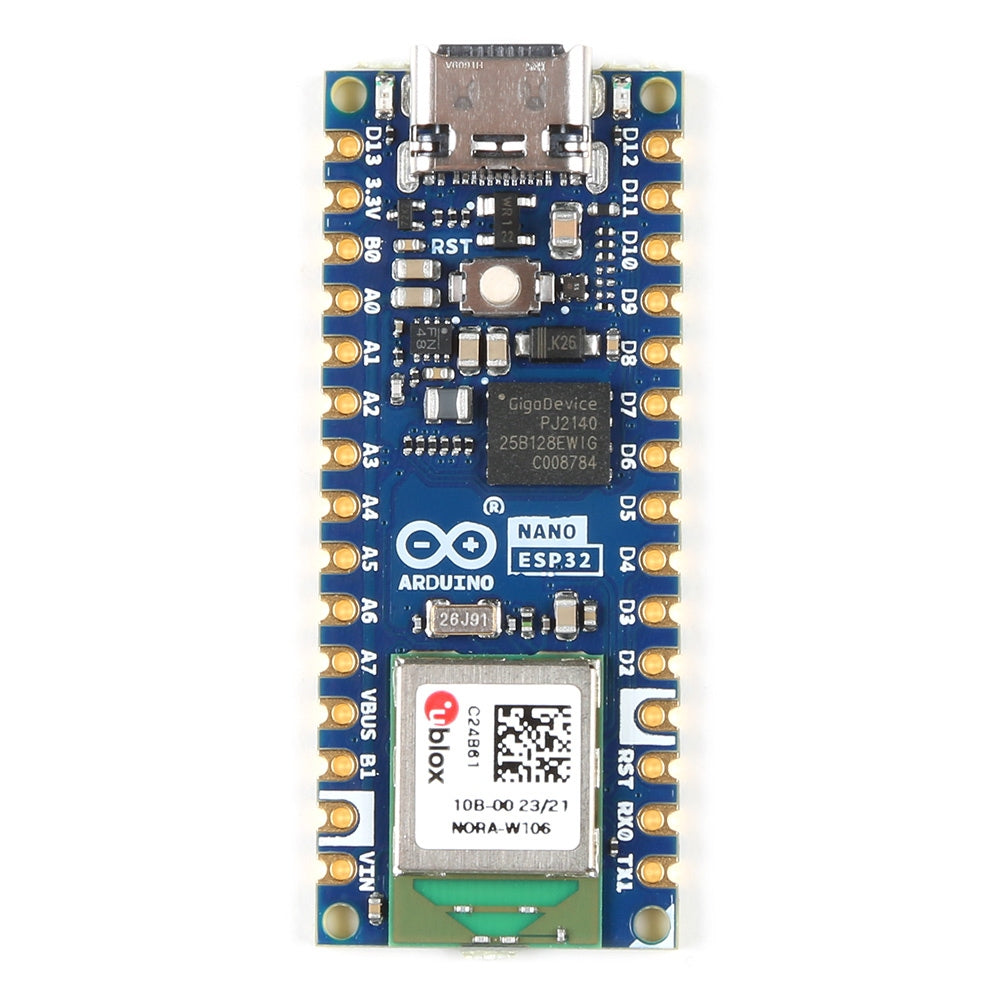

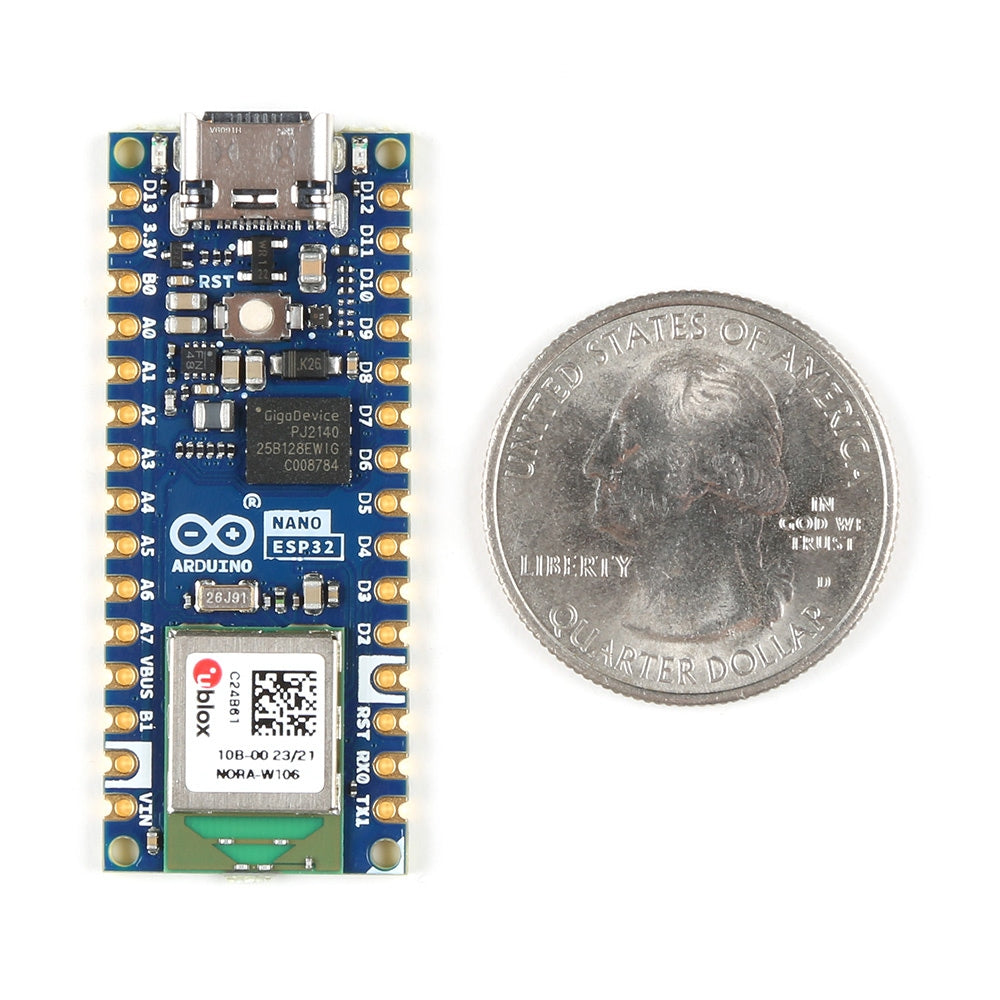

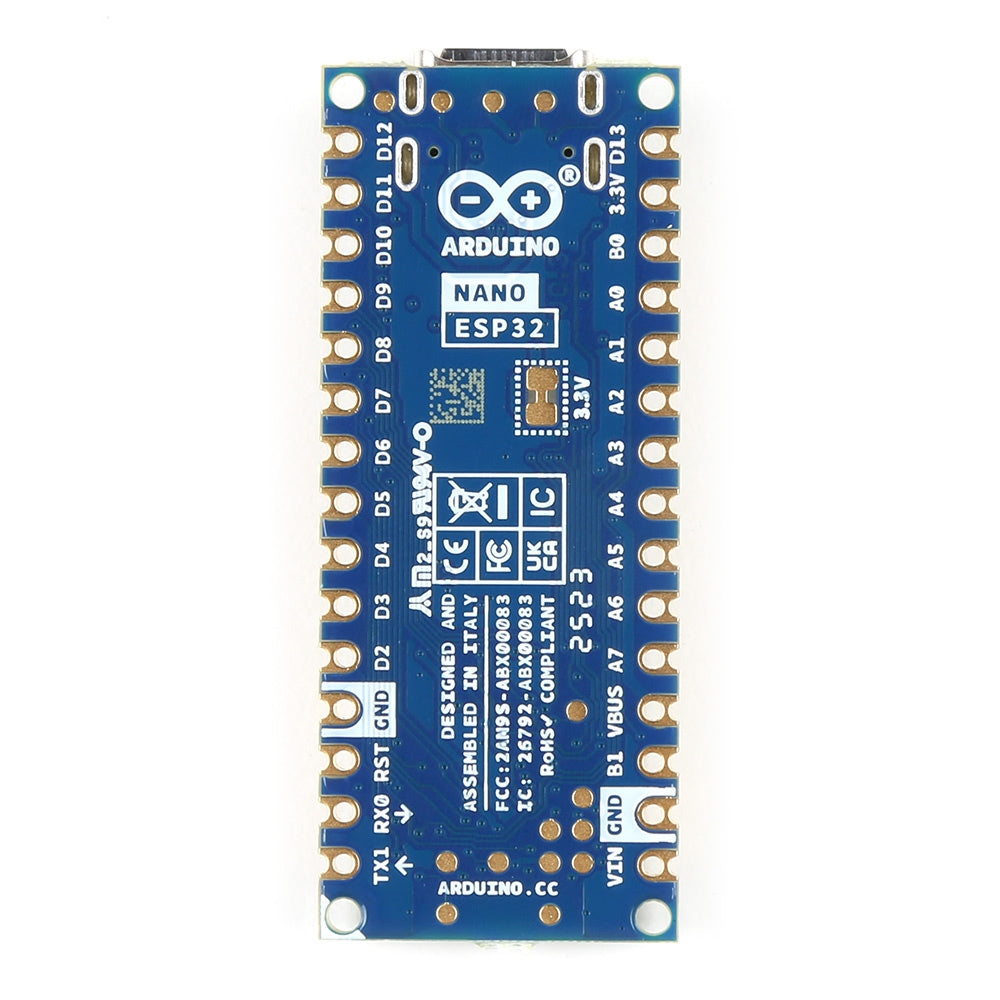

This board brings all the power of the well-known ESP32-S3 with the full support of the Arduino ecosystem.
Features & Specs
- Microcontroller: u-blox® NORA-W106 (ESP32-S3)
- USB Connector: USB-C
-
Pins:
-
Built-in LED Pin: 13 (RGB)
- Digital I/O Pins: 14
- Analog inupt pins: 8
- PWM pins: 5
- External interupts: All digital pins
- Connectivity: Wi-Fi®, Bluetooth®
-
Communication:
-
UART: 2x
- I2C: 1x, A4 (SDA), A5 (SCL)
- SPI: D11 (COPI), D12 (CIPO), D13 (SCK).
- Use any GPIO for Chip Select (CS)
- I/O Voltage: 3.3V
- Input Voltage (nominal): 6-21V
- Source Current per I/O Pin: 40mA
- Sink Current per I/O Pin: 20mA
- Clock Speed (Processor): up to 240MHz
- ROM: 384kB
- SRAM: 512kB
- External Flash: 128Mbit (16MB)
- Width: 18mm
- Length: 45mm
Features & Specs
- Microcontroller: u-blox® NORA-W106 (ESP32-S3)
- USB Connector: USB-C
-
Pins:
-
Built-in LED Pin: 13 (RGB)
- Digital I/O Pins: 14
- Analog inupt pins: 8
- PWM pins: 5
- External interupts: All digital pins
- Connectivity: Wi-Fi®, Bluetooth®
-
Communication:
-
UART: 2x
- I2C: 1x, A4 (SDA), A5 (SCL)
- SPI: D11 (COPI), D12 (CIPO), D13 (SCK).
- Use any GPIO for Chip Select (CS)
- I/O Voltage: 3.3V
- Input Voltage (nominal): 6-21V
- Source Current per I/O Pin: 40mA
- Sink Current per I/O Pin: 20mA
- Clock Speed (Processor): up to 240MHz
- ROM: 384kB
- SRAM: 512kB
- External Flash: 128Mbit (16MB)
- Width: 18mm
- Length: 45mm
Documentation
