Description

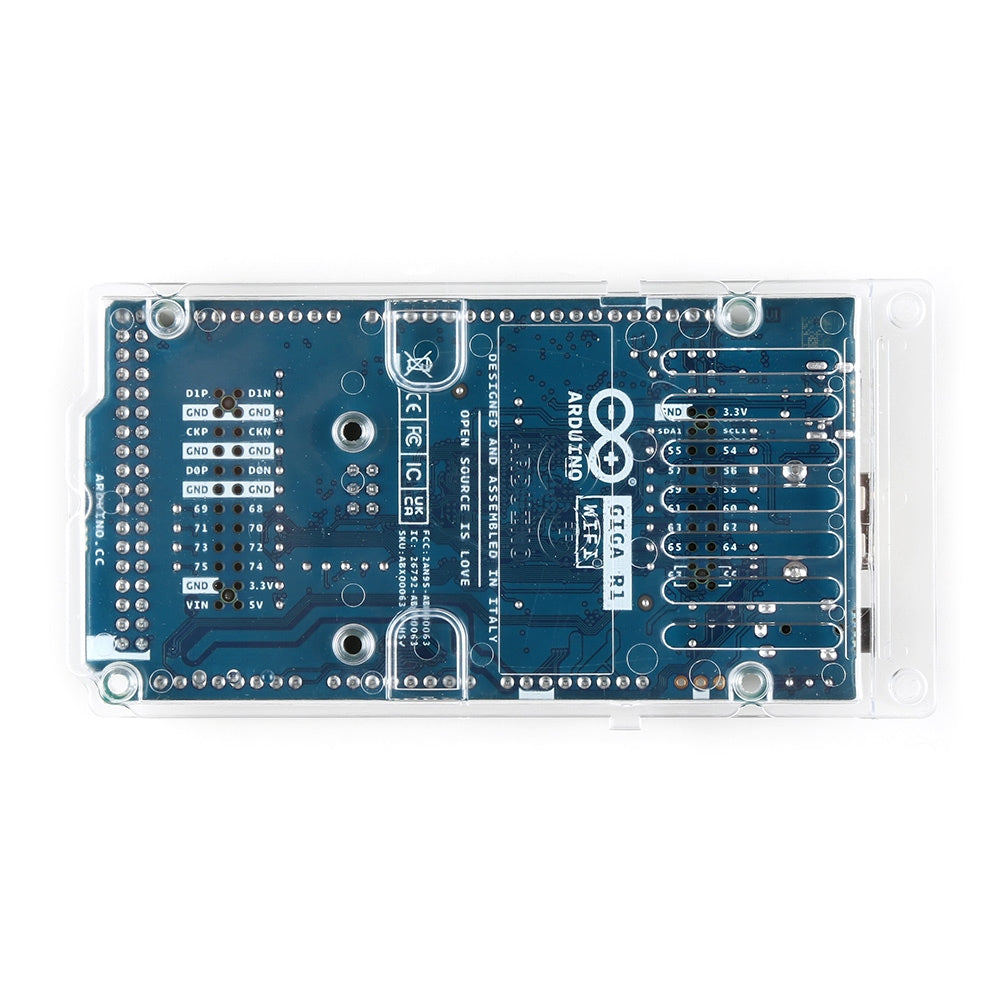

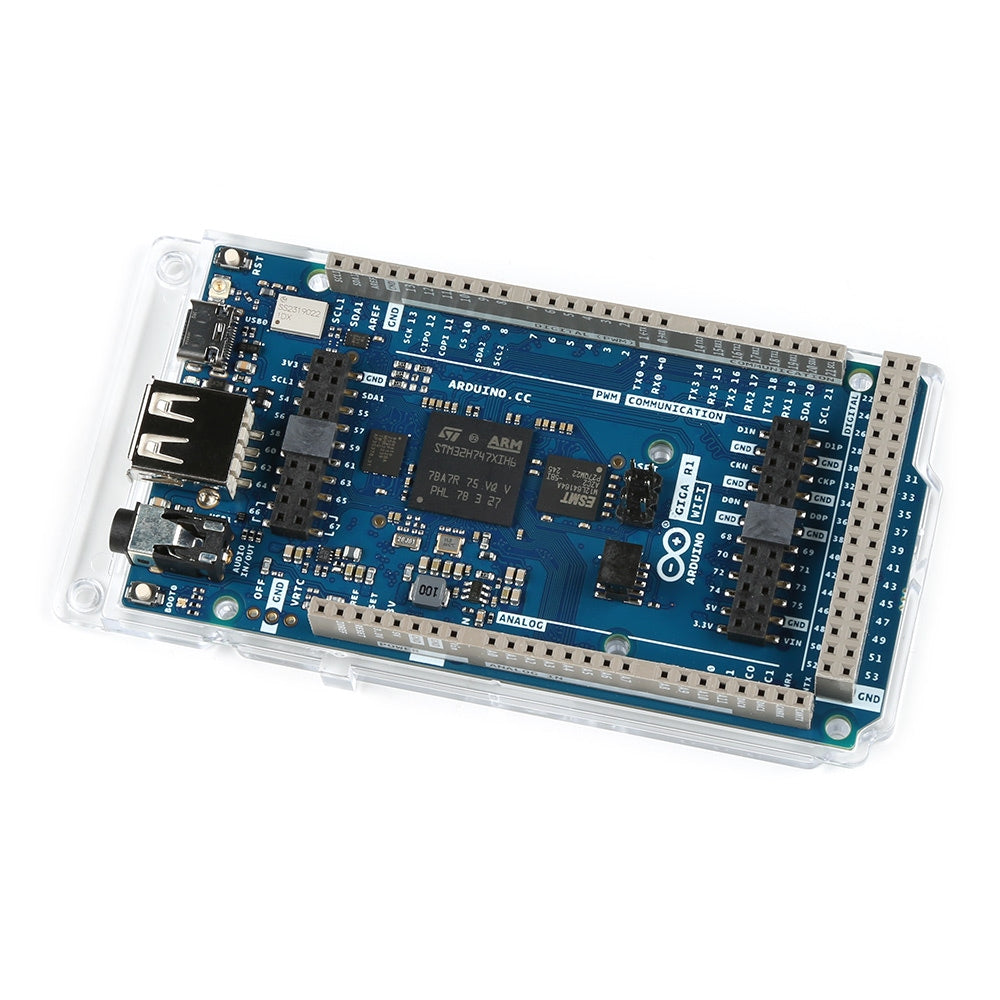

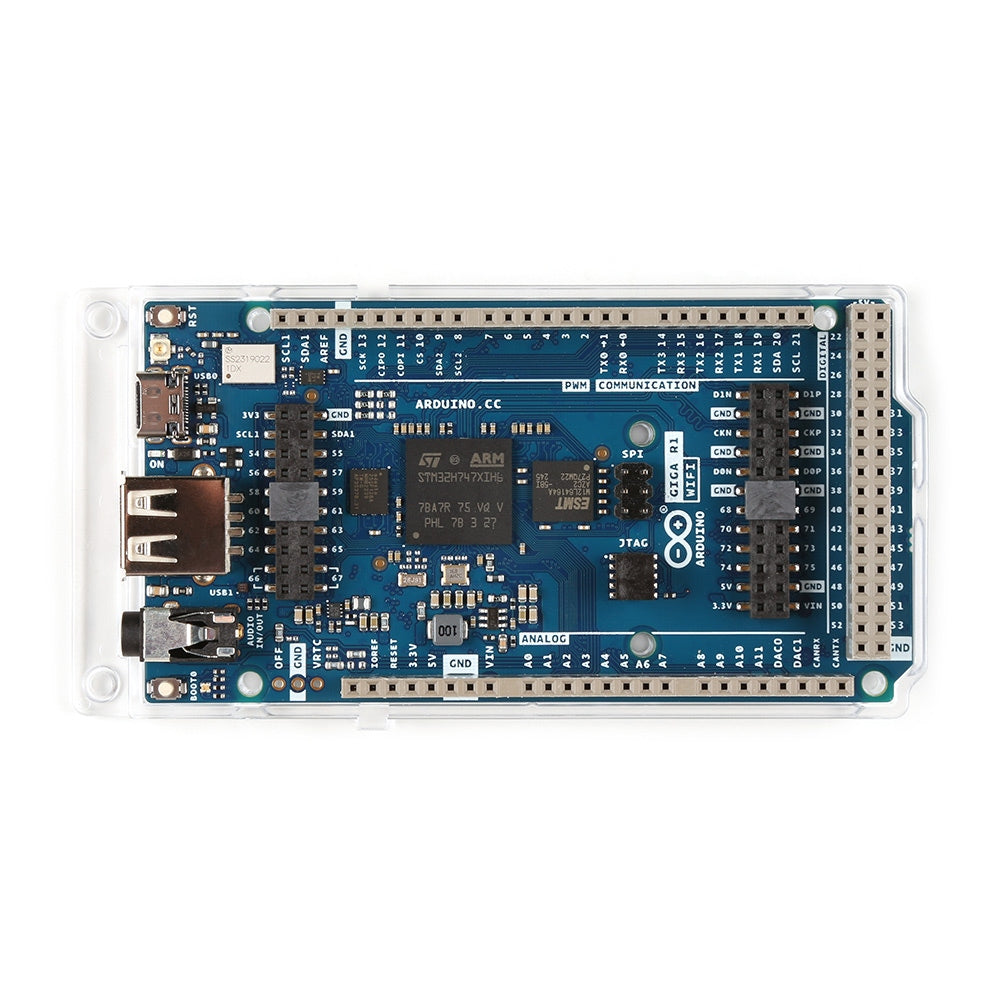

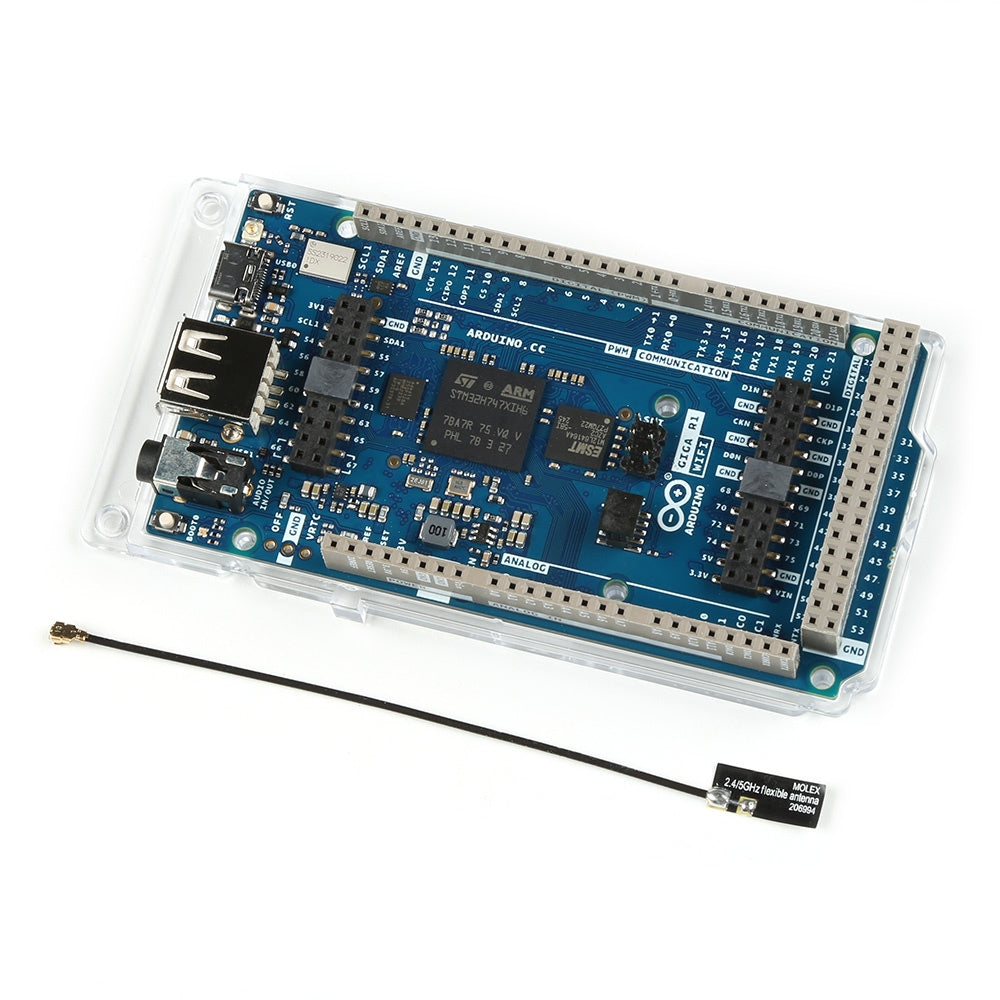

Arduino GIGA R1 WiFi. For ambitious makers with bigger ideas.
Features & Specs
- Microcontroller: STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU
- Radio Module: Murata 1DX dual WiFi 802.11b/g/n 65 Mbps and Bluetooth®
- Secure Element: ATECC608A-MAHDA-T
- USB:
- USB-C: Programming Port / HID
- USB-A: Host (enable with PA_15)
- Pins:
- Digital I/O Pins: 76
- Analog input pins: 12
- DAC: 2 (DAC0/DAC1)
- PWM pins: 12
- Misc: VRT & OFF pin
- Communication:
- UART: Yes, 4x
- I2C: Yes, 3x
- SPI: Yes, 2x
- CAN: Yes (requires an external transceiver)
- Connectors:
- Camera: I2C + D54-D67
- Display: D1N, D0N, D1P, D0P, CKN, CKP + D68-D75
- Audio Jack: DAC0, DAC1, A7
- Circuit Operating Voltage: 3.3V
- Input Voltage (VIN): 6-24V
- DC Current per I/O Pin: 8mA
- Clock Speed:
- Cortex® M7: 480MHz
- Cortex® M4: 240MHz
- Memory (STM32H747XI): 2MB Flash, 1MB RAM
- Width: 53mm
- Length: 101mm
Features & Specs
- Microcontroller: STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU
- Radio Module: Murata 1DX dual WiFi 802.11b/g/n 65 Mbps and Bluetooth®
- Secure Element: ATECC608A-MAHDA-T
- USB:
- USB-C: Programming Port / HID
- USB-A: Host (enable with PA_15)
- Pins:
- Digital I/O Pins: 76
- Analog input pins: 12
- DAC: 2 (DAC0/DAC1)
- PWM pins: 12
- Misc: VRT & OFF pin
- Communication:
- UART: Yes, 4x
- I2C: Yes, 3x
- SPI: Yes, 2x
- CAN: Yes (requires an external transceiver)
- Connectors:
- Camera: I2C + D54-D67
- Display: D1N, D0N, D1P, D0P, CKN, CKP + D68-D75
- Audio Jack: DAC0, DAC1, A7
- Circuit Operating Voltage: 3.3V
- Input Voltage (VIN): 6-24V
- DC Current per I/O Pin: 8mA
- Clock Speed:
- Cortex® M7: 480MHz
- Cortex® M4: 240MHz
- Memory (STM32H747XI): 2MB Flash, 1MB RAM
- Width: 53mm
- Length: 101mm
Documentation
- Giga R1 Datasheet
- STM32H747XI Datasheet
- Murata 1DX Datasheet
- ATECC608A-MAHDA-T Datasheet
- Giga R1 Schmatics
- Giga R1 Full-Pinout
