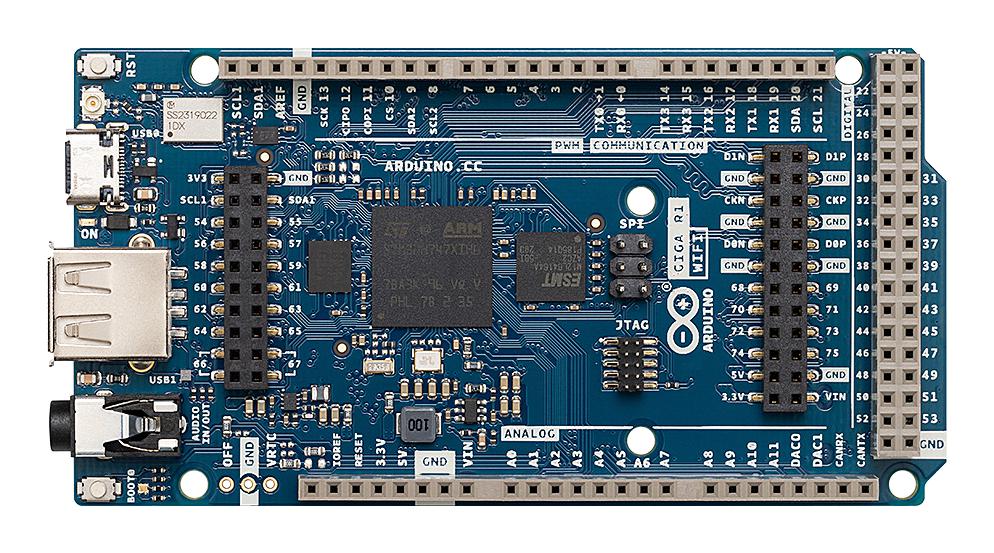

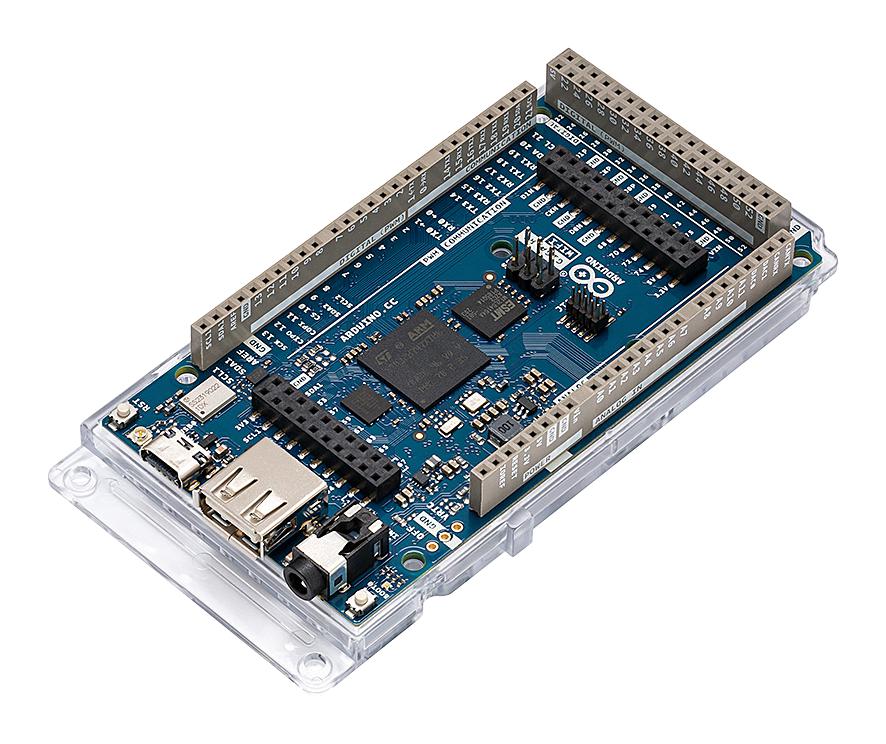

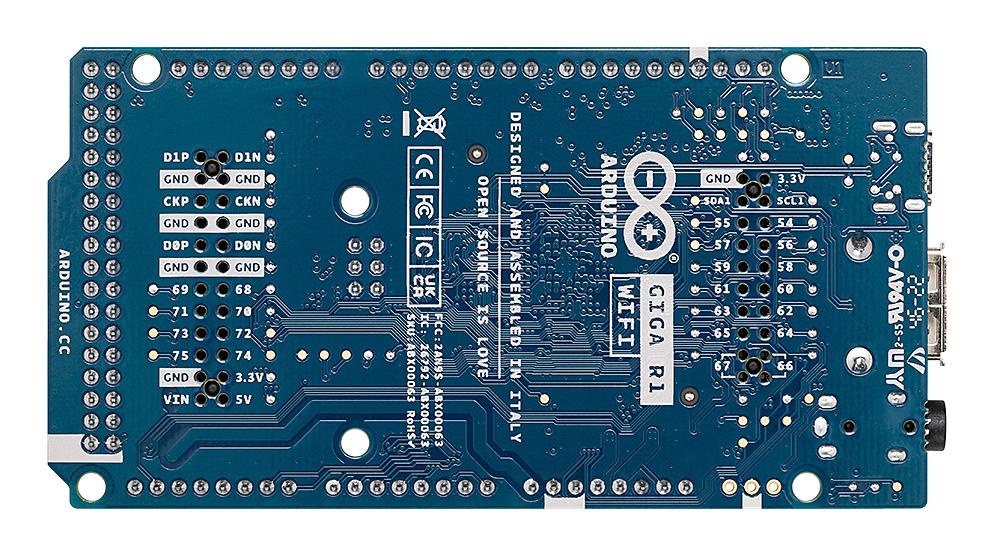

ABX00063 Arduino GIGA R1 WiFi brings the power of the STM32H7 to the Mega form factor, being the first Mega board to include onboard Wi-Fi® and Bluetooth® connectivity. The board provides 76 digital inputs/outputs (12 with PWM capability), 14 analog inputs and 2 analog outputs (DAC) all easily accessible via pin headers. The STM32 microprocessor with dual-core Cortex® M7 and Cortex® M4, together with onboard memory and audio jack enables you to perform machine learning and signal processing on the edge. Target areas are 3D printing, signal processing, maker and robotics. It features camera: 20 pin Arducam camera connector, display: D1N, D0N, D1P, D0P, CKN, CKP, D68-D75, audio jack: DAC0, DAC1, A7 and JTAG connector.
- STM32H747XIH6 dual core microcontroller, full set of DSP instructions, memory protection unit (MPU)
- Murata 1DX Wi-Fi®/Bluetooth® module, Wi-Fi® 802.11b/g/n 65Mbps, micro UFL conn for external antenna
- Bluetooth® low energy (version 5.X via Cordio stack, version 4.2 via Arduino Stack)
- STM32H747XI (2MB flash, 1MB RAM), AT25SF128A-MHB-T (16MB NORflash, QSPI), AS4C4M16SA (8MB SDRAM)
- Digital I/O pins: 76, analog input pins: 12, PWM pins: 12 analog output pins
- USB peripheral: USB-C®, logic level: 3.3V, VRTC: to power the RTC while the board is off
- 4x UART, 3x I2C, 2x SPI, 1x CAN (external transceiver required), (DAC0/DAC1): 2, USB host: USB 2.0 A
- Secure element ATECC608A-MAHDA-T module
- USB host USB 2.0 Type A (host), USB Peripheral USB-C® (programming port, HID)
- Circuit operating voltage: 3.3V, input voltage (VIN): 6-24V, DC current per I/O pin: 8mA
Contents

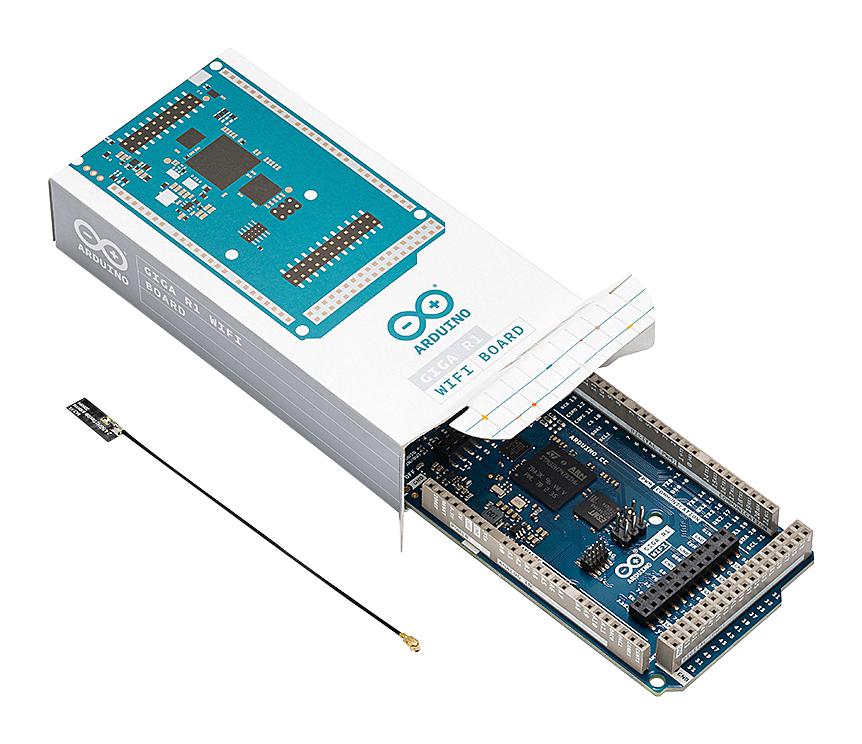

GIGA R1 board and micro UFL antenna
Product details
| Silicon Manufacturer |
STMicroelectronics |
| No. of Bits |
32bit |
| Silicon Family Name |
STM32 |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-M4F, Cortex-M7F |
| Silicon Core Number |
STM32H747XIH6 |
| Kit Contents |
GIGA R1 Board, Micro UFL Antenna |
| Product Range |
- |
Other details
| Brand |
ARDUINO |
| Part Number |
ABX00063 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
