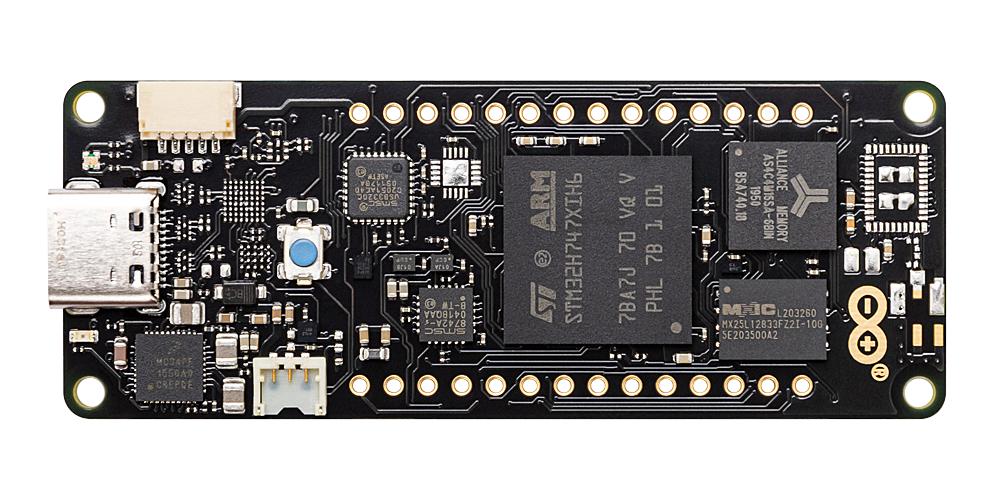

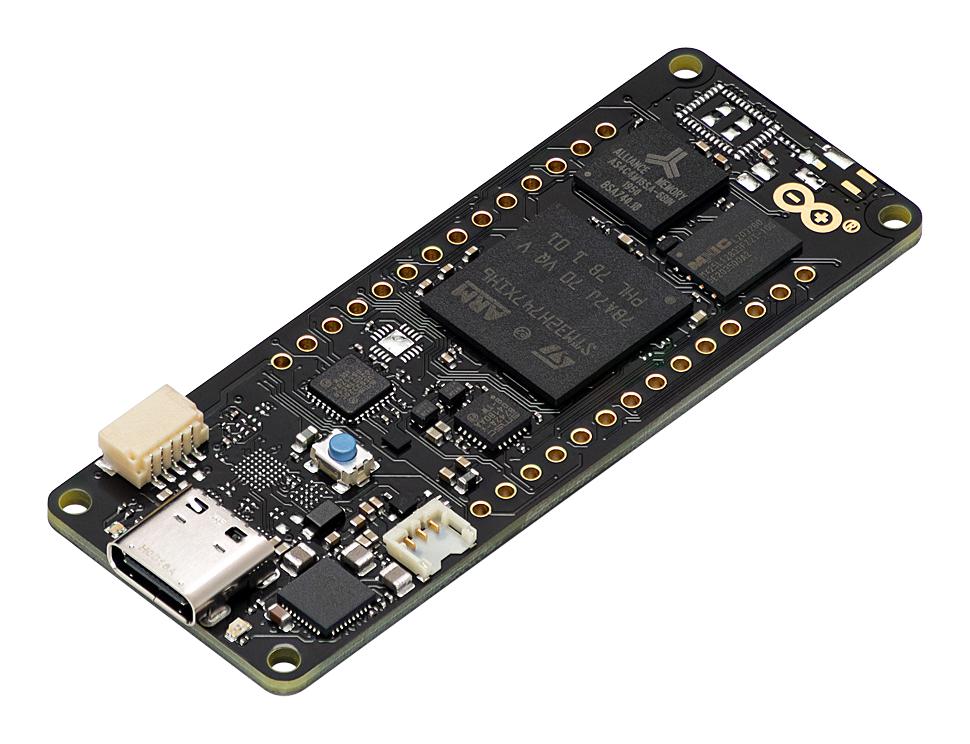

Portenta H7 Lite board is a cost-effective solution, designed for complex environments where radio communication is not suitable or possible. It is perfect for developers who want to leverage the computational power of the Portenta H7, without the need for video output or advanced security features. The Portenta H7 Lite simultaneously runs high-level code and real-time tasks thanks to its two processors. For example, it can execute Arduino-compiled and MicroPython code at the same time, and have the two cores communicate with one another.
- STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU
- 2.95µA current consumption in standby mode (backup SRAM OFF, RTC/LSE ON)
- 22x timers and watchdogs, 4x UART ports (2 with flow control)
- 10/100Mbps Ethernet (through expansion port only)
- Two 80 pin connectors will expose all of the module's peripherals to other devices
- 3 xADCs with 16-bit max. resolution (up to 36 channels, up to 3.6MSPS), 2 x 12-bit DAC (1MHz)
Product details
| Silicon Manufacturer |
STMicroelectronics |
| No. of Bits |
32bit |
| Silicon Family Name |
STM32 |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-M4F, Cortex-M7F |
| Silicon Core Number |
STM32H747XI |
| Kit Contents |
Portenta H7Â Dev Board STM32H747XI |
| Product Range |
- |
Other details
| Brand |
ARDUINO |
| Part Number |
ABX00045 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
