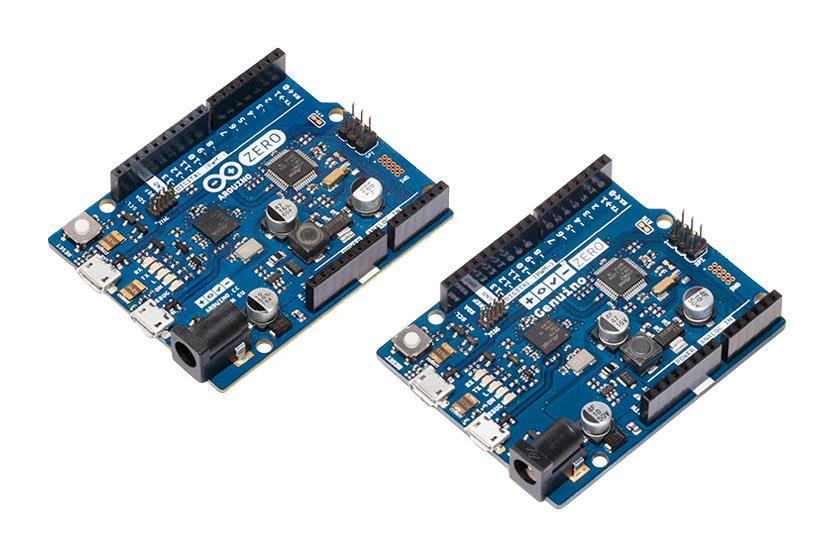

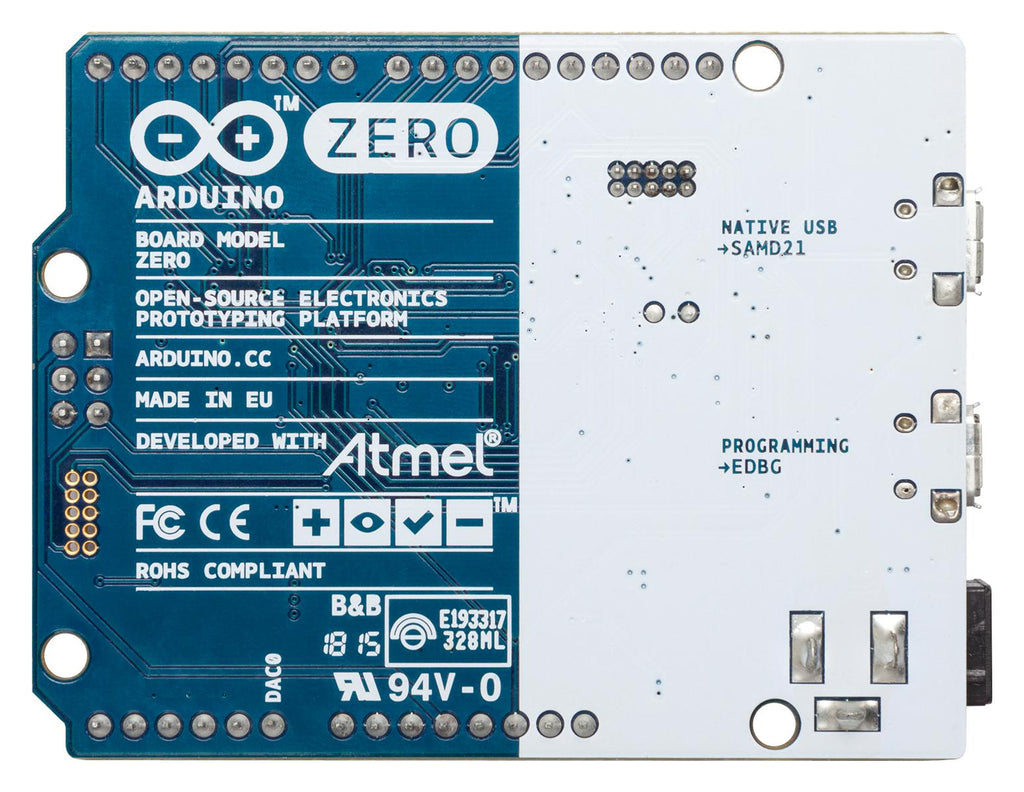

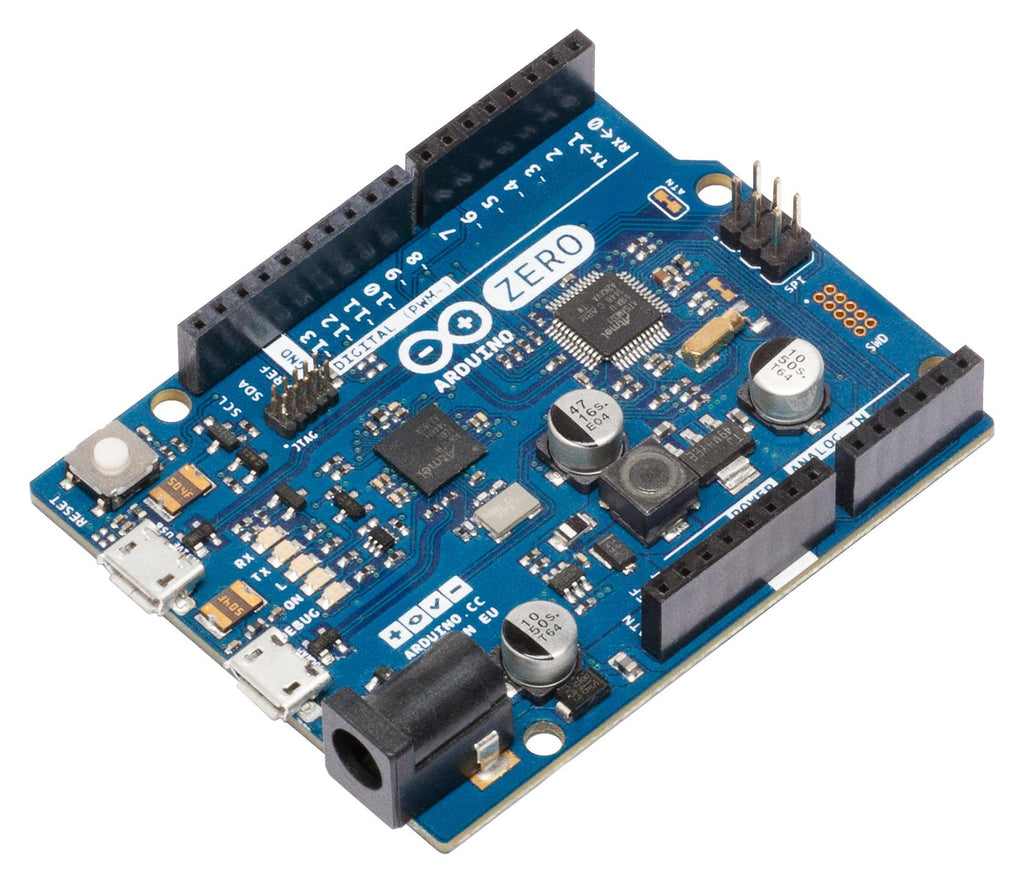

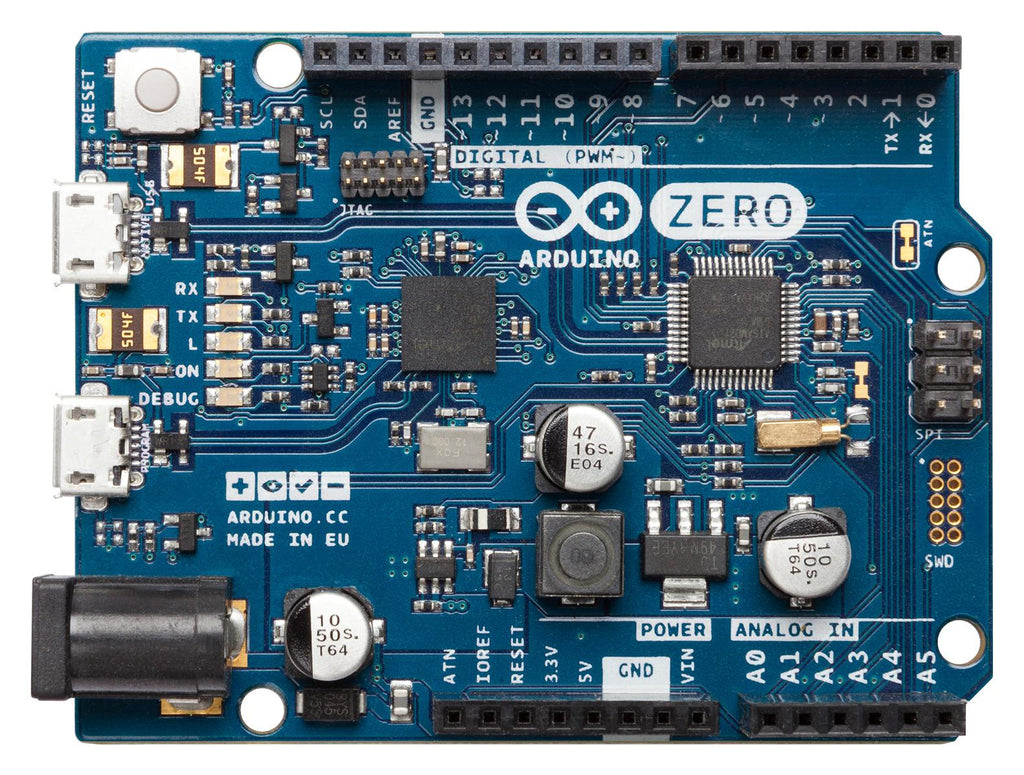

Arduino Zero board is a simple and powerful 32-bit extension of the platform established by the UNO. The Zero board expands the family by providing increased performance, enabling a variety of project opportunities for devices, and acts as a great educational tool for learning about 32-bit application development. The zero applications span from smart IoT devices, wearable technology, high-tech automation, to crazy robotics. The board is powered by Atmel's SAMD21 MCU, which features a 32-bit ARM Cortex® M0+ core. One of its most important features is Atmel's Embedded Debugger (EDBG), which provides a full debug interface without the need for additional hardware, significantly increasing the ease-of-use for software debugging. EDBG also supports a virtual COM port that can be used for device and bootloader programming.
- Zero is compatible with all the shields that work at 3.3V and compliant with the 1.0 Arduino pinout
Warnings Maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board.
Product details
| Silicon Manufacturer |
Microchip |
| No. of Bits |
32bit |
| Silicon Family Name |
ATSAMD21 |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-M0+ |
| Silicon Core Number |
ATSAMD21G18 |
| Kit Contents |
Arduino Board Zero ATSAMD21G18 |
| Product Range |
- |
Other details
| Brand |
ARDUINO |
| Part Number |
ABX00003 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
