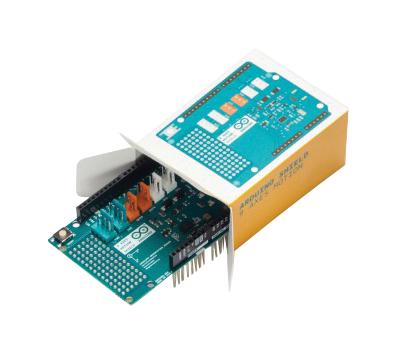

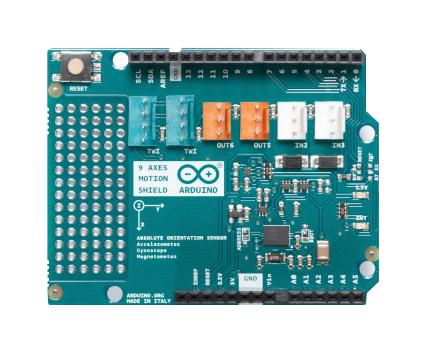

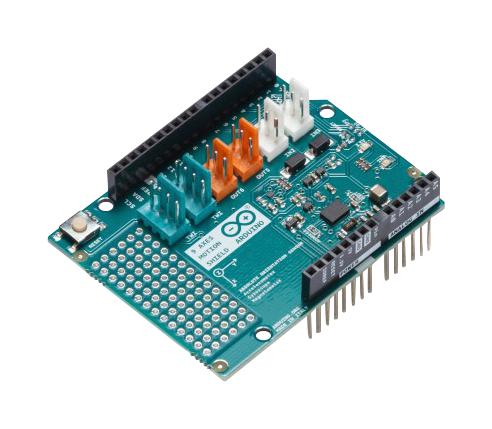

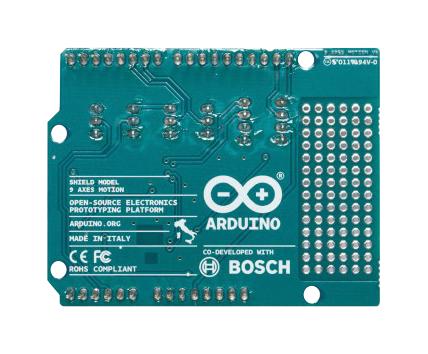

The 9 Axes Motion Shield is based on the BNO055 absolute orientation sensor featuring an integrated 14-bit accelerometer, 16-bit gyroscope, triaxial geomagnetic sensor and 32-bit microcontroller. The sensor features 3D acceleration, yaw rate and magnetic field strength data each in 3 perpendicular axes. It is TinkerKit compatible allowing you to quickly create projects by plugging TinkerKit modules to the board.
- Provides sensor fusion signals such as Quaternion, rotation and gravity vectors
- Allows triggering interrupts based on motion or high G detection
- Powered by connection to Arduino
- TinkerKit interfaces: 2 input, 2 output and 2 TWI
- Runs the BSX3.0 FusionLib software
Product details
| Silicon Manufacturer |
Bosch |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
BNO055 |
| Silicon Family Name |
- |
| For Use With |
Arduino Boards |
| Kit Contents |
9-Axes Motion Shield |
| Product Range |
- |
Other details
| Brand |
ARDUINO |
| Part Number |
A000070 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
