Description

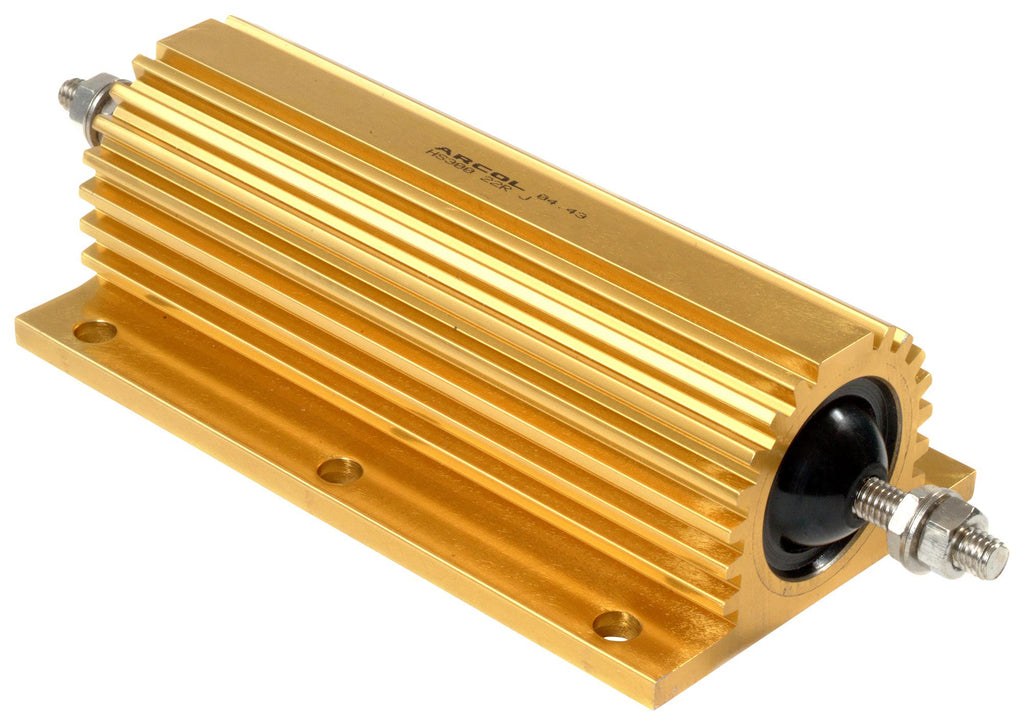

The HS75 series resistors from Arcol/Ohmite are aluminium housed resistors. These resistors are manufactured in line with the requirements of MIL 18546 and IEC 115 standards. The HS75 series resistors are designed for direct heatsink mounting with thermal compound to achieve maximum performance.
- Resistance values ranges from 0.01ohm to 50Kohm
- Available with �1%, �2%, �3%, �5% and �10% tolerance values
- High power to volume
- Wound to maximise high pulse capability
- Power rating on standard heatsink is 75W at 25�C and 24W without heatsink at 25�C
- Temperature coefficients of 100ppm/�C (<1Kohm) and 25ppm/�C (>1Kohm )
- At high ambient temperature dissipation derates linearly to zero at 200�C
- Minimum insulation resistance (dry) is 10000Mohm
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices, Aerospace, Defence, Military
Product details
| Temperature Coefficient | � 100ppm/�C |
| Power Rating | 75W |
| Resistor Element Material | Wirewound |
| Resistance | 150ohm |
| Resistance Tolerance | � 5% |
| Product Range | HS Series |
| Resistor Terminals | Axial Leaded |
| Voltage Rating | 1.4kV |
Other details
| Brand | ARCOL/OHMITE |
| Part Number | HS75150RJ |
| Quantity | Each |
| Technical Data Sheet EN |  |
