Description

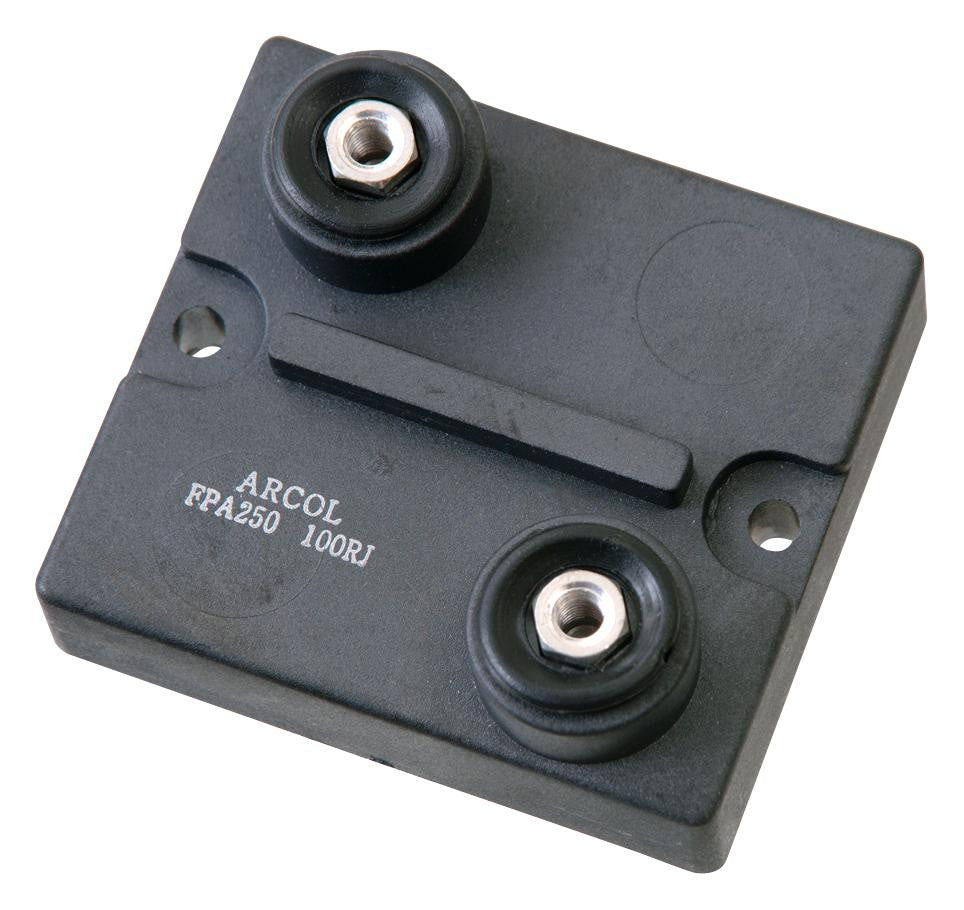

The FPA250 series from Arcol/Ohmite are thick film power resistors. Non inductive design of these elements is ideally suited for high frequency and pulse load applications.
- Resistance range includes E6 decade values from 1ohm to 2Mohm
- Maximum working voltage of 5KVDC
- Power rating range from 100W to 250W
- Very good power/volume ratio
- Available with �1%, �5% tolerance values
- Temperature coefficient is 100ppm/�C
- Working temperature range from -55�C to 155�C
- Dielectric strength is 7KV
- Insulation resistance of >=10Gohm at 500V
- Typical inductance is 40nH
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Temperature Coefficient | � 100ppm/�C |
| Power Rating | 250W |
| Resistor Element Material | Thick Film |
| Resistance | 100kohm |
| Resistance Tolerance | � 5% |
| Product Range | FPA250 Series |
| Resistor Terminals | Screw |
| Voltage Rating | 5kV |
Other details
| Brand | ARCOL/OHMITE |
| Part Number | FPA250 100K J |
| Quantity | Each |
| Technical Data Sheet EN |  |
