Description

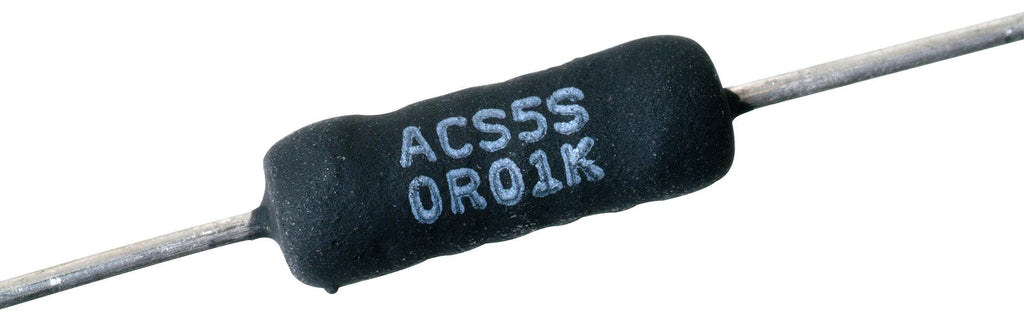

The ACS5S series from Arcol/Ohmite are silicone coated axial leaded resistors. Design of the ACS resistor provides a good balance of power density, stability and resistance to environment for a broad range of industrial power applications such as drives and controls. Resistance range include E24 and E12 decade values (for values >10K).
- Inductive resistance range of 0.05ohm to 22Kohm & non inductive resistance range of 0.05ohm to 2Kohm
- Body diameter is 4.78mm (�0.8) and 0.8mm (�0.02) drill hole
- 35mm (�1) lead length and 12.7mm (�1.5) body length
- Operating temperature range from -55�C to 275�C
- Good ratio between power capability and physical size
- Wound to maximise high pulse capability, low inductive versions available
- Temperature coefficient of resistance wire is �20ppm
- Available with �1%, �5% tolerance values
- Insulation resistance of 1000Mohm (> 100V) and dielectric withstand voltage is 500V
- Continuous working voltage is 157V and rated power is 5W
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Temperature Coefficient | � 90ppm/�C |
| Power Rating | 5W |
| Resistor Element Material | Wirewound |
| Automotive Qualification Standard | - |
| Resistance | 0.1ohm |
| Resistance Tolerance | � 5% |
| Product Range | ACS Series |
| Resistor Case Style | Axial Leaded |
| Voltage Rating | 157V |
Other details
| Brand | ARCOL/OHMITE |
| Part Number | ACS5SR1J |
| Quantity | Each |
| Technical Data Sheet EN |  |
