Description

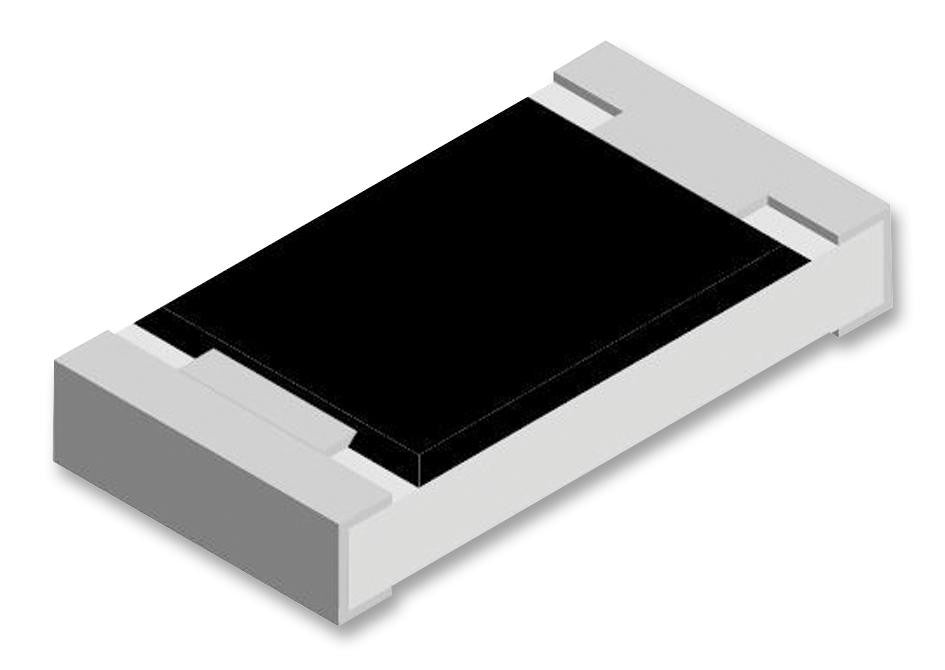

The ACPP0805 series from Arcol/Ohmite are thin film, precision surface mount passivated resistors.
- Resistance values ranges from 10 ohm to 1Mohm
- 0805 case size
- Passivated range for superior humidity performance
- Operating temperature range from -55°C to 155°C
- Available with ±0.1% and ±0.25% tolerance values
- Temperature coefficient of ±15ppm/°C, ±25ppm/°C, ±50ppm/°C
- Continuous working voltage is 100V and rated power is 100mW
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Resistance | 18kohm |
| Resistor Case Style | 0805 [2012 Metric] |
| Voltage Rating | 100V |
| Resistor Element Material | Thin Film |
| Resistance Tolerance | ± 0.1% |
| Product Range | ACPP Series |
| Automotive Qualification Standard | - |
| Temperature Coefficient | ± 25ppm/°C |
| Power Rating | 100mW |
| Packaging | Cut Tape |
Other details
| Brand | ARCOL/OHMITE |
| Part Number | ACPP080518KBE |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
