| ₹ 50.11 includes GST and import duties. | |
| B2B customers can avail ₹ 7.64 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

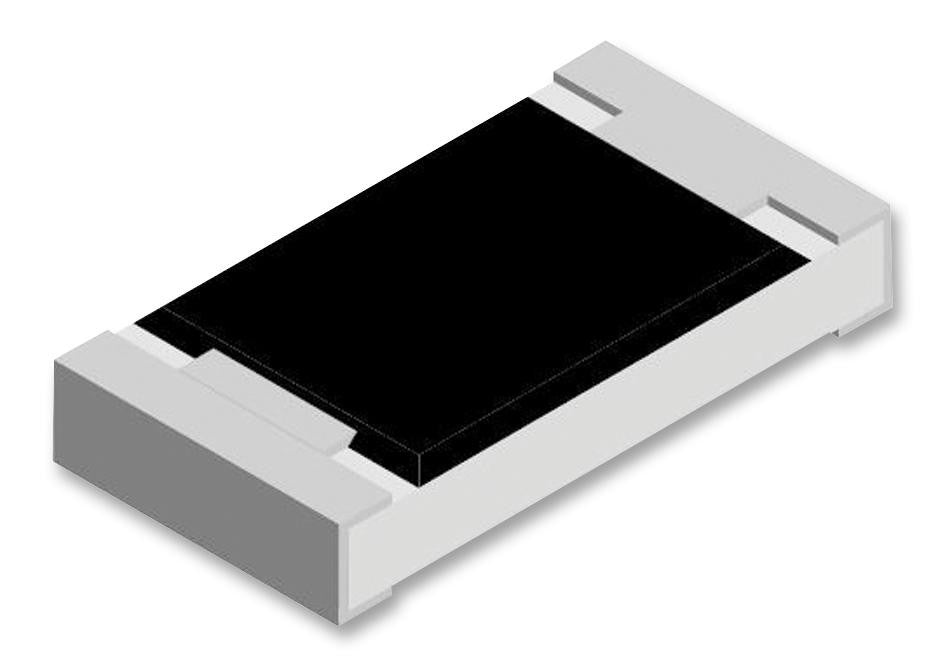

The ACPP0603 series from Arcol/Ohmite are thin film, precision surface mount passivated resistors.
- Resistance values ranges from 24.9ohm to 332Kohm
- 0603 case size
- Passivated range for superior humidity performance
- Operating temperature range from -55�C to 155�C
- Available with �0.1% and �0.25% tolerance values
- Temperature coefficient of �15ppm/�C, �25ppm/�C, �50ppm/�C
- Continuous working voltage is 50V and rated power is 62.5mW
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Resistance | 330ohm |
| Resistor Case Style | 0603 [1608 Metric] |
| Voltage Rating | 50V |
| Resistor Element Material | Thin Film |
| Resistance Tolerance | � 0.1% |
| Product Range | ACPP Series |
| Automotive Qualification Standard | - |
| Temperature Coefficient | � 25ppm/�C |
| Power Rating | 62.5mW |
| Packaging | Cut Tape |
Other details
| Brand | ARCOL/OHMITE |
| Part Number | ACPP0603330RBE |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 49.11 |
| 3-5 | ₹ 48.61 |
| 5-10 | ₹ 47.6 |
| 10+ | ₹ 46.6 |
Bulk discount will be automatically applied during checkout based on quantity.
