Description

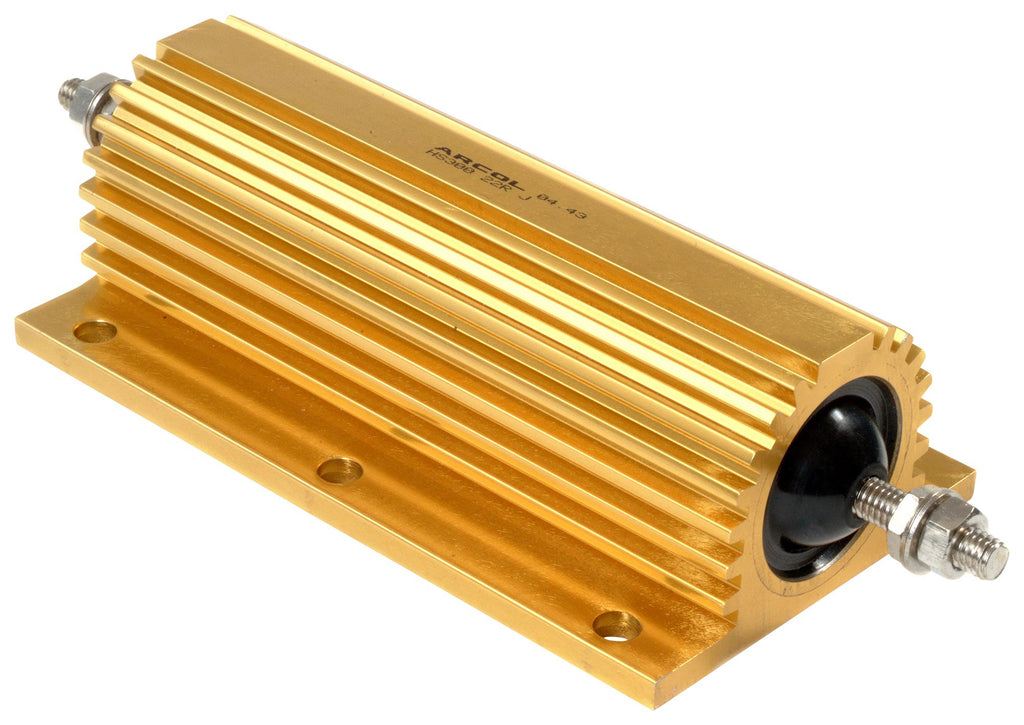

The HS300 10R F from Arcol/Ohmite is HS series 300W aluminium housed resistor. Manufactured in line with the requirements of MIL 18546 and IEC 115, designed for direct heatsink mounting with thermal compound to achieve maximum performance. The wire wound design is used to maximise the high pulse characteristics, the power dissipates linearly to zero, even at high ambient temperatures. Its advanced design optimises stability, linearity and reliability making the HS resistors suitable for many applications including braking resistor, inrush limiter, inverter/converter, snubber and balancing resistor.
- Resistance value is 10 ohm with 1% tolerance
- Temperature coefficient is 100ppm
- Minimum insulation resistance is 10000Mohm
- Limiting element voltage is 2500V
- Voltage proof AC RMS is 5000V
- Power rating without heatsink is 60W
- High Power Resistor
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Resistance: 10ohm |
| Product Range: HS Series |
| Power Rating: 300W |
| Resistance Tolerance: ± 1% |
| Resistor Terminals: Threaded Stud |
| Voltage Rating: 2.5kV |
| Resistor Technology: Wirewound |
| Temperature Coefficient: ± 100ppm/°C |
| Resistor Type: High Power |
| Resistor Mounting: Panel Mount |
| Product Length: 127.7mm |
| Product Width: 72.5mm |
| Product Height: 41.8mm |
| Operating Temperature Min: - |
| Operating Temperature Max: - |
| Qualification: MIL-PRF-18546 |
Other details
| Brand | ARCOL |
| Part Number | HS300 10R F |
| Quantity | Each |
| Technical Data Sheet EN |  |
